Schantz Organ Co. Opus 1419 (1978)

Trinity United Methodist Church: Sanctuary
1400 Oxmoor Rd.
Homewood (Birmingham), AL

Images

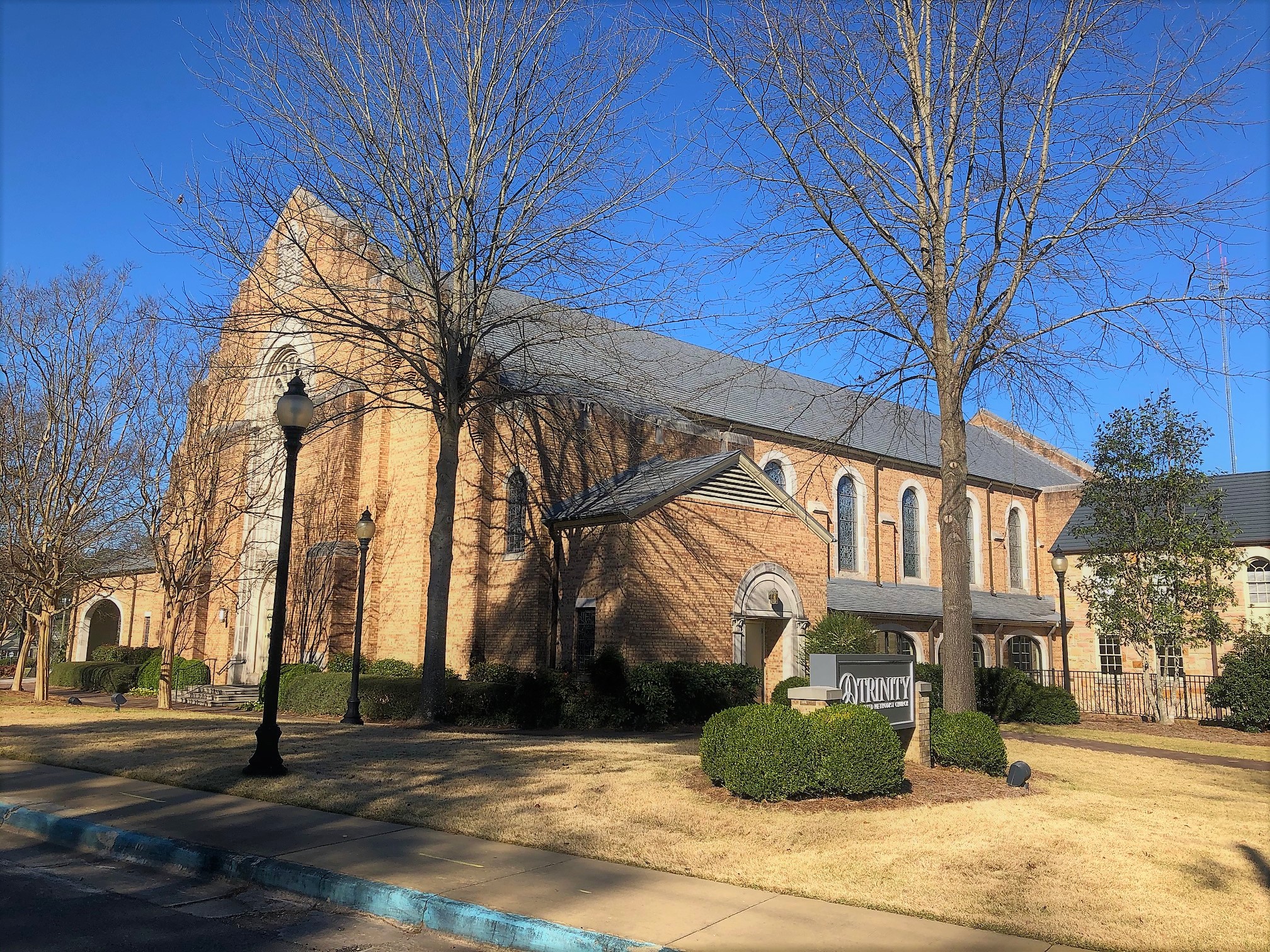

2022-01-11 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

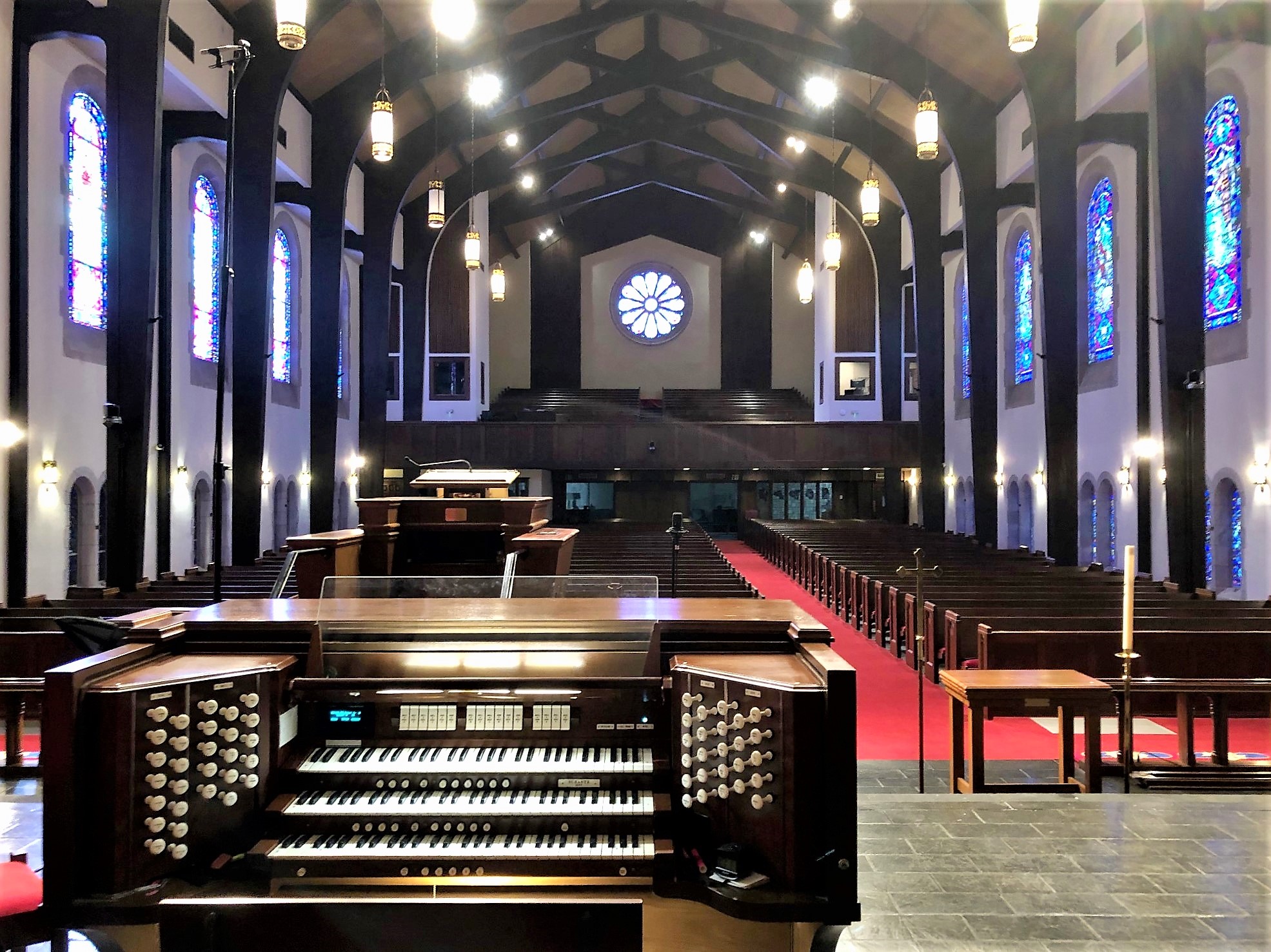

2022-01-11 - Console and nave to rear (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

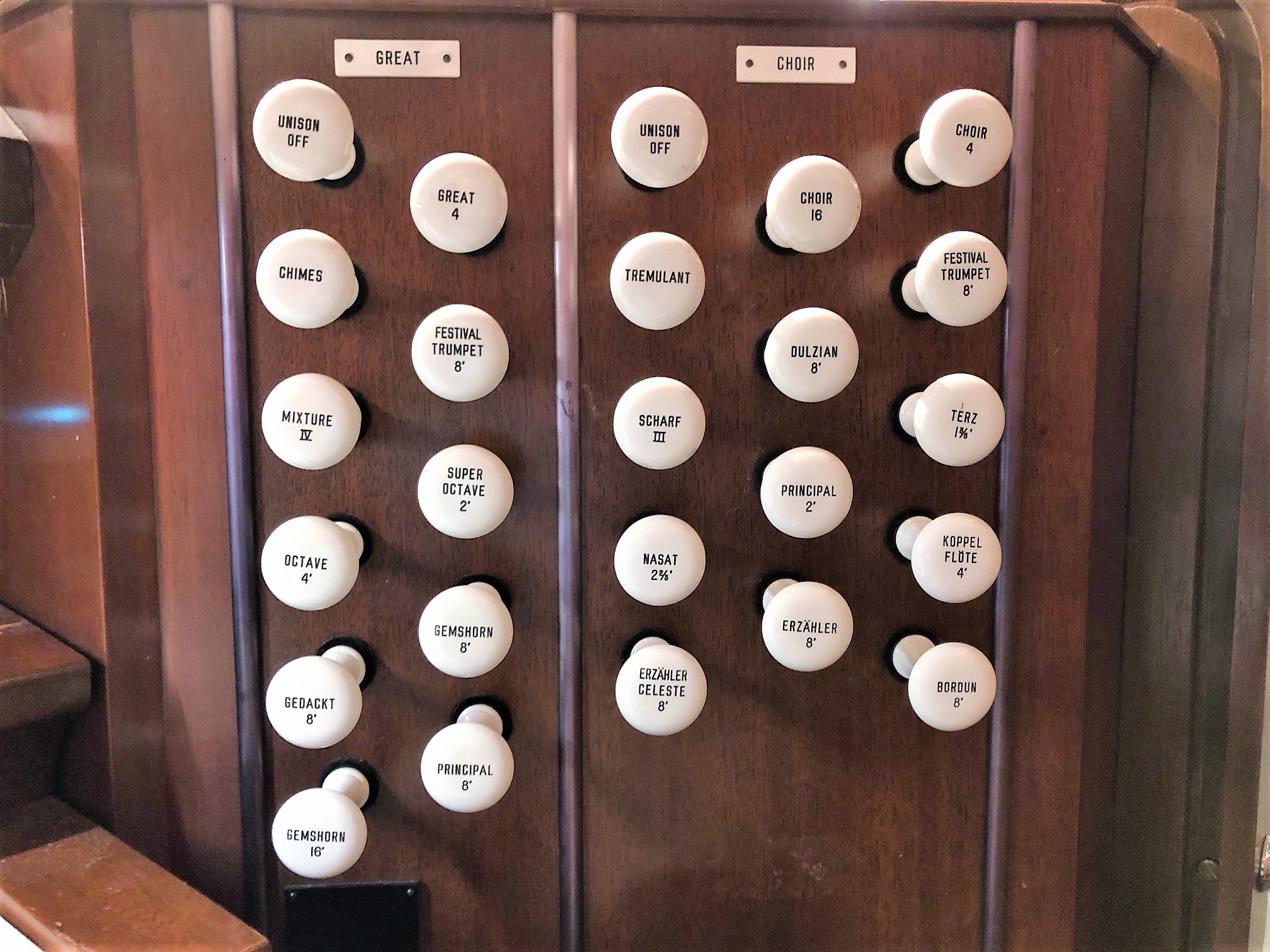

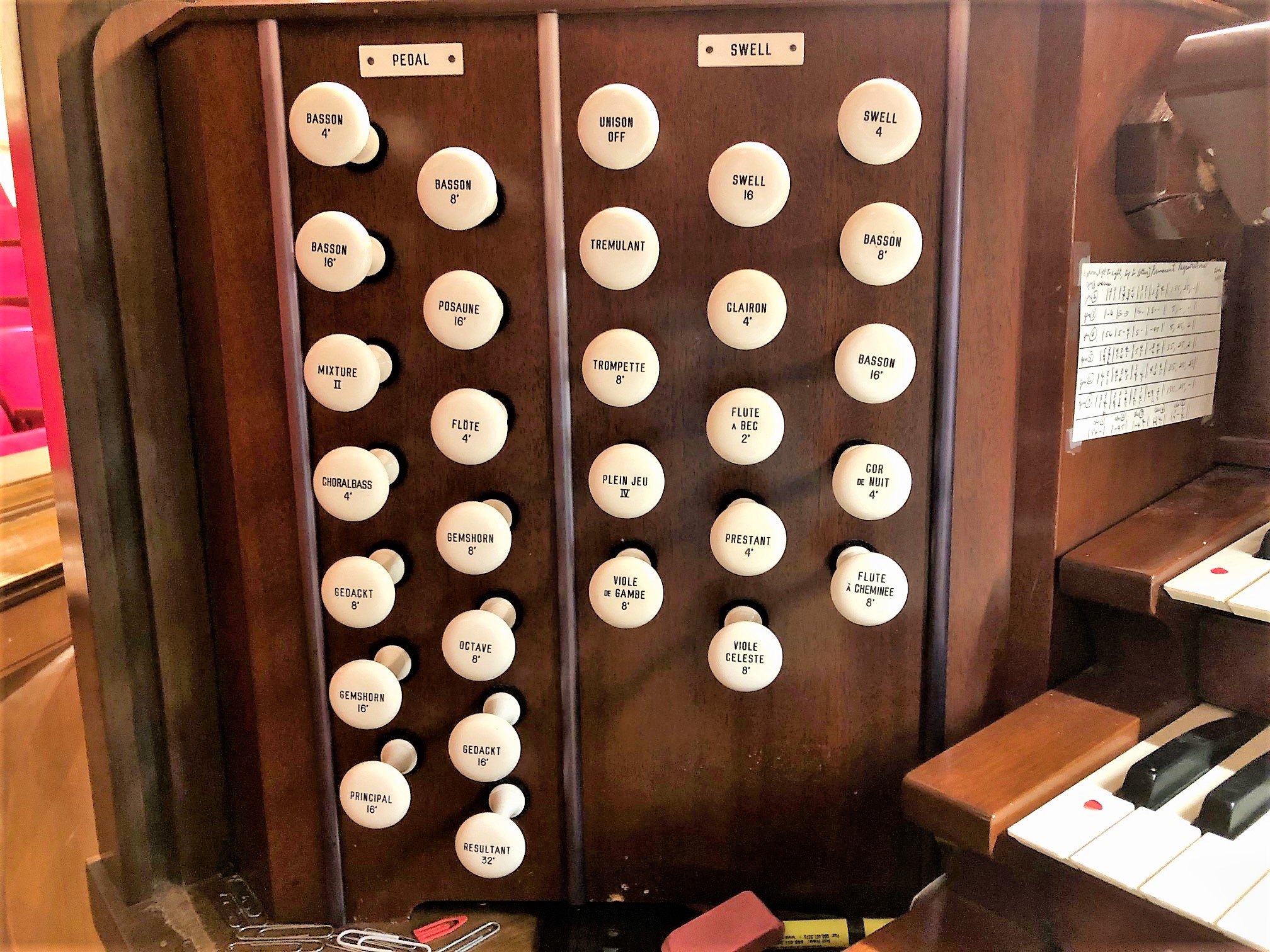

2022-01-11 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

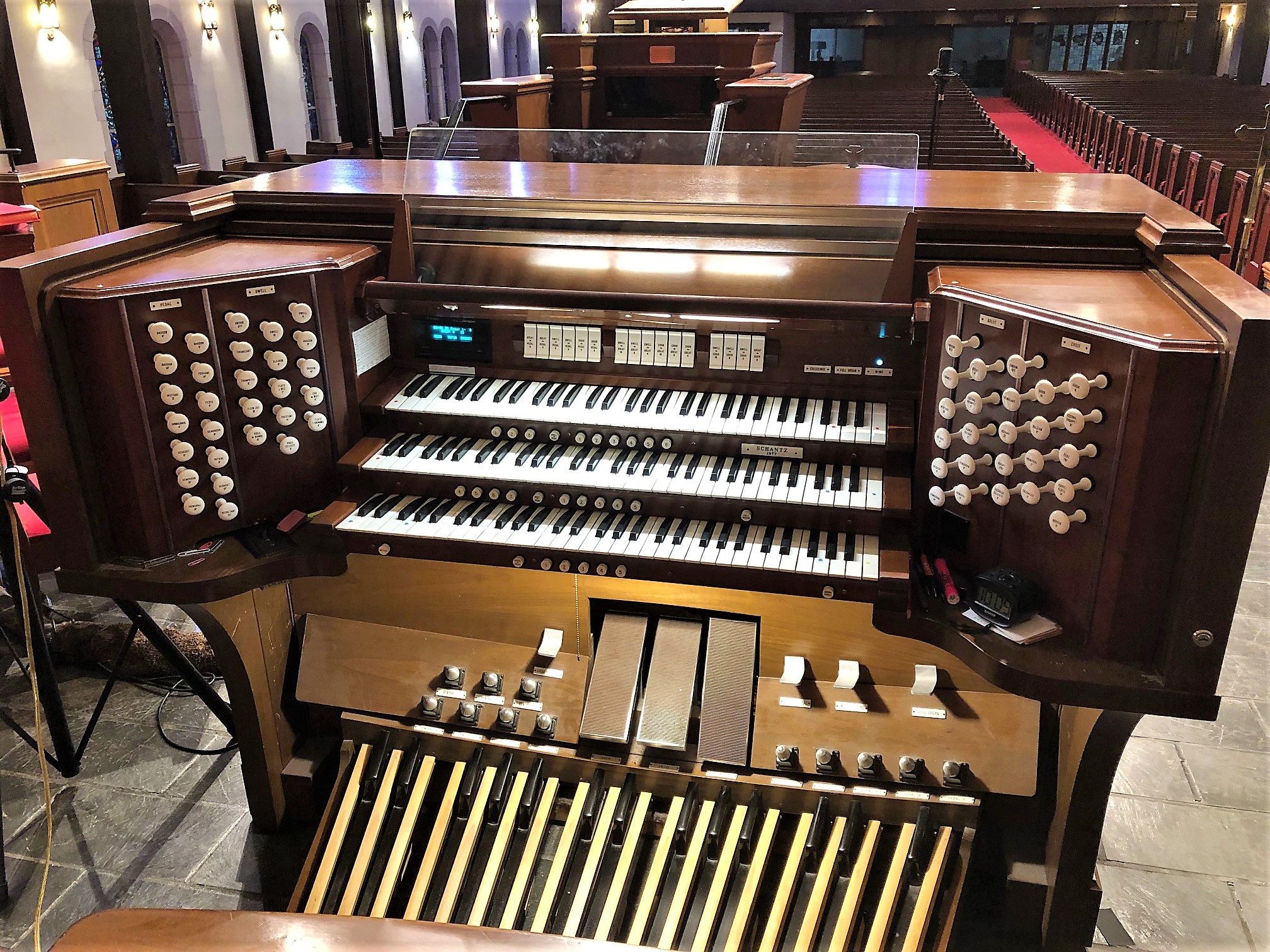

2022-01-11 - Console (Photograph by Jeff Scofield/Jeff Scofield)

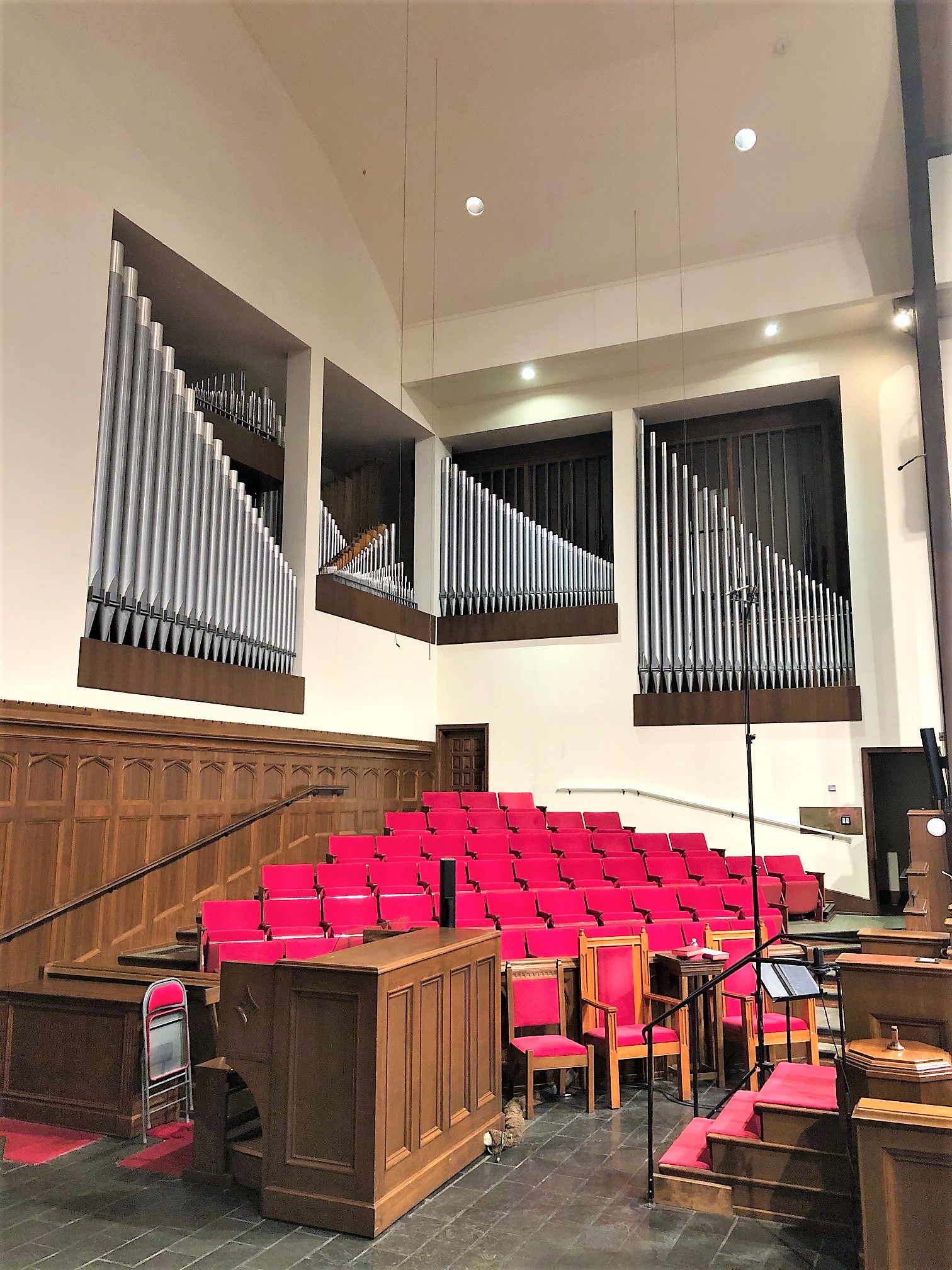

2022-01-11 - Chancel and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

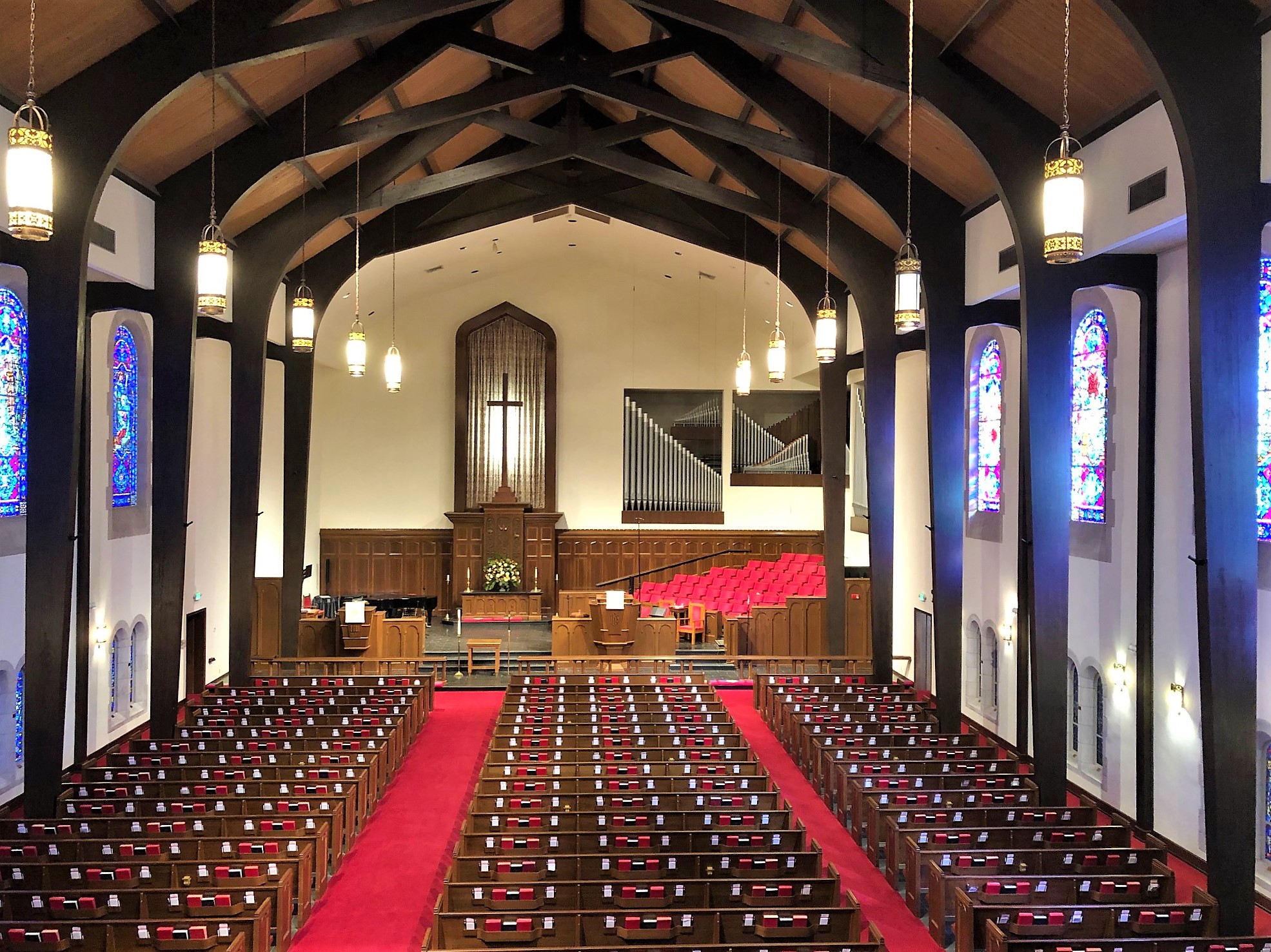

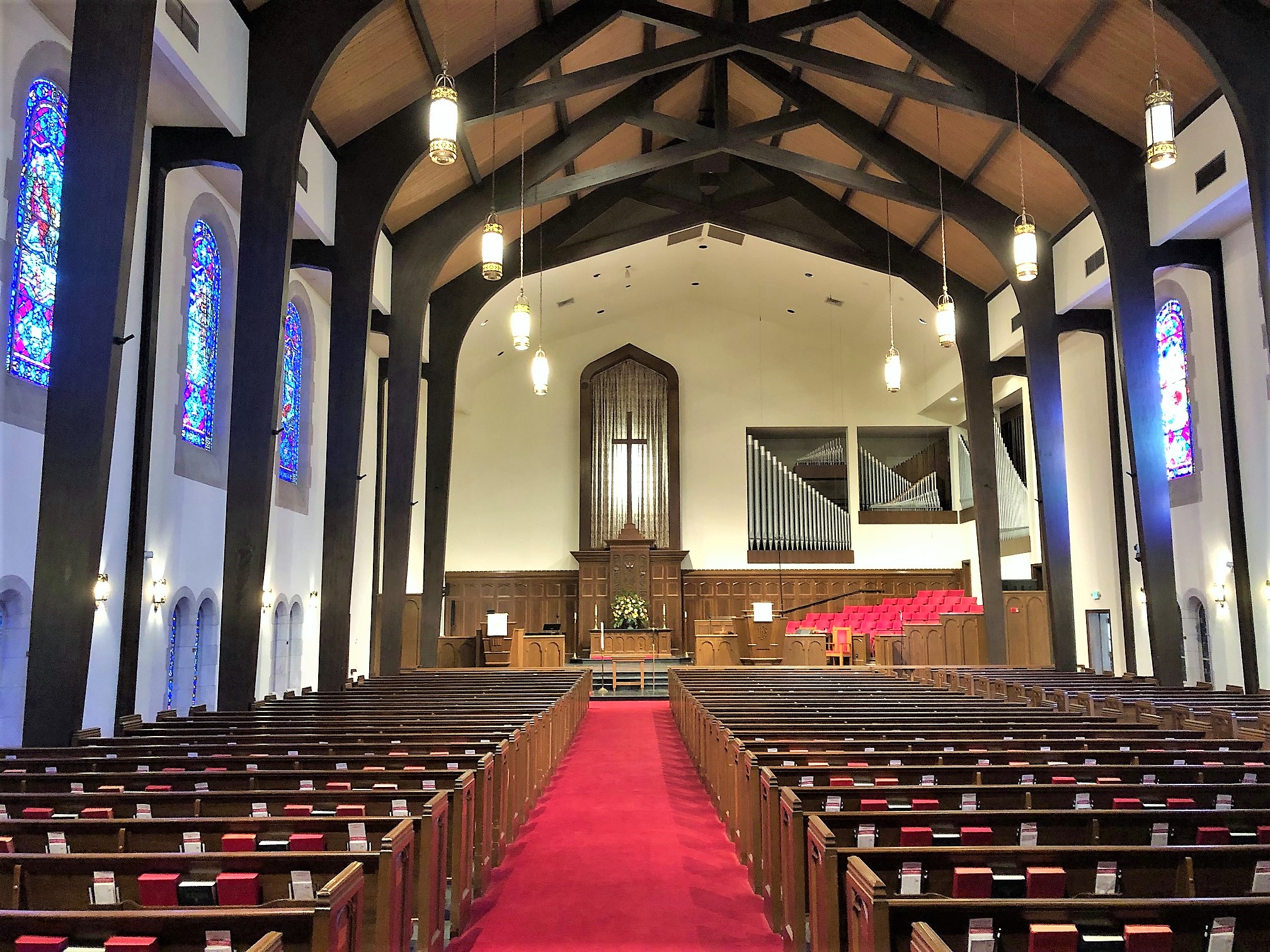

2022-01-11 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

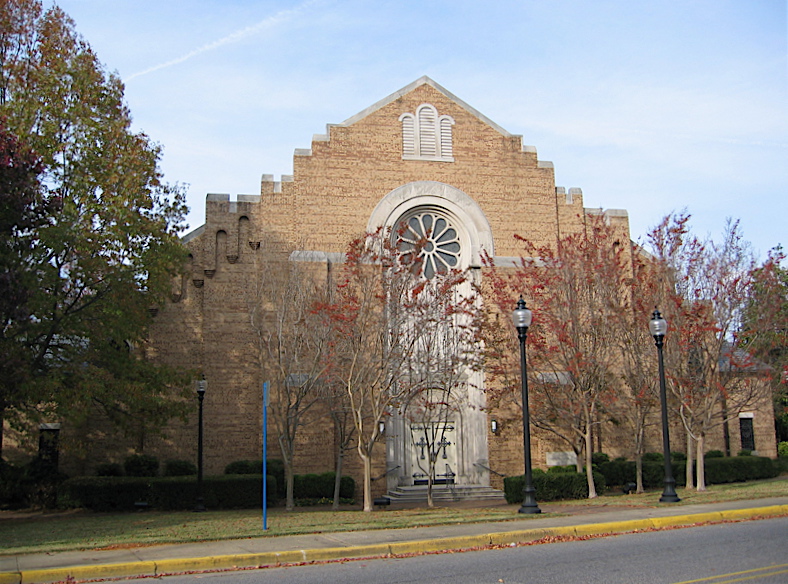

2006-11-06 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
30 stops
44 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-06-20 - Some minor revoicing done c. 2000. -Database Manager

2005-06-20 - From Jeff Scofield: "A most impressive-looking sanctuary - quite dramatic. Even though nobody could tell me who the architect was, it has all the earmarks of a Harold Wagoner design - off-center aisle, choir tossed into one corner. The sanctuary's streetside facade is rather interesting-looking in relation to the interior. The organ sounds quite nice, though it's too small for the large space. The church has over 4,000 members." -Database Manager

2007-05-27 - Updated through online information from James R. Stettner. -- Some minor voicing changes were made by an independent contractor during the 1990s. -Database Manager

Stoplist

Stoplist from 1989 visit and 1981 AGO Regional Booklet Source: Source not recorded Date not recorded

     Homewood (Birmingham), Alabama
     Trinity United Methodist Church

     Schantz   Op. 1419   1978   3/39

     GREAT                        CHOIR
 16' Gemshorn 61               8' Bordun 61
  8' Principal 61              8' Erzähler 61
  8' Gedackt 61                8' Erzähler Celeste 49 tc
  8' Gemshorn 12               4' Koppelflöte 61
  4' Octave 61             2 2/3' Nasat 61
  2' Super Octave 61           2' Principal 61
 IV  Mixture 244           1 3/5' Terz 61
     Unison Off              III  Scharf 183
     Super                     8' Dulzian 61
     Chimes 21                    Tremolo
  8' Festival Trumpet 61          Sub
                                  Unison Off
     SWELL                        Super
  8' Flute a Cheminee 61       8' Festival Trumpet GT
  8' Viole de Gambe 61
  8' Viole Celeste 49 tc          PEDAL
  4' Prestant 61              32' Resultant -- (Gedackt)
  4' Cor de Nuit 61           16' Principal 32
  2' Flute a Bec 61           16' Gedackt 32
 IV  Plein Jeu 244            16' Gemshorn GT
 16' Basson 61                 8' Octave 32
  8' Trompette 61              8' Gedackt 12
  8' Basson 12                 8' Gemshorn GT
  4' Clairon 12                4' Choralbass 12
     Tremulant                 4' Flöte 12
     Sub                      II  Mixture 64
     Unison Off               16' Posaune 32
     Super                    16' Basson SW
                               8' Basson SW
                               4' Basson SW

[Received on line from Jeff Scofield January 11, 2010.]
