Better Pipe Organ Database

Casavant Frères Ltée. Opus 3772 (1998)

St. Paul's United Church of Christ: Sanctuary
5508 Telegraph Rd.
St. Louis (Oakville), MO

Images

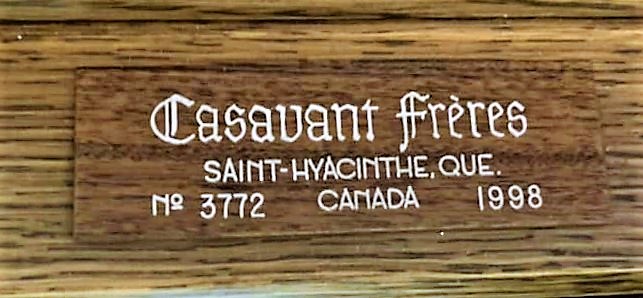

2023-08-30 - Builder nameplate (Photograph by Scott Wick, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

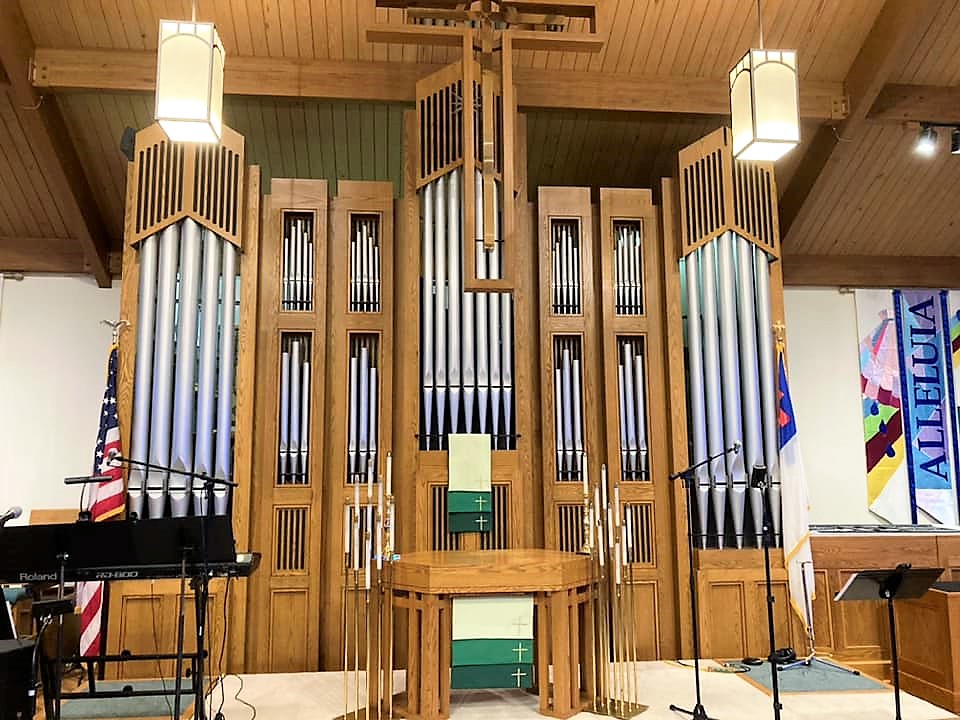

2023-08-30 - Organ case (Photograph by Scott Wick, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

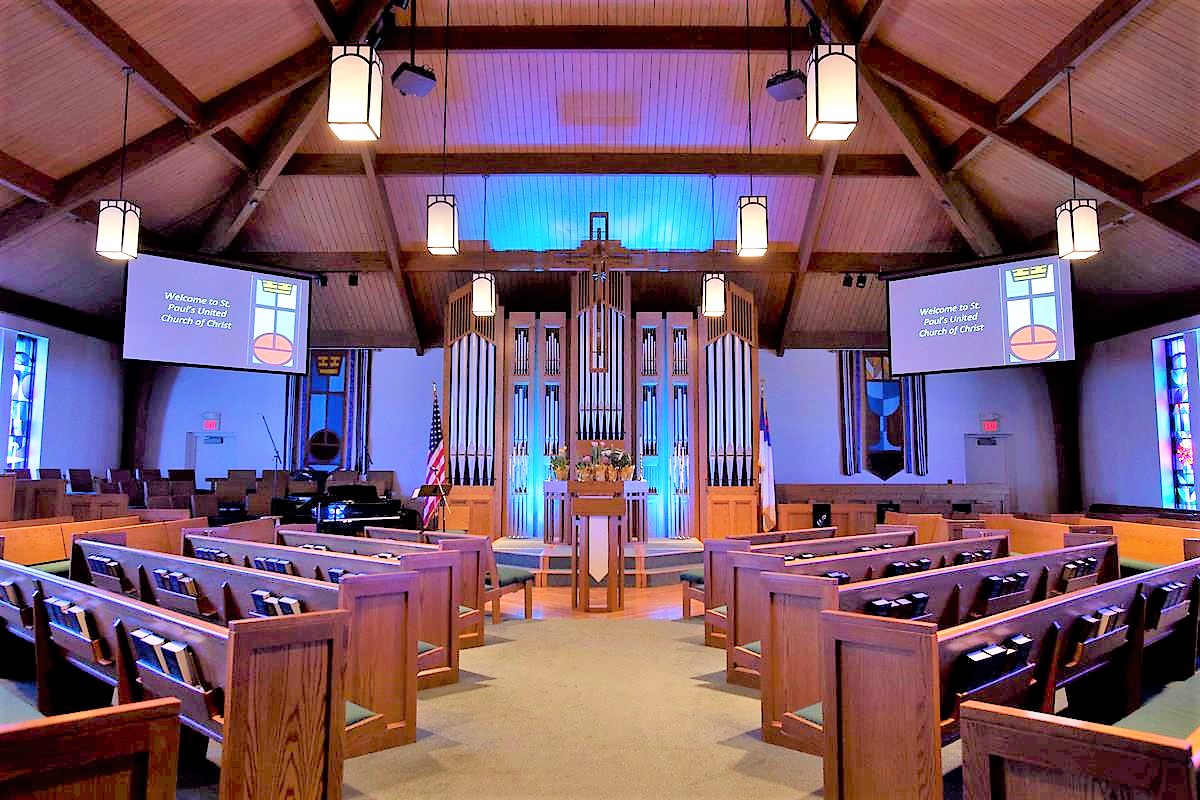

2017-12-29 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

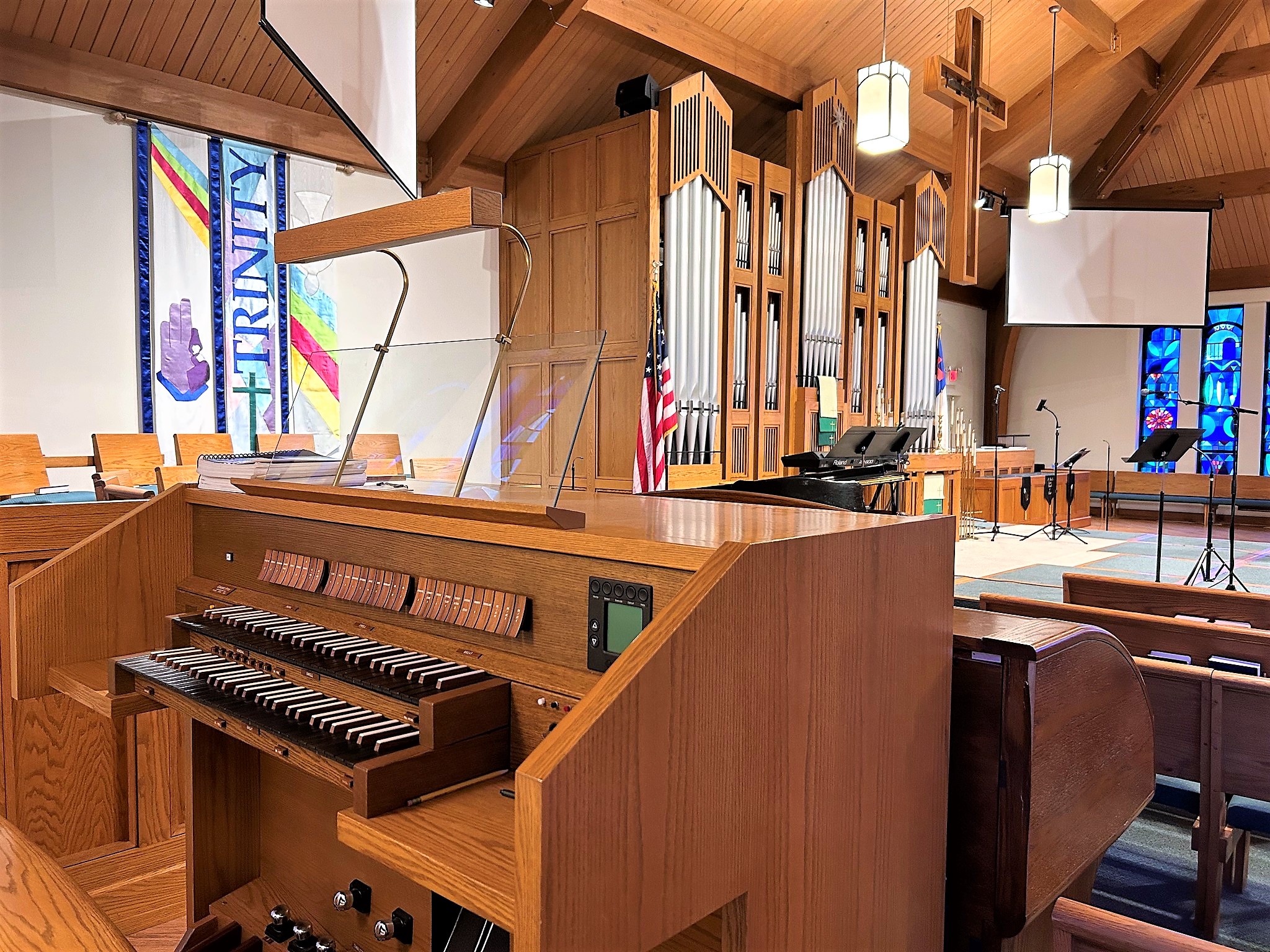

2023-08-23 - Console and organ case (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
14 stops
21 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-07-27 - Appears to be in a new sanctuary. (Information from the AGO St. Louis Chapter Yearbook, 2004-2005.) -Database Manager

2010-03-22 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            St. Louis (Oakville), Missouri
            St. Paul's United Church of Christ

            Casavant   Op. 3772   1998   2/18

            Courtesy of the Casavant Frères Archives
            St. Hyacinthe, Québec, Canada

            GREAT
 1.      8' Principal 56
 2.      8' Chimney Flute 56
 3.      4' Octave 56
 4.      4' Spindle Flute 56    1-20 from #2
 5.     II  Sesquialtera 94     from AA
 6. III-IV  Mixture 200
 7.      8' Trumpet 56
            Tremulant

            SWELL
 8.      8' Flute 56            Flûte majeure
 9.      8' Viola 44            1-12 common with #8
10.      8' Céleste 44          tc
11.      4' Nachthorn 56
12.      2' Fifteenth 56
13.  1 1/3' Quinte 56
14.      8' Oboe 56
            Tremulant
            Sub
            Super

            PEDAL
15.     32' Resultant --        from #16
16.     16' Subbass 20          Stopped wood; 21-32 from #2
17.      8' Octavebass 20       1-12 common with #1
18.      8' Chimney Flute GT
19.      4' Octave 12           20 from #17
20.     16' Trombone 12         1-9 half-length with caps;
                                10-12 full-length, ext. of #7
21.      8' Trumpet GT

[Received on line from Jeff Scofield March 22, 2010.]
