Holtkamp Organ Co. Opus 1657 (1952)

St. Paul's Episcopal Church: Chancel
2747 Fairmount Boulevard
Cleveland Heights, OH

OHS convention: 2009

Images

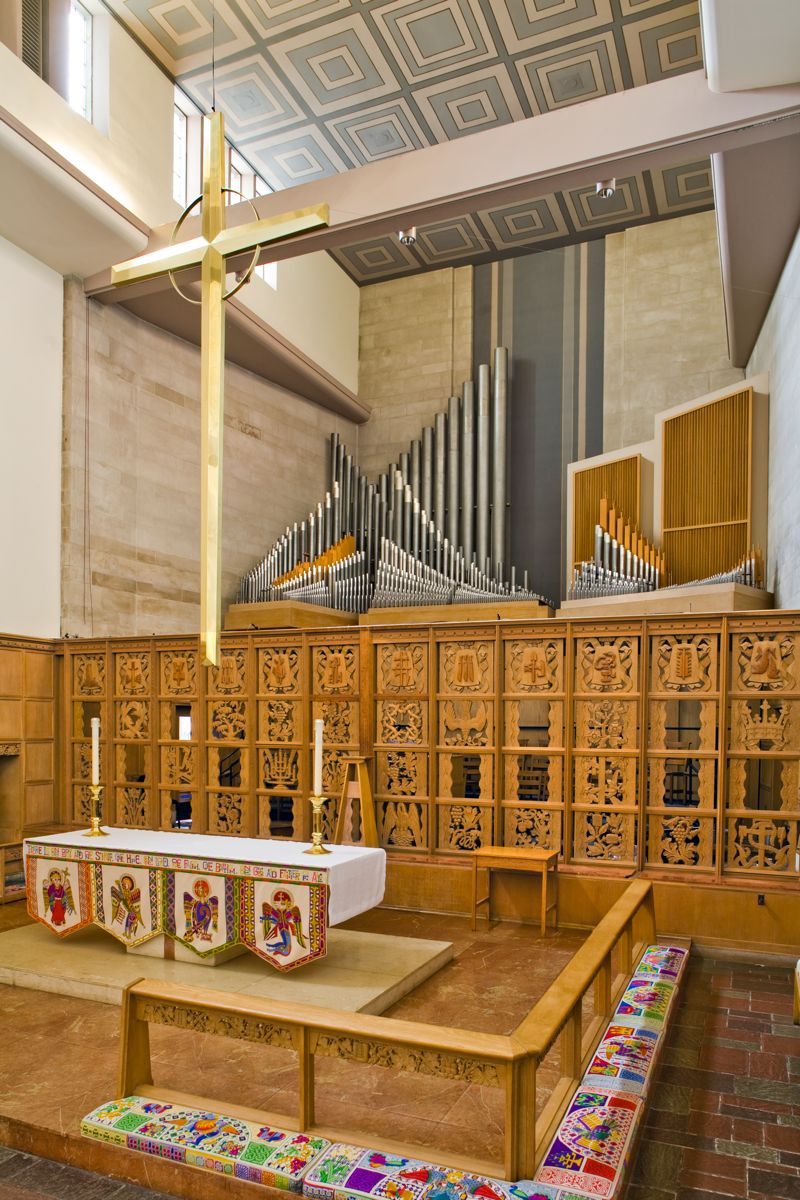

2008-07-05 - Chancel and exposed pipes (Photograph by Stephen Schnurr/Database Manager)

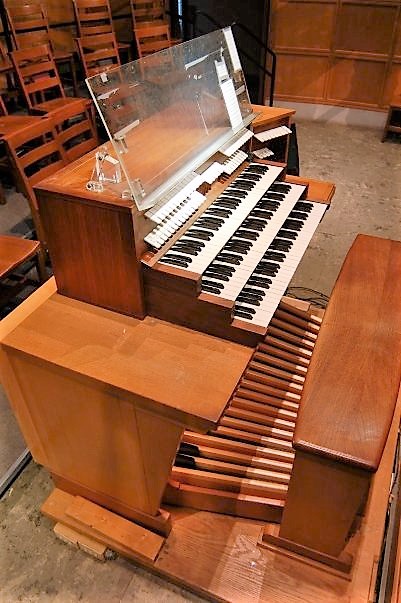

2008-07-05 - Console (Photograph by Stephen Schnurr/Database Manager)

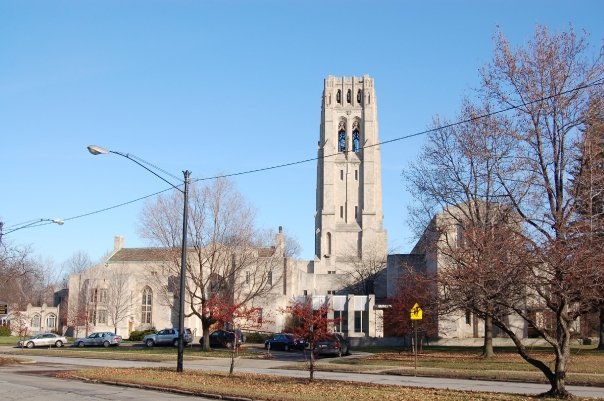

2008-07-05 - Church exterior (Photograph by Stephen Schnurr/Database Manager)

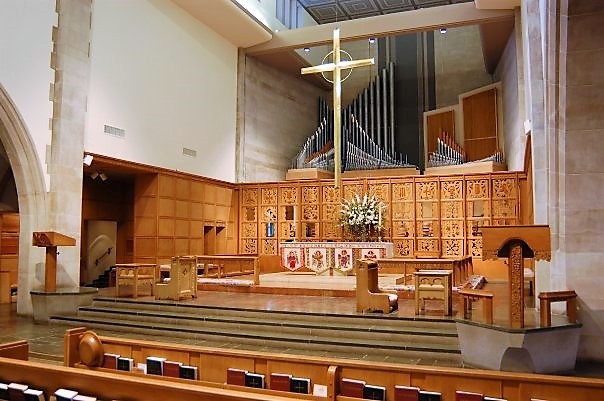

2008-05-01 - Chancel and Pipe Display (Photograph by William T. Van Pelt/Database Manager)

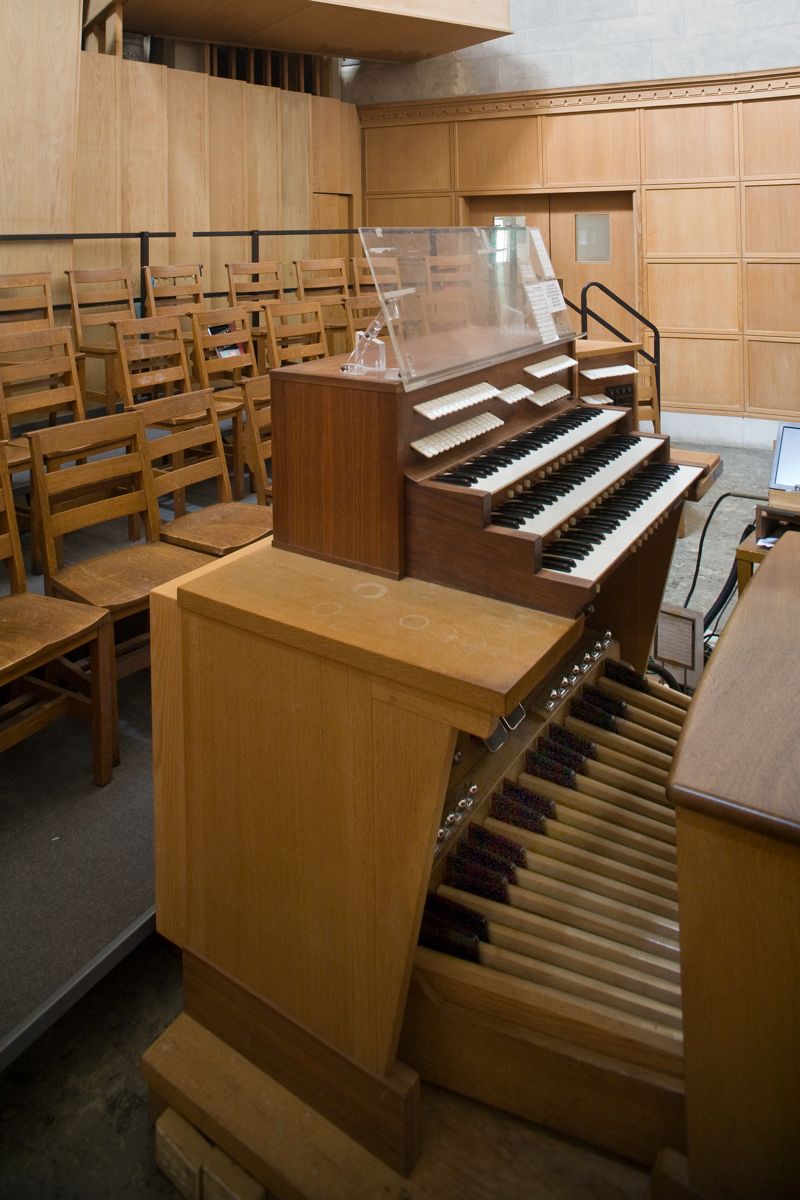

2008-05-01 - Console (Photograph by William T. Van Pelt/Database Manager)

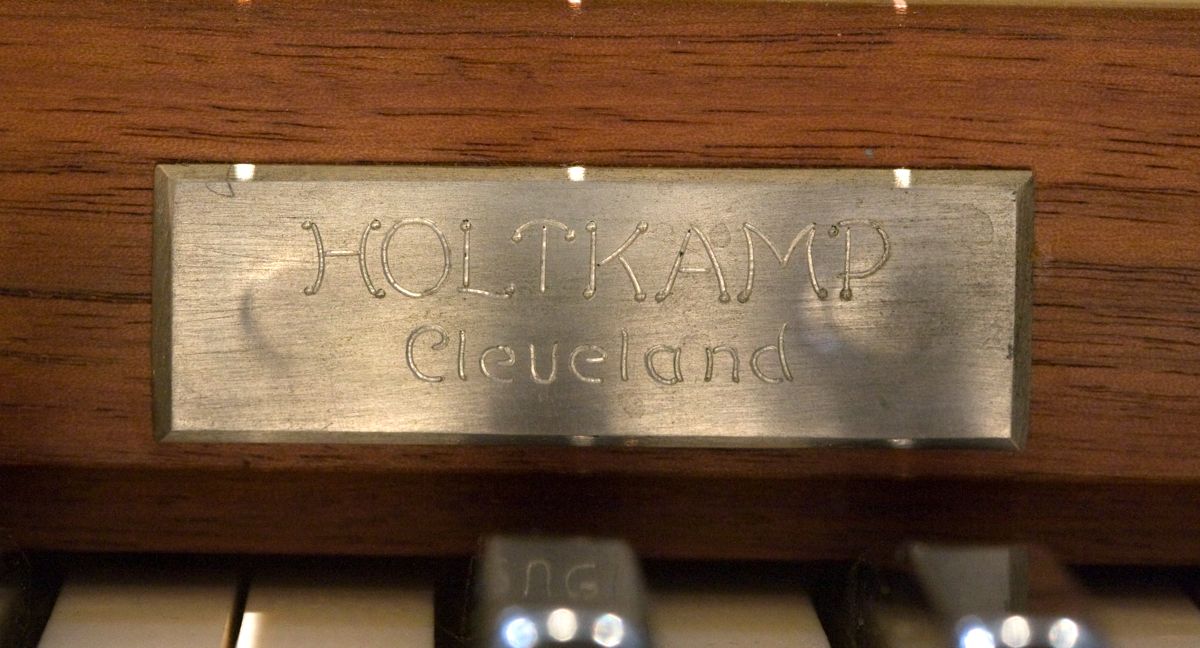

2008-05-01 - Builder's Nameplate (Photograph by William T. Van Pelt/Database Manager)

Consoles

Main

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Console position: Console in Fixed Position, Center
3 manuals
46 stops
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2004-10-30 - Status Note: There 1996. -Database Manager

2004-10-30 - Solid state memory, multiple memory levels. Also Italian-style Hradetzky in Gallery. Stoplist in Rolla file. -Database Manager

2007-05-29 - Updated through online information from Don Daley. -Database Manager

2007-06-04 - Updated through online information from Don Daley. -Database Manager

2008-05-24 - Updated through online information from Don Daley. -Database Manager

Stoplist

Specification from <i>2009 Organ Atlas: The City of Cleveland and Northern Ohio</i> Source: Source not recorded Date not recorded

Cleveland Heights, Ohio
St.Paul's Episcopal Church

Holtkamp Organ Company   Job No. 1657   1952   3 manuals, 46 stops, 61 ranks
____________________________________________________________________________

         GREAT ORGAN                            SWELL ORGAN
     16' Quintadena          61              8' Gamba               61
      8' Principal           61              8' Gamba Celeste       61
      8' Flute               61              8' Rohrflöte           61
      8' Gedackt             61              8' Lieblich Gedackt    61
      4' Octave              61              4' Octave Geigen       61
      4' Spitzflöte          61              4' Bourdon             61
  2 2/3' Quinte              61              4' Aeoline             61
      2' Super Octave        61              2' Flautino            61
         Mixture IV         244                 Dolce Cornet III   183
         Scharf III         183                 Plein Jeu IV       244
      8' Trumpet             61             16' Basson              61
         Great to Great 4       (a)          8' Fagott              61
                                             4' Rohr Schalmey       61
         POSITIV ORGAN
      8' Copula              61                 PEDAL ORGAN
      4' Praestant           61             32' Compton Polyphone    1
      4' Rohrflöte           61             16' Principal           32
  2 2/3' Nazard              61             16' Quintadena          GT
      2' Doublette           61             16' Soubasse            32
  1 3/5' Tierce              61              8' Octave              32
         Fourniture III     183              8' Gedackt             32
      8' Cromorne            61              4' Choralbass          32
         Great Positiv Transfer (a)          4' Nachthorn           32
                                                Mixture III         96
         COUPLERS (center rail)             32' Cornet V           200
         Great to Pedal                     16' Cornet V (ext.)     --
         Swell to Pedal                     16' Posaune             32
         Positiv to Pedal                    8' Trumpet             32
         Swell to Great                      4' Schalmey            32
         Positiv to Great
         Swell to Positiv                   (a) added, orig blank stopkey

         ACCESSORIES (original)                 COUPLERS (added in freestanding
         General  1-6   (thumb & toe)             box at right side of console)
         Swell    1-6   (thumb & toe)           Swell to Great 16
         Great    1-6   (thumb & toe)           Swell to Great 4
         Positiv  1-6   (thumb)                 Positiv to Great 16
         Pedal    1-6   (toe)                   Positiv to Great 4
         General Cancel (thumb)                 Swell to Positiv 16
         Great to Pedal Rev.   (thumb & toe)    Swell to Positiv 4
         Swell to Pedal Rev.   (thumb & toe)    Swell to Swell 16
         Positiv to Pedal Rev. (thumb & toe)    Swell to Swell 4
         Full Organ Rev.       (thumb & toe)    Swell to Pedal 4
         Balanced Swell Pedal
         Balanced Crescendo Pedal w/ind. light

         ACCESSORIES (added)
         MIDI on Great
         MIDI on Swell
         MIDI on Positiv
         MIDI on Pedal
         MIDI In
         MIDI Out
         MIDI Thru
         MIDI Out 2
         96 combination memory levels
         Blind Check
         Clear
         Crescendo Adjuster
         Crescendo Standard, A, B, C
         Combination Setter button


[Received from Steven E. Lawson  2014-10-23]
