LaGrave Avenue Christian Reformed Church: Sanctuary
107 LaGrave Avenue SE
Grand Rapids, MI
Images
2020-01-02 - Chancel Stained Glass Window (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Chancel and Stained Glass Window (Photograph by Chad Boorsma/Database Manager)
2019-07-07 - Church Tower (Photograph by Chad Boorsma/Database Manager)
2019-07-07 - Church Entrance (Photograph by Chad Boorsma/Database Manager)
2019-07-07 - Church Exterior (Photograph by Chad Boorsma/Database Manager)
2019-07-07 - Church Exterior (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Right Pipe Facade (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Left Pipe Facade (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Chancel and Pipe Facades (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - West Stained Glass Windows (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - East Stained Glass Windows (Photograph by Chad Boorsma/Database Manager)

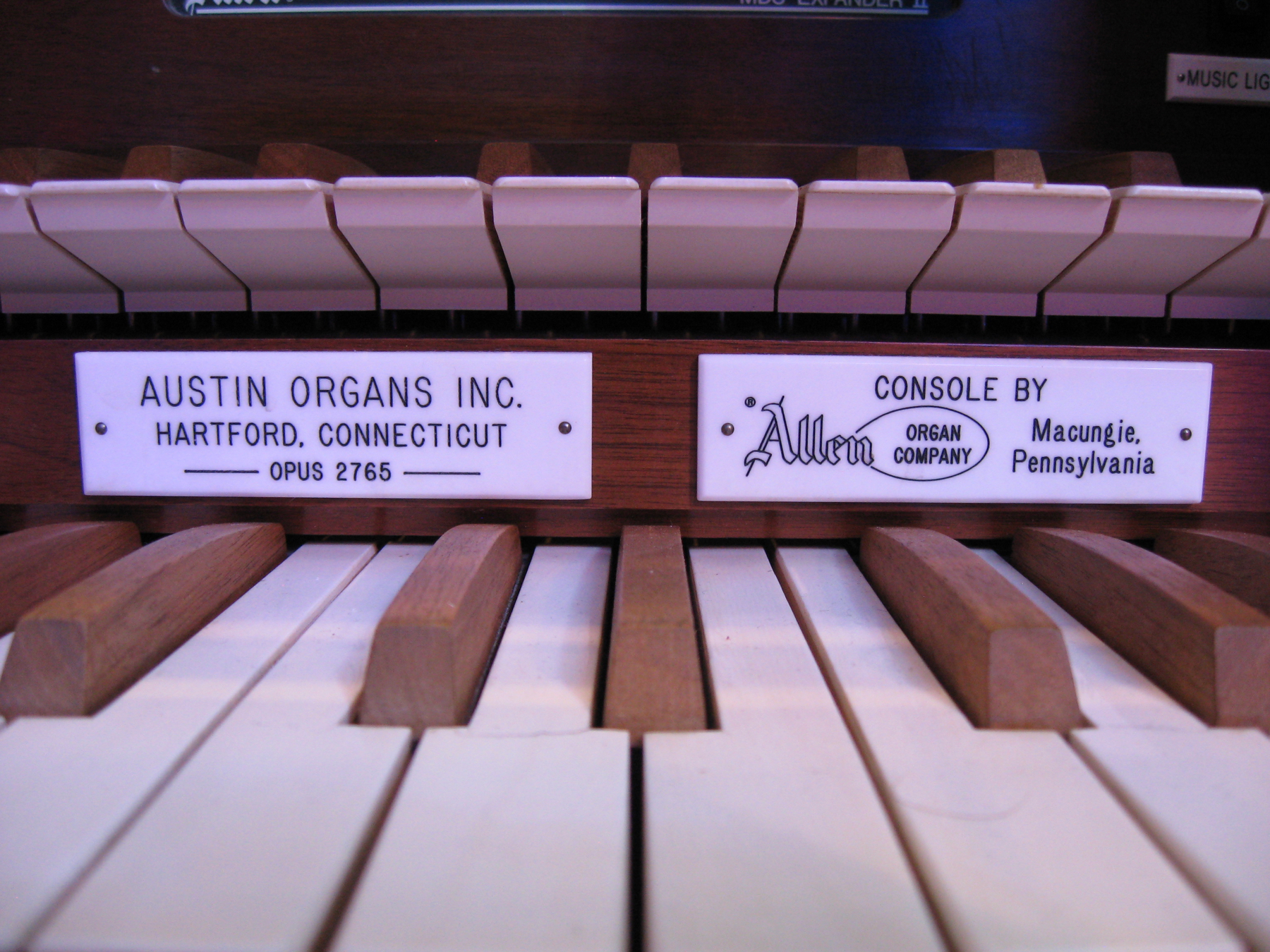

2020-02-29 - Builders' Nameplates (Photograph by Chad Boorsma/Database Manager)
2020-02-29 - Console (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Trompette en Chamade and Stained Glass Window (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Antiphonal Organ, Trompette en Chamade, and Stained Glass Window (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Nave, Balcony, and Antiphonal Organ (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)
2020-01-02 - Sanctuary Interior, Chancel, and Pipe Facade (Photograph by Chad Boorsma/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 5 manuals
- 116 stops
- 7 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2004-10-30 - Allen console, Austin pipe division, 32 "rk" of digital voices by Allen. Jonathan Tuuk was consultant. -Database Manager
2008-03-12 - Updated through information adapted from <i>E. M. Skinner/Aeolian-Skinner Opus List</i>, by Sand Lawn and Allen Kinzey (Organ Historical Society, 1997), and included here through the kind permission of Sand Lawn: <br><i>Replaced twice rebuilt Aeolian-Skinner Opus 1042 (1942), with five manual Allen console and thirty-eight ranks of electronic voices.</i> -Database Manager
2009-06-30 - Updated through on-line information from Chad Boorsma. -Database Manager
2010-06-10 - Updated through on-line information from Chad Boorsma. -- The instrument retains the Antiphonal division from the church's previous organ. The organ was given by Richard and Helen De Vos in memory of Helen's parents, George and Wilma Van Wesep, who were long-time members of La Grave. -Database Manager
2019-06-29 - A Tuba Mirabilis rank was added to the Solo division in 2017 and was dedicated at the morning worship service on October 8. It was built by Chris Broome of Broome and Company and was installed by Haan Pipe Organ Service. The stop was a gift from Richard and Helen De Vos, the original donors of the organ. The Tuba Mirabilis has its own wind supply and is unenclosed. Because there was not sufficient space to put the stop in the actual Solo division, it is located in the chamber on the west side instead. The new stop can be coupled to the Swell, Great, Choir, or Pedal. -Database Manager
Stoplist
Stoplist provided by the church Source: Source not recorded Date not recorded
Grand Rapids, Michigan
LAGRAVE AVENUE CHRISTIAN REFORMED CHURCH
Austin Organ Company Opus 2765 1996 76 ranks
___________________________________________________________________________
GREAT: (unexpressed) SWELL: (expressive)
Manual II Manual III
16' Violone 61 16' Rohrgedeckt 12
8' Principal 61 8' Geigen Principal 61
8' Violone 12 8' Rohrflöte 61
8' Harmonic Flute 56 8' Viole de Gambe 61
8' Bourdon 8' Voix Celeste 56
5 1/3' Gross Quinte 12 4' Geigen Octave 61
4' Octave 61 4' Flûte Harmonique 61
4' Open Flute 61 2 2/3' Nasard 61
2 2/3' Twelfth 61 2' Blockflöte 61
2' Super Octave 61 1 3/5' Tierce 49
1 3/5' Tierce 49 IV Plein Jeu 244
IV Fourniture 244 16' Basson 12
III Cymbal 183 8' Trompete 61
16' Double Trumpet 61 8' Hautbois 61
8' Trumpet 12 8' Voix Humaine 61
4' Clarion 12 4' Clairon 61
Tremulant Tremulant [Voix Humaine & Swell]
Chimes 25 tubes MIDI
Symphonic Bells
Harp CHOIR: (expressive)
Celesta Manual I
Zimbelstern 16' Quintaton 61
MIDI 8' Suavial 61
8' Gedeckt 61
SOLO: (expressive) 8' Dulciana 61
Manual IV 8' Unda Maris 49
8' Cello 61 4' Principal 61
8' Cello Celeste 61 4' Spillflöte 61
8' Flûte Harmonique 61 2' Octave 61
8' Trompette Harmonique 61 1 1/3' Quinteflöte 61
8' Corno di Bassetto 61 IV Scharf 244
8' English Horn 61 8' Trompete 61
Tremulant 8' Krummhorn 61
8' Trompette en Chamade [ANT] 4' Rohr Schalmei 61
8' Tuba Mirabilis 61 + Tremulant
Major Bells
PEDAL: Harp
32' Contre Basse * Celesta
32' Contre Gambe * MIDI
32' Contre Bourdon *
16' Open Wood *
16' Principal 32 ANTIPHONAL: (unexpressed)
16' Subbass 32 Manual V
16' Violone [GT] 8' Principal 61
16' Gambe * 8' Spitzflöte 61
16' Rohrgedeckt [SW] 4' Octave 61
16' Lieblichflöte * 2' Super Octave 61
16' Quintaton [CH] IV Mixture 244
8' Octave 32 8' Petite Trompette 61
8' Viole * Tremulant
8' Bourdon 12 8' Trompette en Chamade 61
8' Rohrflöte [SW] MIDI
4' Choralbass 32
4' Nachthorn 32 ANCILLARY: (expressive)
2' Nachthorn 12 Floating
IV Mixture 128 8' Diapason *
32' Contre Bombarde * 8' Flûte Bouchee *
32' Kontra Fagott * 8' Salicional *
16' Bombarde 32 8' Voix Celeste [+]
16' Double Trumpet [GT] 8' Voix Celeste [-]
16' Fagotto * 8' Muted Viole Celeste II *
16' Basson [SW] 8' Flauto Dolce *
8' Tromette 12 8' Flûte Celeste *
8' Hautbois [SW] 4' Prestant *
4' Clairon 12 4' Flûte à fuseau *
4' Rohr Schalmei [CH] 2 2/3' Nasard *
2' Rohr Schalmei [CH] 2' Flûte à bec *
Chimes 1 3/5' Tierce *
MIDI IV Mixture *
8' Trompette *
8' French Horn *
* Digital Stops by Allen 8' Vox Humana [mp] *
+ Unenclosed Stop added in 2017 8' Vox Humana [pp] *
Tremulant
[Received online from Chad Boorsma • June 14, 2010]
