St. Luke's Episcopal Church
Lebanon, PA
Images

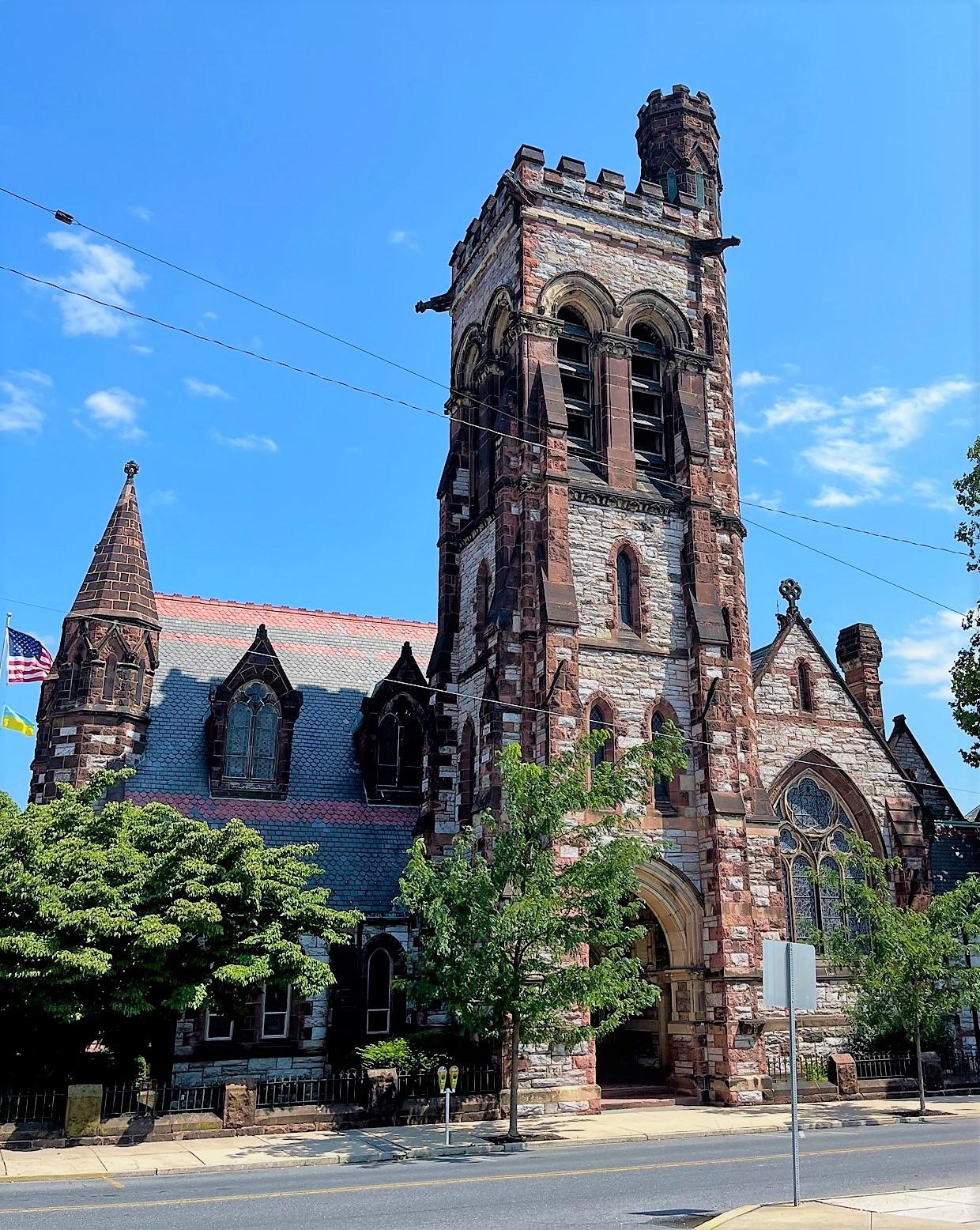

2022-07-19 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

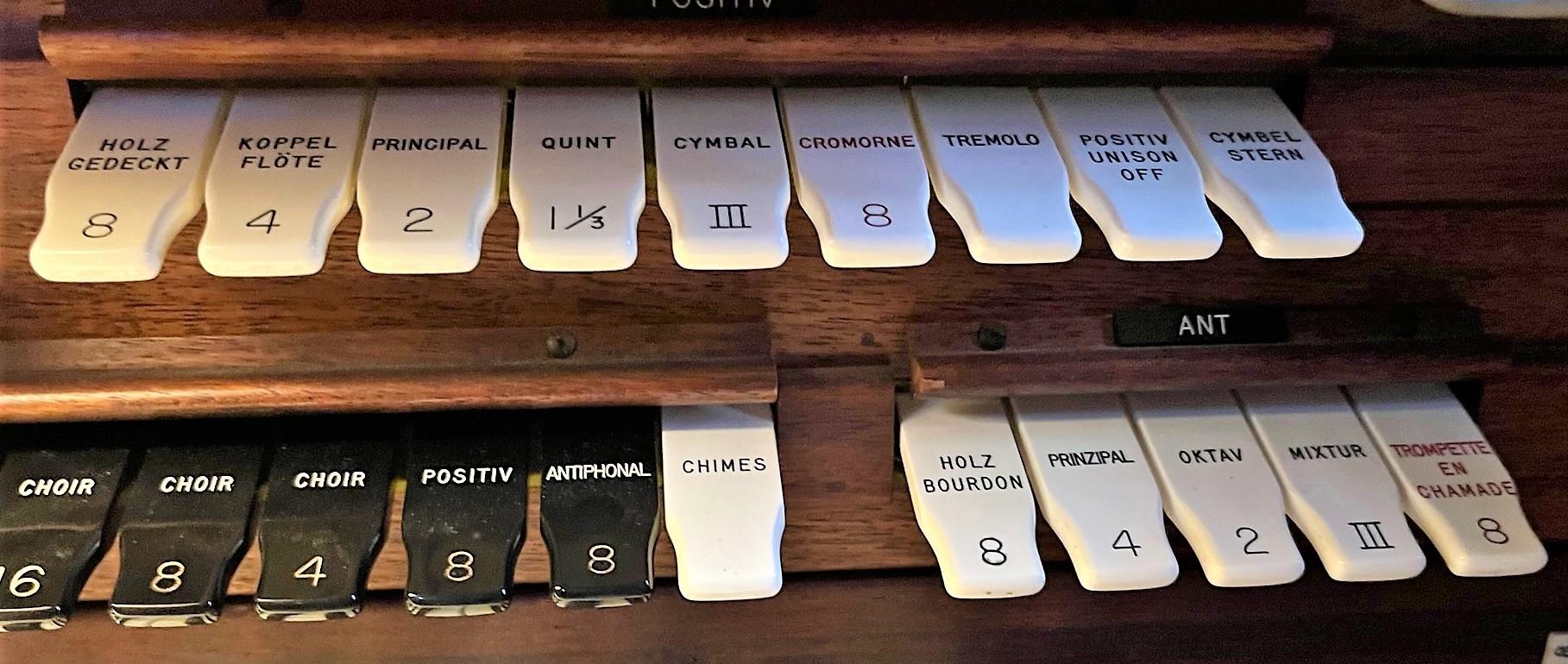

2022-07-19 - Antiphonal and Positiv stoptabs (Photograph by Jeff Scofield/Jeff Scofield)

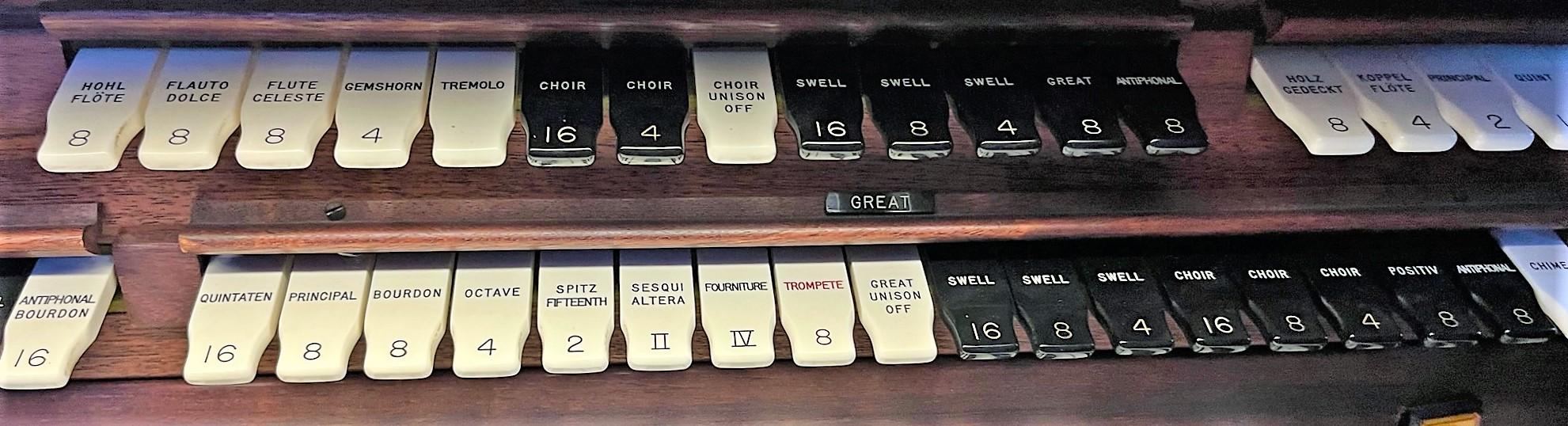

2022-07-19 - Choir and Great stoptabs (Photograph by Jeff Scofield/Jeff Scofield)

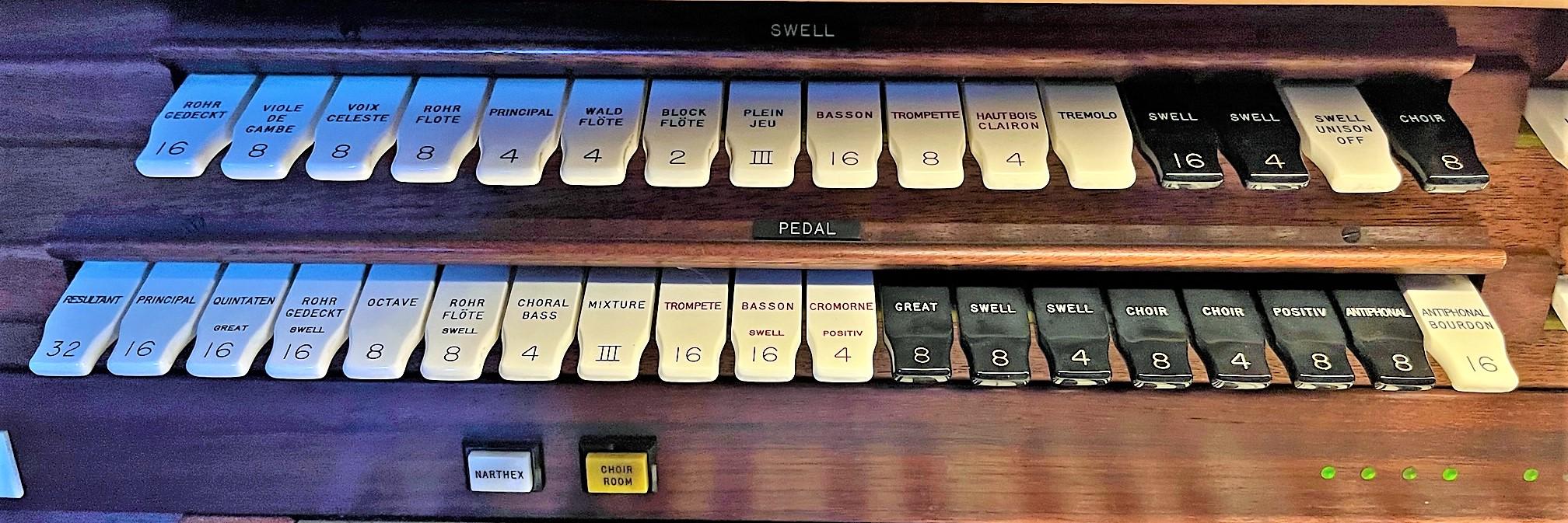

2022-07-19 - Swell and Pedal stoptabs (Photograph by Jeff Scofield/Jeff Scofield)

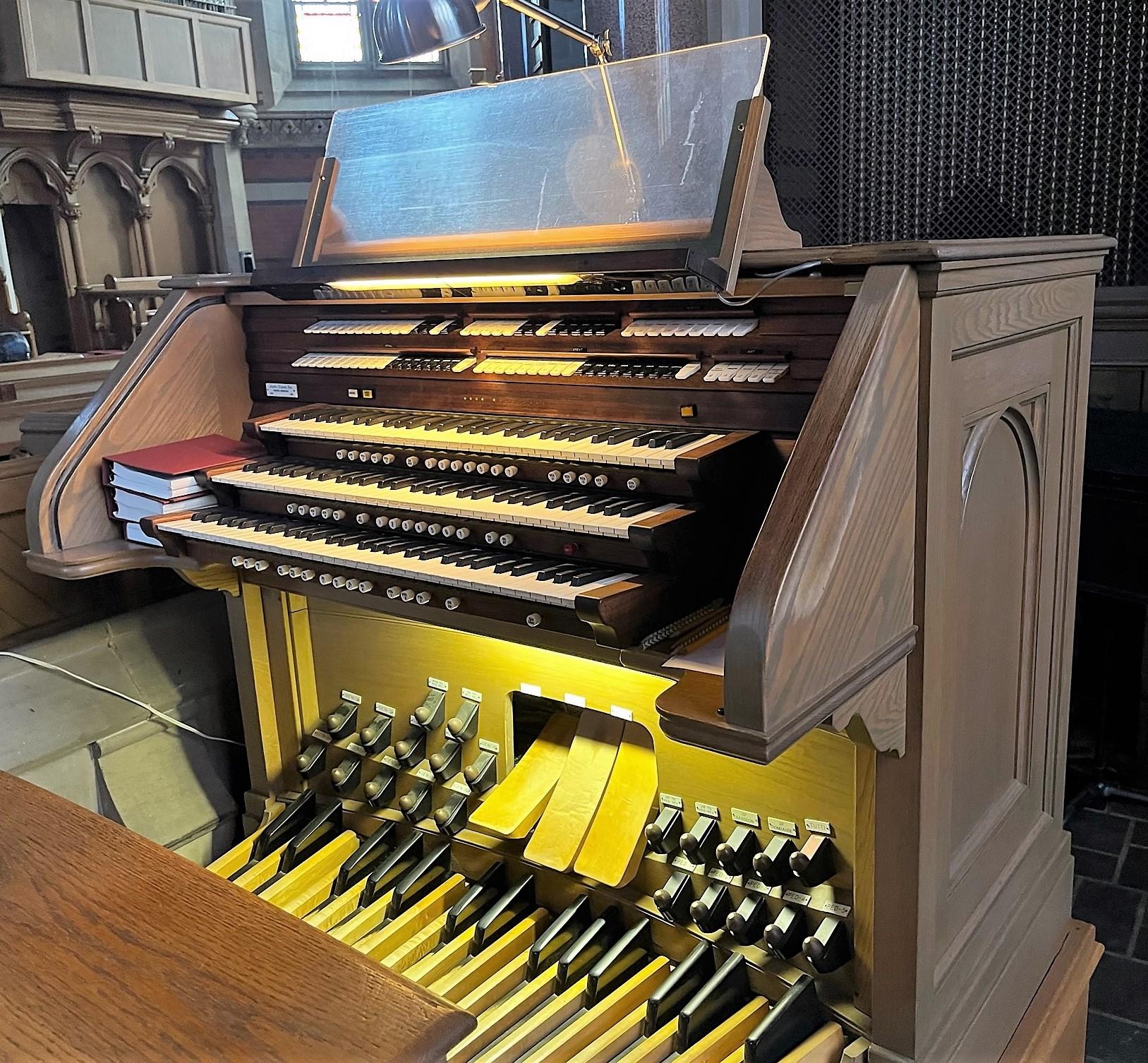

2022-07-19 - Console (Photograph by Jeff Scofield/Jeff Scofield)

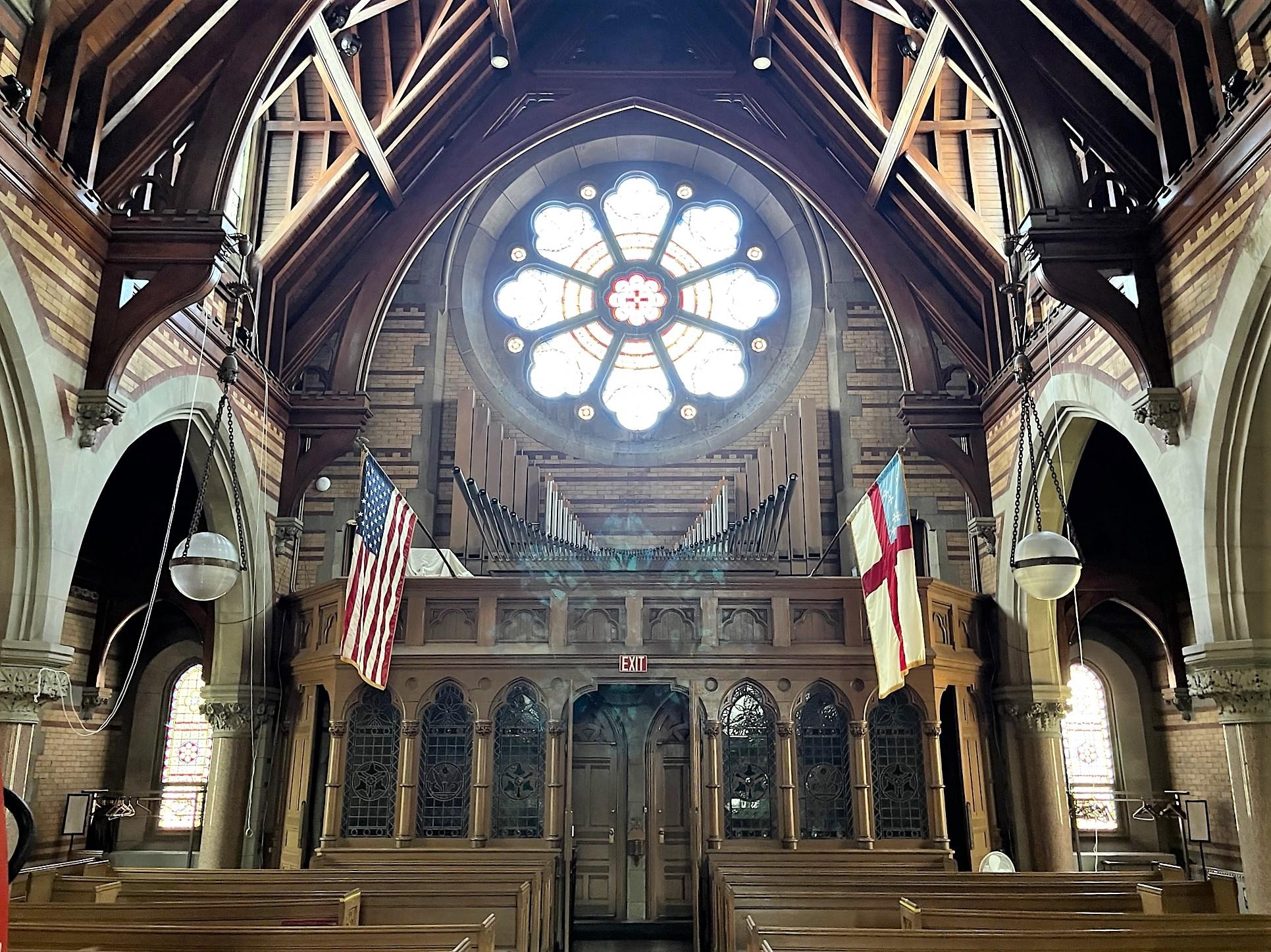

2022-07-19 - Church interior to rear and Antiphonal (Photograph by Jeff Scofield/Jeff Scofield)

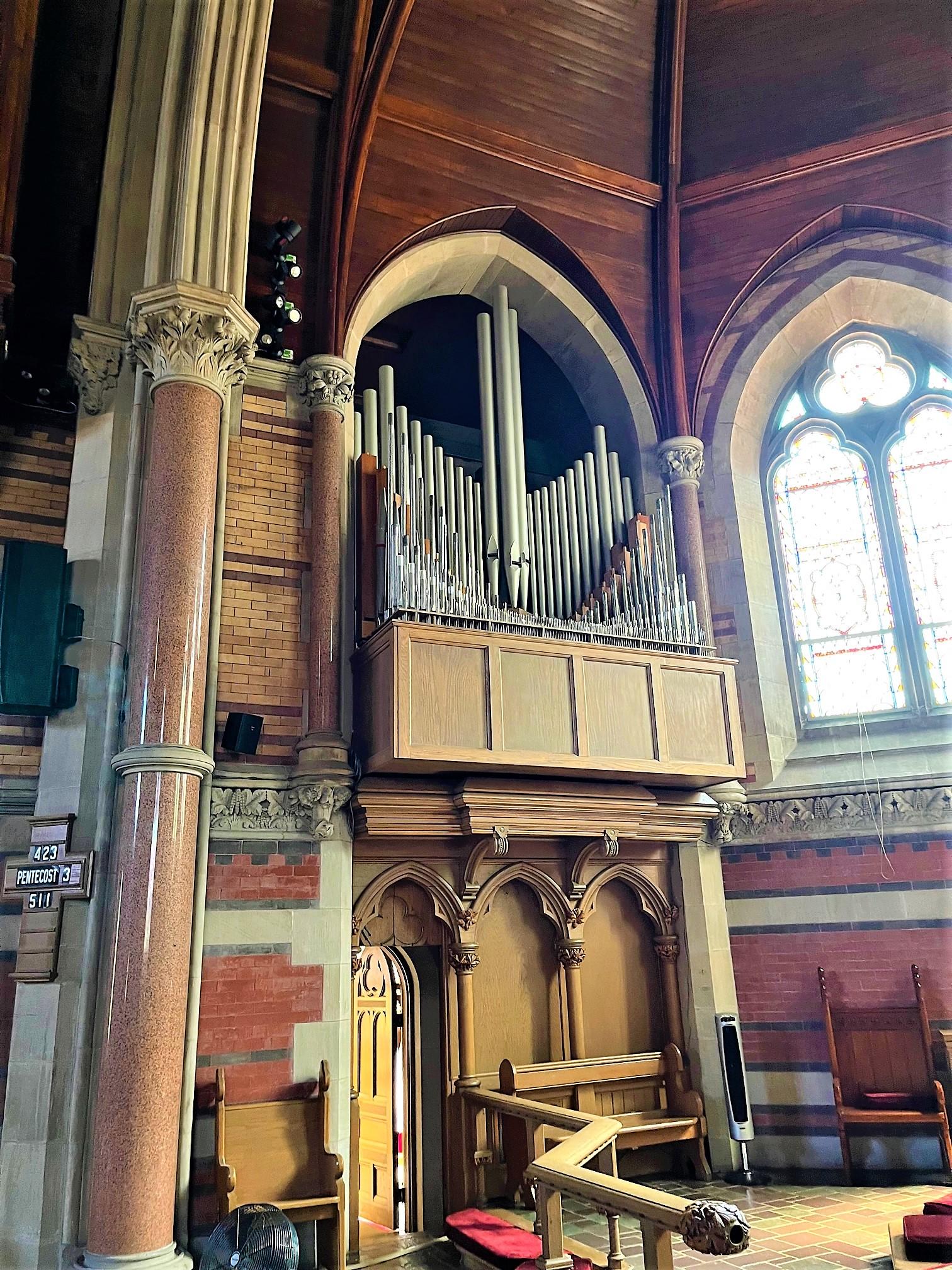

2022-07-19 - Positiv exposed pipework and chamber (Photograph by Jeff Scofield/Jeff Scofield)

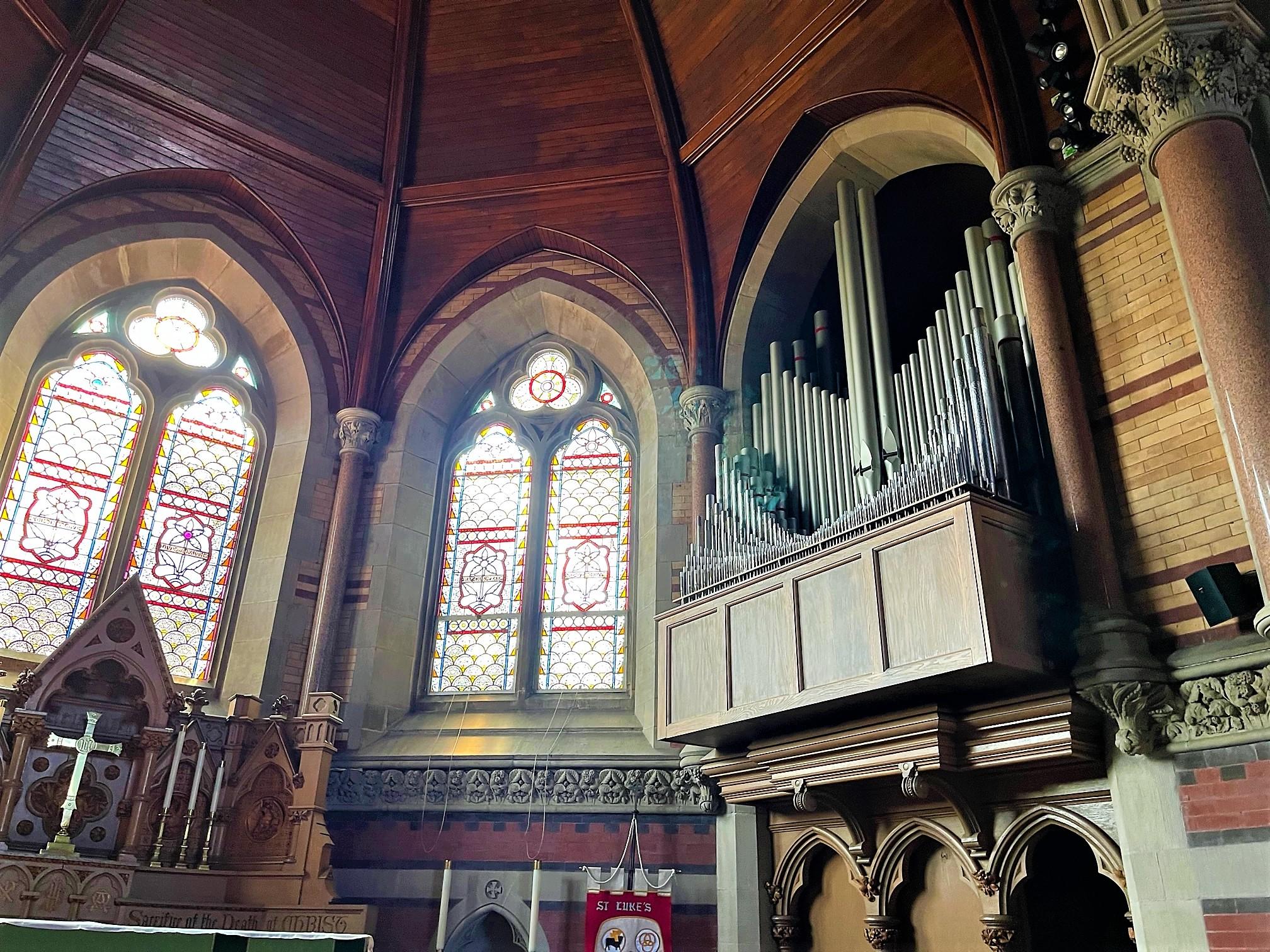

2022-07-19 - Great exposed pipework and chamber (Photograph by Jeff Scofield/Jeff Scofield)

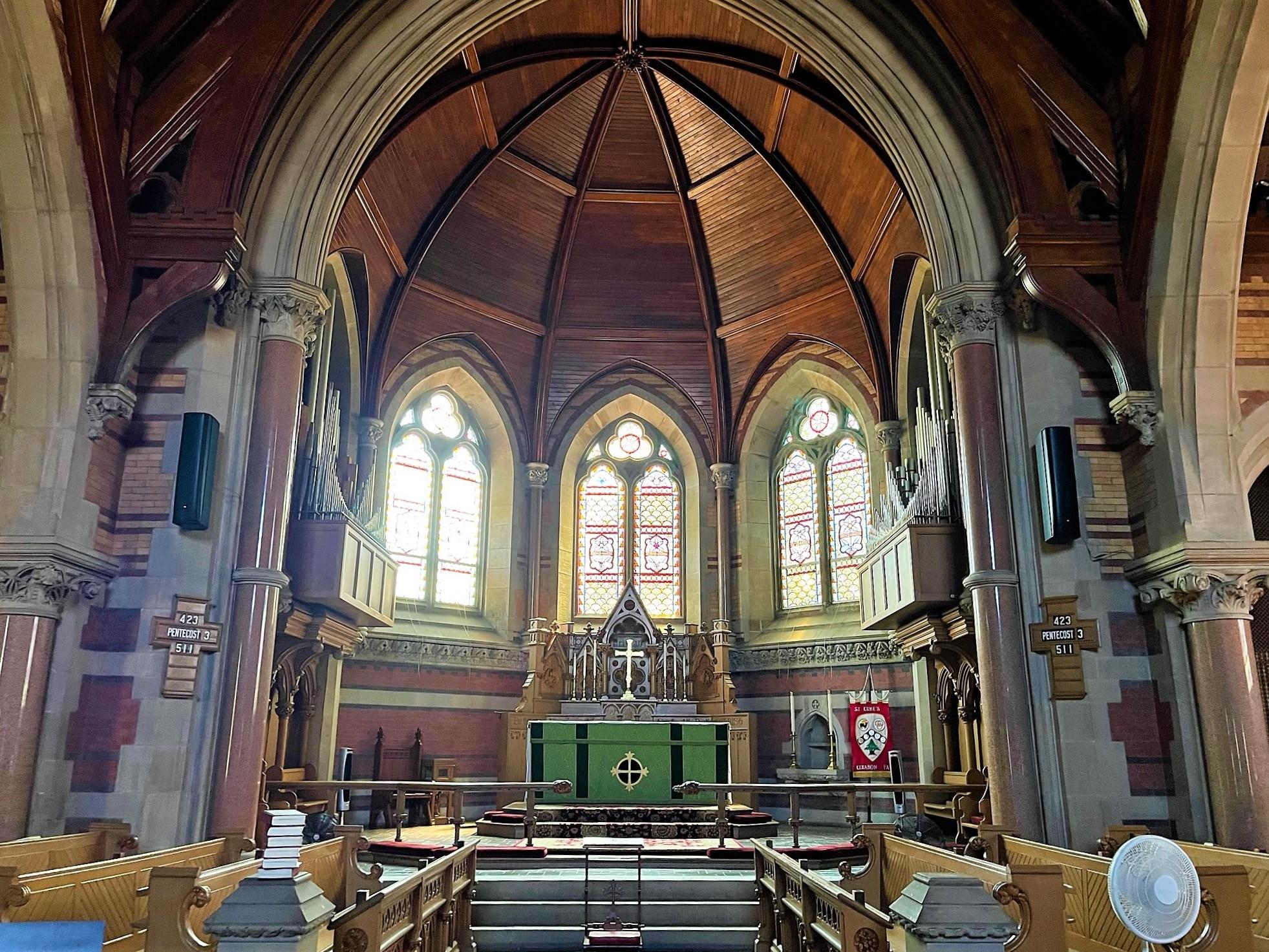

2022-07-19 - Church interior to front (Photograph by Jeff Scofield/Jeff Scofield)

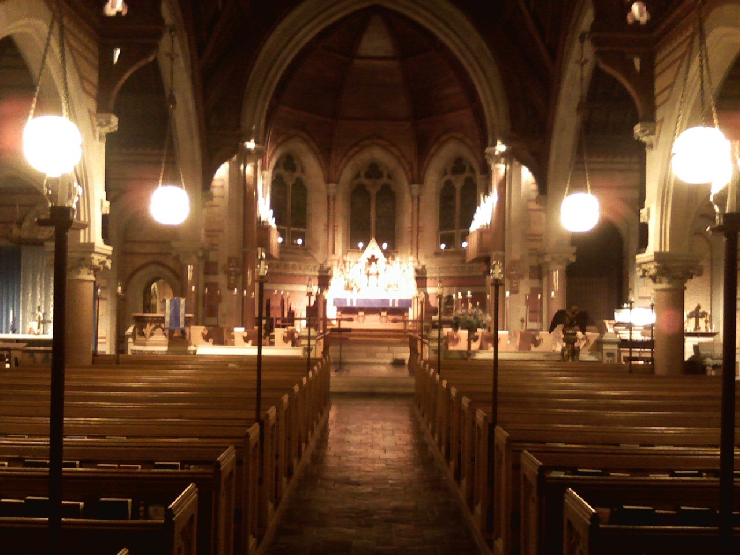

2009-12-13 - Front of Nave looking east (Photograph by Michael Berman/Database Manager)

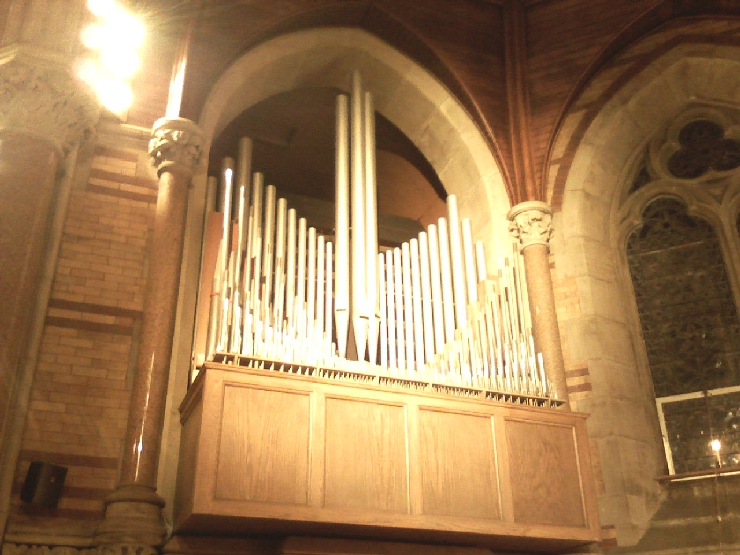

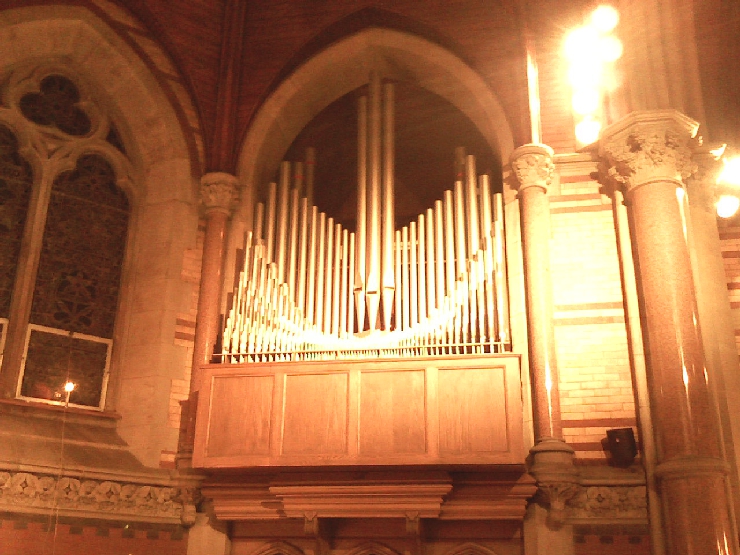

2009-12-13 - Great Facade (Photograph by Michael Berman/Database Manager)
2009-12-13 - Positiv facade (Photograph by Michael Berman/Database Manager)

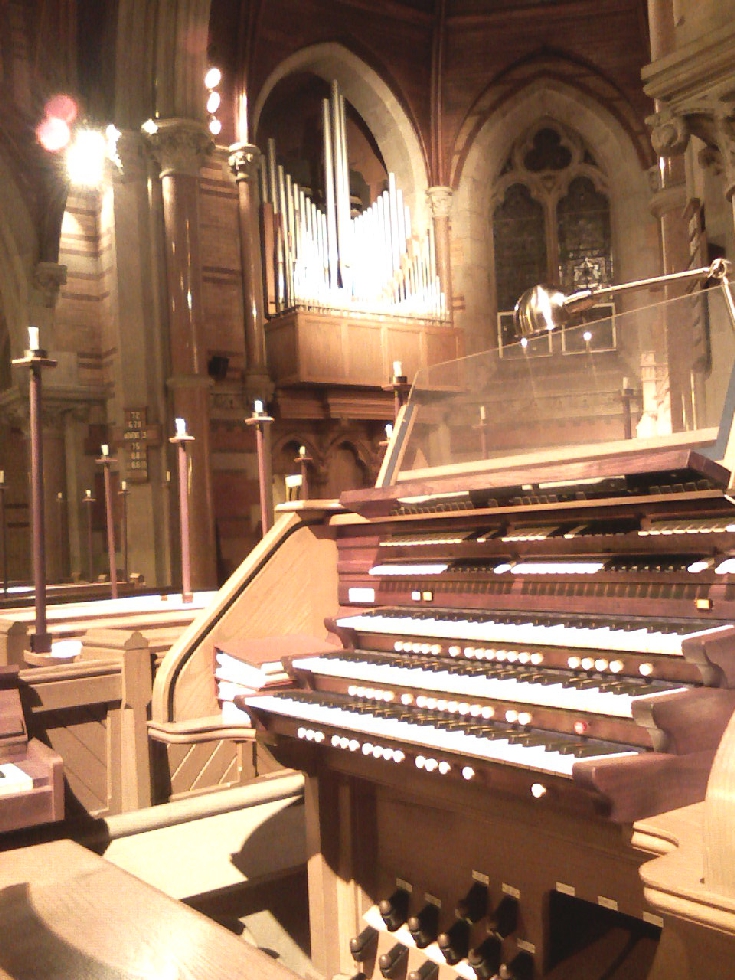

2009-12-13 - Console with Positive facade (Photograph by Michael Berman/Database Manager)

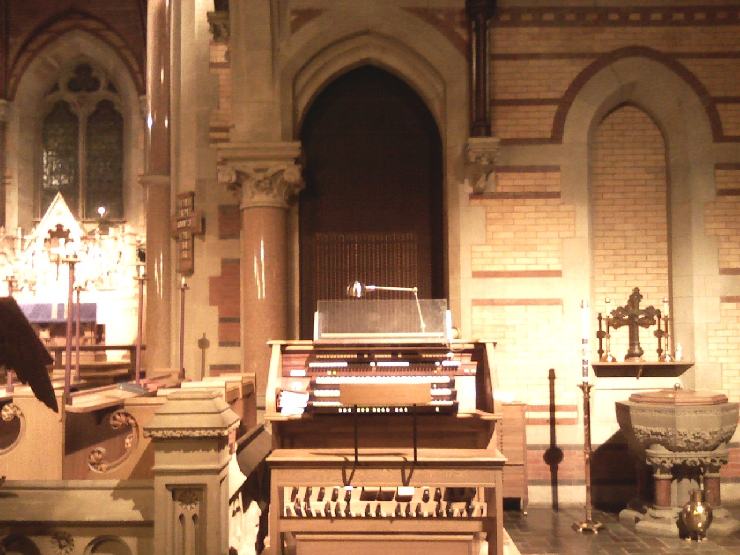

2009-12-13 - Console with Gt/Pd tone opening to S Transept (Photograph by Michael Berman/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 37 stops
- 48 registers
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2004-12-21 - Information identifying this instrument from the Austin Organs, Inc. web site, accessed December 20, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager
2009-11-10 - Updated through online information from Michael Berman. -- The organ is located in three sections: Great and Choir are in the front, on the right (or south) side Positiv and Swell are in the front, on the left (or north) side Antiphonal is in the rear, (west wall, above narthex, below a rose window) -Database Manager
Stoplist
Stoplist taken from console, March 25, 2006, verified by church choirmaster November 8, 2009 Source: Source not recorded Date not recorded
Lebanon, Pennsylvania
St. Luke's Episcopal Church
Austin Organs, Inc. Opus 2623 - 1978
GREAT (unenclosed, chancel-right) SWELL (enclosed, behind Positiv)
16' Quintaten 61p 16' Rohrgedeckt 61p
8' Principal 61p 8' Viole de Gambe 61p
8' Bourdon 61p 8' Viole Celeste 49p
4' Octave 61p 8' Rohr Flöte 61p
2' Spitz Fifteenth 61p 4' Principal 61p
Sesquialtera II 122p 4' Waldflöte 61p
Fourniture IV 244p 2' Blockflöte 61p
8' Trompete 61p Plein Jeu III 183p
Chimes 16' Basson 61p
Great Unison Off 8' Trompette 61p
Swell 16 4' Hautbois Clairon 61p
Swell 8 Tremolo
Swell 4 Swell 16
Choir 16 Swell 4
Choir 8 Swell Unison Off
Choir 4 Choir 8
Positiv 8
Antiphonal 8
PEDAL (unenclosed)
32' Resultant
POSITIV (unenclosed, chancel-left) 16' Principal (great) 12p
8' Holzgedeckt 61p 16' Quintaten (great)
4' Koppelflöte 61p 16' Rohrgedeckt (swell)
2' Principal 61p 8' Octave (w/pos.) 32p
1-1/3' Quint 61p 8' Rohrflöte (swell)
Cymbal III 183p 4' Choral Bass (w/gt.) 32p
8' Cromorne 61p Mixture III (w/gt.) 96p
Tremolo 32' Bombarde*
Positiv Unison Off 32' Basson*
Cymbalstsern 16' Trompete (great)
16' Basson (swell)
4' Cromorne (positiv)
CHOIR (enclosed, behind great) Great 8
8' Hohlflöte 61p Swell 8
8' Flauto Dolce 61p Swell 4
8' Flute Celeste 61p Choir 8
4' Gemshorn 61p Choir 4
Tremolo Positiv 8
Choir 16 Antiphonal 8
Choir 4 16' Antiphonal Bourdon 12p
Choir Unison Off
Swell 16
Swell 8 ANTIPHONAL (rear, above entry)
Swell 4 8' Holzbordun 61p
Great 8 4' Principal 61p
Antiphonal 8 2' Octav 61p
Mixtur III 183p
8' Trompette en chemade 61p
* pedal 32’ are composite pedal mixture stops, toe stud only
[Received on line from Michael Berman November 10, 2009.]
