Better Pipe Organ Database

Austin Organs, Inc. Opus 2571 (1975)

Redeemer Lutheran Church: Sanctuary
631 N. Nineteenth St.
Milwaukee, WI

Images

2014-02-24 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

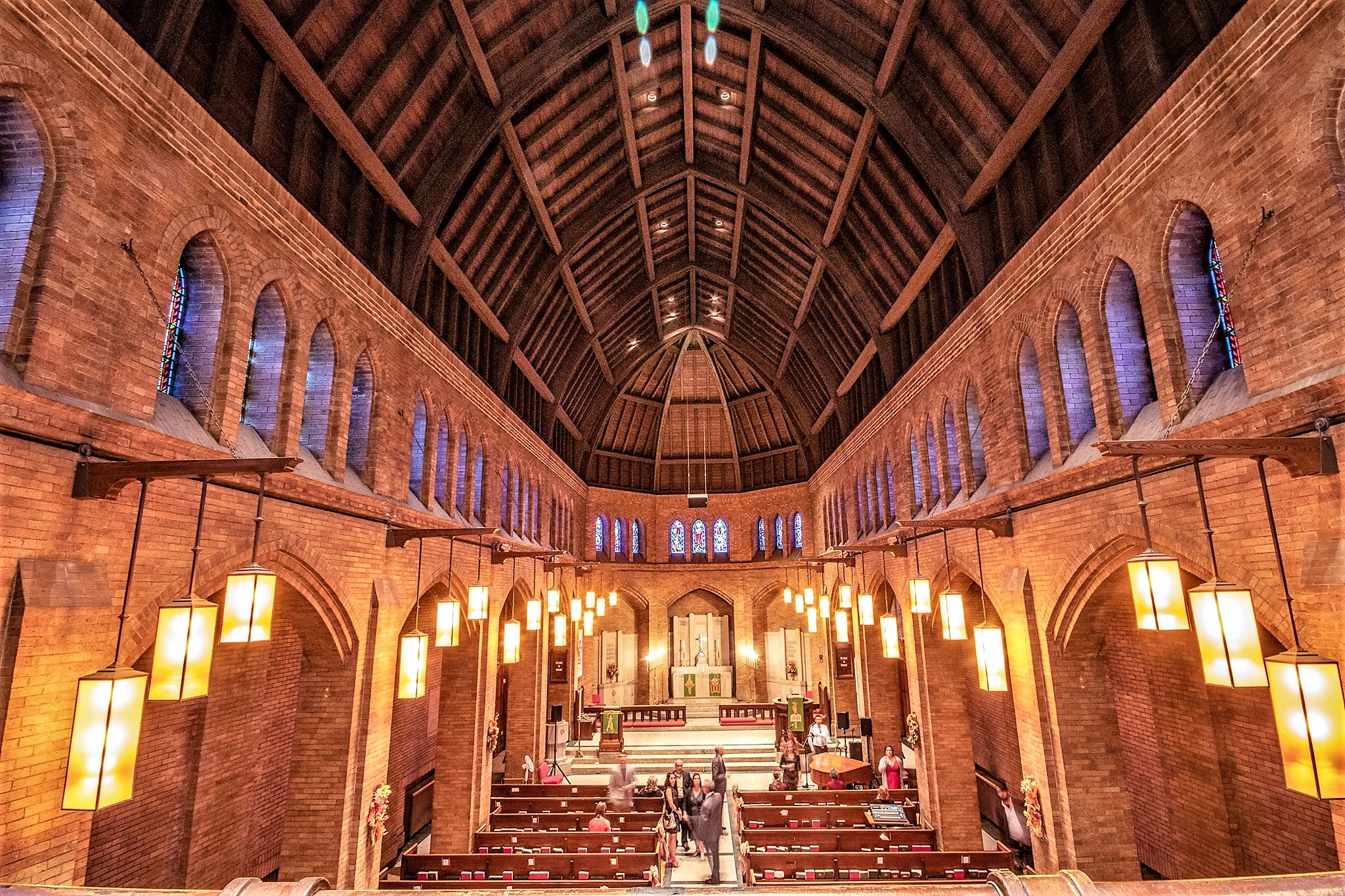

2019-09-12 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2014-09-20 - Sanctuary Interior and Chancel (Photograph by Ryan Mueller/Database Manager)

2014-09-20 - Balcony and Organ Cases (Photograph by Ryan Mueller/Database Manager)

2014-09-20 - Organ Console (Photograph by Ryan Mueller/Database Manager)

2014-09-20 - Antiphonal Organ Grillework (Photograph by Ryan Mueller/Database Manager)

2014-09-20 - Antiphonal Organ Pipework and Chimes (Photograph by Ryan Mueller/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
4 manuals
34 stops
45 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2004-12-21 - The Swell division from the old organ, located in the chancel, serves as the Antiphonal division to the new organ; the existing 4-manual console was retained, renovated and moved to the gallery with the new organ. -Database Manager

Stoplist

Stoplist from the dedication program Source: Source not recorded Date not recorded

     Milwaukee, Wisconsin
     Redeemer Lutheran Church

     Austin   Op. 2571   1975   4/43
     ____________________________________________________________________

     GREAT                      POSITIV                  ANTIPHONAL
  8' Principal 61            8' Nason Flute 61       16' Spitzflöte 61
  8' Gedeckt 61              4' Koppelflöte 61        8' Diapason 73
  4' Octave 61               2' Principal 61          8' Gedeckt 73
  4' Spitzflöte 61       1 1/3' Quint 61              8' Spitzflöte 12
  2' Spitz 15th 61         III  Cymbel 183            8' Viole d'Orch 73
 II  Sesquialtera 122        8' Krummhorn 61          8' Voix Celeste 61
 IV  Fourniture 244             Tremulant             8' Echo Salic   73
     Chimes                                           4' Octave 12
                               PEDAL                  4' Spitzflöte 12
     SWELL                  16' Principal 32      2 2/3' Nazard 61
  8' Rohrflöte 61           16' Gedeckt 12 SW         2' Flautina 61
  8' Gemshorn  61            8' Octave 12         1 3/5' Tierce 61
  8' Gemshorn Cel 49         8' Rohrflöte  SW        16' Oboe 73
  4' Prestant  61            4' Choralbass 32         8' Trumpet 73
  2' Spillflöte 61          II  Rauschquint 64        8' Oboe 12
III  Scharf    183          16' Trompette  12 SW      4' Clarion 12
  8' Trompette  61           8' Trompette  SW            Tremolo
     Tremulant               4' Krummhorn  PO

    [Received online from Jeff Scofield June 15, 2014]

Documents

(1975-01-26) Dedicatory program, via Jeff Scofield -Jeff Scofield
