Millbrook School: The Flagler Memorial Chapel
131 Millbrook School Road
Millbrook, NY
Images

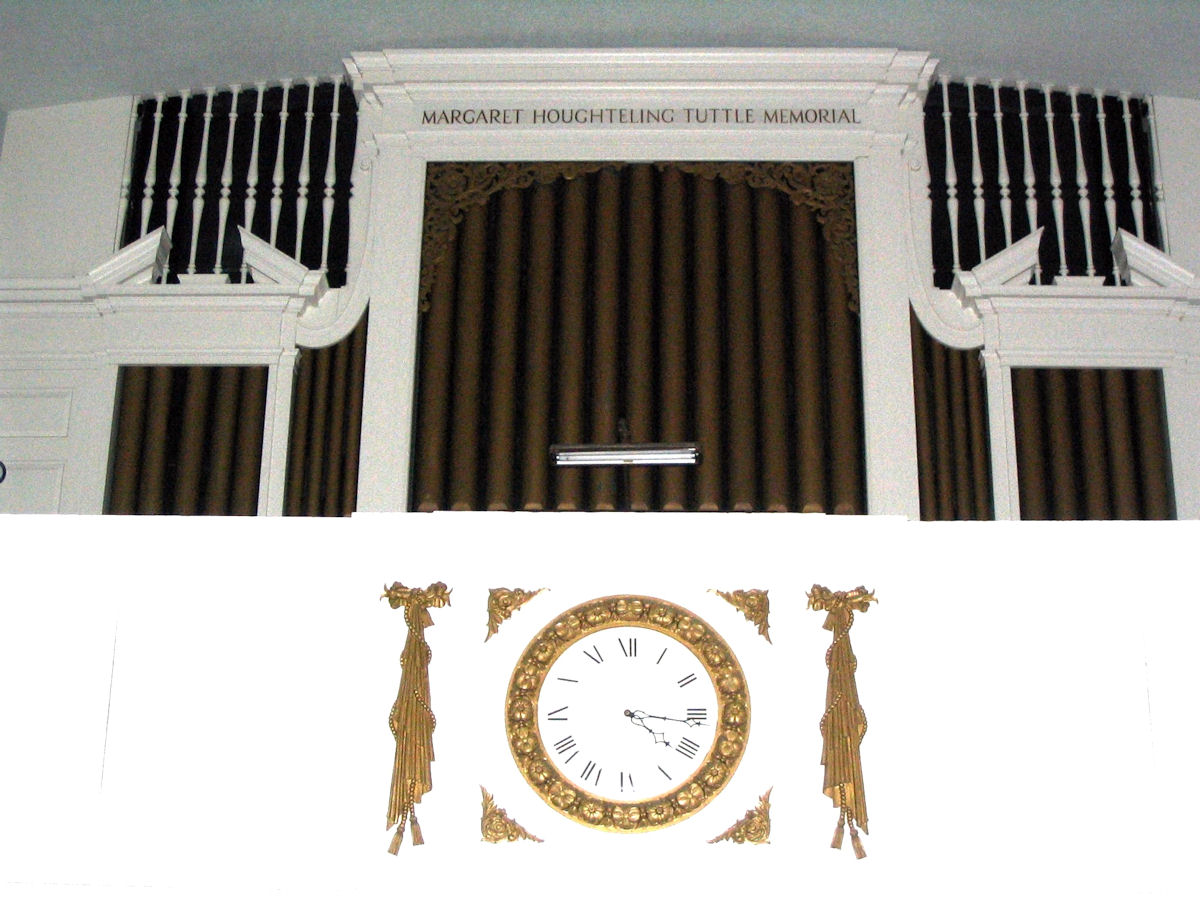

2010-01-12 - Organ case in rear gallery (Photograph by William Hardy/Database Manager)
2010-01-12 - Organ case in rear gallery (Photograph by William Hardy/Database Manager)
2010-01-12 - Organ case, closer view (Photograph by William Hardy/Database Manager)
2010-01-12 - Console: manuals and stops (Photograph by William Hardy/Database Manager)
2010-01-12 - Console: manuals and stops (Photograph by William Hardy/Database Manager)
2010-01-12 - Console: pedals, toe studs, and pedal movements (Photograph by William Hardy/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 17 stops
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2004-12-21 - Information identifying this instrument from the Austin Organs, Inc. web site, accessed December 20, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager
2010-02-09 - Updated through on-line information from Joseph Bertolozzi. -- The Margaret Houghteling Tuttle Memorial Organ. The organ is entirely under expression. -Database Manager
Stoplist
Stoplist copied expressly for area AGO archives Source: Source not recorded Date not recorded
The Margaret Houghteling Tuttle Memorial Organ
Millbrook School
Millbrook, NY 12545
Austin Organs, 1950, Op. 2161, II/18
Two manuals of 61 notes
Pedalboard of 32 notes, concave and radiating
Electric action
Stop tabs run across the top of the console, below the music rack.
GREAT
Quintaton 16’
Principal 8'
Hohlflote 8'
Dolce 8'
Octave 4'
Mixture III
Great 16
Great Unison Off
Great 4
Swell 16
Swell 8
Swell 4
SWELL
Rohr Flote 8’
Voix Celeste II
Geigen Principal 4’
Spitzflote 2’
Trumpet 8’
Hautbois 4'
Tremolo
Swell 16
Swell Unison Off
Swell 4
PEDAL
Contrabass 16'
Quintaton 16’ (Gt.)
Octave 8'
Quintaton 8’ (Gt.)
Super Octave 4' (unit)
Great 8
Great 4
Swell 8
Swell 4
Expression (organ is entirely under expression):
Balanced Pedal for Great and Pedal divisions
Balanced Pedal for Swell division
Crescendo Pedal
PISTONS
8 General Pistons
8 Swell Pistons
8 Great Pistons
6 Pedal Toe Studs
Gt/Ped Reversible Piston AND Toe Stud
Sforz. Toe Stud
General Cancel Piston
Divisional Cancel Bars over the Division Tabs
[Received on line from Joseph Bertolozzi February 09, 2010.]
