Austin Organs, Inc. Opus 2739 (1990)

Old South Union Church: Sanctuary
25 Columbian St.
South Weymouth, MA

Images

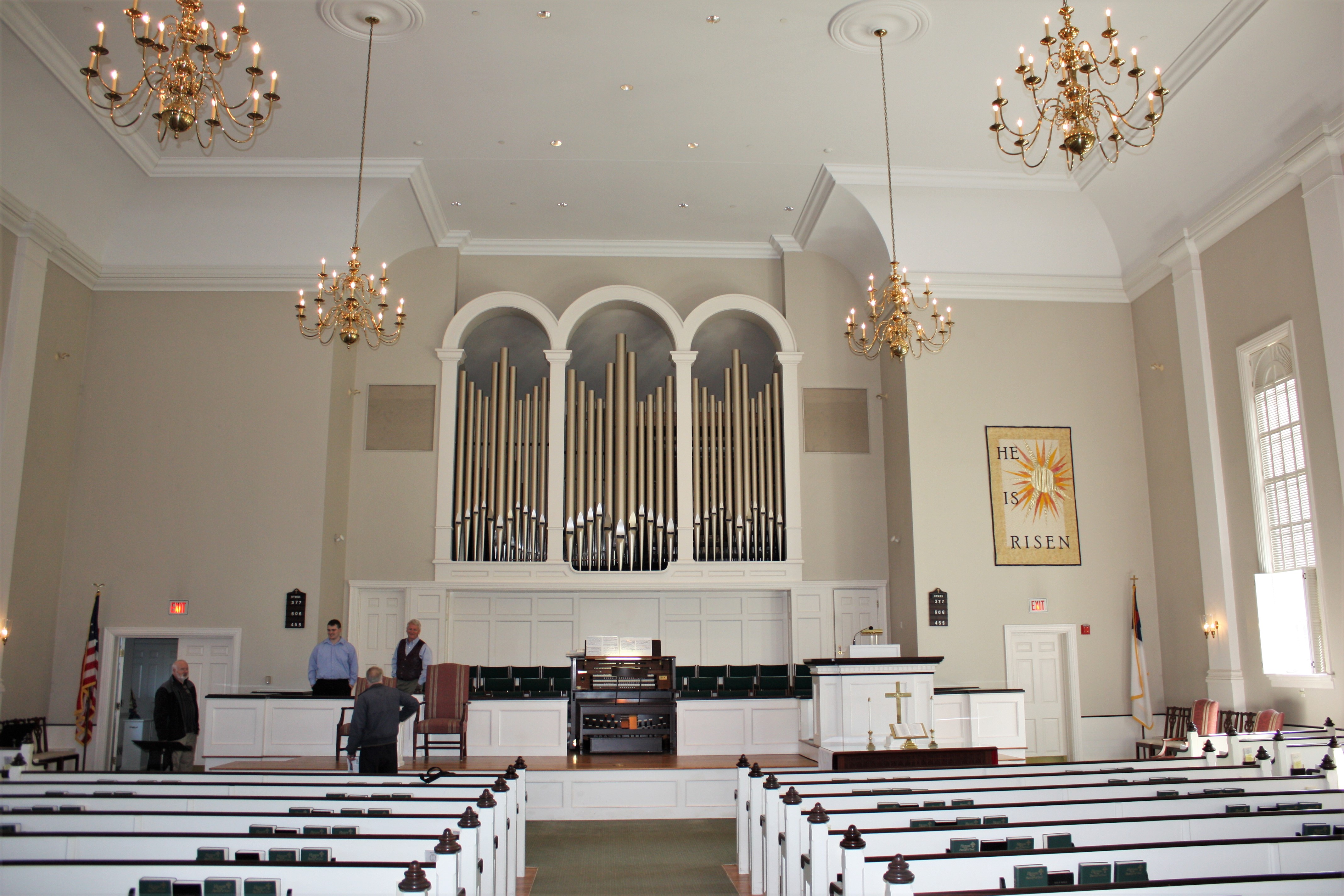

2010-06-05 - Organ in the front of the sanctuary (Photograph by Stephen St. Denis/Stephen St Denis)

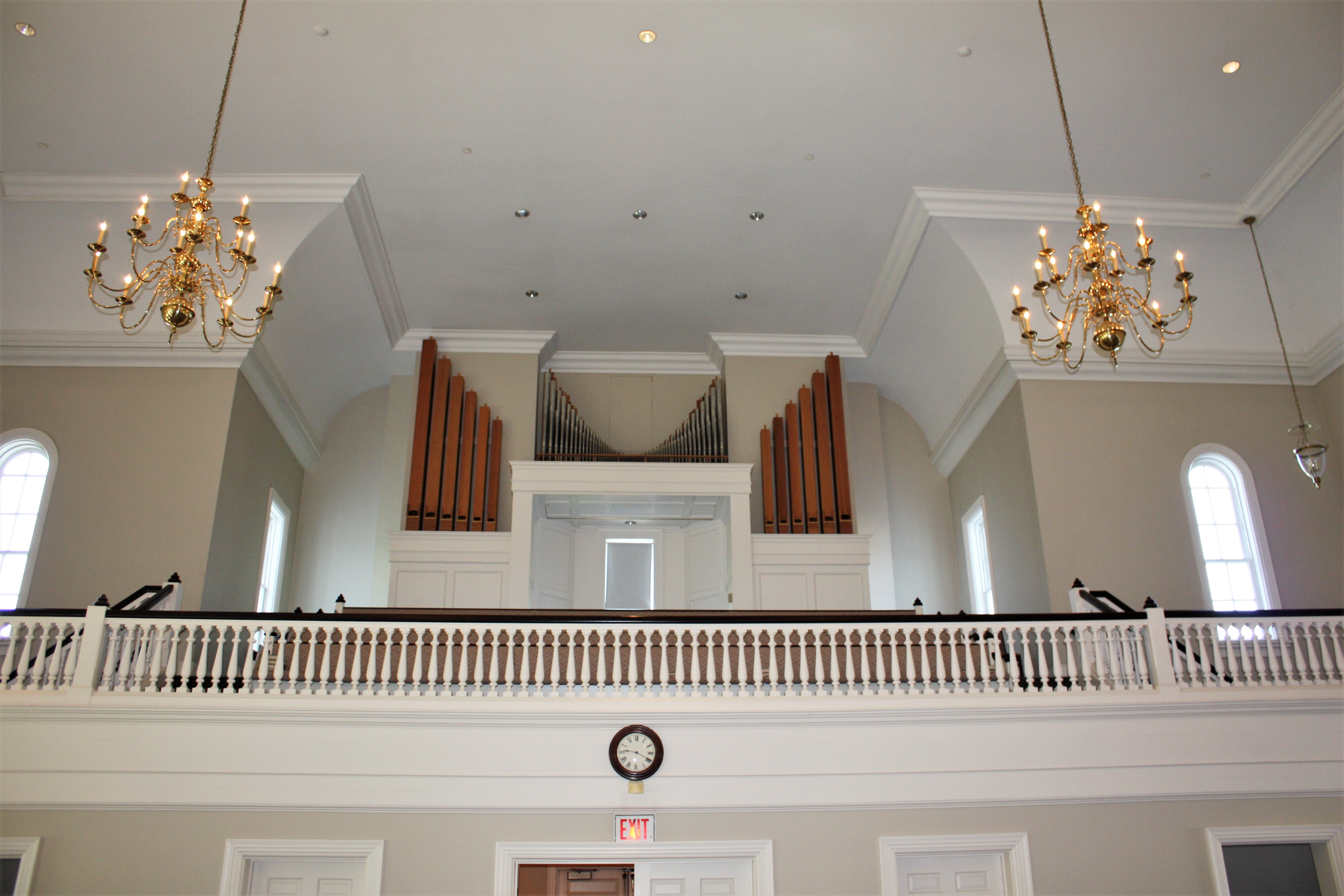

2010-06-05 - Antiphonal division in the rear gallery (Photograph by Stephen St. Denis/Stephen St Denis)

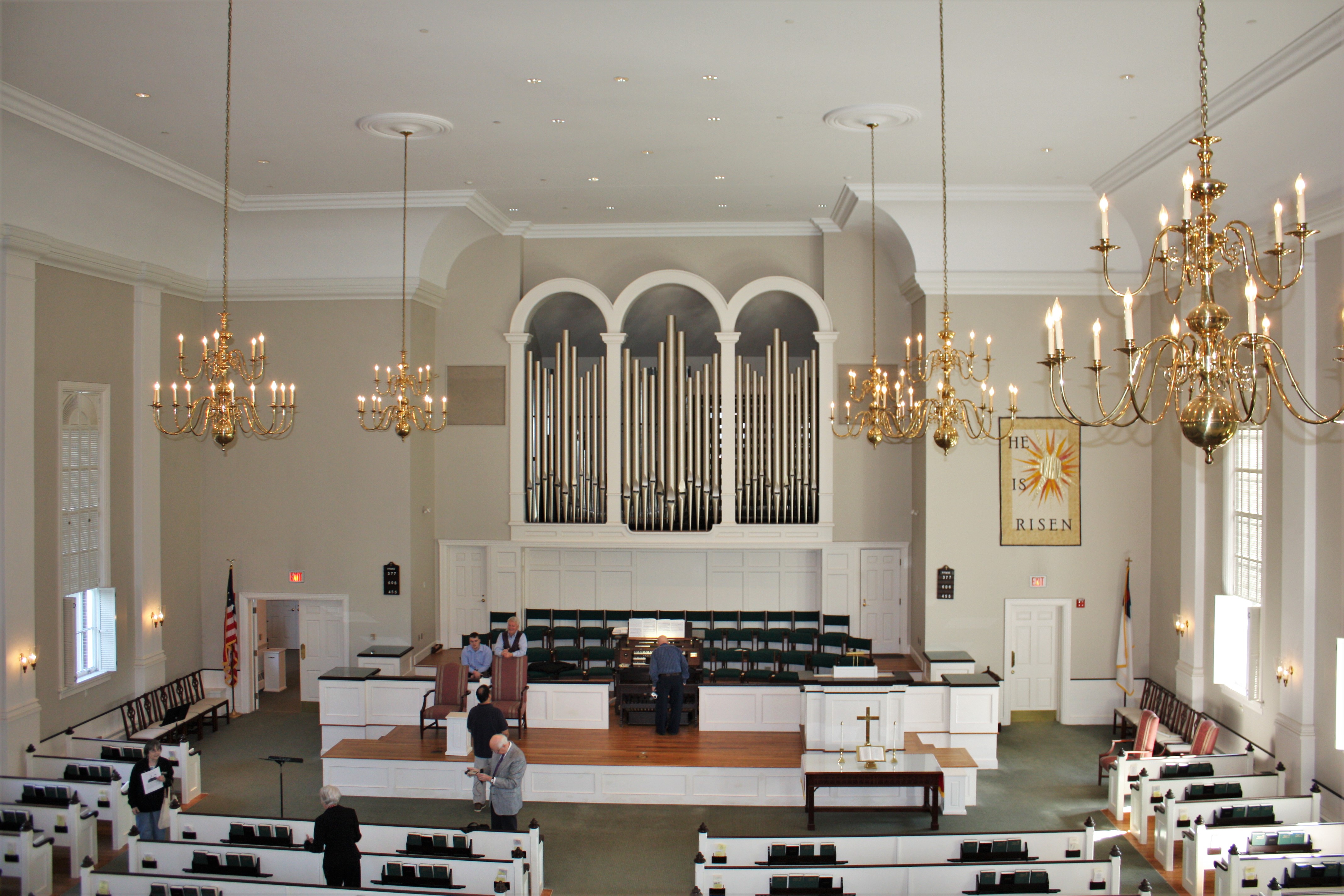

2010-06-05 - Organ and console (Photograph by Stephen St. Denis/Stephen St Denis)

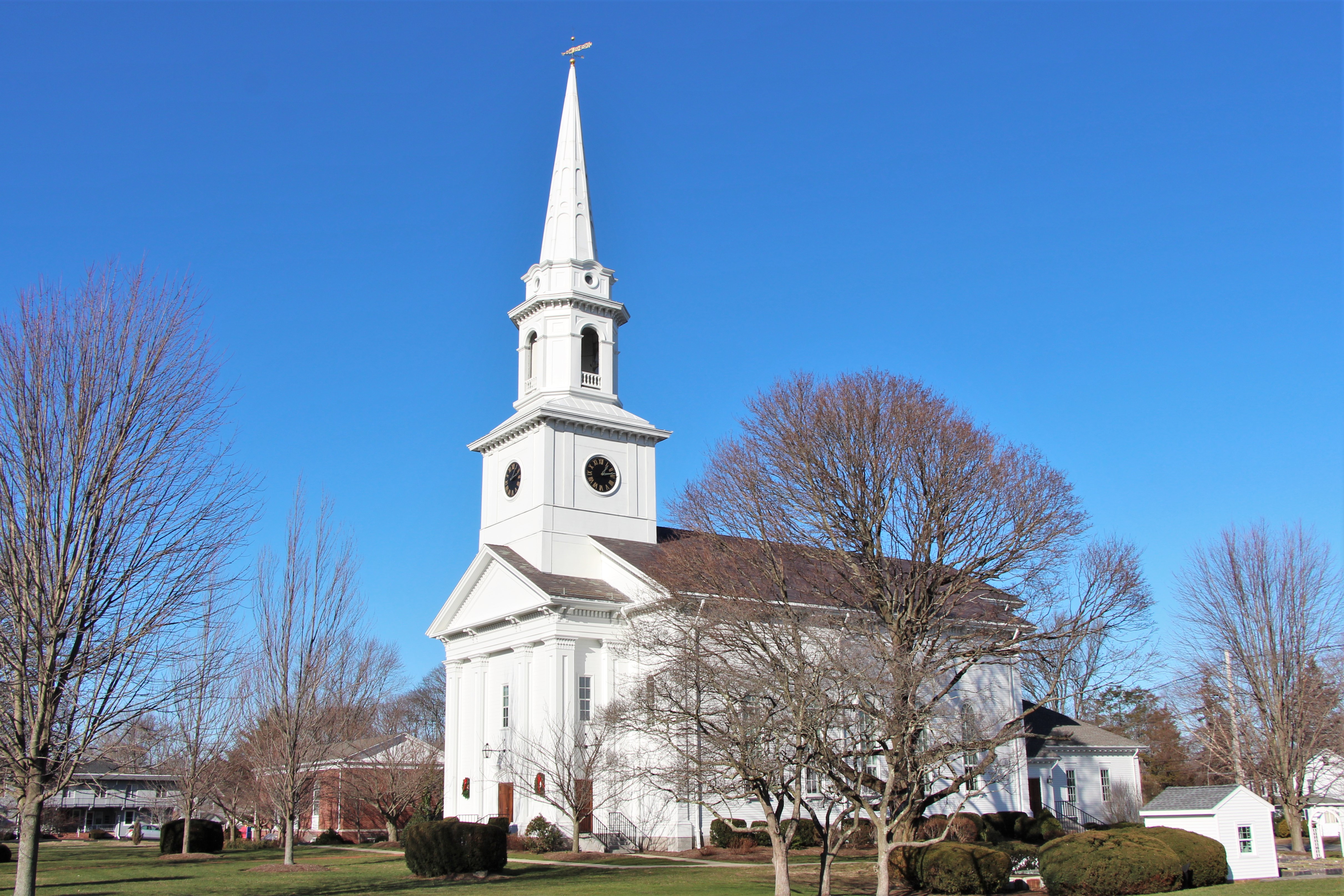

2021-01-08 - Church exterior (Photograph by Stephen St. Denis/Stephen St Denis)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
34 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2005-01-07 - Information identifying this instrument from the Austin Organs, Inc. web site, accessed December 29, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager

Stoplist

Stoplist copied from <i>The American Organist</i> September 1994 Source: Source not recorded Date not recorded

       South Weymouth, Massachusetts
       Old South Union Church, UCC

       Austin   Op. 2739   1990   3/28
       _______________________________________

       GREAT                  ANTIPHONAL
    8' Open Diapason       8' Gedeckt
    8' Chimney Flute       4' Prestant
    4' Octave              2' Spitzprincipal
    4' Spire Flute        II  Sesquialtera
2 2/3' Twelfth             8' Trumpet
    2' Fifteenth              Tremulant
   IV  Fourniture
    8' Trumpet                PEDAL
       Chimes             32' Resultant
                          16' Open Diapason
       SWELL              16' Bourdon
    8' Viole de Gambe     16' Lieblich Gedeckt
    8' Voix celeste        8' Octave
    8' Flute Conique       8' Bourdon
    8' Flute Celeste       4' Choralbass
    4' Principal          II  Rauschquint
    4' Spindle Flute      16' Trombone
    2' Flute a Bec         8' Trumpet
  III  Plein Jeu           4' Oboe
    8' Trompette
    8' Oboe
       Tremulant

   [Received from Jeff Scofield June 23, 2014]
