Holy Redeemer Roman Catholic Church
144 West Johnson Street
Madison, WI
Images
2019-08-09 - Nave, looking from gallery (Photograph by Andrew Schaeffer/Database Manager)

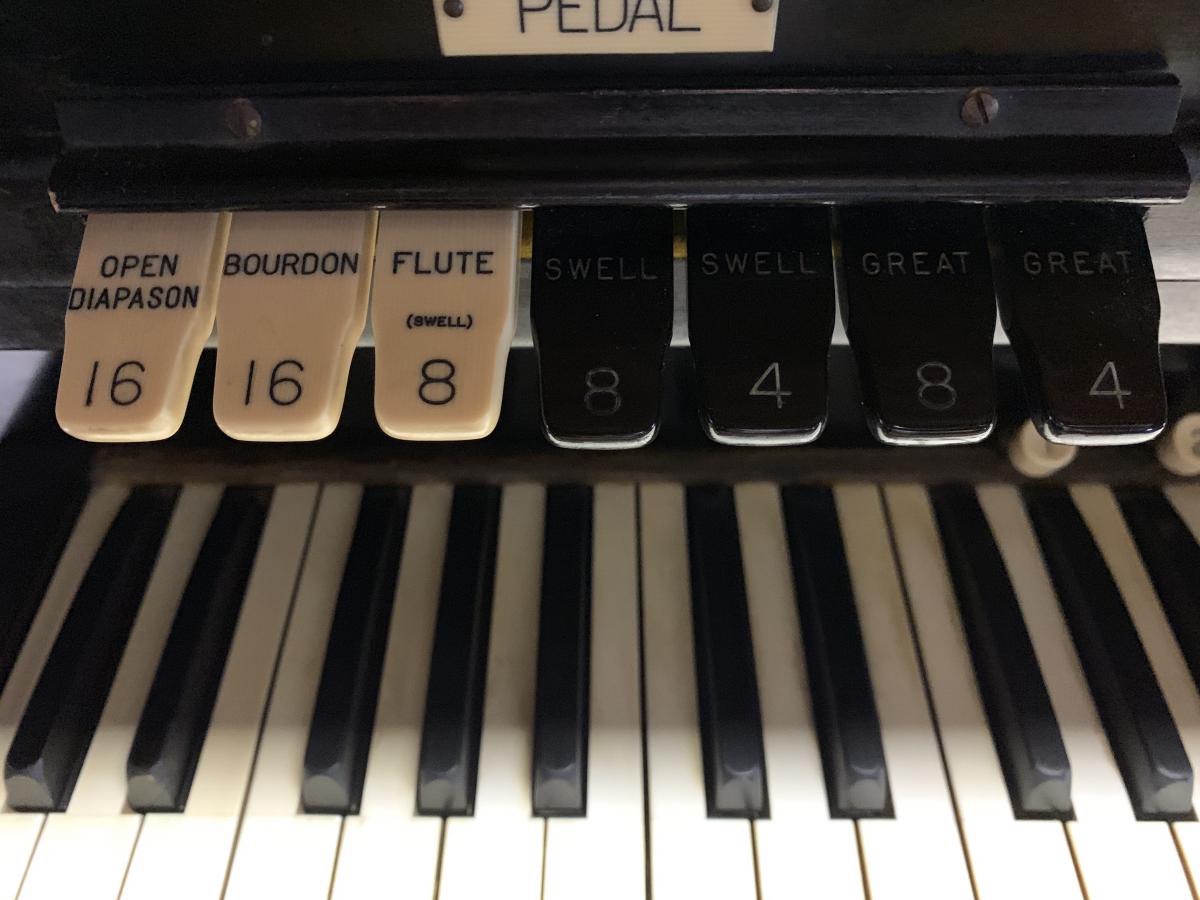

2019-08-09 - Pedal Stop Tabs (Photograph by Andrew Schaeffer/Database Manager)
2019-08-09 - Swell Stop Tabs (Photograph by Andrew Schaeffer/Database Manager)
2019-08-09 - Great Stop Tabs (Photograph by Andrew Schaeffer/Database Manager)
2019-08-09 - Builder's Nameplate (Photograph by Andrew Schaeffer/Database Manager)
2019-08-09 - Organ Case (Photograph by Andrew Schaeffer/Database Manager)
Date Unknown - Organ in rear gallery (Unattribted on Yelp/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 14 stops
- 16 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2005-01-08 - Information identifying this instrument from the Austin Organs, Inc. web site, accessed December 31, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager
2013-09-21 - Updated through online information from Richard C Greene. -Database Manager
2014-08-25 - Updated through online information from David Bohn. -- Great Concert Flute, Dulciana, and Tuba Mirabilis enclosed in second expression box; Open Diapason, Octave, and Mixture unenclosed. Great Tuba removed at some point; replaced by second-hand high pressure Casavant Trumpet prior to 1983. -Database Manager
Stoplist
Stoplist taken from console, July 1972 Source: Source not recorded Date not recorded
Madison, Wisconsin
Holy Redeemer Catholic Church
Austin, Opus 1861, 1934
Great Organ, unenclosed, Manual I
8' Open Diapason
8' Concert Flute
8' Dulciana
4' Octave
III Mixture
8' Tuba Mirabilis
Great to Great 16, Great to Great 4
Swell to Great 16, Swell to Great 8, Swell to Great 4
Unison Off
Swell Organ, expressive, Manual II
8' Open Diapason
8' Stopped Flute
8' Salicional
8' Voix Celeste
4' Flute (ext)
8' Oboe
8' Vox Humana
Tremulant
Swell to Swell 16, Swell to Swell 4, Unison Off
Pedal Organ
16' Open Diapason
16' Bourdon
8' Flute (Swell)
Great to Pedal 8, Great to Pedal 4
Swell to Pedal 8, Swell to Pedal 4
Usual accessories
[Received from Rick Erickson 2011-01-22.]
