Alpine Stake Tabernacle: Main Hall
110 E Main Street
American Fork, UT
Images
2020-10-07 - Pistons (not shown are the Tutti, Set, and General Cancel) (Photograph by Kenneth Ray/Kenneth Ray)
2020-10-07 - Pedal stop rail (Photograph by Kenneth Ray/Kenneth Ray)
2020-10-07 - Swell stop rail (Photograph by Kenneth Ray/Kenneth Ray)

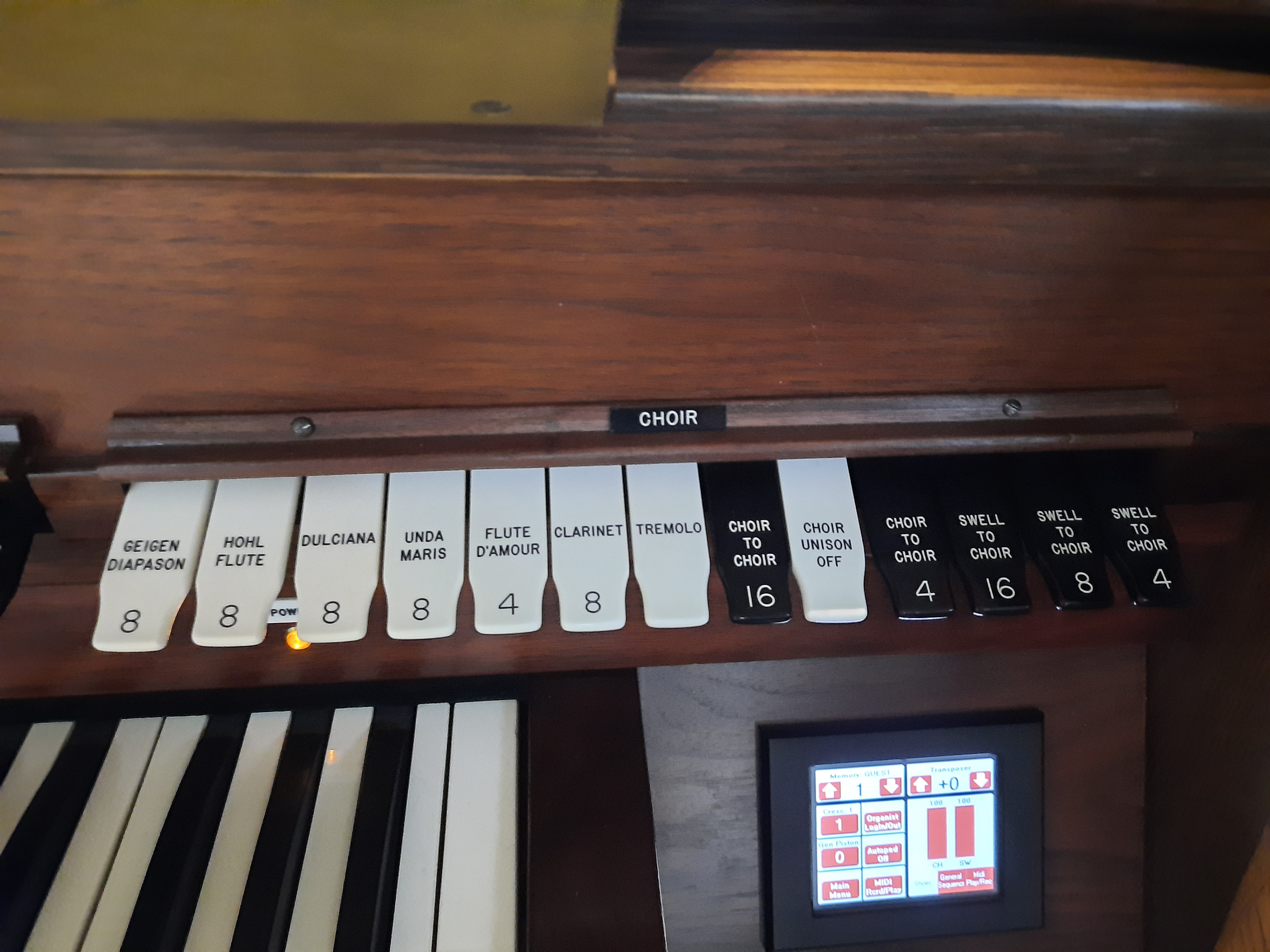

2020-10-07 - Choir stop rail (Photograph by Kenneth Ray/Kenneth Ray)
2020-10-07 - Great stop rail (Photograph by Kenneth Ray/Kenneth Ray)
2020-10-11 - Console (Photograph by Kenneth Ray/Kenneth Ray)
2020-10-11 - Facade (Photograph by Kenneth Ray/Kenneth Ray)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 22 stops
- 52 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has transposer
- Combination action: Computerized/Digital
- Syndyne LS 8400
- Has record/playback
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2005-01-08 - Information identifying this instrument from the Austin Organs, Inc. web site, accessed December 31, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager
2020-10-16 - New Console 1976, new memory probably after that because there is a touch screen control -Kenneth Ray
Stoplist
Source: Taken from OHS Database pictures and memory
Choir Geigen Diapason 8, Hohl Flute 8, Unda Maris 8, Dulciana 8, Clarinet 8, Flute d'Amour 4, Tremolo
Great Gross Flute 8, Bourdon 16, Open Diapason 8, Principal 4, Flute Harmonic 4, Tuba 8, Chimes (Chimes mounted at the back of the case)
Swell Lieblich Gedeckt 16, Gamba Celeste 8, II Echo Celeste 8, Gamba 8, Flauto Traverso 4, Flageolet 2, Oboe 8, Vox Humana 8, Tremolo, Gedeckt 8
Pedal Diapason 16 (Wood), Bourdon 8, Lieblich Gedeckt 16
Great to Great 4, Great to Great 16, Great to Great, Choir to Great 8, Choir to Great 16, Choir to Great 4, Swell to Great 16, Swell to Great 8, Choir to Choir 16, Swell to Great 4, Choir to Choir, Choir to Choir 4, Swell to Choir 16, Swell to Choir 8, Swell to Choir 4, Swell to Swell 16, Swell to Swell, Great to Pedal 8, Swell to Swell 4, Choir to Pedal 8, Great to Pedal 4, Choir to Pedal 4, Swell to Pedal 8, Swell to Pedal 4
