Better Pipe Organ Database

Austin Organs, Inc. Opus 2666 (1981)

Manchester University: Cordier Auditorium
604 E. College Ave.
North Manchester, IN

Images

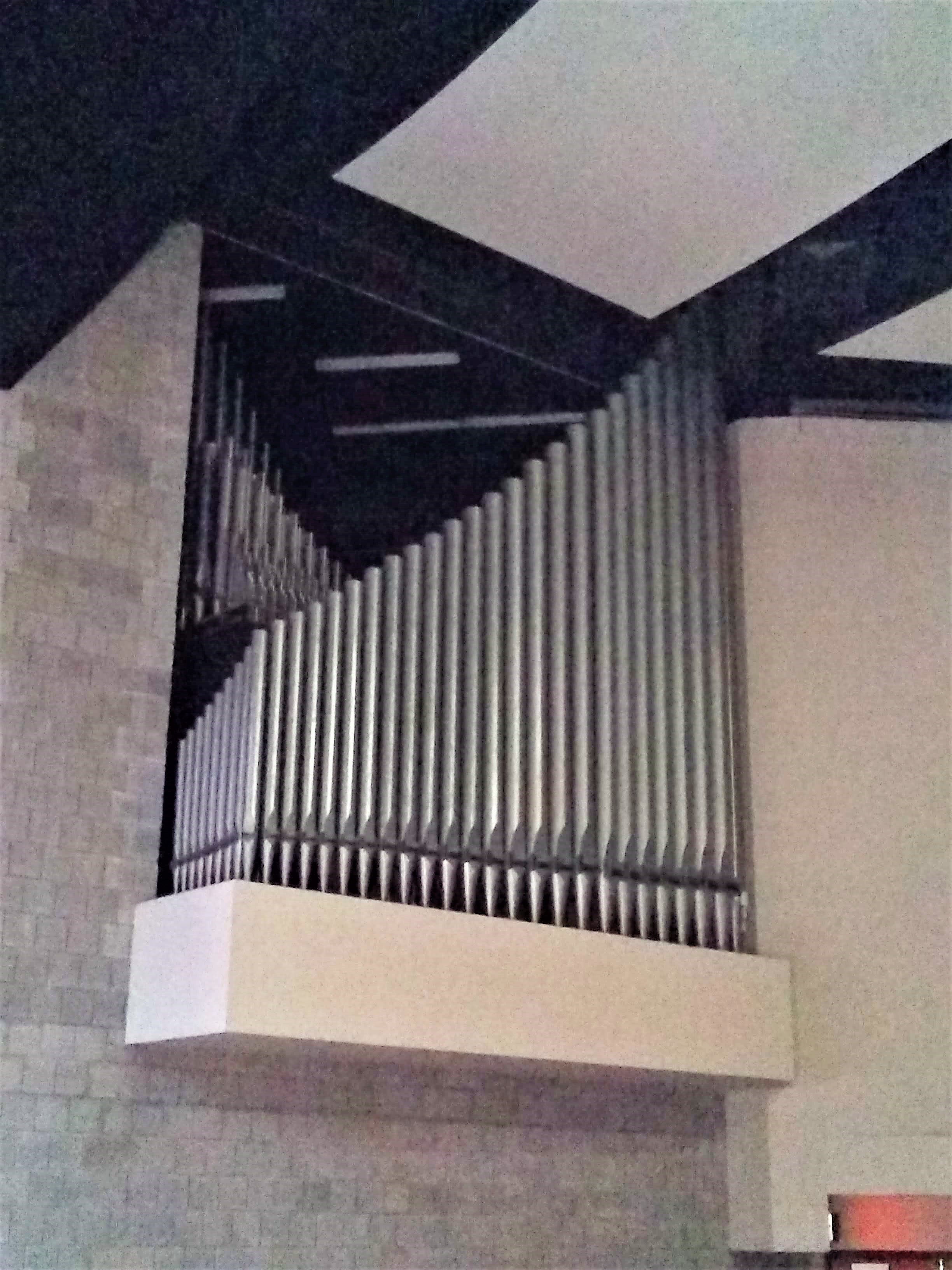

2019-10-19 - Pipework (Photograph by Alan Chambers/Alan Chambers)

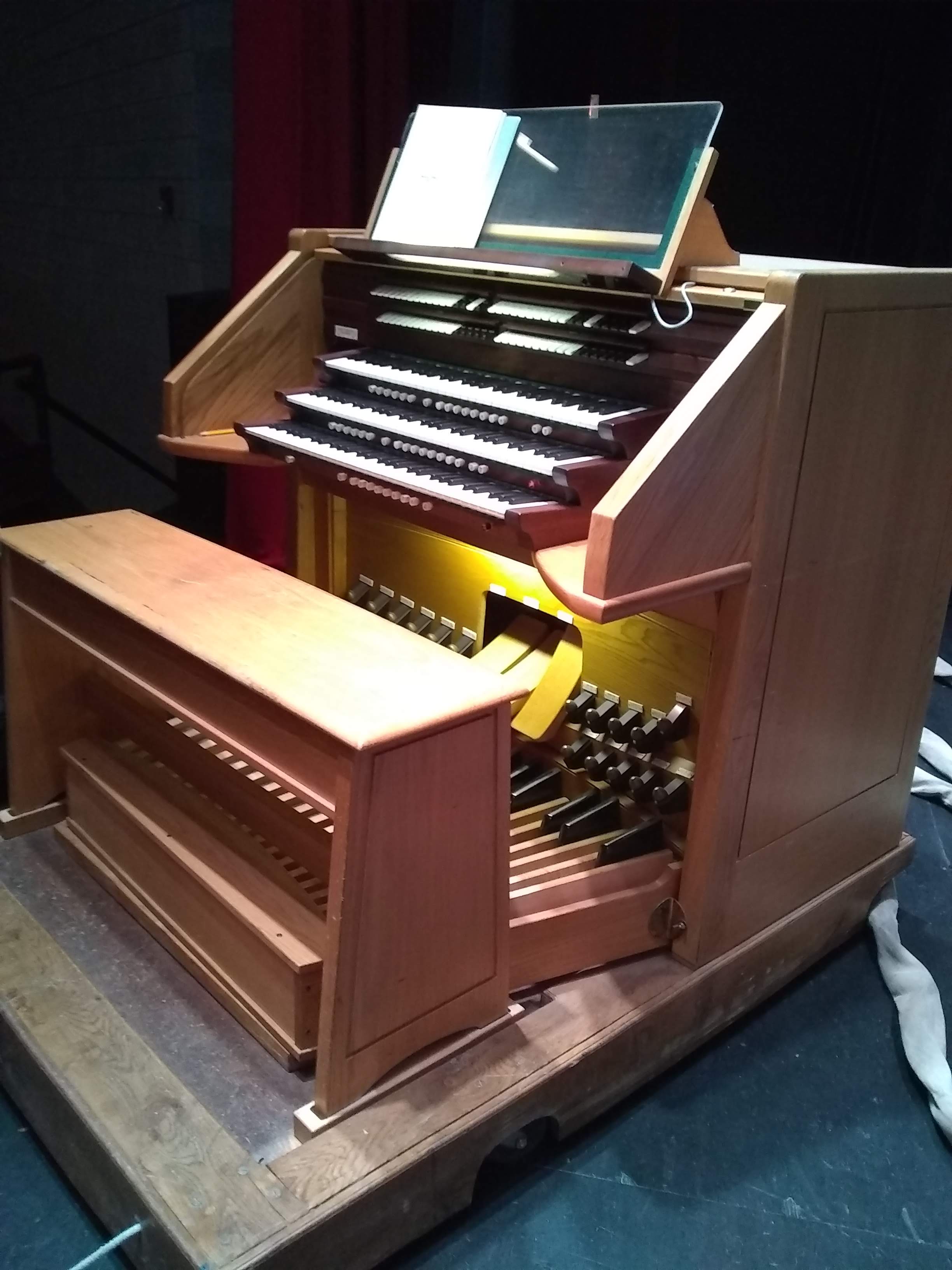

2019-10-19 - Console (Photograph by Alan Chambers/Alan Chambers)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
32 stops
41 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-01-08 - Information identifying this instrument from the Austin Organs, Inc. website, accessed December 31, 2004: http://www.austinorgans.com/organ-research.htm. -Database Manager

2006-05-18 - Updated through online information from Robin Gratz. -Database Manager

Stoplist

Source: Taken from console October 2019

THE AUSTIN PIPE ORGAN
OPUS 2666, 1981, III/49
CORDIER AUDITORIUM, MANCHESTER UNIVERSITY
NORTH MANCHESTER, INDIANA

SWELL				GREAT				POSITIV
Rohr Flute 8			Gemshorn 16			Nason Flute 8
Viola 8				Principal 8			Erzahler 8
Viola Celeste 8			Bourdon 8			Erzaheler Celeste 8
Principal 4			Gemshorn 8			Koppel Flute 4
Wald Flute 4			Octave 4			Prinzipal 2
Nasard 2-2/3			Nachthorn 4			Quint 1-1/3
Block Flute 2			Fifteenth 2			Cymbal III
Tierce 1-3/5			Fourniture IV			Krummhorn 8
Plein Jeu III			Scharf III			Bombarde 8
Fagot 16			Great Unison Off		Tremulant
Trompette 8			Swell to Great 16		Positiv to Positiv16
Clairon 4			Swell to Great 8		Positiv to Positiv 4
Tremulant 			Swell to Great 4		Positiv Unison Off
Swell to Swell 16		Positiv to Great 16		Swell to Positiv 16
Swell to Swell 4		Positiv to Great 8		Swell to Positiv 8
Swell Unison Off		Positiv to Great 4		Swell to Positiv 4
Positive to Swell 8		Chimes (N/A)			Great to Positiv 8
                                Swell to Great Reversible	Cymbelstern
                                Positiv to Great Reversible	Swell to Positiv
                                                                  Reversible

PEDAL							MEMORY
Resultant 32		Great to Pedal 8		General Pistons 1-14
Principal 16		Swell to Pedal 8		General Toe Studs 1-12
Gemshorn (Gt) 16	Swell to Pedal 4		Great Pistons 1-8
Gedeckt 16		Positiv to Pedal 8		Swell Pistons 1-8
Octave 8		Positiv to Pedal 4		Positiv Pistons 1-8
Rohr Flute (Sw) 8	Great to Pedal Reversible	Pedal Toe Studs 1-6
Super Octave 4		Swell to Pedal Reversible
Mixture III		Postitiv to Pedal Reversible	ACCESSORIES
Posaune 16		Pedal on Any Manual		Crescendo Shoe Pedal
Fagot (Sw) 16		  Piston Adj			Swell Shoe Pedal
Trompette 8						Positiv Shoe Pedal
Krummhorn (Pos) 4					Tutti Piston
                                                        General Cancel Piston
                                                        Piston Retention
                                                        Swell/Positiv Transfer
                                                        Tutti Toe Stud

Stoplist copied from a dedication program, courtesy of Frederick Swann Source: Source not recorded Date not recorded

       North Manchester, Indiana
       Manchester College
       Cordier Auditorium

       Austin   Op. 2666   1981   3/44
       _______________________________________________

       GREAT                       CHOIR-POSITIV
   16' Gemshorn      61         8' Nason Flute      61
    8' Principal     61         8' Erzähler         61
    8' Bourdon       61         8' Erzähler Celeste 49
    8' Gemshorn      12         4' Koppelflöte      61
    4' Octave        61         2' Principal        61
    4' Nachthorn     61     1 1/3' Quint            61
    2' Fifteenth     61       III  Cymbal          183
   IV  Fourniture   244            Tremulant
  III  Scharf       183         8' Bombarde         61
                                   Cymbalstern
       SWELL
    8' Rohrflöte     61            PEDAL
    8' Viole         61        32' Resultant        --
    8' Viole Celeste 49        16' Principal        32
    4' Principal     61        16' Gemshorn         GT
    4' Waldflöte     61        16' Gedeckt          12 SW
2 2/3' Nasard        61         8' Octave           32
    2'[Flute] *      61         8' Rohrflöte        SW
1 3/5' Tierce        61         4' Super Octave     12
  III  Plein Jeu    183       III  Mixture          96
   16' Fagot         61        16' Posaune          32
    8' Trompette     61        16' Fagot            SW
    4' Clairon       61         8' Trumpet          12
       Tremulant                4' Krummhorn        CH

    *  omitted from the stoplist printed in the dedica-
       tion program, but assumed the organ would have it.

      [Received online from Jeff Scofield June 15, 2014]

Documents

(1982-02-27) Dedication program, via Jeff Scofield -Jeff Scofield
