Karl Wilhelm Opus 23 (1971)

Oklahoma State University: Bennett Memorial Chapel
Stillwater, OK

Images

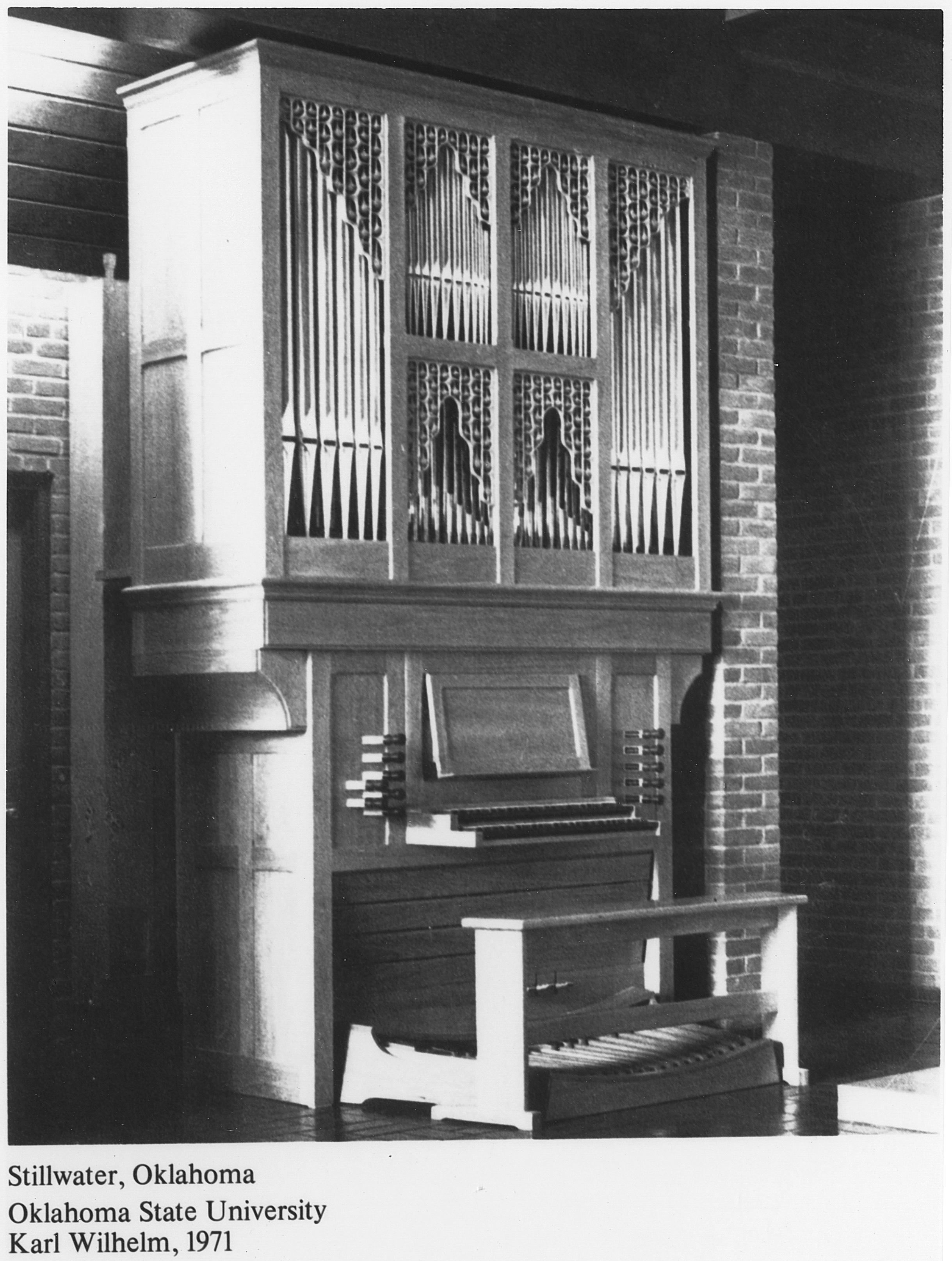

1971 - Organ case and keydesk (Photograph from an archival source: Oklahoma State University, submitted by Gerald D. Frank/Gerald D. Frank)

2010s - Organ case and console (Unknown /Miles Anderson)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
12 stops
12 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None
Has hitchdown couplers

Notes

2014-08-08 - Updated through online information from C. David Hughes. -Database Manager

2016-06-24 - Updated through online information from Gerald D. Frank. -Database Manager

Stoplist

Stoplist taken from the instrument June 15, 2016 Source: Source not recorded Date not recorded

Stillwater, Oklahoma
Bennett Memorial Chapel, Oklahoma State University

Karl Wilhelm, 1971
2 manuals, 12 stops, 15 ranks
___________________________________________________

                   Manual I
              8'  Rohrflöte
              4'  Prinzipal
              2'  Waldflöte
              1'  Mixtur II-III
              8'  Krummhorn
                   II/I

                   Manual II
              8'  Holzgedackt
              4'  Rohrflöte
              2'  Prinzipal
          1 1/3'  Quinte
          2 2/3'  Sesquialtera II (from tenor G)

                   Pedal
             16'  Bourdon
              8'  Rohrgedackt
                    I/Pedal
                   II/Pedal

Mechanical key action
Mechanical stop action
Freestanding case in a side alcove at the front of the room
Keydesk attached to the front of the case
No Tremulant

Manual compass 56 notes
Pedal compass 32 notes



 [Received from Gerald D. Frank 2016-06-18.]
