Schantz Organ Co. Opus 2199 (2004)

First Baptist Church: Sanctuary
305 South Perry Street
Montgomery, AL

Images

2010-07-08 - Console (Photograph by Jeff Scofield/Database Manager)

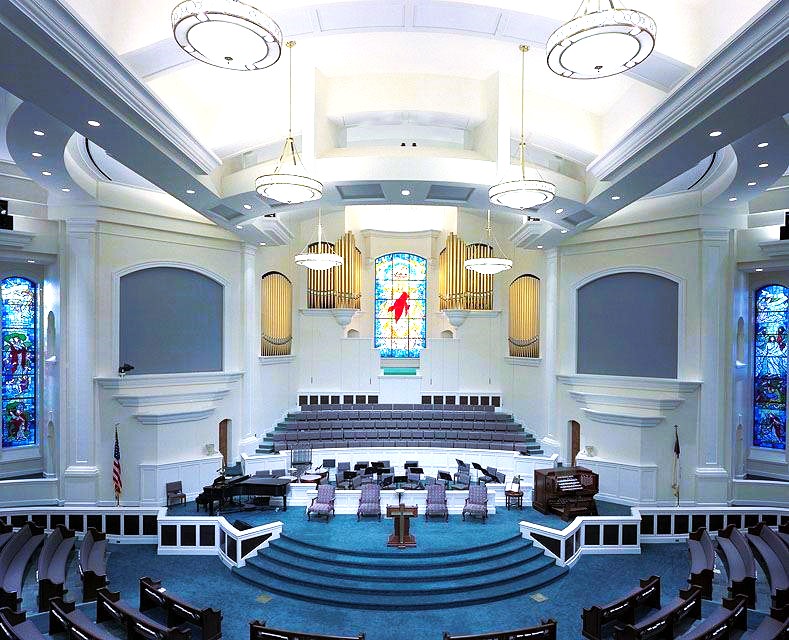

2004-09-01 - Sanctuary Interior, Chancel, and Pipe Facades (Image from Schantz Organ Company; used with permission/Database Manager)

2004-09-01 - Console and Pipe Facades (Image from Schantz Organ Company; used with permission/Database Manager)

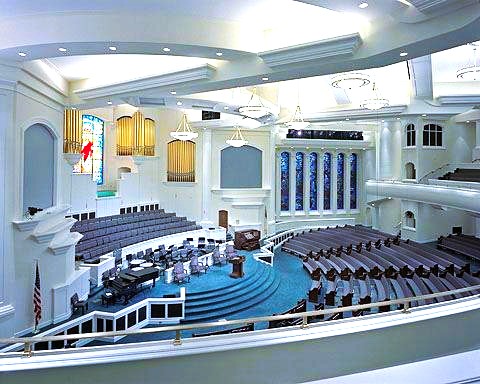

2004-09-01 - Gallery and Antiphonal Chamber Grille (Image from Schantz Organ Company; used with permission/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
4 manuals
84 stops
7 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-03-01 - Identified through information in "Recent Installations," <i>The American Organist</i> July, 2004. -Database Manager

2010-06-01 - Updated through on-line information from Chad Boorsma. -- The instrument has ninety-two façade pipes and was part of the church's new sanctuary project. The detached four-manual console includes four programmable crescendo settings, two programmable full organ settings and a MIDI resource center for recording and playback. The original sanctuary, home to a 1973 Schantz organ, serves as the chapel. -Database Manager

Stoplist

Stoplist copied from builder\'s website Source: Source not recorded Date not recorded

First Baptist Church
Montgomery, Alabama

Schantz Organ Opus 2199, installed 2004

CHOIR
  8' 	English Diapason	  61 pipes
  8' 	Dolcan			  61
  8' 	Dolcan Celeste [TC]	  49
  8' 	Gedeckt			  61
  4' 	Principal		  61
  4' 	Koppel Flute		  61
  2' 	Gemshorn		  61
  1 1/3	Quinte			  61
  1' 	Sharp Mixture IV 	244
  8' 	English Horn		  61
  8' 	Schalmei		  61
	Tremulant
  8' 	Tuba Major		  61
	Zimbelstern		   5 bells

GREAT	17
16' 	Double Open Diapason	  61
  8' 	First Open Diapason	  61
  8' 	Second Open Diapason	  12
  8' 	Bourdon			  61
  8' 	Harmonic Flute		  61
  4' 	Octave			  61
  4' 	Spire Flute		  61
  2 2/3	Twelfth			  61
  2' 	Fifteenth		  61
  1 3/5 Seventeenth		  61
  1 1/3 Fourniture IV 		 244
    2/3 Cymbale III 		 183
 16' 	Double Trumpet		  12
  8' 	Trumpet			  61
	Tremulant
  8' 	Tuba Major 		  --	[CH]
	Chimes			  21 bells

SWELL
 16' 	Stopped Bass		  73
  8' 	Diapason		  61
  8' 	Salicional		  61
  8' 	Voix Celeste [GG]	  54
  8' 	Rohr Flute                --    from stopped bass
  4' 	Principal		  61
  4' 	Traverse Flute		  61
  2 2/3	Nasard			  61
  2' 	Block Flute		  61
  1 3/5	Tierce			  61
  2' 	Plein Jeu IV 		 244
16' 	Bassoon			  73
  8' 	Trumpet			  61
  8' 	Oboe                      --    from Bassoon
  4' 	Clarion			  61
  8' 	Vox Humana		  --	preparation
	Tremulant
  8' 	Tuba Major		  --	[CH]

PEDAL
32' 	Double Open Diapason	  --	Digital
32' 	Contra Bourdon		  --	Digital
16' 	Open Diapason		  32
16' 	Diapason		  --	[GT]
16' 	Bourdon			  32
16' 	Stopped Bass 		  --	[SW]
 8' 	Octave			  32
 8' 	Octave Diapason		  --	 [GT]
 8' 	Bourdon			  12
 8' 	Stopped Diapason	  --	 [SW]
 4' 	Fifteenth		  32
 4' 	Open Flute		  12
 2 2/3 	Mixture IV 	         128
32' 	Ophicleide		  --	 Digital
16' 	Trombone		  32
16' 	Double Trumpet 		  --	[GT]
16' 	Bassoon 		  --	[SW]
 8' 	Tromba			  12
 8' 	Oboe 			  --	[SW]
 4' 	Clarion			  12
  8' 	Tuba Major		  --	 [CH]

ANTIPHONAL GREAT
  8' 	Open Diapason		   61 pipes
  8' 	Major Flute		   61
  8' 	Open Wood Flute Celeste II 110
  4' 	Octave			   61
  2' 	Fifteenth		   61
  8' 	Harmonic Trumpet	   61
	Tremulant

ANTIPHONAL SWELL
  8' 	Stopped Diapason	  61
  8' 	Gamba			  61
  8' 	Gamba Celeste [GG]	  54
  4' 	Fugara			  61
  2' 	Recorder		  61
  8' 	Clarinet		  61
	Tremulant

ANTIPHONAL PEDAL
16' 	Bourdon			  12
 8' 	Diapason 		  --	[GALLERY GREAT]
 8' 	Bourdon			  --	[GALLERY SWELL]
 4' 	Fifteenth		  --

[Received on line from Stephen Hall August 16, 2009.]
