2005-05-12 - Design consultant: Thomas Murray. -Database Manager
2008-07-28 - Updated through information submitted by Jack Bethards, Schoenstein & Co. </i> -Database Manager
Typed specification Source: From builder's website Date not recorded
Houston, Texas

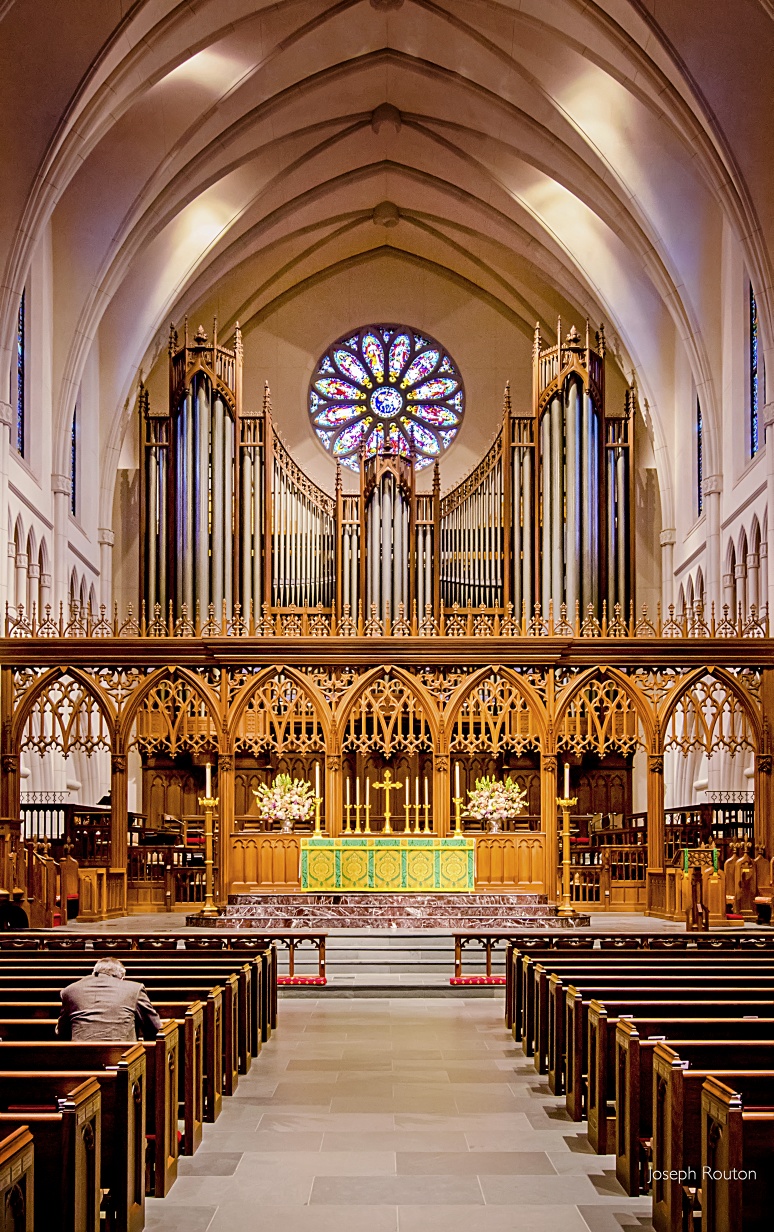

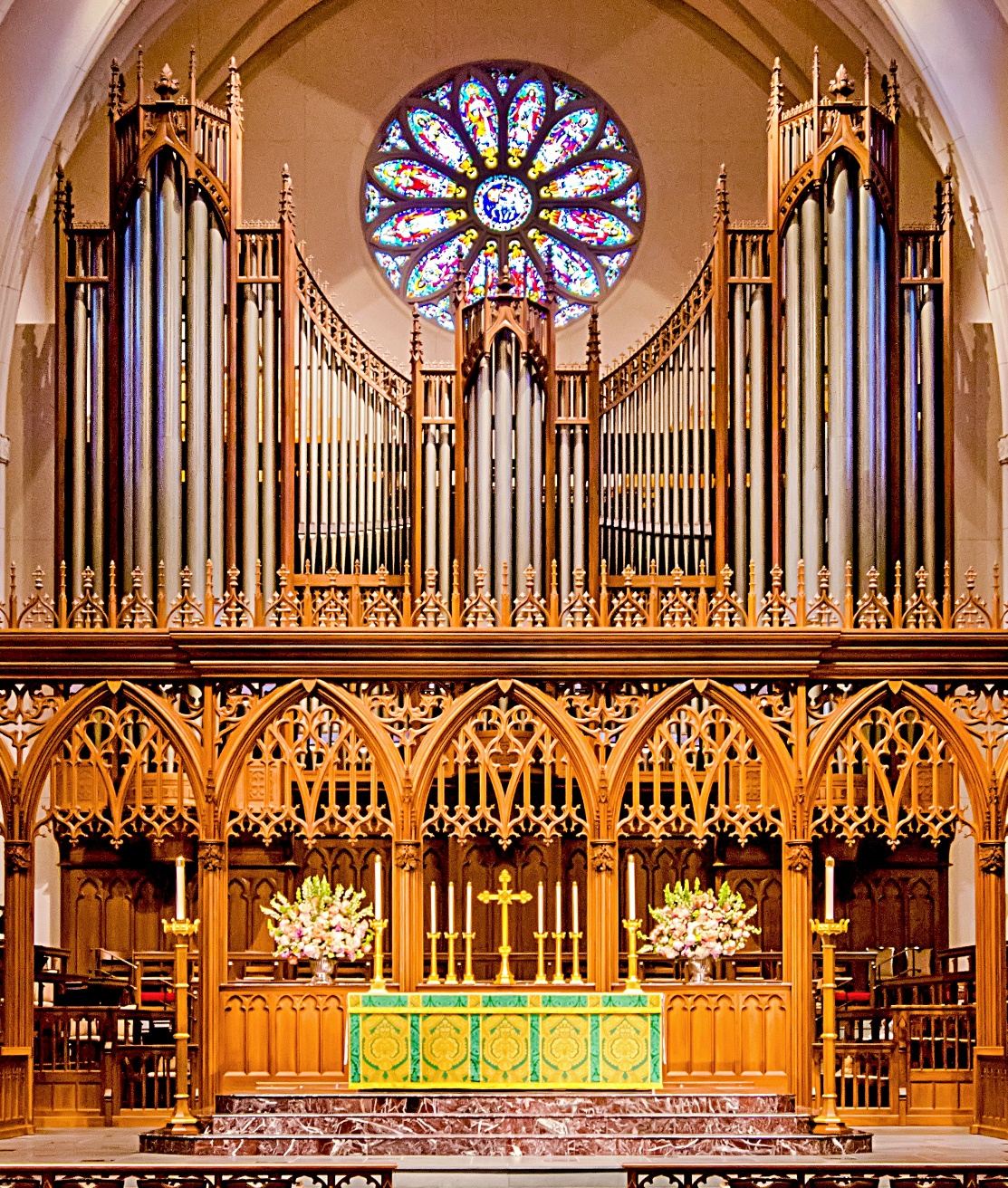

St. Martin's Episcopal Church
Schoenstein & Co. Opus 145 2005 4 manuals, 130 registers, 69 stops, 80 ranks
______________________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Gamba 61 16' Lieblich Bourdon 73
16' Bourdon 61 8' Open Diapason 61
8' Grand Open Diapason (So.) -- 8' Stopped Diapason (fr. 16') --
8' Open Diapason 61 8' Echo Gamba 61
8' Harmonic Flute 61 8' Gamba Celeste 61
8' Gamba (fr. 16') -- 8' Aeoline (Ch.) --
8' Bourdon (fr. 16') -- 8' Aeoline Celeste (Ch.) --
8' Erzähler 61 4' Gemshorn 61
8' Lieblich Gedeckt (Ch.) -- 4' Harmonic Flute 61
8' Cor Seraphique II (Sw.) -- 4' Aeoline (Ch.) --
4' Cor Seraphique II (Sw.) -- 4' Aeoline Celeste (Ch.) --
4' Octave (So.) -- 2' Flageolet 61
4' Principal 61 2 2/3' Tierce Mixture III 183
4' Chimney Flute 61 8' Flügel Horn 61
4' Silver Flute (Ch.) -- 8' French Oboe 61
2 2/3' Twelfth 61 Tremulant
2' Fifteenth 61 ----Stops Under Double Expression----
1 3/5' Seventeenth 54 16' Cor Seraphique 73
2' Mixture IV 207 8' Cor Seraphique (fr. 16') --
16' Bass Trumpet 73 8' Voix Angelique (TC) 49
8' Trumpet (fr. 16') -- 4' Cor Seraphique (fr. 16') --
4' Clarion 61 4' Voix Angelique (fr. 8') --
8' Tuba Minor (So.) -- 16' Posaune 61
4' Tuba Clarion (So.) -- 8' Trumpet 61
Tremulant (Flutes) 4' Clarion 61
Great Unison Off 2' Quint Mixture III-V 266
8' Harmonic Trumpet (So.) -- 8' Vox Humana * 61
8' Tuba Major (So.) -- Swell 16'
Chimes (Walker) dg Swell Unison Off
Cymbelstern (Walker) dg Swell 4'
Orchestral Harp (Walker) dg
CHOIR ORGAN * Separate two-stage expression
16' Aeoline 73 and two-speed tremulant
8' Viola Pomposa 61
8' Viole Celeste 61 PEDAL ORGAN
8' Concert Flute (1-12 L.Ged) 49 32' Diapason (EEEE) 8
8' Lieblich Gedeckt 61 32' Sub Bass 56
8' Aeoline (fr. 16') -- 32' Sub Bass mp --
8' Aeoline Celeste (TC) 49 16' Open Wood 44
4' Fugara 61 16' Diapason 32
4' Silver Flute 61 16' Gamba (Gt.) --
2 2/3' Nazard 61 16' Sub Bass (fr. 32') --
2 2/3' Twelfth 61 16' Aeoline (Ch.) --
2' Salicet 61 16' Bourdon (Gt.) --
2' Harmonic Piccolo 61 16' Cor Seraphique (Sw.) --
1 3/5' Tierce (TC) 42 16' Lieblich Bourdon (Sw.) --
1 1/3' Nineteenth 54 8' Open Wood (fr. 16') --
1' Twentysecond 49 8' Principal 32
16' Contra Oboe 73 8' Sub Bass (fr. 32') --
8' Trumpet 61 8' Gamba (Gt.) --
8' Clarinet 61 8' Flute (Gt.) --
8' English Oboe (fr. 16') -- 8' Viola Pomposa (Ch.) --
Tremulant 8' Aeoline (Ch.) --
Choir 16' 8' Bourdon (Gt.) --
Choir Unison Off 8' Stopped Diapason (Sw.) --
Choir 4' 4' Fifteenth 32
8' Harmonic Trumpet (So.) -- 4' Flute (Gt.) --
8' Tuba Major (So.) -- 4' Bourdon (Gt.) --
8' Harp (Walker) dg 2' Flute (Gt.) --
4' Celesta (Walker) dg 2 2/3' Mixture III 96
32' Contra Trombone 68
SOLO ORGAN 32' Cornet (wired) --
8' Grand Open Diapason 61 16' Trombone (fr. 32') --
8' Symphonic Flute 61 16' Posaune (Sw.) --
8' Stentor Gamba 61 16' Bass Trumpet (Gt.) --
8' Gamba Celeste 61 16' Contra Oboe (Ch.) --
2' Obbligato Piccolo (TC) -- 16' Corno di Bassetto (So.) --
1' Obbligato Fife 49 8' Tromba (fr. 32') --
8' French Horn 61 8' Trumpet (Gt.) --
8' Tuben III (Sw.) -- 8' Posaune (Sw.) --
Variable Tremulant 8' English Oboe (Ch.) --
----Stops Under Double Expression---- 8' Clarinet (Ch.) --
8' Viole d'orchestre 61 4' Clarion (fr. 32') --
8' Viole céleste 61 4' French Oboe (Sw.) --
4' Octave 61 4' Corno di Bassetto (So.) --
16' Corno di Bassetto 73 8' Pizzicato Bass ** --
8' Tuba Minor 61 Chimes (Gt.) --
8' Harmonic Trumpet 61 ** Draws Open Wood at octave pitch
8' Corno di Bassetto (fr. 16) -- through pizzicato touch relay
4' Tuba Clarion 61
Solo 16' COUPLERS
Solo Unison Off Great to Pedal 8
Solo 4' Swell to Pedal 8 4
Orchestral Bells (Walker) dg Choir to Pedal 8 4
Chimes (Gt.) dg Solo to Pedal 8 4
Unenclosed Stop: Swell to Great 16 8 4
8' Tuba Major 61 Choir to Great 16 8 4
Solo to Great 16 8 4
COMBINATIONS (128 levels) Great to Choir 8
Generals 16 (thumb & toe) Swell to Choir 16 8 4
Pedal 6 (toe) Solo to Choir 16 8 4
Great 10 (thumb) Pedal to Choir 8
Swell 10 (thumb) Choir to Swell 16 8 4
Choir 10 (thumb) Choir to Solo 8
Solo 10 (thumb) Swell to Solo 8
General cancel (thumb) Pedal Divide
(cancels Full Organ also) Swell to Great Sforzando #
Set (thumb) Solo to Great Sforzando #
# activated by momentary touch
REVERSIBLES toe lever
Great to Pedal (thumb & toe)
Swell to Pedal (thumb & toe) BALANCED PEDALS with selector system
Choir to Pedal (thumb & toe) Swell Expression
Solo to Pedal (thumb & toe) Inner Swell Expression
Swell to Great (thumb) Choir Expression
Choir to Great (thumb) Solo Expression
Solo to Great (thumb) Inner Solo Expression
Cymbelstern (thumb & toe) Pedal Expression
32' Sub Bass (toe) Variable Tremulant
32' Contra Tbn (toe) Crescendo
Manual I/II (thumb w/indicator) Six pistons to control Selector Knobs
[Received from Steven E. Lawson 2017-02-15]
