Better Pipe Organ Database

M. P. Möller Opus 1385 (1912)

Presbyterian Church
13 Fenton Street
Waddington, NY

OHS convention: 1970

Images

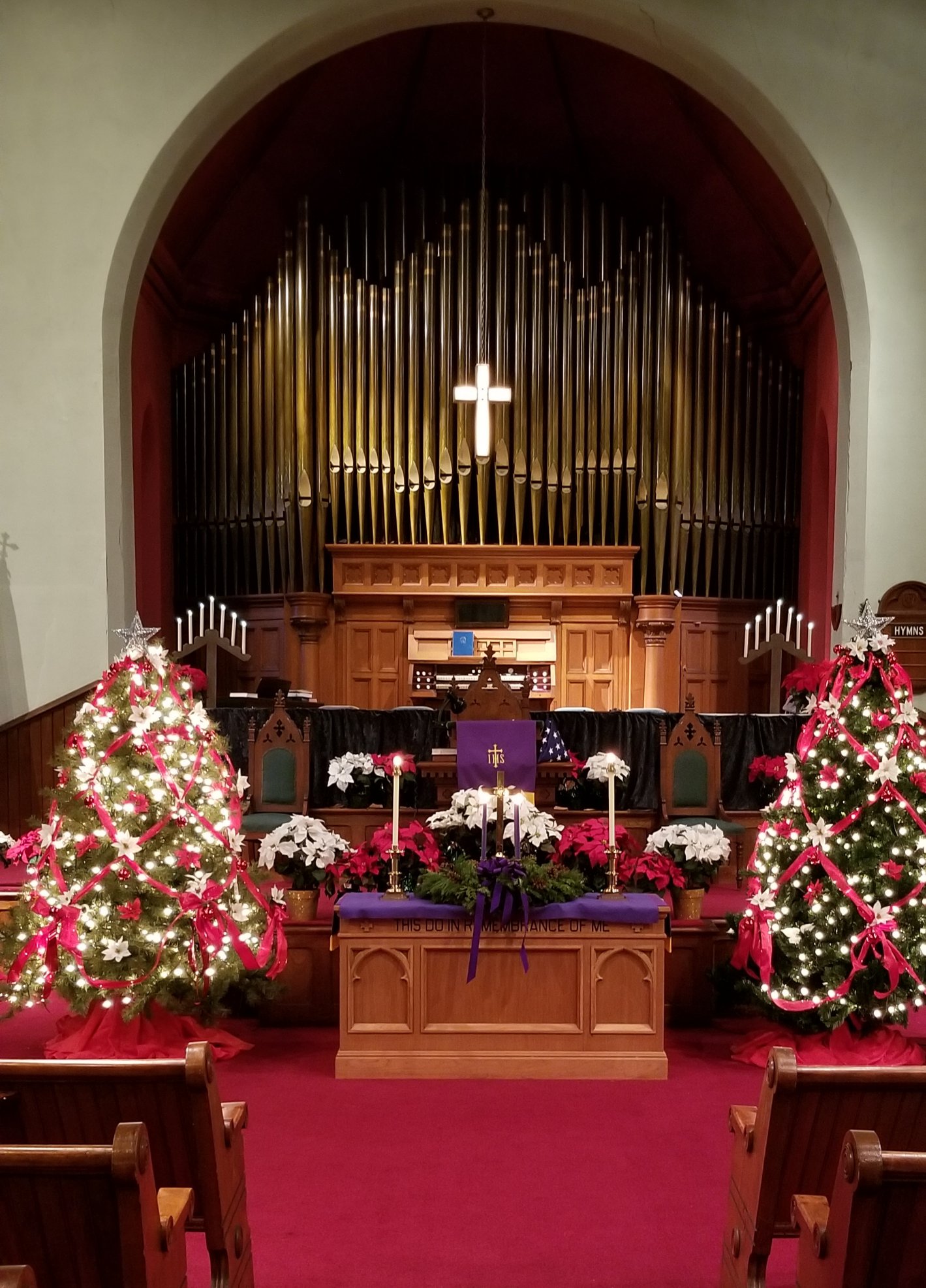

2020-09-14 - Organ case in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

2019-12-01 - Organ case in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
11 stops
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 30 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Fixed Mechanical
Has combination toe pistons

Notes

2004-10-30 - Status Note: There 1970. -Database Manager

2004-10-30 - Carnegie organ. Compass 61/30. [First Presbyterian on Fenton St.?] -Database Manager

2011-07-22 - Updated through online information from Benjamin Stone via Ryan J Boyle. -- Organ appears to be in original condition and maintained fairly well. There are missing key tops and draw knob faces, but otherwise the instrument is in tact. The original double rise reservoir was re-leathered in 2010 and a new electric blower was installed in 2011. Tremulant not functioning. -Database Manager

Stoplist

Source: 1970 OHS Convention Handbook 1970 & July 2011

Waddington, New York
First Presbyterian Church

M.P. Moller, Opus 1385, 1912

Specification

GREAT:                                       COUPLERS
8'  Open Diapason   (facade)  61             Swell to Pedal
8'  Dulciana                  49             Great to Pedal
8'  Melodia                   61
4'  Principal                 61             Swell to Great
                                             Swell to Great 4'
SWELL (Expressive):
8'  Violin Diapason           49
8'  Stopped Diapason          61             FOOT TRUNDLES
8'  Aeoline                   61             Forte Great -
4'  Flauto Traverso           61
2'  Flautina                  61             Piano Great - (s-a)
8'  Oboe Gambe          (tc)  49
                                             Forte Swell -
PEDAL (Concave parallel, TP action):
16' Bourdon                   30             Piano Swell - (s-a)


ACCESSORIES                                  PEDAL MOVEMENTS
Bellows Signal                               Swell Expression          (bal.)
Wind Indicator


ACTION: Mech. Man. Key     VOICES: 11     STOPS: 11     RANKS: 11     PIPES: 604
        T-P Pedal Key
        Mech. Stop

NOTES
The organ is free-standing nd encased at the front of the room. The 5-sectional
facade contains 49 pipes arranged: 11-3-21-3-11. The keydesk is attached and
projecting with a lid that lifts to form a music rank. Stops are as drawknobs
in terraced jambs on either side of the manuals.

The Great 8' Open Diapason and Swell 4' Flauto Traverso were missing their
stop labels as of the 1970 OHS Convention.

The Great 8' Dulciana bass octve is grooved from the 8' Melodia. Similarly,
the Swell 8' Violin Diapason bass is grooved from the 8' Stopped Diapason.

The church has the original Moller contract. The contract specified that open
pipes from tenor F [note 18] down were to be of zinc, while others would be
at least 40% tin.

The organ was a gift of Andrew Carngie.

[Received via Ryan J Boyle after examination by Benjamin Stone, July 2011.]
