Casavant Frères Ltée. Opus 2831 (1965)

Images

2013-11-18 - Church interior to rear (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Chamber and façade pipes (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Couplers and builder plate (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Right stopjamb (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Left stopjamb (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Console (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2013-11-18 - Trompette-en-Chamade (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

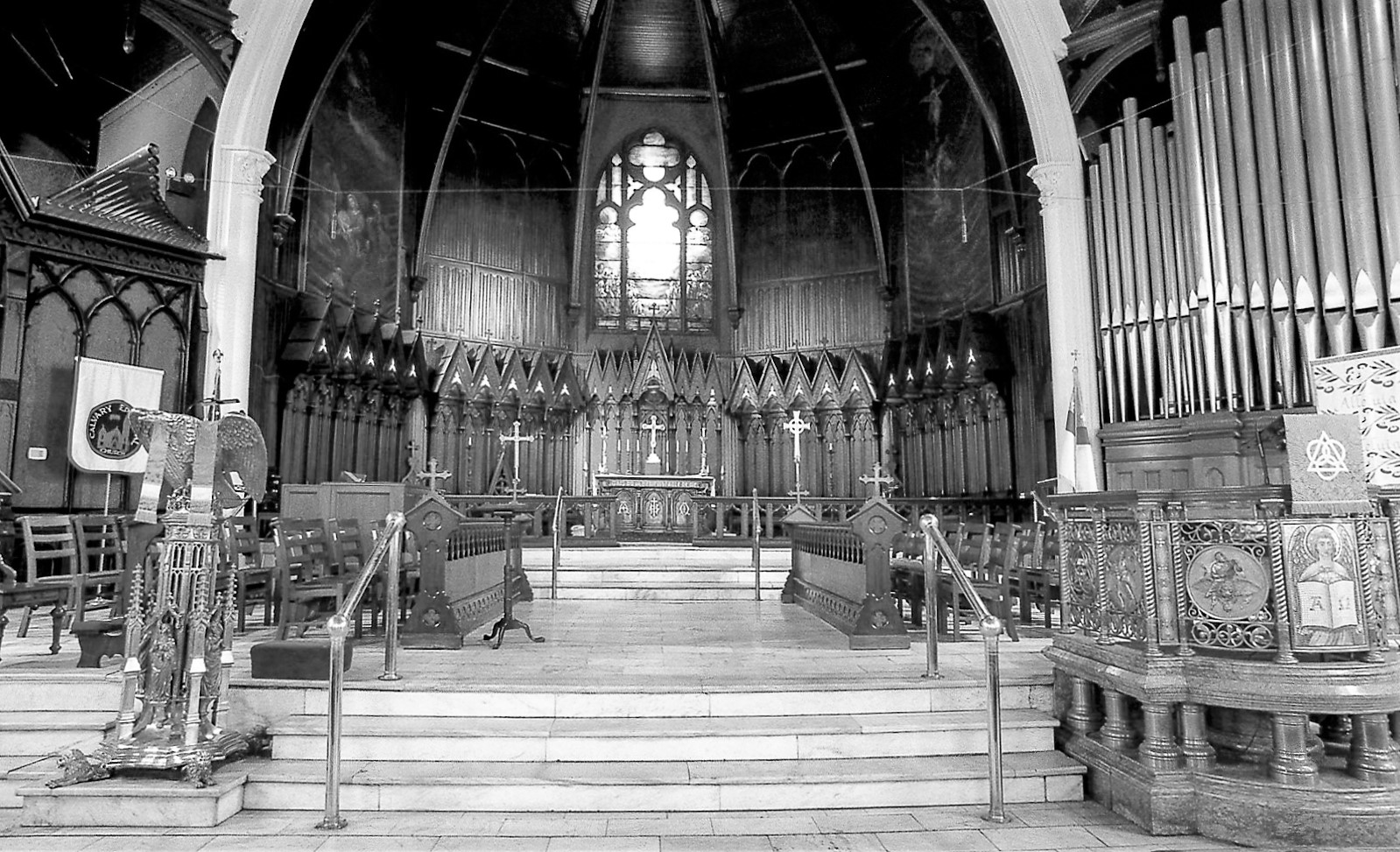

2013-11-18 - Chancel (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2020-09-06 - Church exterior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2018-04-01 - Church interior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2020-08-26 - Church interior from gallery (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2007-07-09 - Window (Photograph by Jeff Scofield/Database Manager)

2007-07-09 - Church exterior (Photograph by Jeff Scofield/Database Manager)

2007-07-09 - Console (Photograph by Jeff Scofield/Database Manager)

c. 2013 - Building exterior (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

c. 2013 - Trompette en Chamade (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

c. 2013 - Trompette en Chamade (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

c. 2013 - Console - head on (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

c. 2013 - Console detail - builder's nameplate (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Left
• 2 manuals
• 33 stops
• 31 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 56 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Remote Pneumatic/Mechanical Capture
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti toe pistons

Notes

2005-06-08 - Identified through on-line information from lynn Thompson. -- Trompette en Chamade added, c. 1980, otherwise completely unaltered. -Database Manager

2005-06-25 - On-line update from Lynn Thompson -- Trompette en Chamade added 1980 by Gottfried Reck, otherwise unaltered. -Database Manager

2007-06-29 - Updated through on-line information from Lynn Thompson. -Database Manager

2010-05-12 - Updated through on-line information from Jeff Scofield. -Database Manager

2023-08-08 - From Owen Sammons: A Larry Phelps classic - This organ is on low wind pressure (2.75” WC) with extensive vertical development. The swell is (more or less) a solo division under expression, with colorful character reeds and a bright flue chorus. The wind system is ultra-regulated by the utilization of schwimmers. -Jeff Scofield

Stoplist

Stoplist copied from the factory specifications Source: Factory specifications and Owen Sammons Date not recorded

    Louisville, Kentucky
    Calvary Episcopal Church

    Casavant   Op. 2831   1965   2/38

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    _______________________________________________________________

    GREAT                       SWELL                     PEDAL
16' Quintade       56        8' Viole de Gambe  56    16' Prinzipal  32
 8' Prinzipal      56        8' Voix Céleste GG 49    16' Subbass    32
 8' Rohrflöte      56        8' Gedackt         56    16' Quintade   GT
 4' Oktav          56        4' Spitzprinzipal  56     8' Oktav      32
 4' Spitzflöte     56        4' Koppelflöte     56     8' Gemshorn   32
 2' Oktav          56        2' Oktavine        56     4' Choralbass 32
 2' Blockflöte     56    1 1/3' Quinte          56   III  Mixtur  2' 96
IV  Mixtur 1 1/3' 224       II  Sesquialtera tc 88    16' Posaune    32
 8' Trompete       56       IV  Scharf  2/3'   224    16' Fagott     SW
                            16' Fagott  L/2     56     4' Schalmei   32
                             8' Oboe            56
                             4' Klarine         56
                                Tremulant
                             8' Trompette-en-
                                Chamade (1980)  56

[Received on line from Jeff Scofield May 12, 2010.]
