Schantz Organ Co. Opus 2256 (2005)

Woodmont United Methodist Church: Sanctuary
1926 Richardson Drive
Reidsville, NC

Images

2005-06-01 - Sanctuary Interior. Chancel and organ (Image from Schantz Organ Company; used with permission/Database Manager)

2005-06-01 - Organ Case (Image from Schantz Organ Company; used with permission/Database Manager)

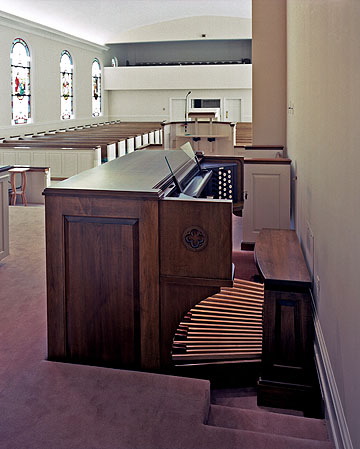

2005-06-01 - Console (Image from Schantz Organ Company; used with permission/Database Manager)

2005-06-01 - Chancel and Organ Case (Image from Schantz Organ Company; used with permission/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
37 stops
3 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-01-28 - Updated through on-line information from Chad Boorsma. -- The organ was dedicated on September 25, 2005. -Database Manager

2014-01-02 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist from Schantz factory specifications Source: Source not recorded Date not recorded

Reidsville, North Carolina
WOODMONT UNITED METHODIST CHURCH

Schantz Organ Company     Opus 2256       2005
_____________________________________________________________________________

GREAT:                   SWELL:                      PEDAL:
    8' Principal 61          8' Bourdon 61            32' Resultant
    8' Rohrflöte 61          8' Viole de Gambe 61     16' Principal 56
    4' Octave 61             8' Viole Celeste 49      16' Subbass 56
    4' Hohlflöte 61          4' Prestant 61            8' Octave
2 2/3' Nazard 61             4' Flute Harmonique 61    8' Flöte
    2' Super Octave 61       2' Doublette 61           4' Super Octave
    2' Blockflöte 61     1 1/3' Larigot 61             4' Offenflöte
1 3/5' Tierce 61            IV  Plein Jeu 244         32' Grand Cornet
   IV  Fourniture 244       16' Basson-Hautbois 73    16' Contre Trompette 12
       Tremulant             8' Trompette 73          16' Basson [SW]
    8' Trompette [SW]        8' Hautbois 61            8' Trompette [SW]
    8' Hautbois [SW]         4' Clairon                4' Hautbois [SW]
    8' Festival Trumpet*        Tremulant              8' Festival Trumpet*
       Chimes                8' Festival Trumpet*
       Zimbelstern

                             * console preparation for future Swell stop

[Received on line from Chad Boorsma January 28, 2010.]
