Hall Organ Co. (1934)

Images

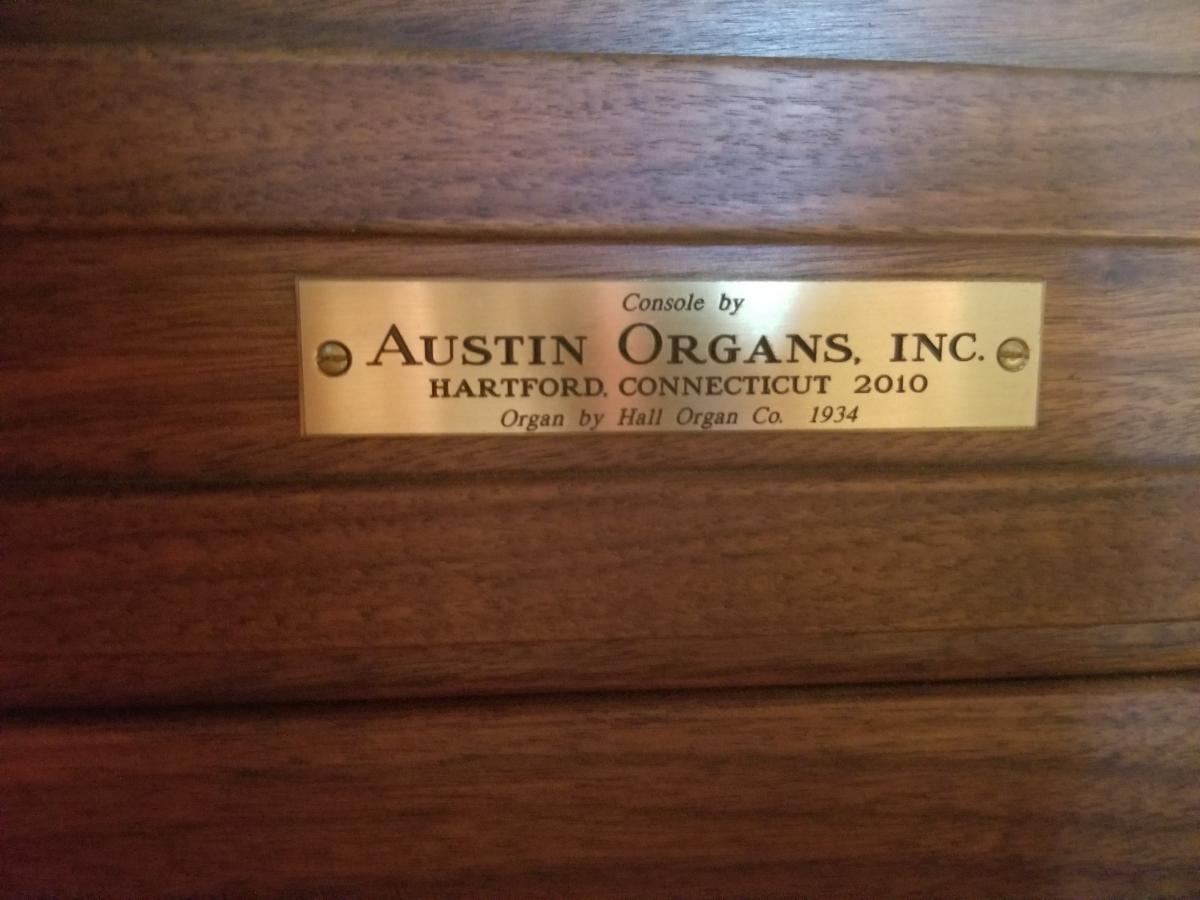

2017-05-19 - Builder's Nameplate (Photograph by Jerry Mead/Database Manager)

2017-05-19 - Pipe work (Photograph by Jerry Mead/Database Manager)

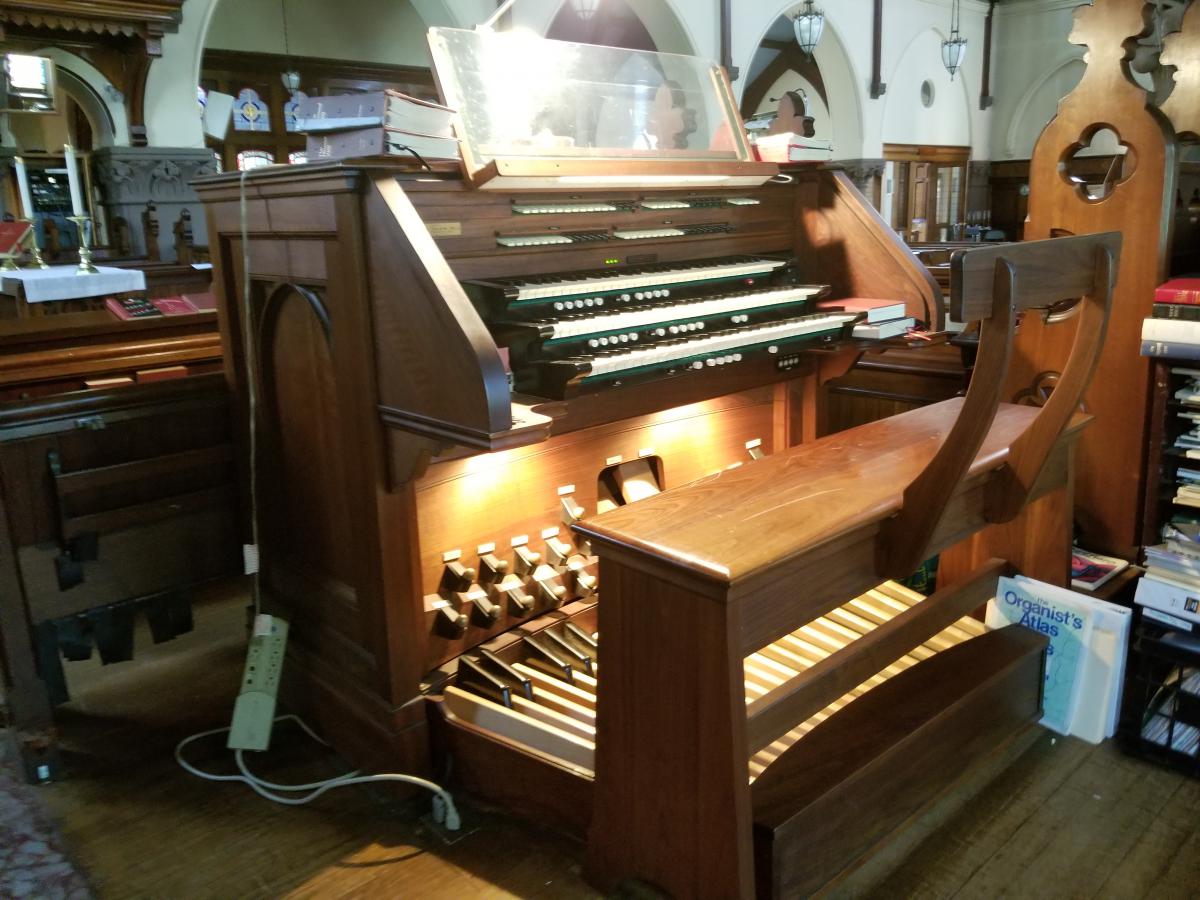

2017-05-19 - Console (Photograph by Jerry Mead/Database Manager)

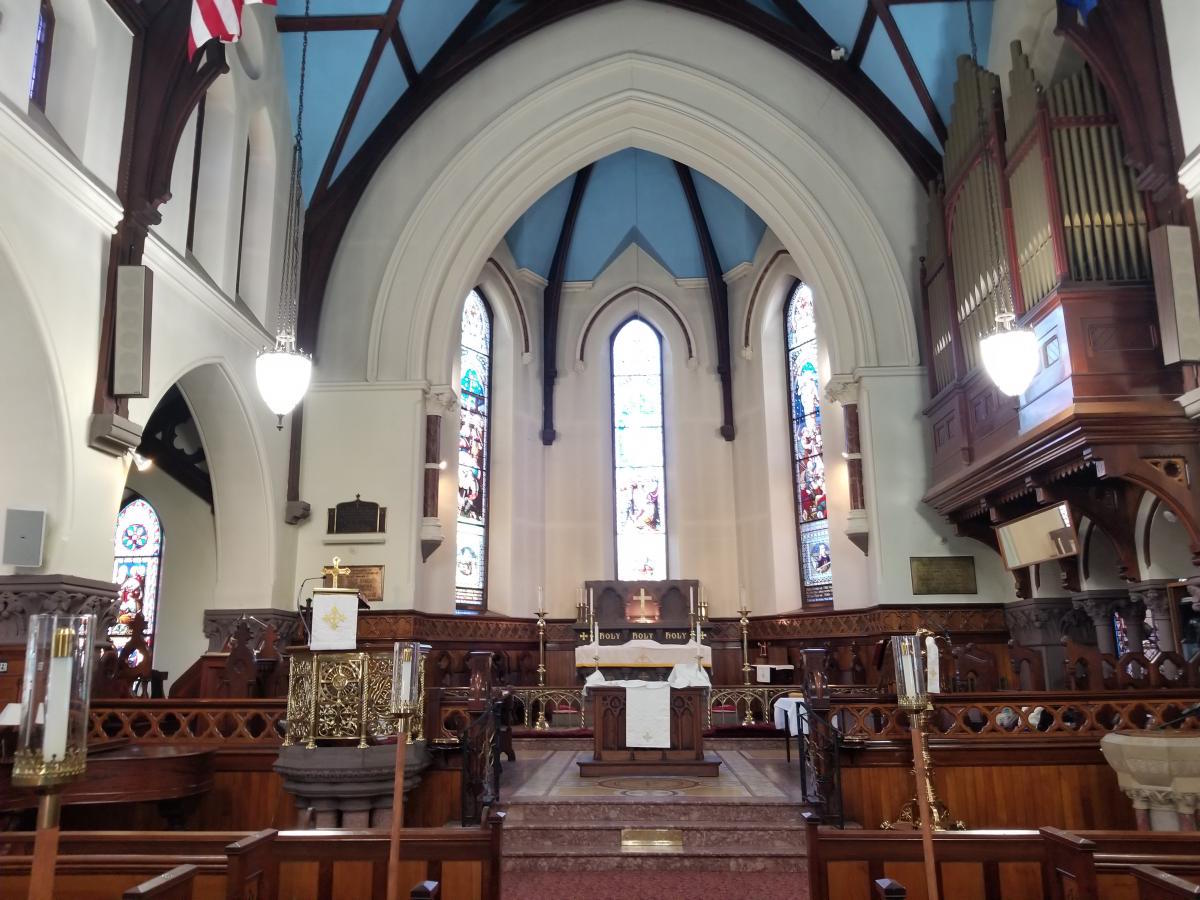

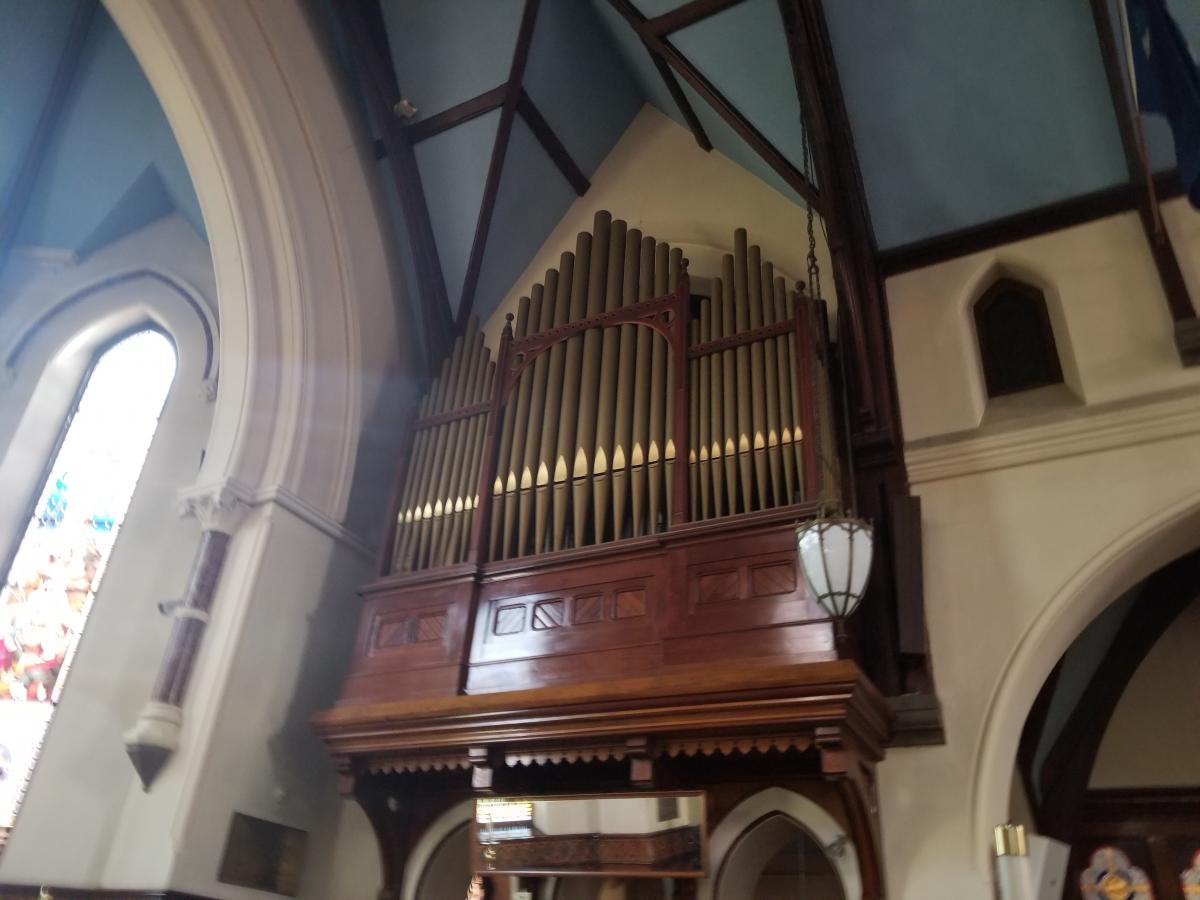

2017-05-19 - Facade Pipes (Photograph by Jerry Mead/Database Manager)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Left
• 3 manuals
• 33 stops
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Remote Pneumatic/Mechanical Capture
• Has sequencer
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2005-06-28 - Identified through information in <i>Classified List of Hall Organs</i>, published in 1929 by Hall Organ Co., West Haven, Connecticut. -Database Manager

2017-05-24 - Updated by Jerry Mead, who has heard or played the organ. -Database Manager

Stoplist

Original document from Jerry Mead. Source: Stop list taken from the console 2017-05-24

Portland, CT
Trinity Episcopal Church

Organ by Hall Organ Co.

Great
Diapason 8'
Flute 8'
Gamba 8'
Principal 4'
Twelfth 2 ⅔'
Fifteenth 2'
Double Trumpet 16'
Trumpet 8'
Chimes

Choir
Melodia 8'
Dulcianna 8'
Octave 4'
Nazrad 2 ⅔'
Clarinet 8'
Tremulant

Swell
Stopped Diapason 8'
Salicional 8'
Vox celeste 8'
Aeoline 8'
Octave 4'
Flauto Traverso 4'
Piccolo 2'
Dolce Cornet III
Cornopean 8'
Obeo 4'
Trumpet 8' (GT)
Tremulant

Pedal
Resultant 32'
Open wood 16'
Principal 8'
Flute 8'
Choral bass 4'
Piccolo 2'
Double Trumpet 16' (GT)
Trumpet 8' (GT)
Tremulant

Couplers
Great to Pedal 8'
Great to Pedal 4'
Swell to Pedal 8'
Swell to Pedal 4'
Choir to Pedal 8'
Choir to Pedal 4'
Swell to Swell 16'
Swell unison off
Swell to Swell 4'
Choir to Swell 8'
Great to Great 16'
Great unison off
Great to Great 4'
Swell to Great 16'
Swell to Great 8'
Swell to Great 4'
Choir to Great 16'
Choir to Great 8'
Choir to Great 4'
Choir to Choir 16'
Choir unison off
Choir to Choir 4'
Swell to Choir 16'
Swell to Choir 8'
Swell to Choir 4'
Great to Choir 8'
