Better Pipe Organ Database

Schantz Organ Co. Opus 2074 (1994)

Central [United] Methodist Church: Sanctuary
27 Church Street
Asheville, NC

Images

2016-10-24 - Sanctuary interior, chancel, pipe display (Photograph by Jeff Scofield/Database Manager)

2016-10-24 - Chancel, console, pipe display (Photograph by Jeff Scofield/Database Manager)

2016-10-24 - Console (Photograph by Jeff Scofield/Database Manager)

2016-10-24 - Antiphonal, pipe display, window (Photograph by Jeff Scofield/Database Manager)

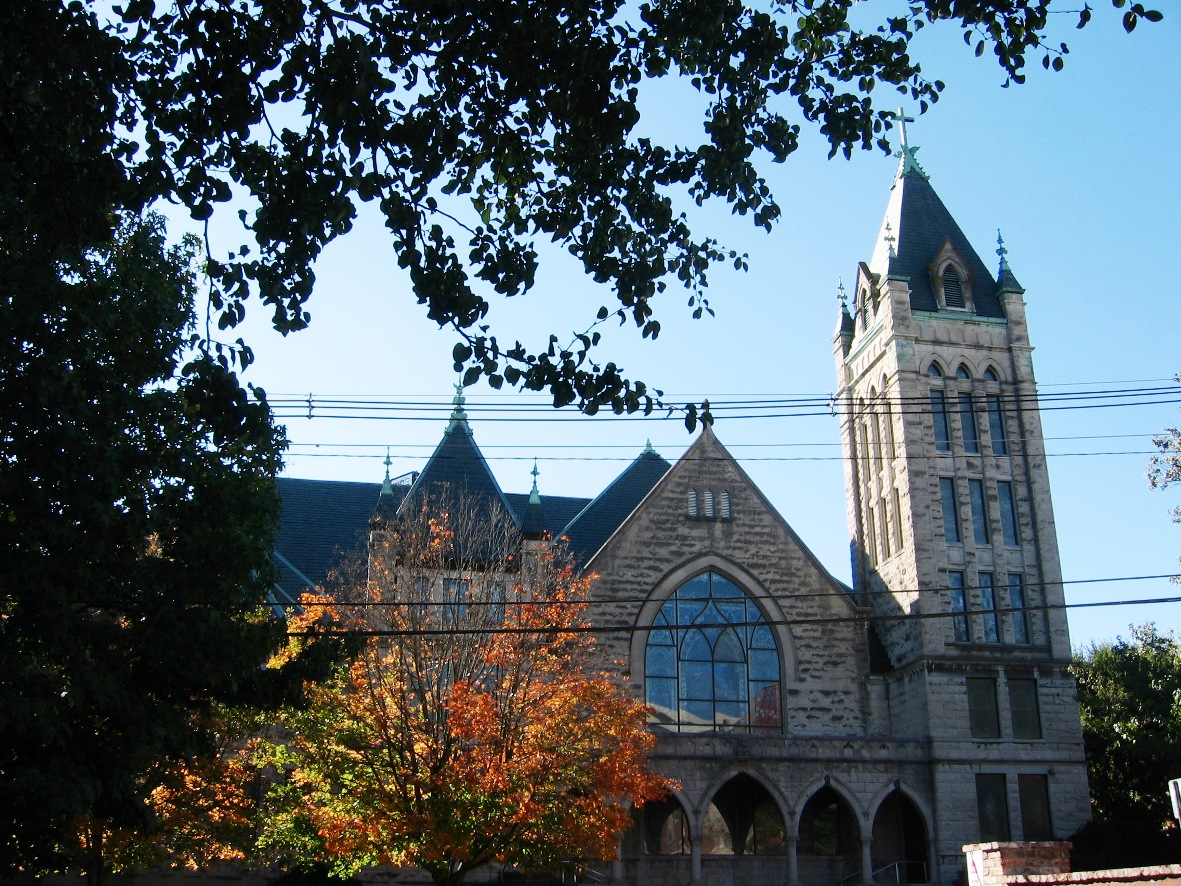

2016-10-24 - Church exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
45 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2016-11-05 - Originally installed across the front of the chancel in 1967 as Schantz Op. 787; this contract was for removing, modifying and reinstalling the organ in the enlarged and remodeled chancel. -Database Manager

Stoplist

Stoplist copied from the console October 24, 2016 Source: Source not recorded Date not recorded

        Asheville, North Carolina
        Central Methodist Church

        Schantz   Op. 787   1967   3/35
        Schantz   Op. 2074  1994
        __________________________________________________

        GREAT                        SWELL

     8' Prinzipal        61        16' Rohrflöte        12
     8' Bordun           61         8' Rohrflöte        61
     4' Octave           61         8' Viola da Gamba   61
     4' Flute            **         8' Viola Celeste    49
     2' Super Octave     61         4' Geigen Principal 61
 1 1/3' Quinte            a         4' Flöte            12
    IV  Mixture         244         2' Octave            b
        Sub                        IV  Plein Jeu       244
        Unison Off                  8' Trompette        61
        Super                       4' Hautbois         61
     8' Festival Trumpet **            Tremulant
        Chimes                         Sub
                                       Unison Off
        ANTIPHONAL                     Super
                                    8' Festival Trumpet GT
     8' Gedeckt          61
     4' Gemshorn         61            CHOIR
     2' Waldflöte        61
   III  Mixture         183         8' Nasonflöte       61
                                    8' Erzähler         61
        PEDAL                       8' Erzähler Celeste 49
                                    4' Koppelflöte      61
    32' Resultant        --     2 2/3' Nasat            61
    16' Principal        32         2' Blockflöte       61
    16' Bordun           32     1 3/5' Terz             61
    16' Rohrflöte        SW         8' Krummhorn        61
     8' Octave           12            Tremulant
     8' Bordun           12            Sub
     8' Rohrflöte        SW            Unison Off
     4' Super Octave     12            Super
    32' Posaune          **         8' Festival Trumpet GT
    16' Posaune          32            Blank
     8' Posaune          12            Blank
     4' Klarine          12

     a  from Mixture                b  from Plein Jeu

           [Received from Jeff Scofield November 12, 2016]

Related Pipe Organ Database Entries

#47287 - Schantz Organ Co. Opus 787 (1967)
