Better Pipe Organ Database

Randall Dyer & Assoc., Inc. Opus 86 (2007)

First Broad Street United Methodist Church: Sanctuary
100 E. Church Circle
Kingsport, TN

Images

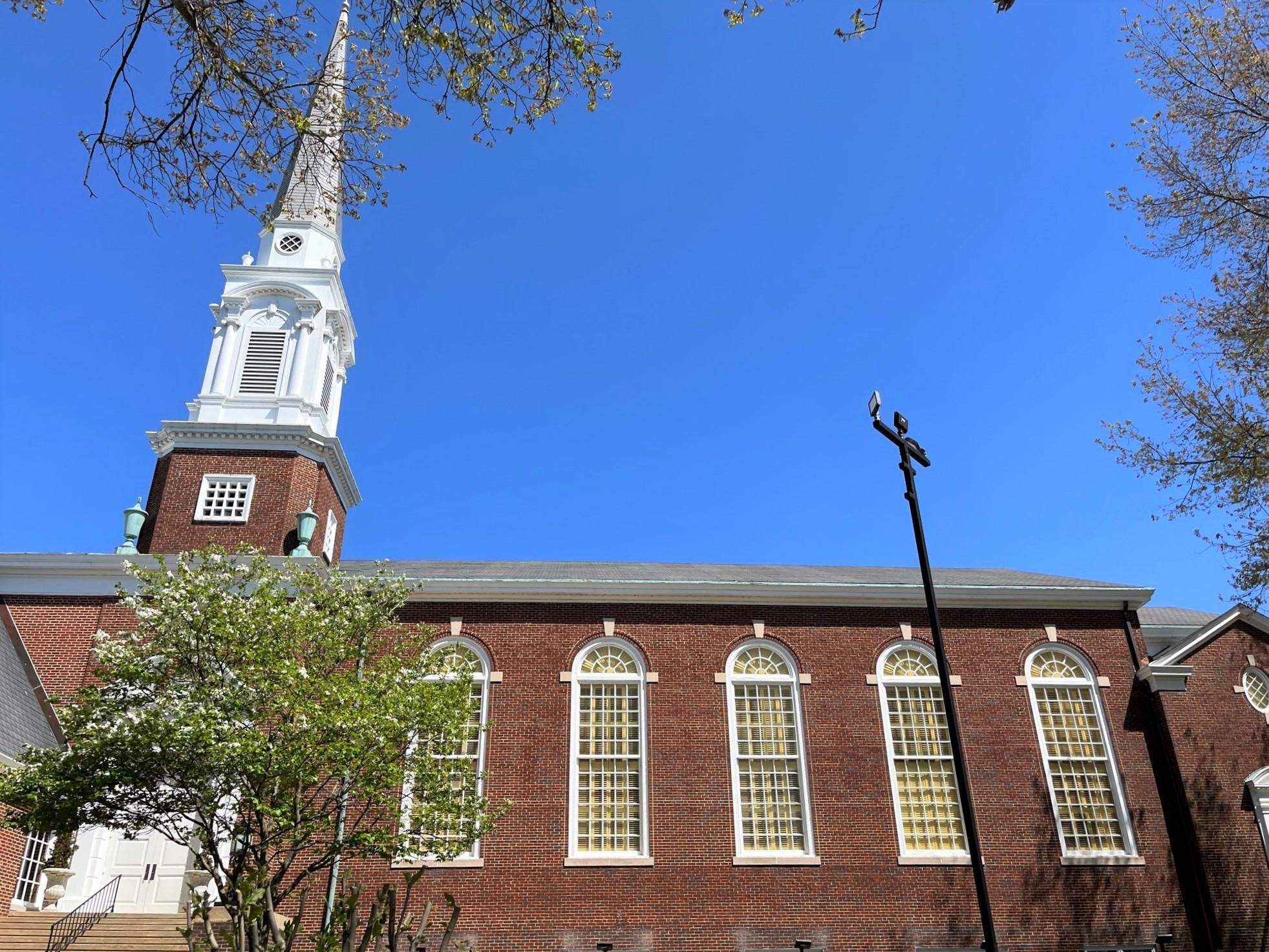

2023-04-17 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

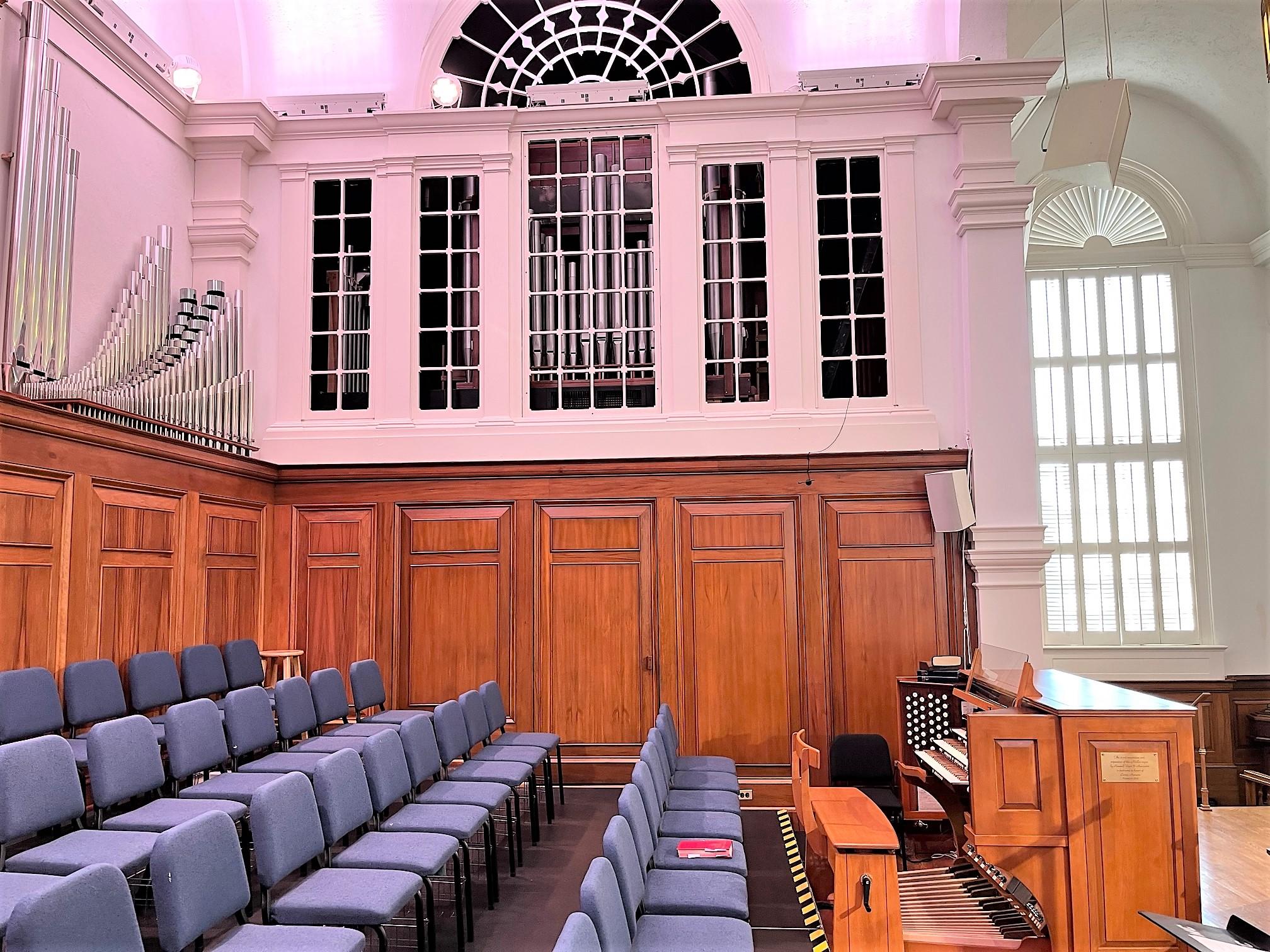

2023-04-17 - Choirloft, console and right chamber (Photograph by Jeff Scofield/Jeff Scofield)

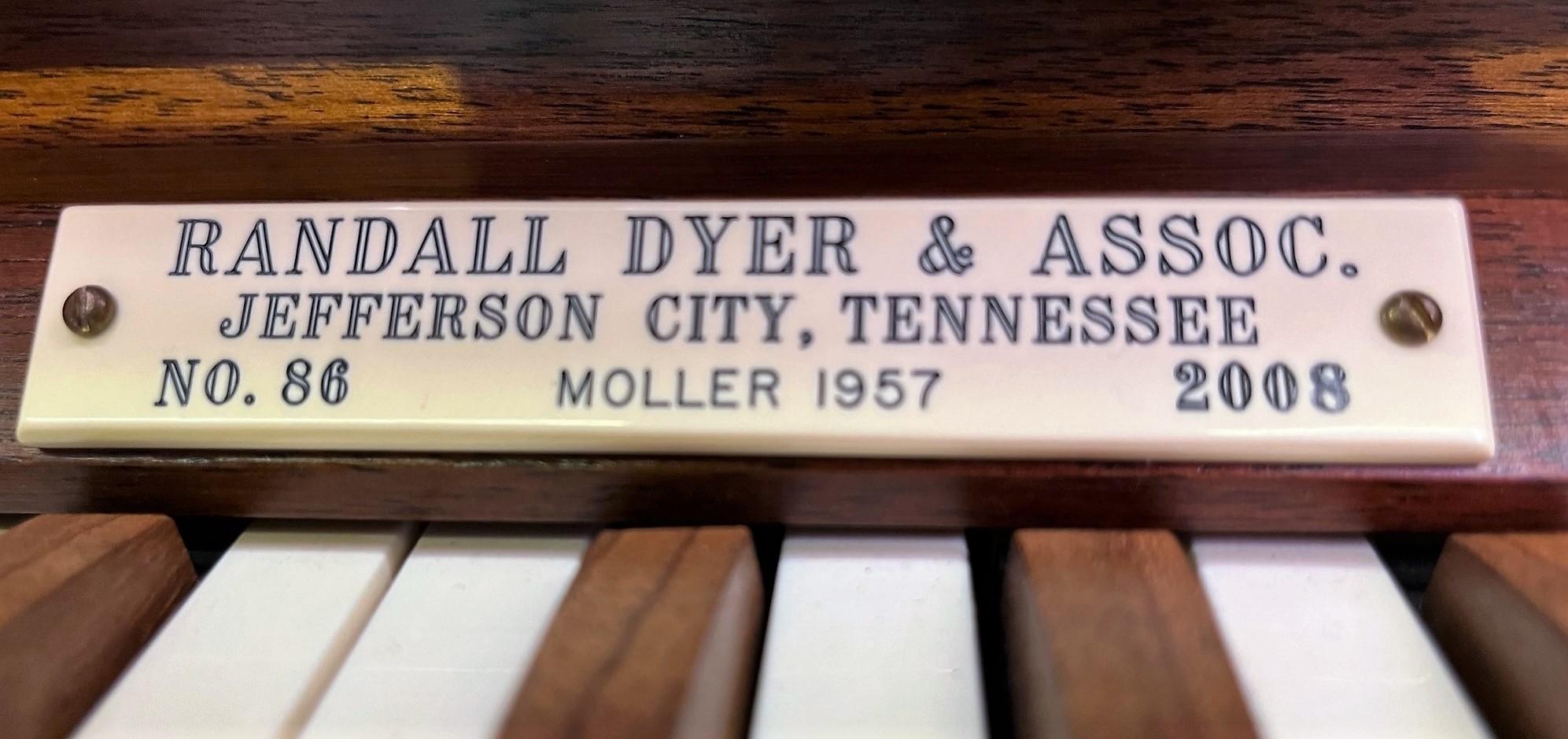

2023-04-17 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

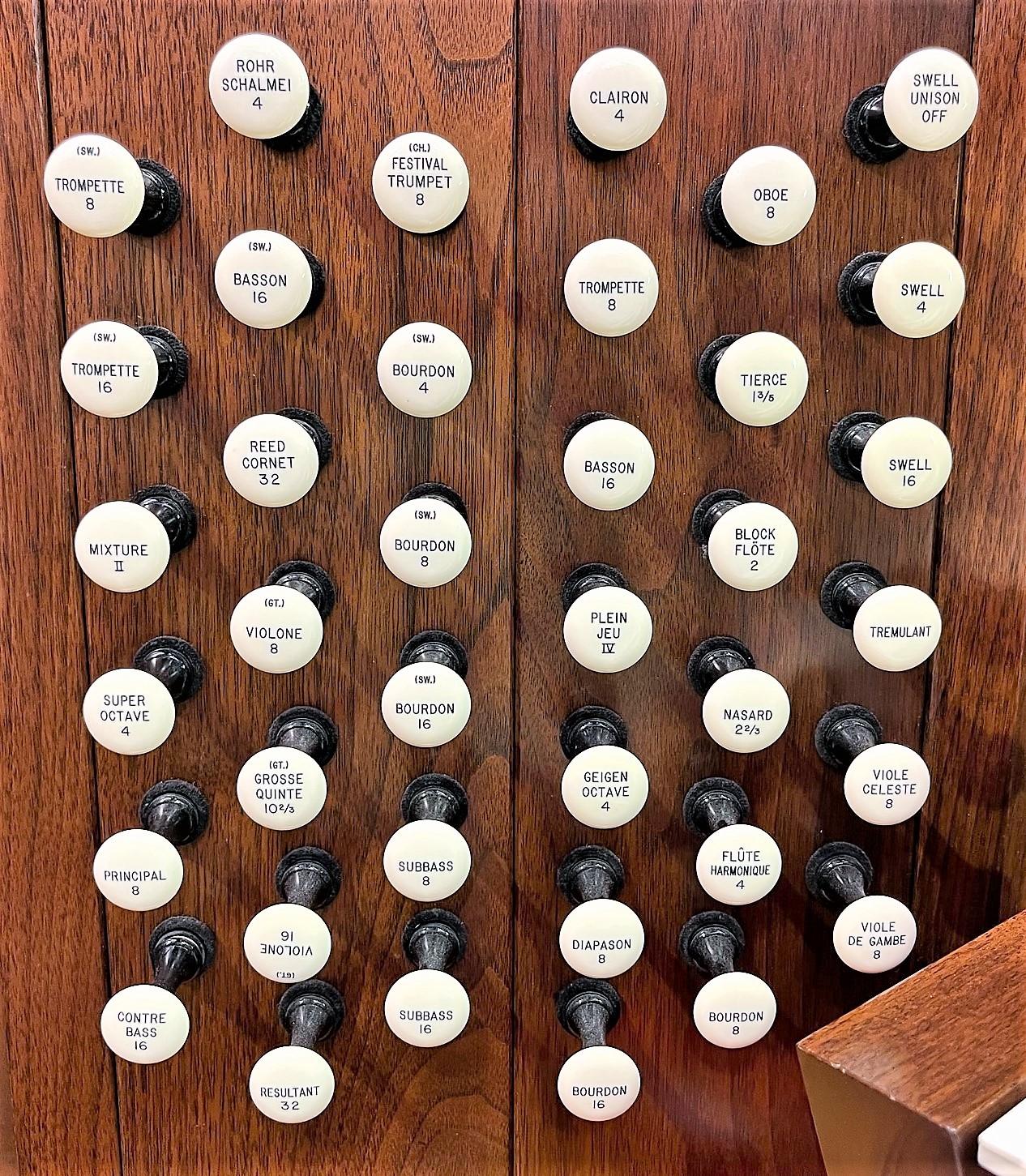

2023-04-17 - right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

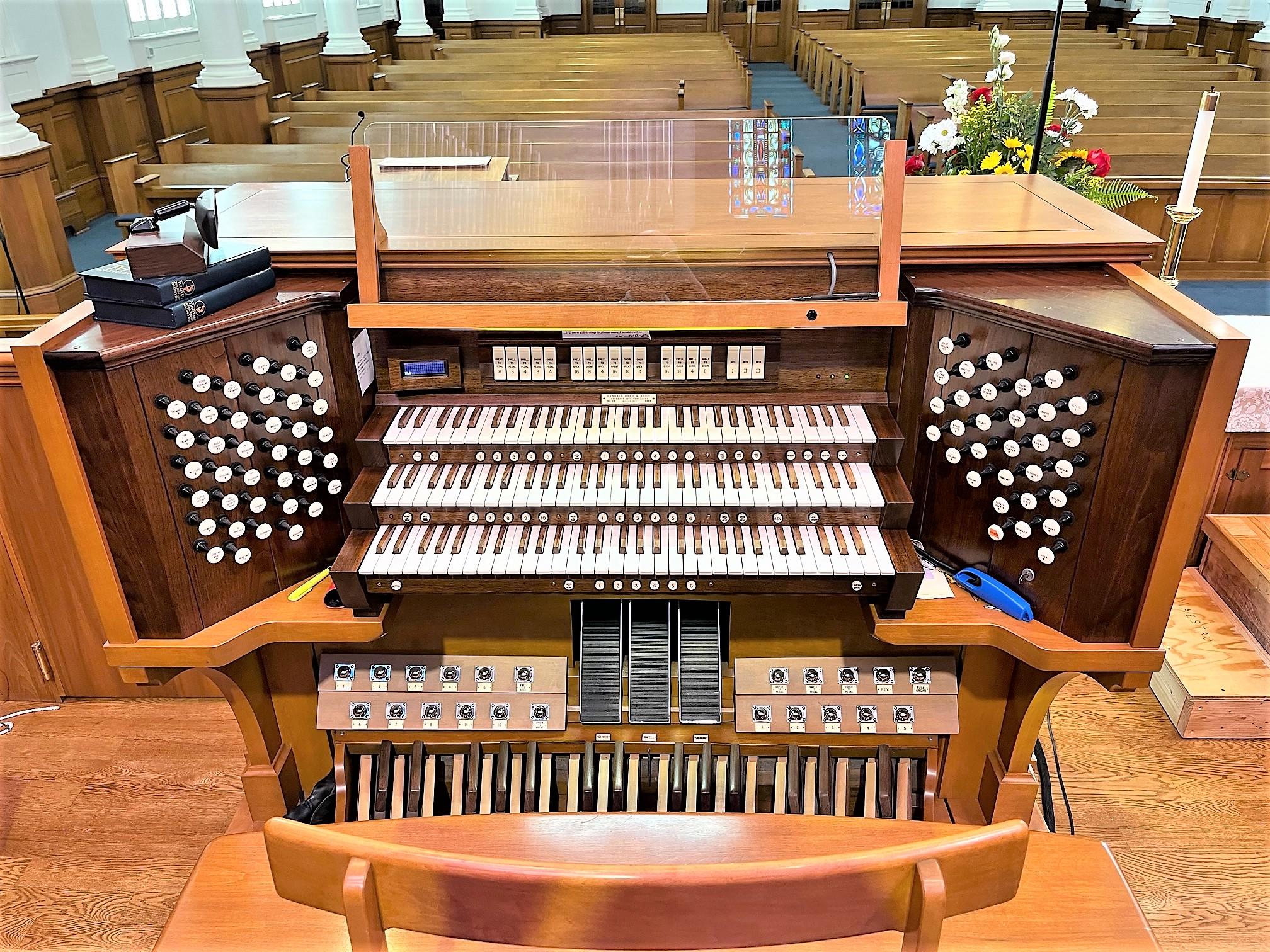

2023-04-17 - Console (Photograph by Jeff Scofield/Jeff Scofield)

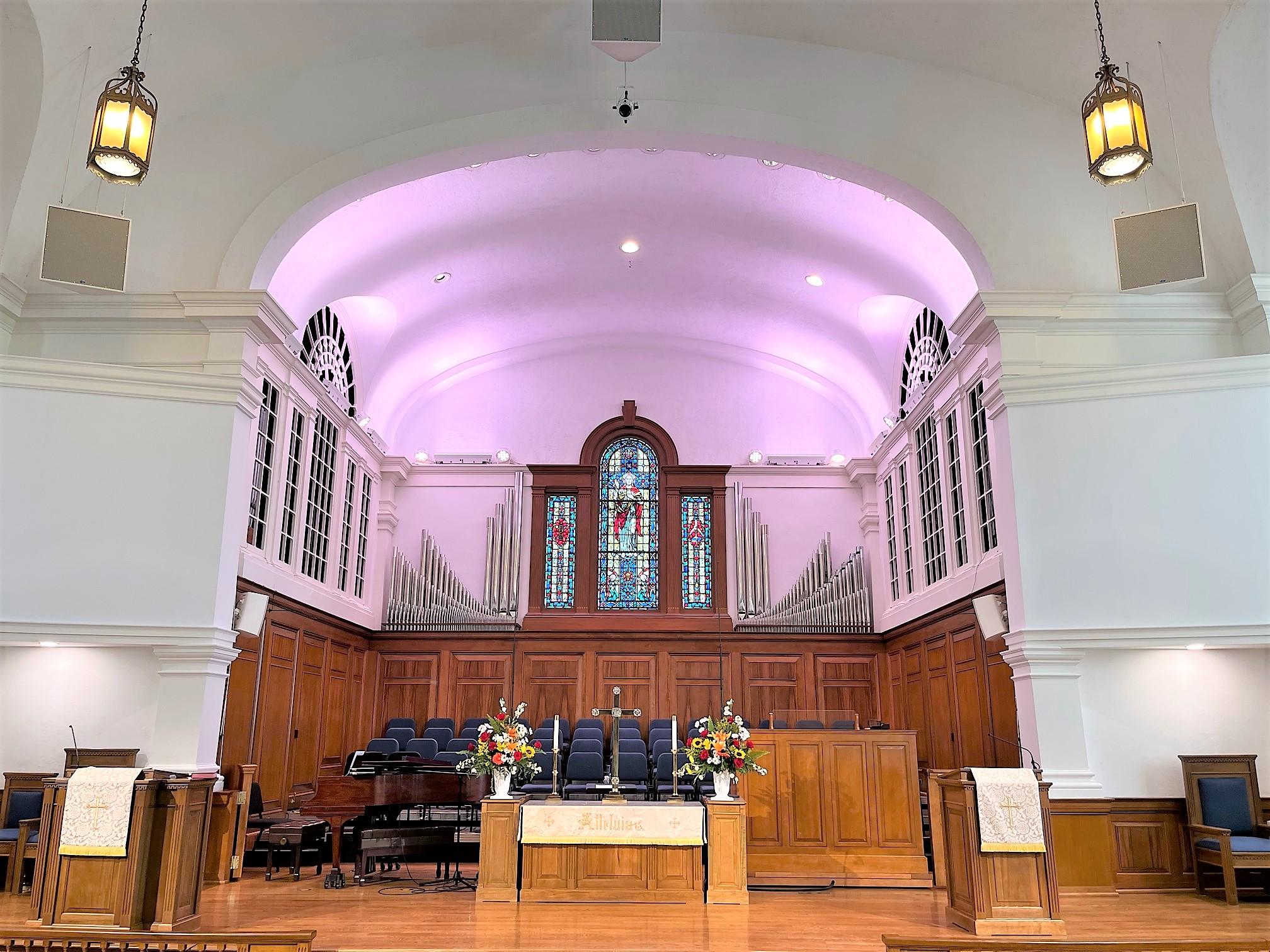

2023-04-17 - Chancel, chambers and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

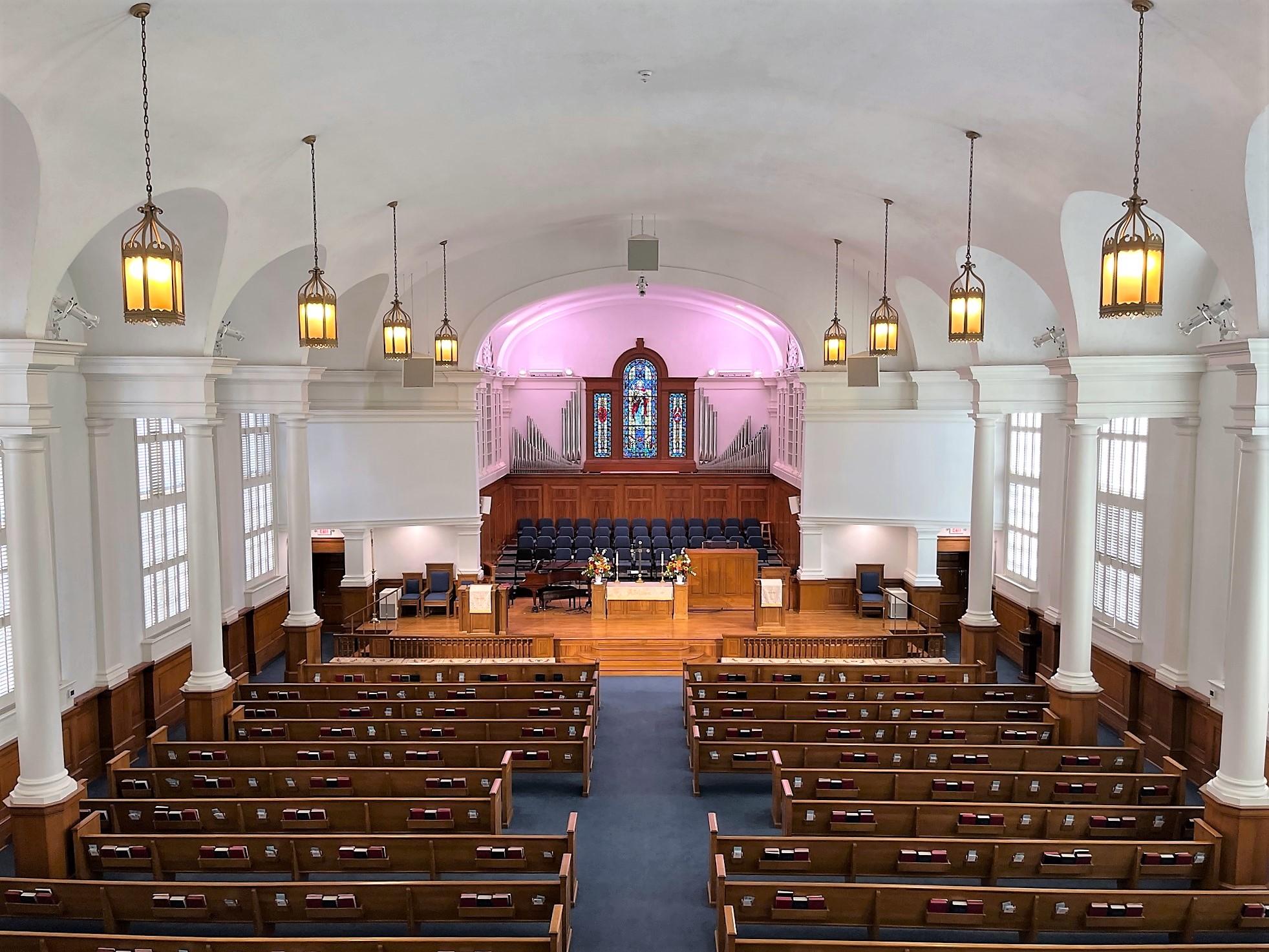

2023-04-17 - Church interior from the balcony (Photograph by Jeff Scofield/Jeff Scofield)

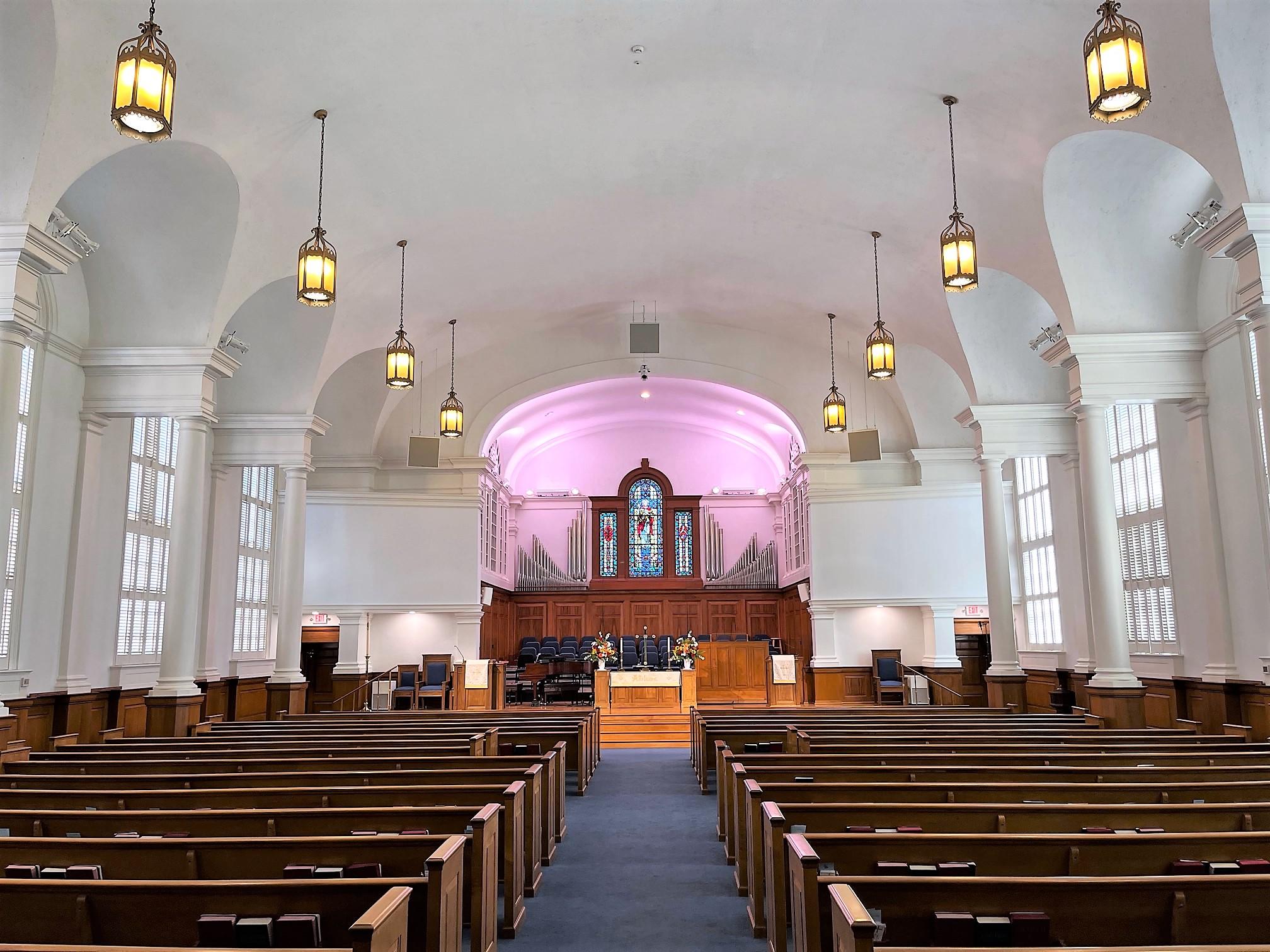

2023-04-17 - Church interior from the floor (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
34 stops
57 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-06-29 - This Organ identified through information received from Randall Dyer. New ep slider chests, console and Great, using pipes from 1957 Möller in Swell, Choir, Pedal. -Database Manager

2009-02-15 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist taken from the console February 11, 2009 Source: Source not recorded Date not recorded

Kingsport, Tennessee
First Broad Street United Methodist Church

Randall Dyer   Op. 86   2008   3/44

       GREAT                       CHOIR
   16' Violone                  8' Viola
    8' Principal                8' Gedackt
    8' Major Flute              8' Erzähler
    8' Violone                  8' Erzähler Celeste
    4' Octave                   4' Principal
    4' Spitzflöte               4' Koppelflöte
    2' Super Octave             2' Principal
   IV  Mixture              1 1/3' Quinte
    8' Trompette SW             1' Octave
       Tremolo                  8' Clarinet
       Unison Off               8' Cor Anglais
       Chimes                      Tremulant
    8' Festival Trumpet CH         Sub
                                   Unison Off
       SWELL                       Super
   16' Bourdon                     Chimes
    8' Diapason                16' Festival Trumpet tc
    8' Bourdon                  8' Festival Trumpet
    8' Viole de Gambe
    8' Viole Celeste               PEDAL
    4' Geigen Octave           32' Resultant --
    4' Flûte Harmonique        16' Contre Basse
2 2/3' Nasard                  16' Subbass
    2' Blockflöte              16' Violone GT
1 3/5' Tierce                  16' Bourdon SW
   IV  Plein Jeu           10 2/3' Grosse Quinte GT
   16' Basson                   8' Principal
    8' Trompette                8' Subbass
    8' Oboe                     8' Violone GT
    4' Clairon                  8' Bourdon SW
       Tremulant                4' Super Octave
       Sub                      4' Bourdon SW
       Unison Off              II  Mixture
       Super                   32' Reed Cornet --
                               16' Trompette 12 SW
                               16' Basson SW
                                8' Trompette SW
                                4' Rohrschalmei
                                8' Festival Trumpet CH

 [Received on line from Jeff Scofield February 16, 2009.]

 [Received on line from Jeff Scofield February 16, 2009.]

Related Pipe Organ Database Entries

#37063 - M. P. Möller Opus 8945 (1957)
