Better Pipe Organ Database

Mander Organs (2002)

Peachtree Road United Methodist Church: Chancel
3180 Peachtree Road NW
Atlanta, GA

Images

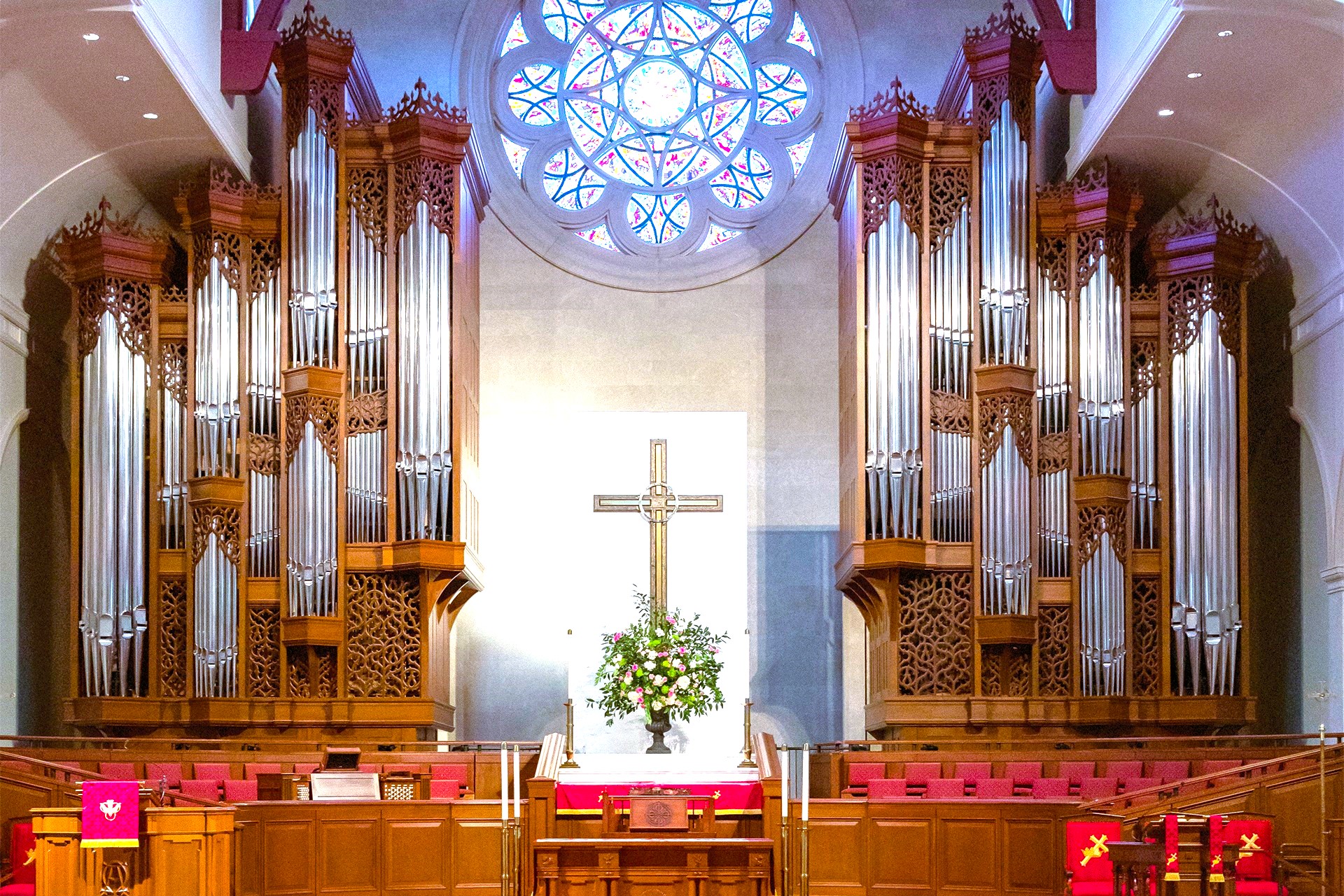

2023-12-15 - Front of church, organ and organ case (Photograph by Via Caroline Robinson, Atlanta Chapter AGO and Facebook, submitted by Jeff Scofield/Jeff Scofield)

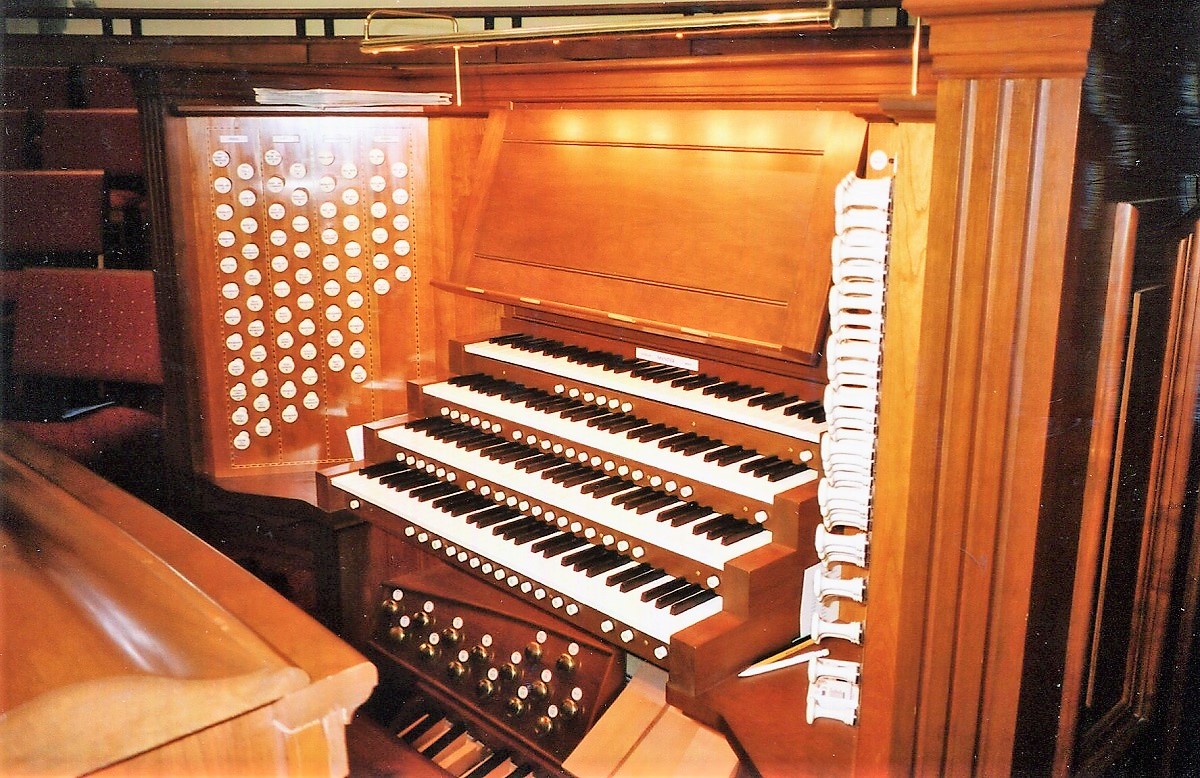

2002-11-02 - Console (Photograph by Jeff Scofield/Database Manager)

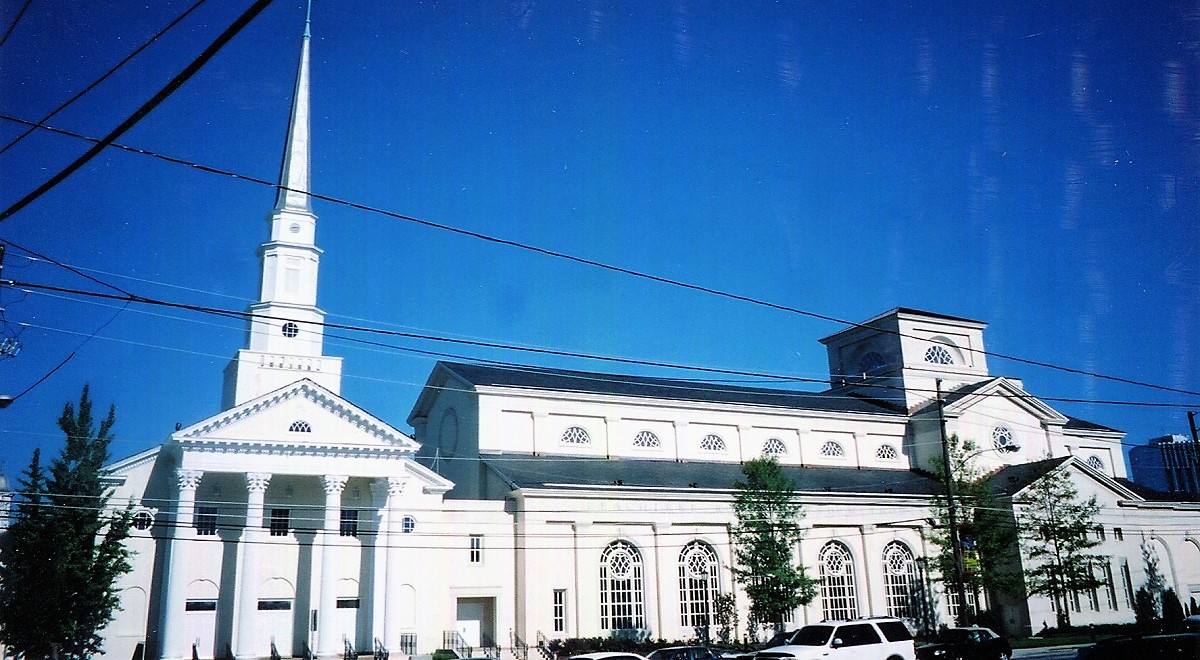

2002-11-02 - Church exterior (Photograph by Jeff Scofield/Database Manager)

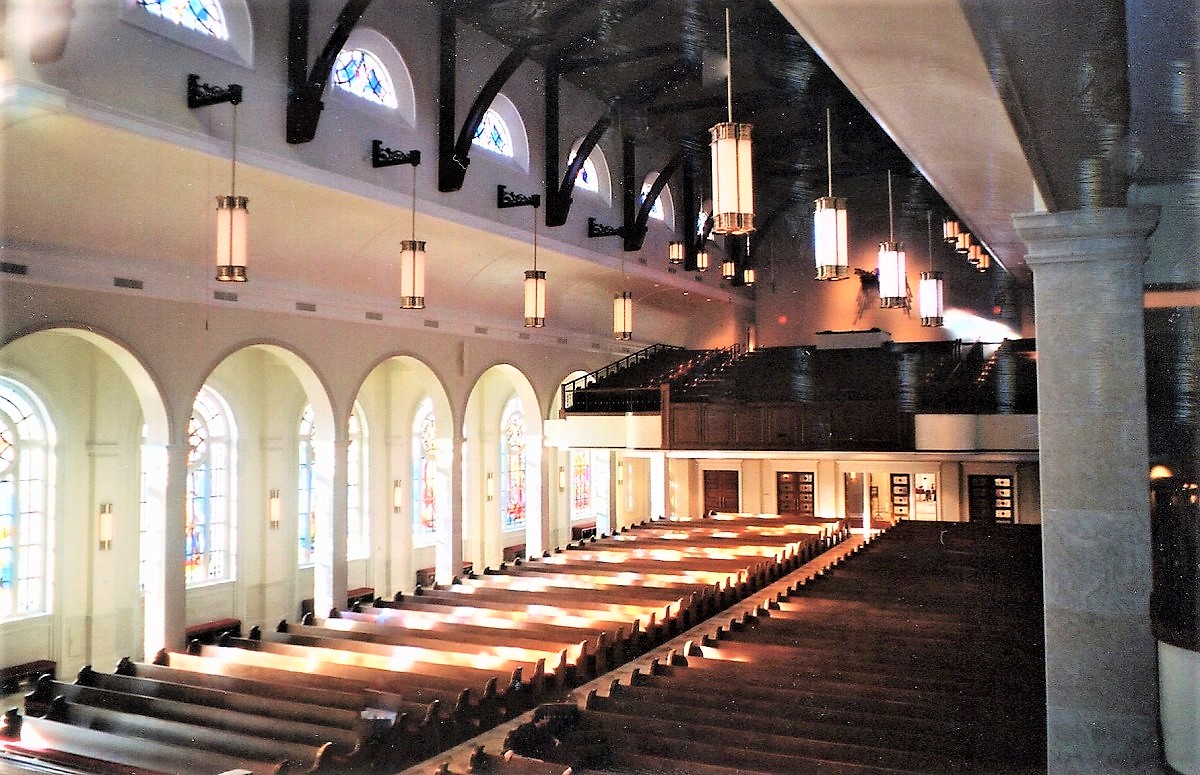

2002-11-02 - Nave to rear (Photograph by Jeff Scofield/Database Manager)

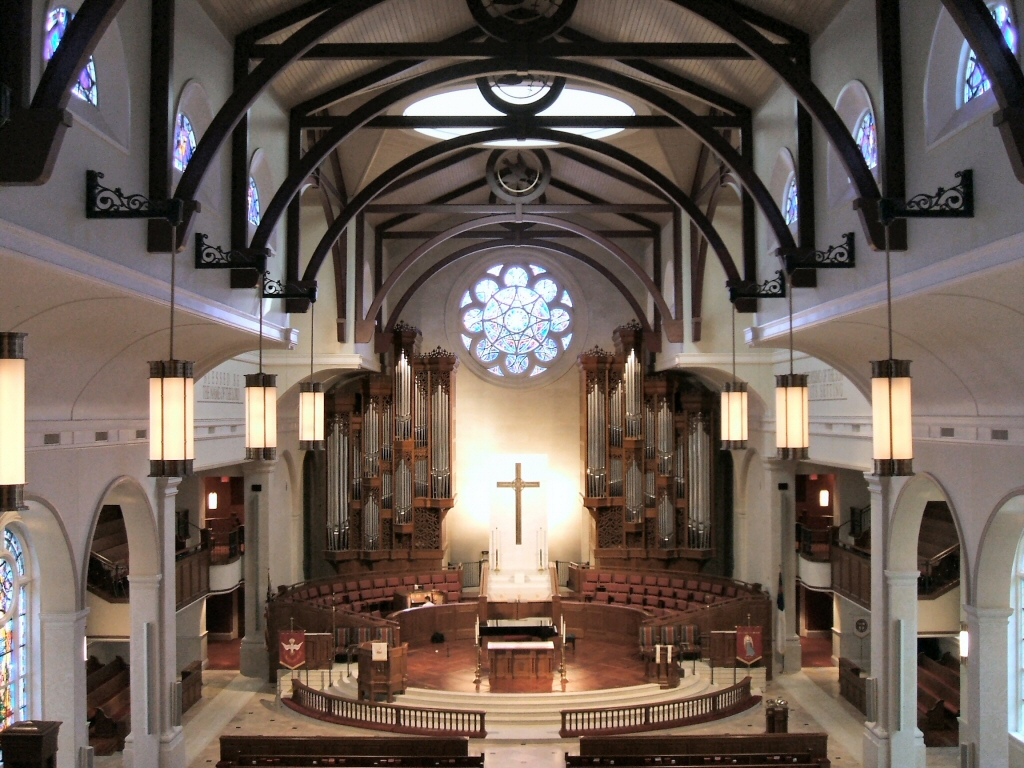

2007-06-15 - Chancel from rear gallery (Photograph by Jim Cook/Database Manager)

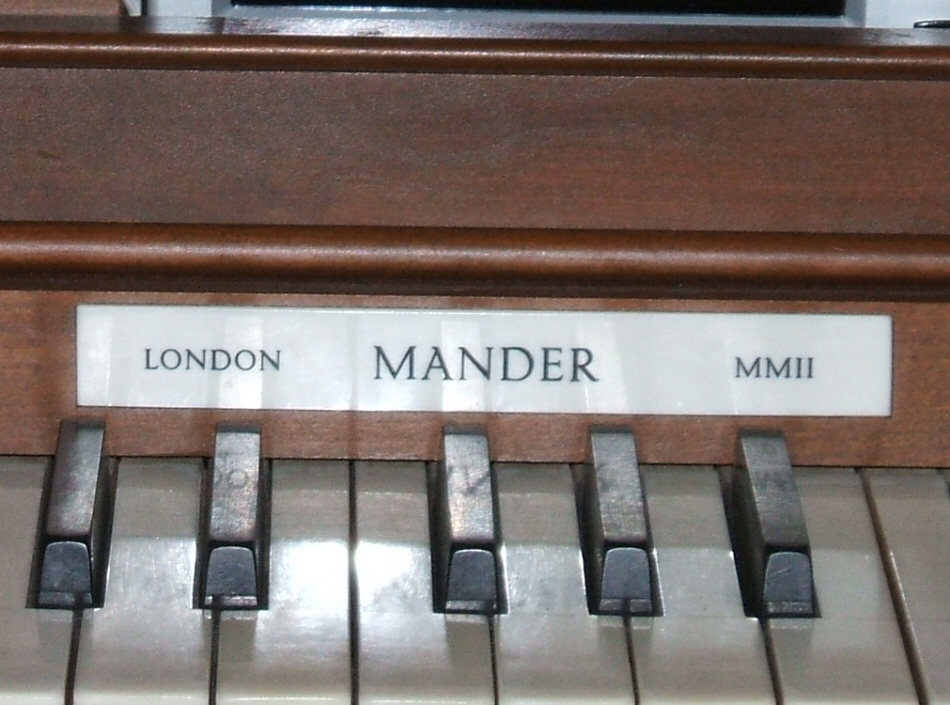

2007-06-15 - Nameplate (Photograph by Jim Cook/Database Manager)

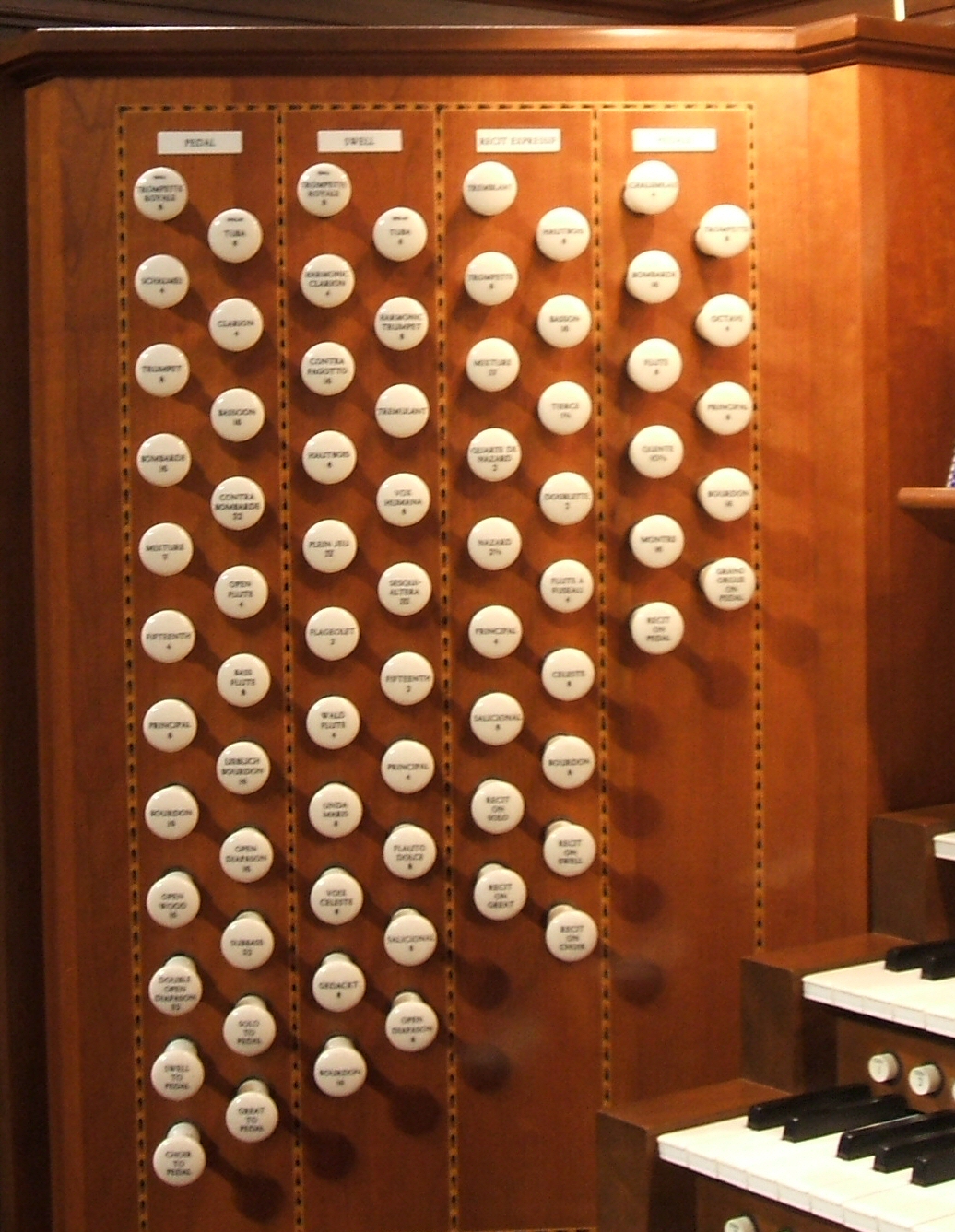

2007-06-15 - Left stop jamb (Photograph by Jim Cook/Database Manager)

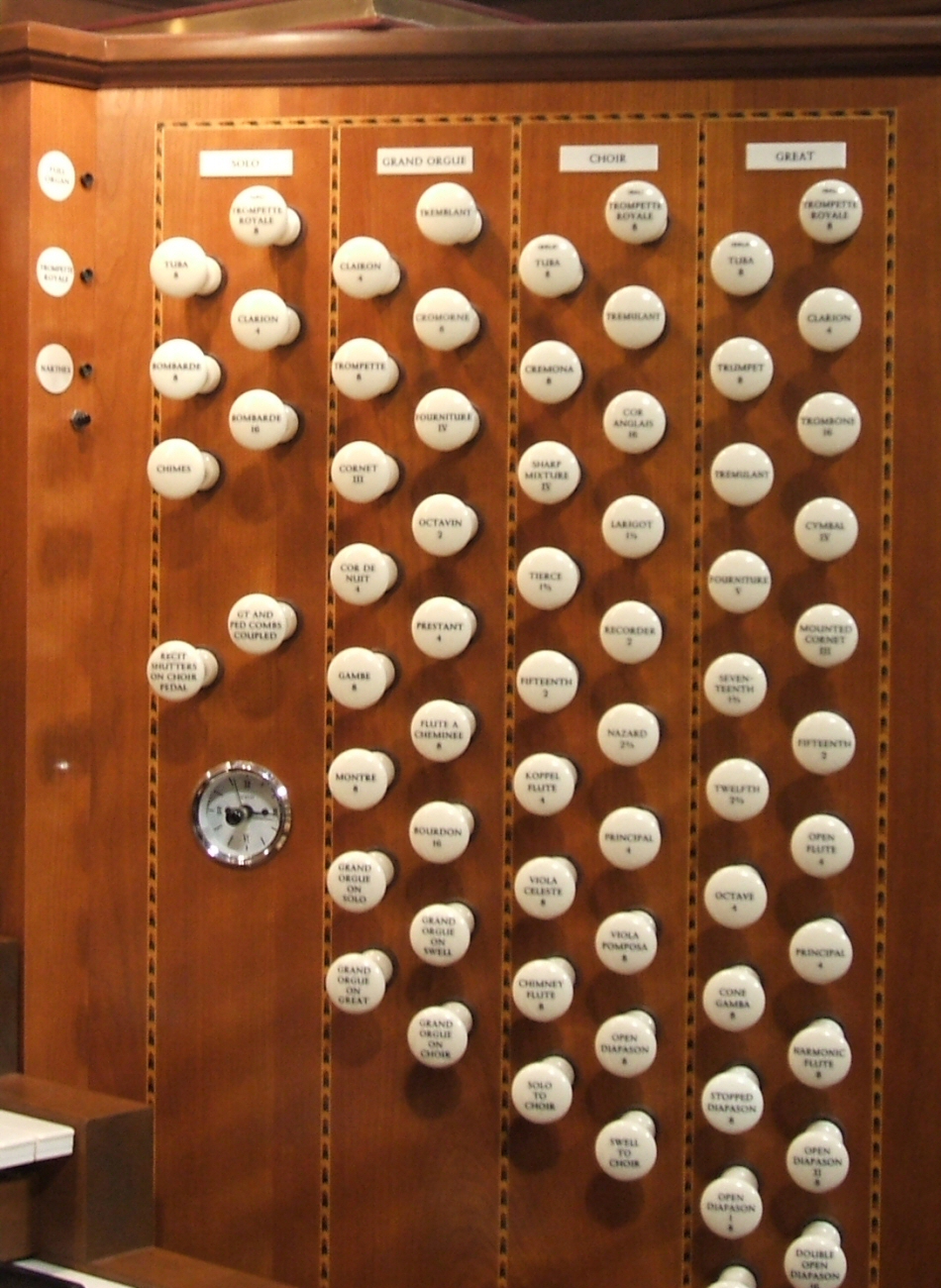

2007-06-15 - Right stop jamb (Photograph by Jim Cook/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Detached Keydesk (Mechanical Action)
4 manuals
67 stops
72 registers
5 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-09-13 - Identified through online information from Randy Elkins -Database Manager

2007-09-01 - Updated through online information from Stephen Hall. -- The organ is in two cases: the left houses Great, Swell, and Choir; the right contains Pedal and Solo divisions. The high pressure Solo uses electro-pneumatic key action, all other divisions are mechanical action. The organ is in regular use for services and concerts. -Database Manager

2016-07-21 - Gallery divisions (added 2008) playable from Chancel console. Chancel divisions playable from Gallery console via blind general pistons. -Database Manager

2022-06-25 - Found youtube videos that show the organ is active -William

Stoplist

Stoplist from builder's web site Source: Source not recorded Date not recorded

Atlanta, Georgia
Peachtree Road United Methodist Church

Mander Organs   2002        Chancel Organ       4 manuals, 67 stops, 89 ranks
_____________________________________________________________________________

         GREAT ORGAN                            SWELL ORGAN
     16' Double Open Diapason   61          16' Bourdon                61
      8' Open Diapason I        61           8' Open Diapason          61
      8' Open Diapason II       61           8' Gedackt                61
      8' Stopped Diapason       61           8' Salicional             61
      8' Harmonic Flute         61           8' Voix Celeste           61
      8' Cone Gamba             61           8' Flauto Dolce           61
      4' Principal              61           8' Unda Maris             61
      4' Octave                 61           4' Principal              61
      4' Open Flute             61           4' Wald Flute             61
  2 2/3' Twelfth                61           2' Fifteenth              61
      2' Fifteenth              61           2' Flageolet              61
  1 3/5' Seventeenth            61       2 2/3' Sesquialtera III      183
  2 2/3' Mounted Cornet III    111       1 1/3' Plein Jeu V           305
           (g20-g56)                        16' Contra Fagotto         61
      2' Fourniture V          305           8' Harmonic Trumpet       66 *
    2/3' Cymbal IV             244           8' Hautbois               61
     16' Trombone               61           8' Vox Humana             61
      8' Trumpet                61           4' Harmonic Clarion       78 *
      4' Clarion                61                Tremulant
           Swell to Great
           Choir to Great                       PEDAL ORGAN
           Solo to Great                    32' Double Open Diapason   12
                                            32' Subbass                12
         CHOIR ORGAN                        16' Open Diapason          32
      8' Open Diapason          61          16' Open Wood              32
      8' Chimney Flute          61          16' Bourdon                32
      8' Viola Pomposa          61          16' Lieblich Bourdon       32
      8' Viola Celeste          61           8' Principal              32
      4' Principal              61           8' Bass Flute             32
      4' Koppel Flute           61           4' Fifteenth              32
  2 2/3' Nazard                 61           4' Open Flute             32
      2' Fifteenth              61       3 1/5' Mixture V             160
      2' Recorder               61          32' Contra Bombarde        12
  1 3/5' Tierce                 61          16' Bombarde               32
  1 1/3' Larigot                61          16' Bassoon                32
      1' Sharp Mixture IV      244           8' Trumpet                32
     16' Cor Anglais            61           4' Clarion                32
      8' Cremona                61           4' Schalmei               32
           Tremulant                              Great to Pedal
           Swell to Choir                         Swell to Pedal
           Solo to Choir                          Choir to Pedal
                                                  Solo to Pedal
         SOLO ORGAN
     16' Bombarde              61
      8' Bombarde              66 *
      4' Clarion               78 *
      8' Tuba                  66 *
      8' Trompette Royale (GalRéc)
           Chimes              21 tubes      *  double trebles


         COMBINATIONS (SSL, 128 levels)         EXPRESSION
         Generals     12                        Balanced Swell Pedal (mech.)
         Divisionals   8                        Balanced Choir Pedal (mech.)
         Great & Pedal Combinations Coupled     Crescendo Pedal with LED indicator


[Received from Steven E. Lawson  2016-07-21]
