Richard L. Bond Opus 5 (1982)

St. John the Evangelist Episcopal
2036 SE Jefferson St.
Milwaukie, OR

Images

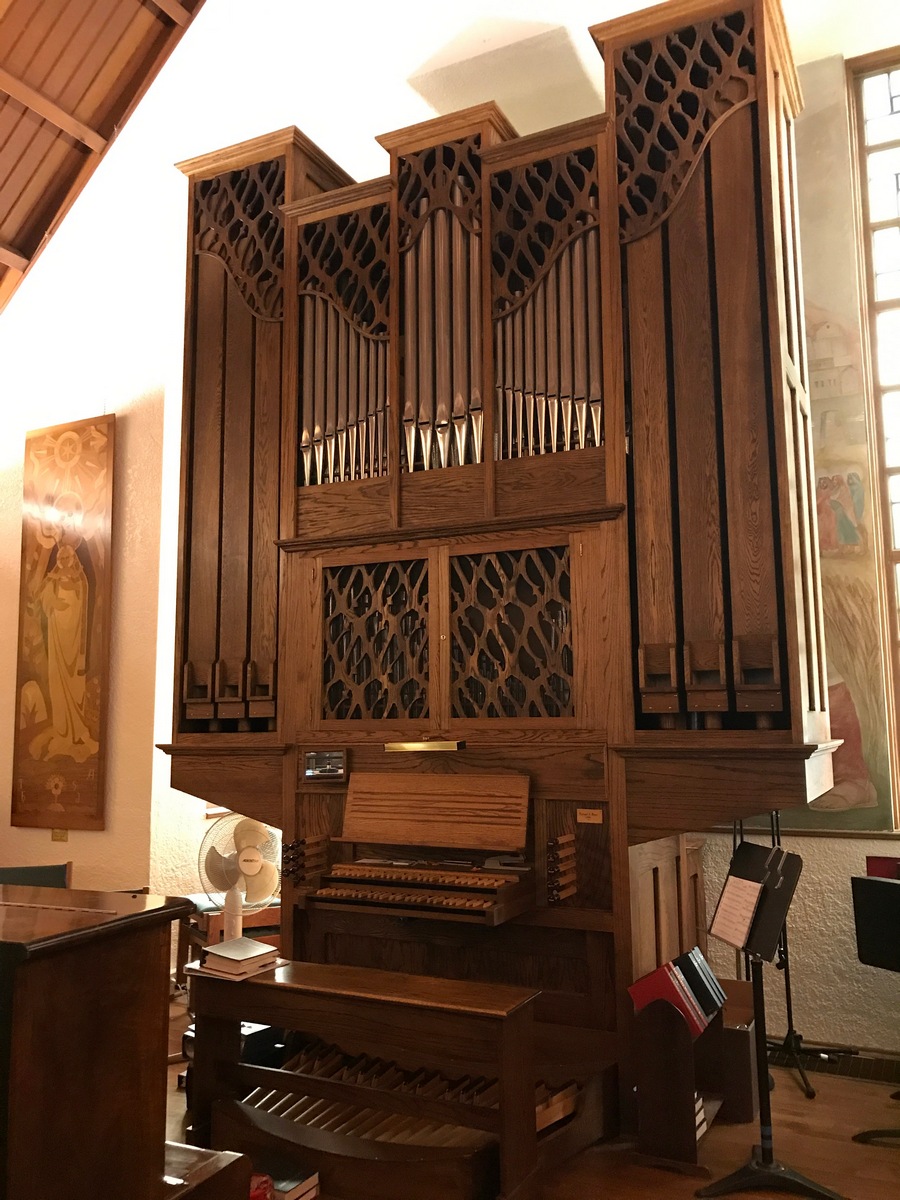

2019-07-05 - Organ Case (Photograph by Brian Leder/Database Manager)

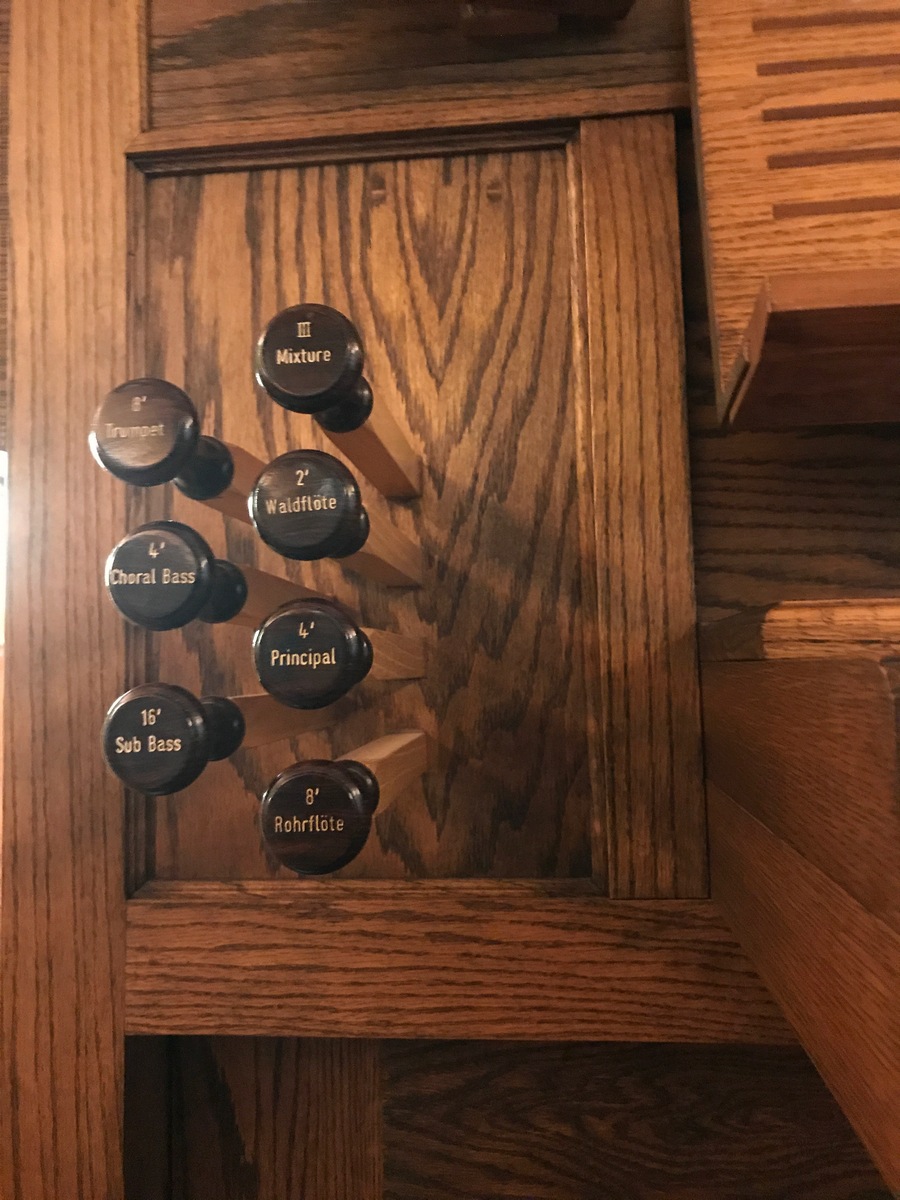

2019-07-05 - Left stopjamb (Photograph by Brian Leder/Database Manager)

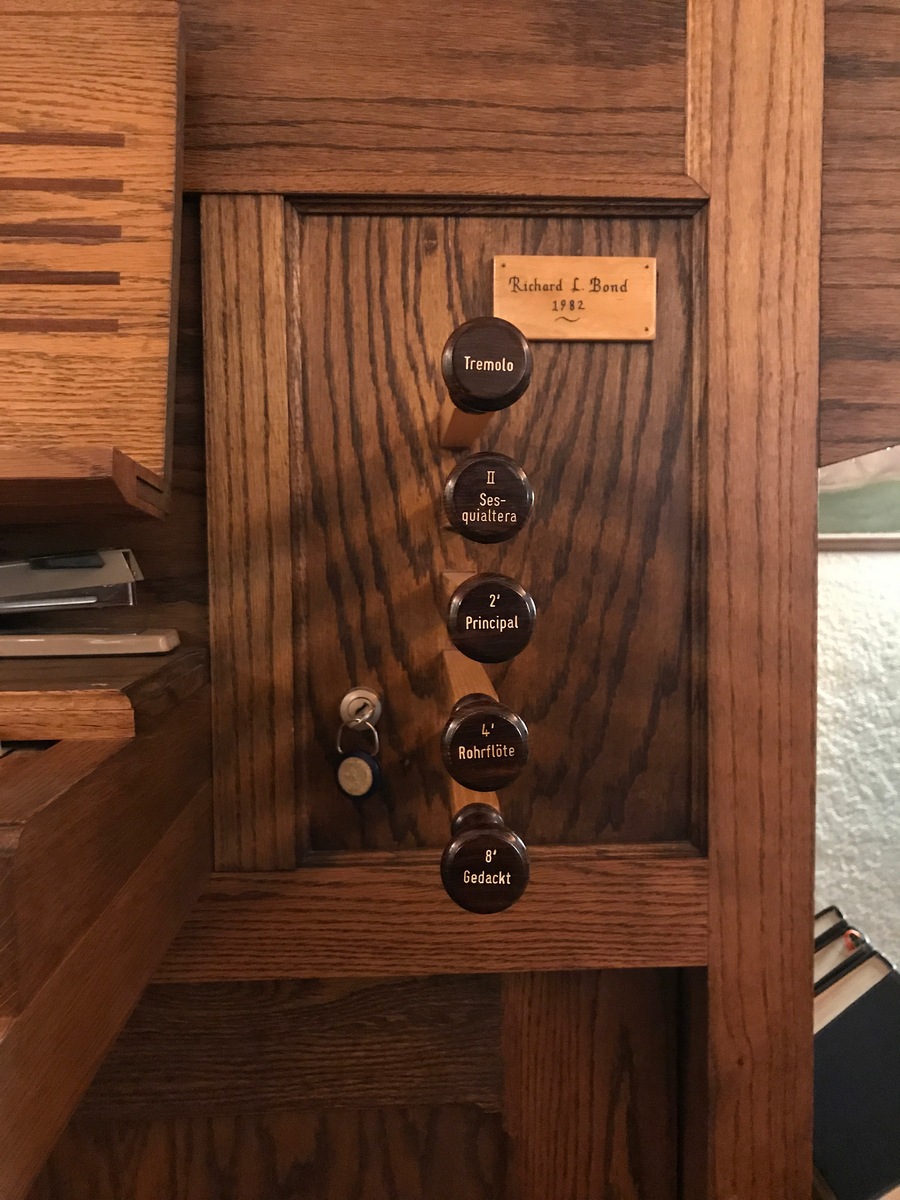

2019-07-05 - Right stopjamb (Photograph by Brian Leder/Database Manager)

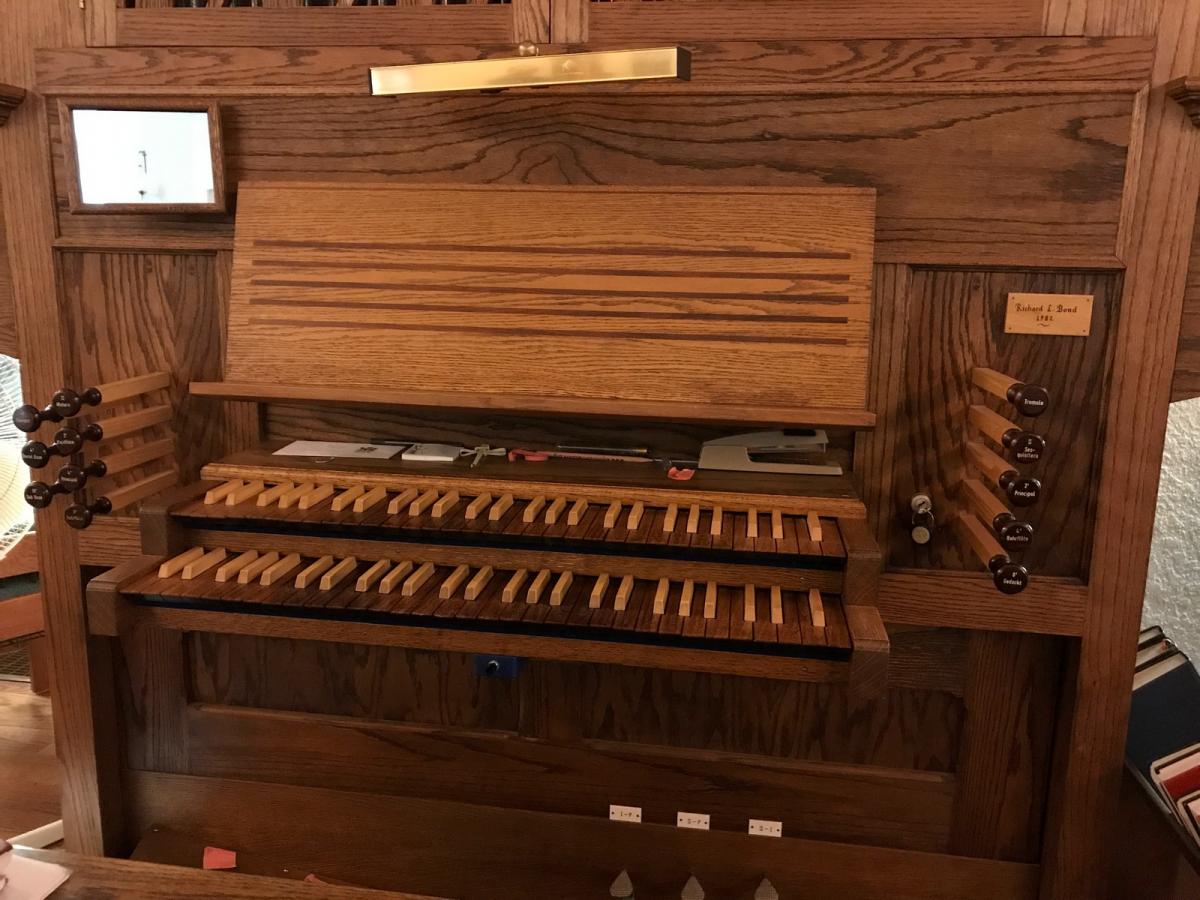

2019-07-05 - Keydesk (Photograph by Brian Leder/Database Manager)

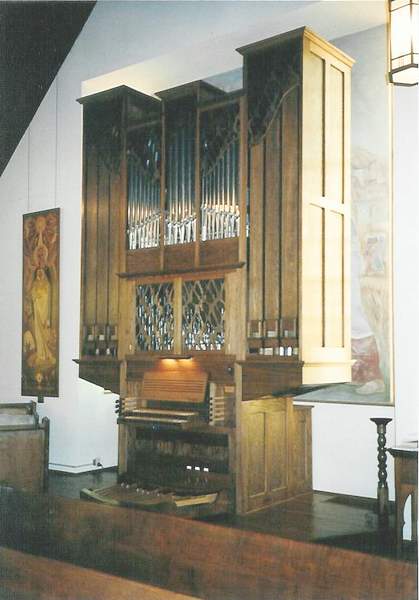

2007-06-07 - Organ (Photograph by James R. Stettner/Database Manager)

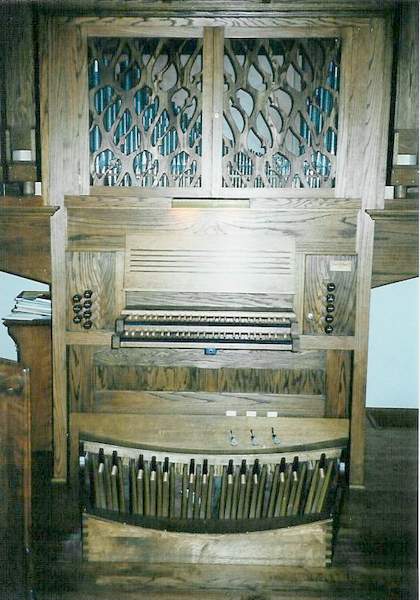

2007-06-07 - Keydesk (Photograph by James R. Stettner/Database Manager)

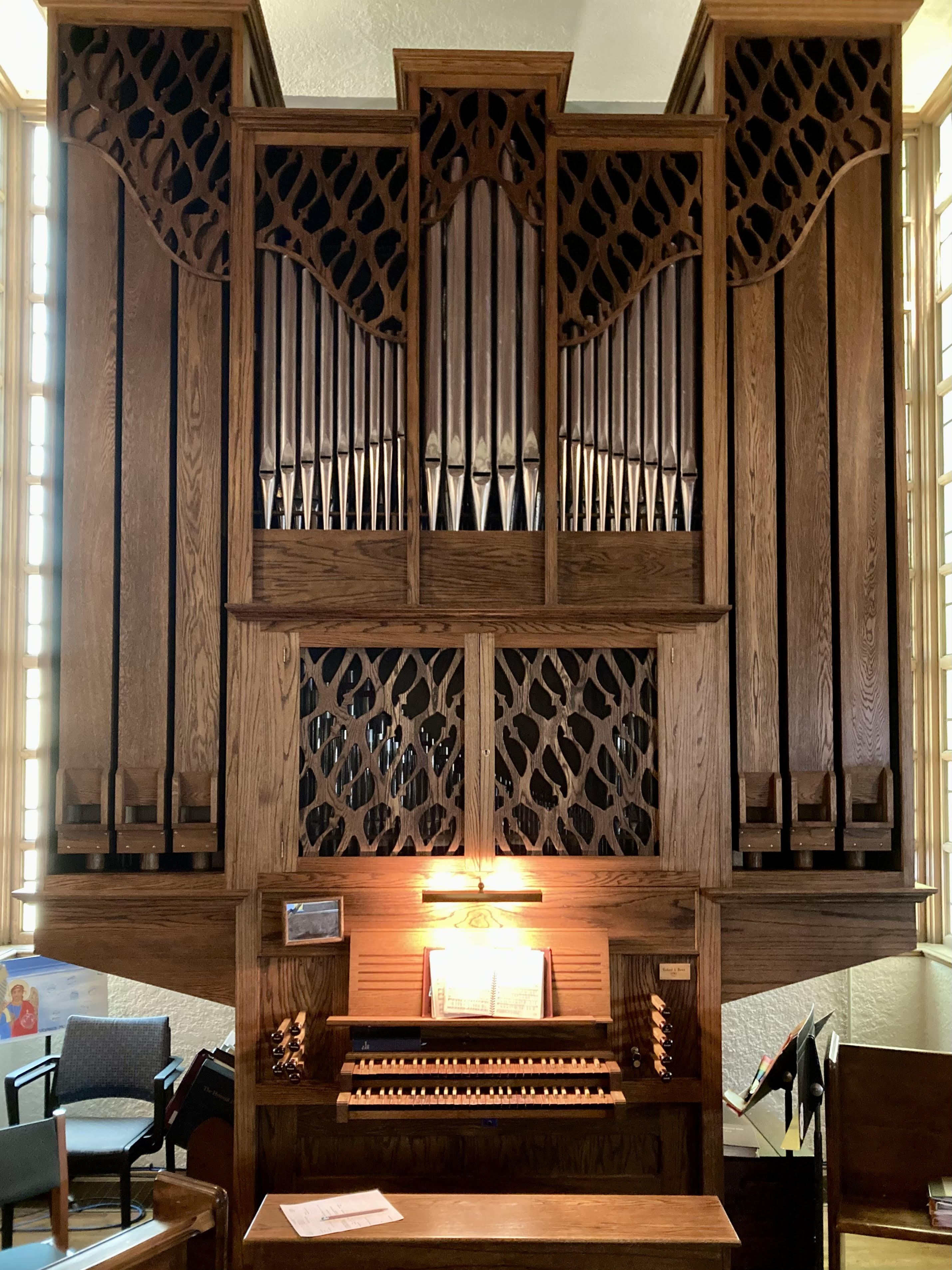

2024-06-21 - Organ case and keydesk (Colin Warling/Colin Warling)

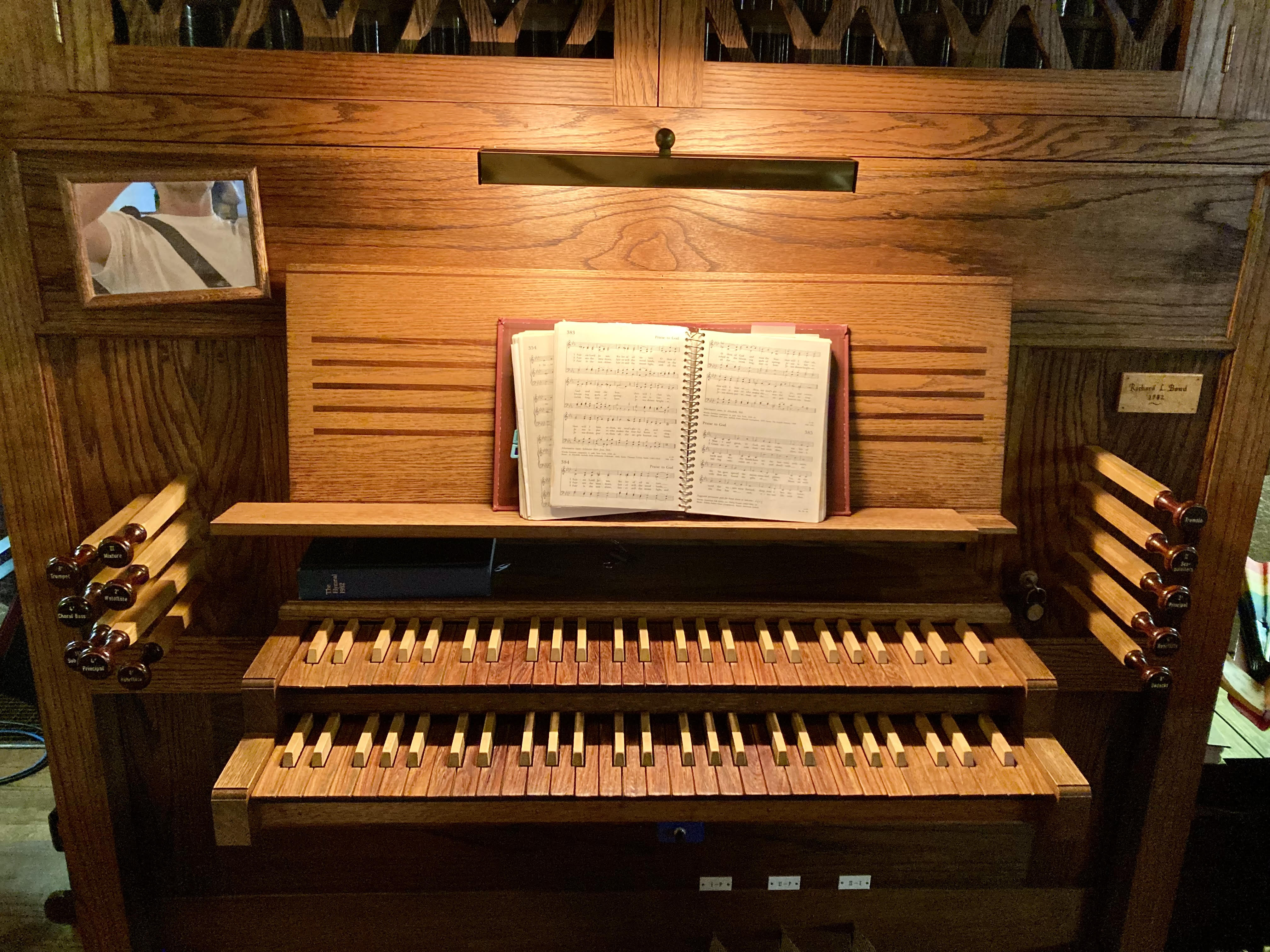

2024-06-21 - Keydesk (Colin Warling/Colin Warling)

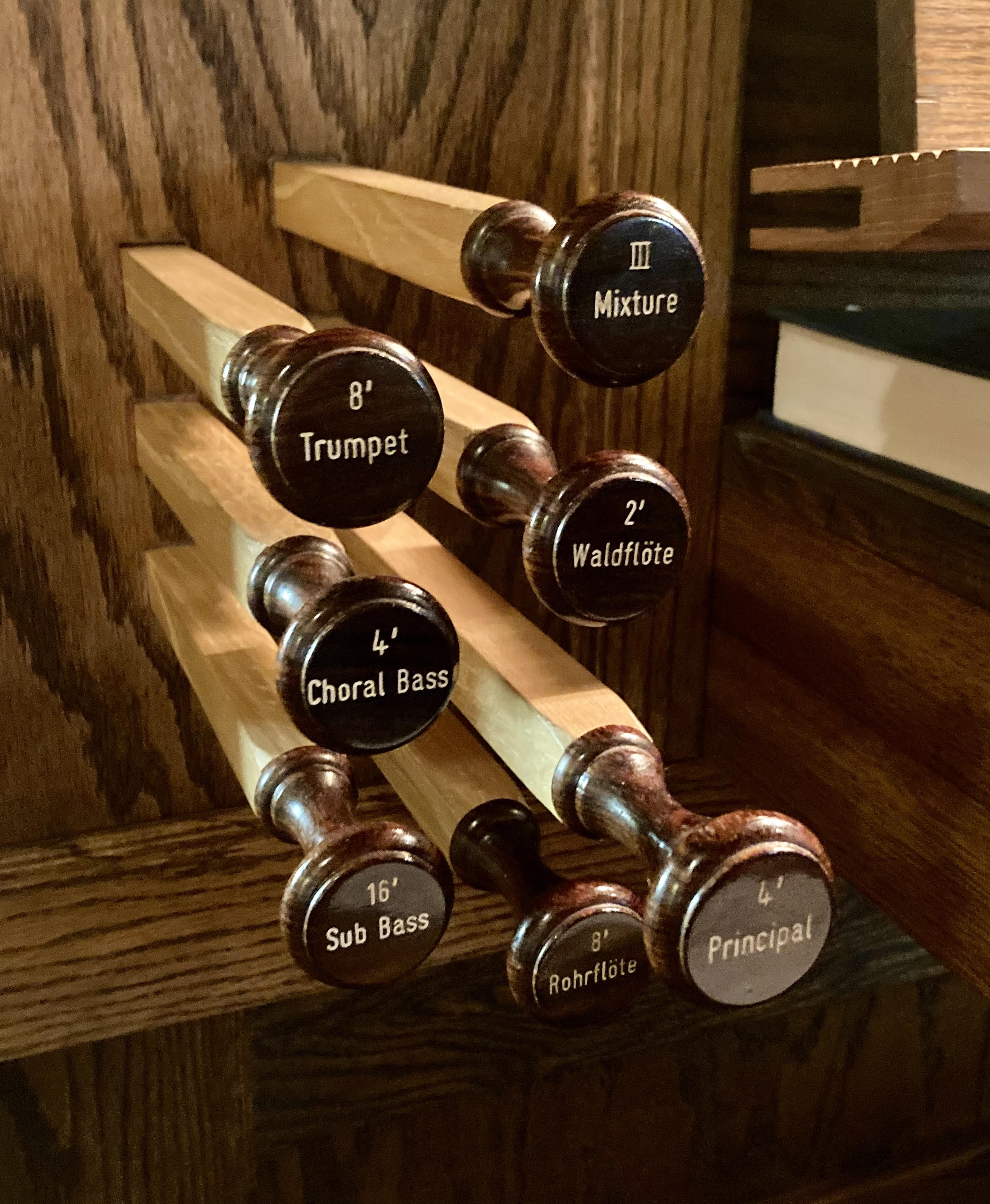

2024-06-21 - Left stopjamb (Colin Warling/Colin Warling)

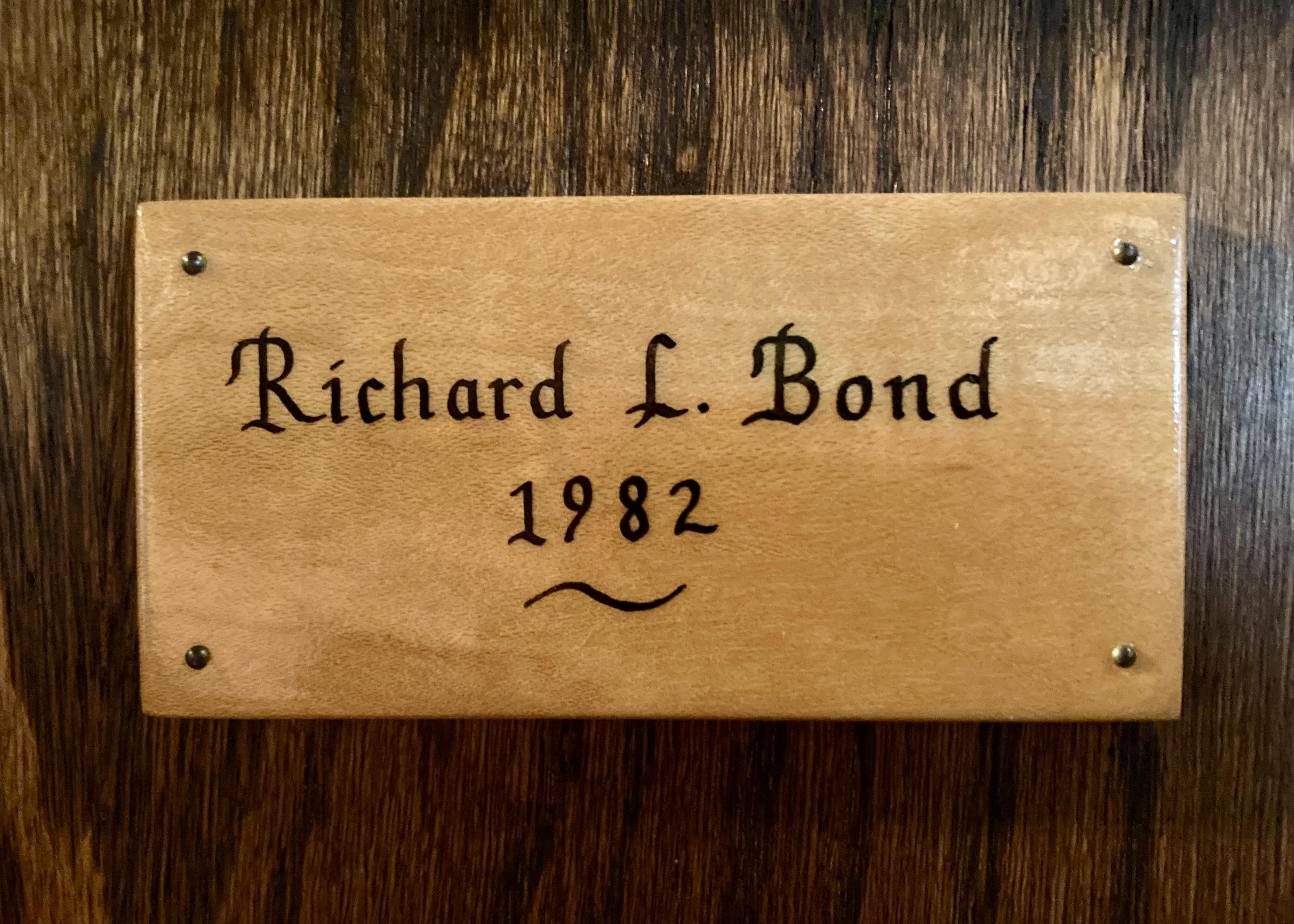

2024-06-21 - Builder's nameplate (Colin Warling/Colin Warling)

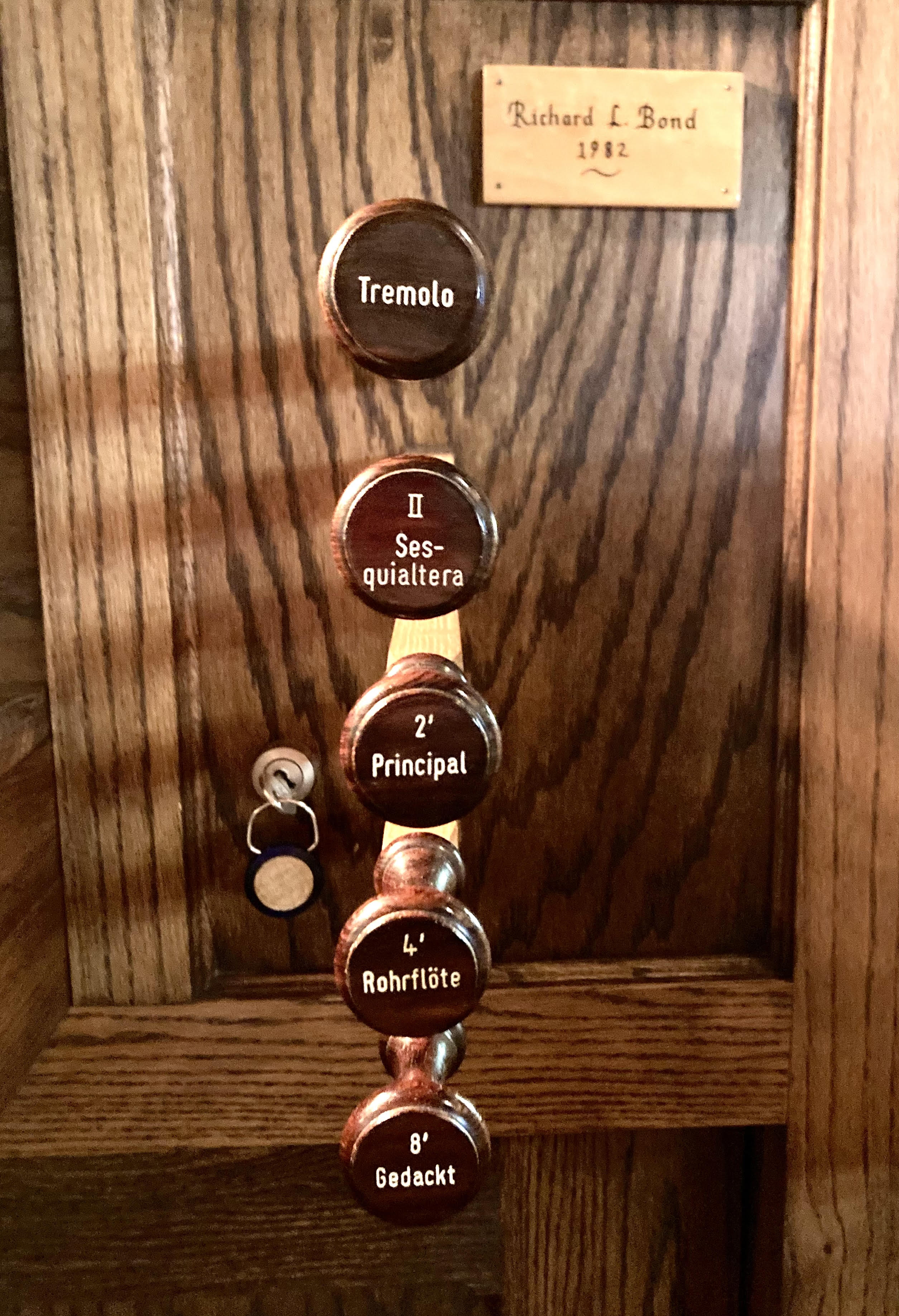

2024-06-21 - Right stopjamb (Colin Warling/Colin Warling)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
12 stops
11 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None
Has hitchdown couplers

Notes

2004-10-30 - Status Note: There 1991. -Database Manager

2015-05-30 - Updated through online information from James R. Stettner. -Database Manager

Stoplist

Stoplist copied from the console May 4, 1990 Source: Source not recorded Date not recorded

Milwaukie, Oregon
St. John the Baptist Episcopal Church

RICHARD L. BOND, Opus 5, 1982 - Original Specifications


GREAT                                        COUPLERS (hitch-down)
   8'  Rohrflöte                    56          Brustwerk to Pedal
   4'  Principal   [façade]         56          Great to Pedal
   2'  Waldflöte                    56
   III Mixture     [19-22-26]      168          Brustwerk to Great
   8'  Trumpet                      56

                                             FOOT LEVERS (Labeled; l - r)
BRUSTWERK                                       I - P
   8'  Gedackt                      56          II - P
   4'  Rohrflöte                    56          II - I
   2'  Principal                    56
   II  Sesquialtera   [12-17] (tc)  88
       Tremolo

                                             ACTION: Mech. Key & Stop
PEDAL
   16' Sub Bass     [façade]        32       VOICES: 11         STOPS: 12
   4'  Choral Bass                  32
   8'  Trumpet                (Gt)  --       RANKS: 14          PIPES: 712


NOTES
The Great 4' Principal in en façade for 23 notes from bass CC thru tenor A#. The Pedal
16' Sub Bass also has six pipes in the façade. CCC, DDD, and EEE are at the bass end
of the case; while CCC#, DDD#, and FFF are at the treble end. The 8' Trumpet drawknob
has two positions. When drawn to the first position, it is available to the Pedal divi-
sion. When drawn to the second position, it is available to both the Great and Pedal
simultaneously.

Sources: Bond opus list; JRS; extant organ

 [Received from James R. Stettner 2015-05-21.]
