The Culver Academies: Memorial Chapel
State Road 10
Culver, IN
Images

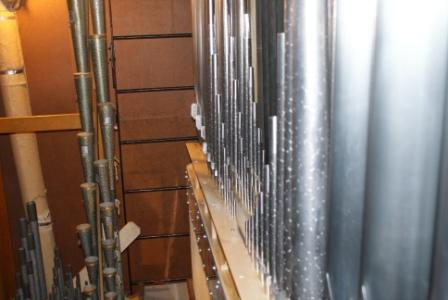

2011-11-10 - Oboe and Flute Celeste (Photograph by John Gouwens/Database Manager)

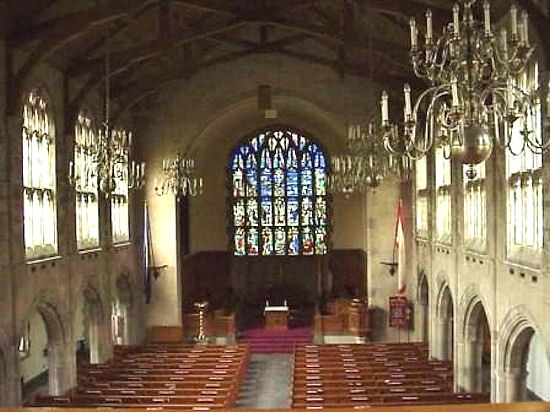

2003-06-07 - Front from rear gallery (Photograph by John Gouwens/Database Manager)

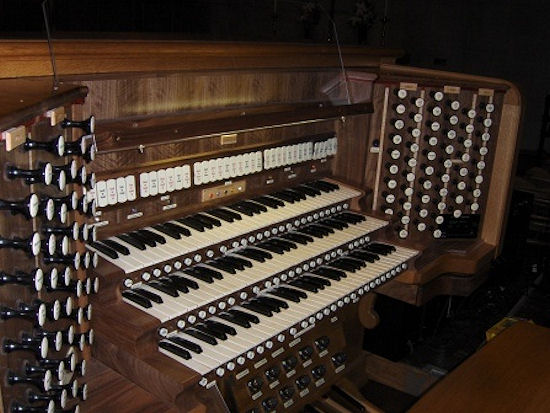

2007-01-31 - Console from left (Photograph by John Gouwens/Database Manager)

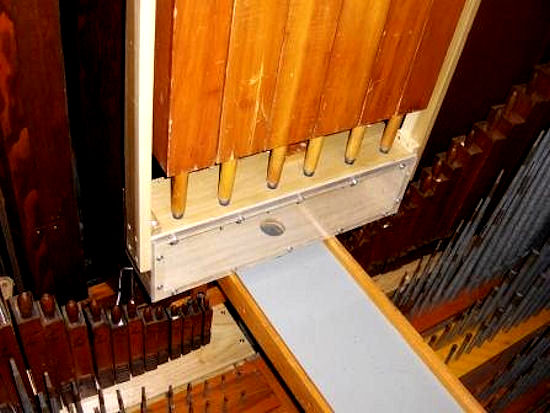

2008-03-07 - New 'Vox in a Box' (Photograph by John Gouwens/Database Manager)

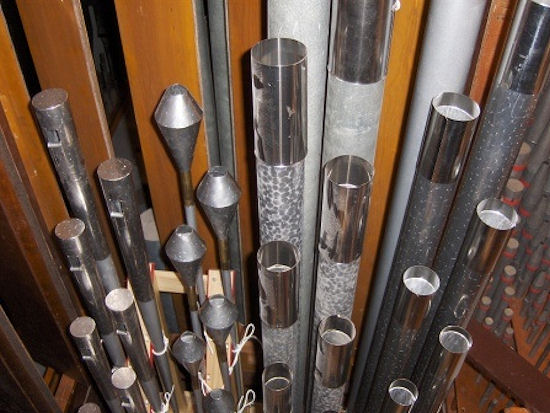

2007-02-16 - Choir pipework (l-r): Cor d'Amour (new), English Horn (new), Viola (original), Viola Celeste (new) (Photograph by John Gouwens/Database Manager)

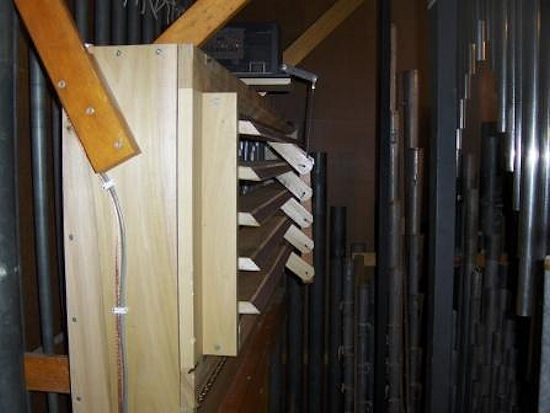

2008-03-07 - Doppel bass (Photograph by John Gouwens/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 3 manuals
- 89 stops
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
Notes
2007-07-09 - Updated through on-line information from John Gouwens. -- I am the organist, and planned out the details of the most recent renovation. -Database Manager
2008-03-21 - Updated through on-line information from John Gouwens. -- A few recent (February 2008) improvements have been made. I'll E-Mail a revised text file. Thanks! -Database Manager
2012-04-18 - Updated through online information from John Gouwens. -- In the fall of 2011, a few additional modifications were made. A new (full 73-note) Flute Celeste was added to the Swell (to pair with the Flute Conique), and the two ranks together were duplexed to the Solo. Sostenuto controls were added to the Swell and Pedal, unit action was added to the Clarinet rank, and it was also duplexed (from the Choir) to the Solo (supplanting the Cor d'Amour 16' knob on the Solo). -Database Manager
Stoplist
Brochure Source: Source not recorded Date not recorded
Reading failed, file: None IN/Culver.CulverAcademies.2007Fabry.Stoplist01.pdf
Culver Academies Chapel, Indiana, USA
M. P. Möller opus 8168, 1951; Fabry, Inc. 2006
These sound clips are a generous gift from Mr. John Gouwens, who performed and recorded them. Mr. Gouwens serves as Organist and Carilloneur of the Culver Academies. The sound clips were recorded using a Schoeps MK 21 microphone feeding a Zoom H4 digital recorder, recording directly to 160 bit mp3 format.
For more information on this organ, see http://faculty.culver.org/~gouwenj/organcarillon.asp
For general information about sound clips, see the Sound Files appendix.
Pedal
32' De Profundis resultant from Bourdon and Flûte Conique arpeggio arpeggio
(w/16'&8') desc. scale
(w/other stops)
16' Contra Basse open wood Möller 1951
16' Diapason ext. Great 8'; open metal Möller 1951
16' Bourdon wood Möller 1951
16' Quintaton Great see Great
16' Flûte Conique Swell see Swell
10-2/3' Quint Möller 1951
8' Octave ext.
8' Principal Möller 1951
8' Bourdon ext.
8' Quintaton Great see Great
8' Flûte Conique Swell see Swell
6-2/5' Grosse Tierce from 16' Bourdon
5-1/3' Octave Quint ext.
4-4/7' Grosse Septième from Flûte Conique
4' Choral Bass Möller 1951
4- Nachthorn Fabry 1982-85; Schopp pipes arpeggio St. Anne
III Mixture Möller 1951
32' Voix de l'Abîme resultant from Oboe and Cor d'Amour arpeggio arpeggio
(w/other stops) desc. scale
(w/other stops)
16' Bombarde full length, open metal Möller 1951 see Choir
16' Cor d'Amour Choir
16' Contra Oboe Swell see Swell
8' Bombarde ext. see Choir
8' Oboe Swell
4' Clarion ext.
Pizzicato Bass 8' Octave, pizzicato relay arpeggio arpeggio
(w/other stops) St. Anne
Chimes Fabry 1982-85 see Swell
MIDI on Pedal
Zimbelstern Fabry 1982-85 1 & 2 1 then 2 then both
Choir (I)
16' Flûte Conique Swell
8' Viola Möller 1951 arpeggio St. Anne
8' Viola Céleste Fabry 2007-08; Eastern Organ Pipes arpeggio St. Anne
8' Cor de Nuit Keller 1968-72 arpeggio St. Anne
8' Erzähler Möller 1951 arpeggio St. Anne
8' Erzähler Celeste T.C. Möller 1951 arpeggio St. Anne
4' Prestant Keller 1968-72
4' Koppelflöte Keller 1968-72
2-2/3' Nazard Möller 1951
2' Blockflöte Keller 1968-1972
1-3/5' Tierce Möller 1951
16' Cor d'Amour Fabry 2007-08; Eastern Organ Pipes arpeggio
16' Contra Oboe Swell see Swell
8' English Horn Fabry 2007-08; Eastern Organ Pipes arpeggio St. Anne St. Anne (solo)
8' Cor d'Amour ext. Fabry 2007-08 see 16' St. Anne St. Anne (solo)
8' Clarinet Möller 1951 arpeggio St. Anne
8' Military Trumpet harmonic from middle c Burger & Shafer 1972; Möller pipes Coming soon!
8' Bombarde Pedal arpeggio St. Anne
8' Harp T.C. Fabry 1983; Deagan/Möller arpeggio St. Anne
MIDI on Choir
16' Choir to Choir
Choir Unison Off
4' Choir to Choir
Tremolo
Great (II)
16' Quintaton Möller 1951 arpeggio St. Anne
8' Diapason Keller 1968-72
8' Bourdon Fabry 1982-85; Möller pipes
8' Doppelflöte enclosed with Choir Fabry 2007-08; from Wm. King & Son c.1890 arpeggio St. Anne St. Anne (solo)
8' Gemshorn Möller 1951 arpeggio St. Anne
8' Viola Choir see Choir
4' Octave Keller 1968-72
4' Harmonic Flute harmonic from f#2 Möller 1951 arpeggio St. Anne St. Anne (solo)
2' Super Octave Möller 1951
2' Piccolo harmonic from low C (a Zauberflöte) Fabry 1984 arpeggio St. Anne
IV Fourniture Möller 1951 arpeggio St. Anne
III Cymbel Burger & Shafer 1972; Möller pipes arpeggio St. Anne
8' Military Trumpet Choir
Chimes Swell; immune to couplers Fabry 1982-85 see Swell
MIDI on Great
16' Great to Great
Great Unison Off
4' Great to Great
Tremolo
Swell (III)
16' Flûte conique Möller 1951 arpeggio see 8'
8' Geigen Diapason Möller 1951 arpeggio St. Anne
8' Rohrflöte Fabry 1982-85
8' Flûte Conique ext. Möller 1951 see 16' St. Anne
8' Viole de Gambe Möller 1951 arpeggio St. Anne
8' Viole Céleste Möller 1951 arpeggio St. Anne
8' Salicional Burger & Shafer 1972; Möller pipes arpeggio St. Anne
8' Voix Céleste T.C. Burger & Shafer 1972; Möller pipes arpeggio St. Anne
4' Principal Möller 1951
4' Flûte Triangulaire Möller 1951 arpeggio St. Anne St. Anne (solo)
2' Fifteenth Möller 1951
IV Plein Jeu Fabry 1982-85; Möller pipes arpeggio St. Anne
16' Contra Oboe Burger & Shafer 1972; Möller pipes arpeggio
8' Trompette Möller 1951
8' Oboe ext. Burger & Shafer 1972; Möller pipes see 16' St. Anne
8' Vox Humana in its own swell box, within the main swell box Möller 1951 arpeggio St. Anne St. Anne (tremolo)
4' Clarion Möller 1951
Chimes immune to couplers Fabry 1982-85; Deagan tubes arpeggio St. Anne
MIDI on Swell
16' Swell to Swell
Swell Unison Off
4' Swell to Swell
Tremolo
Solo (floating)
8' Doppelflöte Great
8' Viola Choir
8' Viola Celeste Choir
16' Cor d'Amour Choir
8' Cor d'Amour Choir
8' English Horn Choir
8' Oboe Swell
8' Bombarde Pedal
8' Military Trumpet Choir
Harp Choir
Tremolo engages appropriate tremolos for all stops drawn on Solo
Couplers
Great to Pedal 8', 4'
Swell to Pedal 8', 4'
Choir to Pedal 8', 4'
Solo to Pedal 8', 4'
Swell to Great 16', 8', 4'
Choir to Great 16', 8', 4'
Solo to Great 16', 8', 4'
Solo to Great Melody Coupler
Swell to Choir 16', 8', 4'
Solo to Choir 16', 8', 4'
Solo to Choir Melody Coupler
Great to Choir 8'
Pedal to Choir 8'
Choir to Swell 16', 8', 4'
Solo to Swell 16', 8', 4'
Great-Choir Transfer
Pedal Divide (Pedal stops/couplers; adjustable break point)
Ventils (changing function of Pedal 1-5 toe studs to divisional blind silencers)
All Tremolos Off
New Pipework by Eastern Organ Pipes, Hagerstown, Maryland.
Registrations
St. Anne - Vox Humana + Flute Conique
St. Anne - Full Organ
St. Anne - Principal Chorus
Sw. 8' Geigen Diapason, 4' Principal, 2' Fifteenth, Plein Jeu IV; Gt. 8' Diapason, 4' Octave, 2' Super Octave, Fourniture IV, Cymbel III; Choir 8' Viola, 4' Prestant; Pedal 16' Bourdon, 16' Diapason, 16' Contra Basse, 8' Principal, 4' Choral Bass, mixture III; Swell to Great, Choir to Great, Swell to Pedal, Choir to Pedal
St. Anne - Flute Chorus
Swell 8' Rohrflote, 4' Flute Triangulaire; Great 8' Bourdon, 4' Harmonic Flute, 2' Piccolo; Choir 8' Cor de Nuit, 4' Koppelflote, 2' Blockflote; Pedal 16' Bourdon, 16' Flute Conique, 8' Bourdon, 8' Flute Conique; Swell to Great, Choir to Great, Swell to Pedal, Choir to Pedal
St. Anne - String Celestes
Swell 8' Viole de Gambe, Viole Celeste, Salicional, Voix Celeste; Choir 8' Viola, 8' Viola Celeste; 8' Erzahler, 8' Erzahler Celeste; Swell to Great 8 & 4, Choir to Great 8 & 4, Swell to Pedal, Choir to Pedal
Sowerby: Carillon
features Harp and Chimes
Vierne: Communion from Triptyque
A tour of the celestes, used in the following order: Swell Viole de Gambe and Viole Celeste; Swell Salicional and Voix Celeste; Choir Erzähler, Erzähler Celeste, 4' Coupler; Choir Viola and Viola Celeste; Swell Vox Humana, Viole de Gambe, Viole Celeste, and Tremolo, with Vox Humana, shutters closed, then open, then closed.
von Paridis: Sicilienne
A demo of numerous solo flutes and reeds. The following solo stops are used in the following order: Oboe w/ Tremolo, Cor d'amour w/ Tremolo, Piccolo (Zauberflöte), Doppelflöte, English Horn w/Tremolo, Clarinet, Flûte Triangulaire w/ Tremolo.
