Hinners Organ Co. (1907)

Western Koshkonong Lutheran
2633 Church St.
Cottage Grove, WI

Images

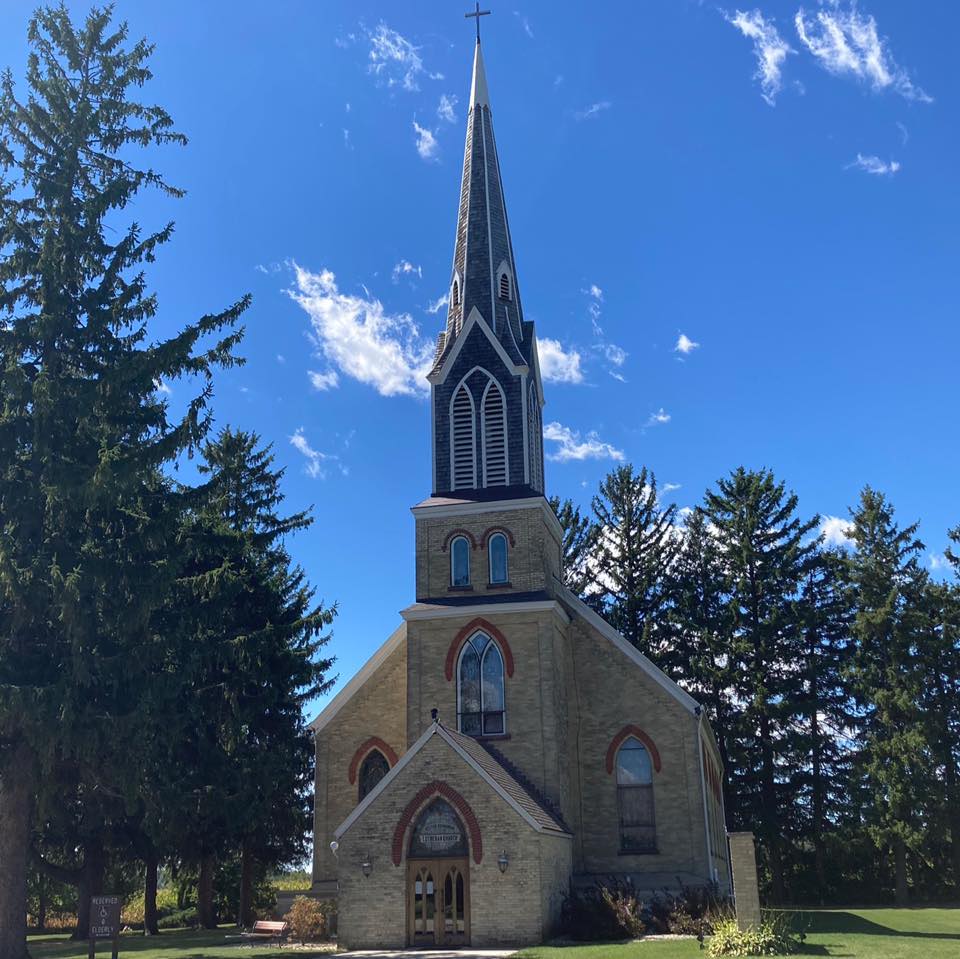

2020-09-04 - Church exterior (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

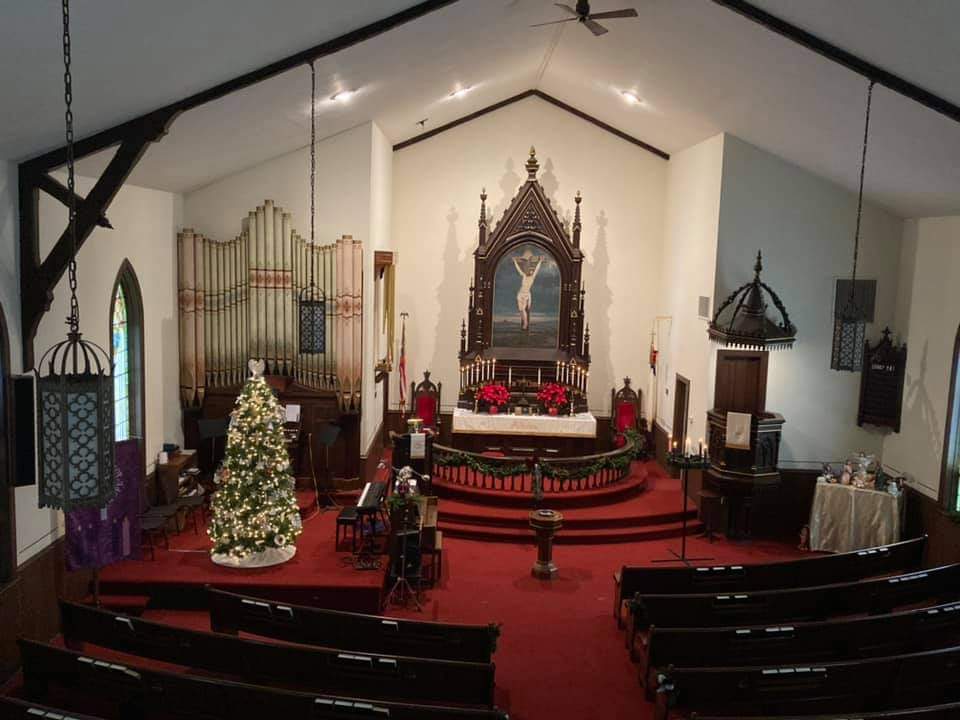

2020-12-23 - Sanctuary interior with organ (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

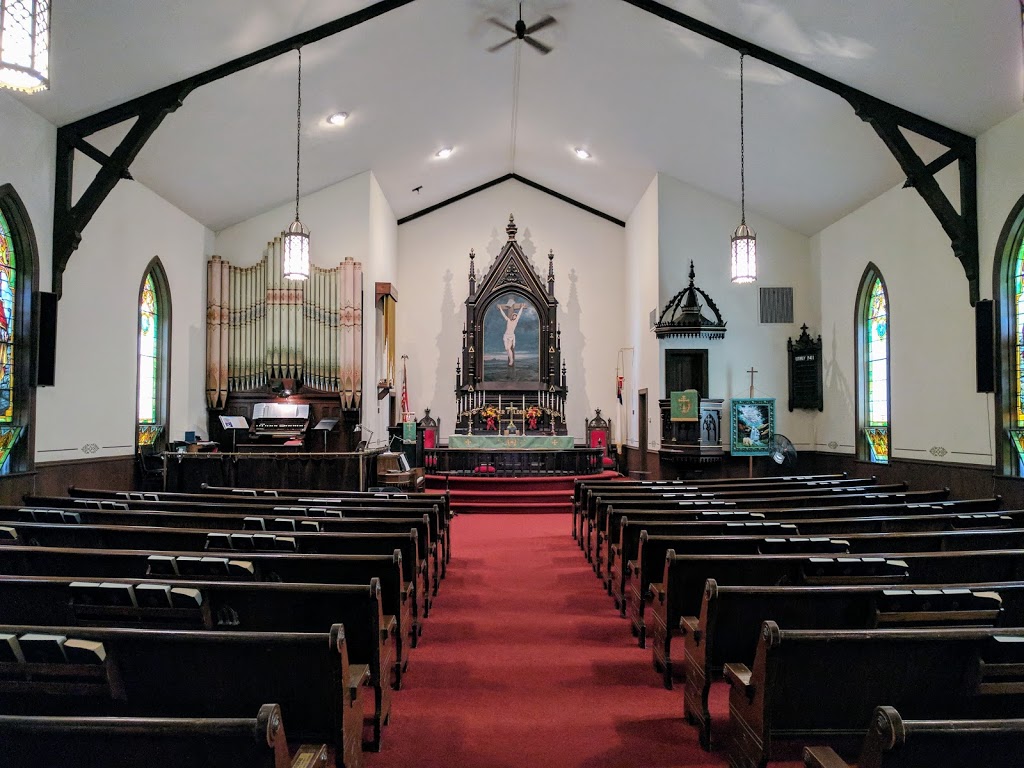

ca. 2005 - Sanctuary interior with organ (Photograph by Paul Young on USA247.info, submitted by Jim Stettner/Jim Stettner)

Unknown - Facade (ca. 2007) (Photograph courtesy of Darek Hartwig/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
1 manuals
9 stops
15 registers
2 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Row Above Top Manual
Manual compass: 61 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Fixed Mechanical
Has combination trundles

Notes

2007-03-05 - Updated through on-line information from David Bohn. -Database Manager

2021-07-18 - The organ was removed in July 2021 by the Dobson Organ Co. of Lake City, Iowa for a complete restoration. -Jim Stettner

Stoplist

Source: Stoplist from the console April, 2015

Cottage Grove, Wisconsin (rural)
Western Koshkonong Lutheran Church

HINNERS ORGAN CO., Opus ___, 1907 - Original Specifications

       Manual (Expressive *)
16 ft. Bourdon Treble *          37 pipes
16 ft. Bourdon Bass *      (tc)  12 pipes

8 ft.  Open Diapason             61 pipes   unenclosed

8 ft.  Liebl. Gedackt Treble *   37 pipes
8 ft.  Liebl. Gedackt Bass       24 pipes

8 ft.  Viol d'Gamba Treble *     37 pipes
8 ft.  Biol d'Gamb Bass *  (tc)  12 pipes   1-12 from Liebl. Gedackt

8 ft.  Aeoline Treble *          37 pipes
8 ft.  Aeoline Bass *            24 pipes

4 ft.  Principal                 61 pipes   unenclosed

4 ft.  Flute Treble *            37 pipes
4 ft.  Flute Bass *              24 pipes

2 ft.  Flautino Treble *         37 pipes
2 ft.  Flautino Bass *           24 pipes

       Tremulant

Octave Coupler


       PEDAL
16 ft. Ped. Bourdon              27 pipes   unenclosed


COUPLERS (Drawknob)
Pedal Coupler


FOOT TRUNDLES
Forte - draws full organ      (s-a)
Piano - retires to Liebl.,
        Viol, & Aeoline       (s-a)


PEDAL MOVEMENTS
Expression                Balanced    for enclosed stops


MISC. CONTROLS
Bellows Signal (activates Zimbelstern, added ca 2014)


NOTES
Chimes on its own keyboard.

[Received from David Bohn 2015-04-22.]
