Maplewood Reformed Church: Sanctuary
133 E. 34th Street
Holland, MI
Images

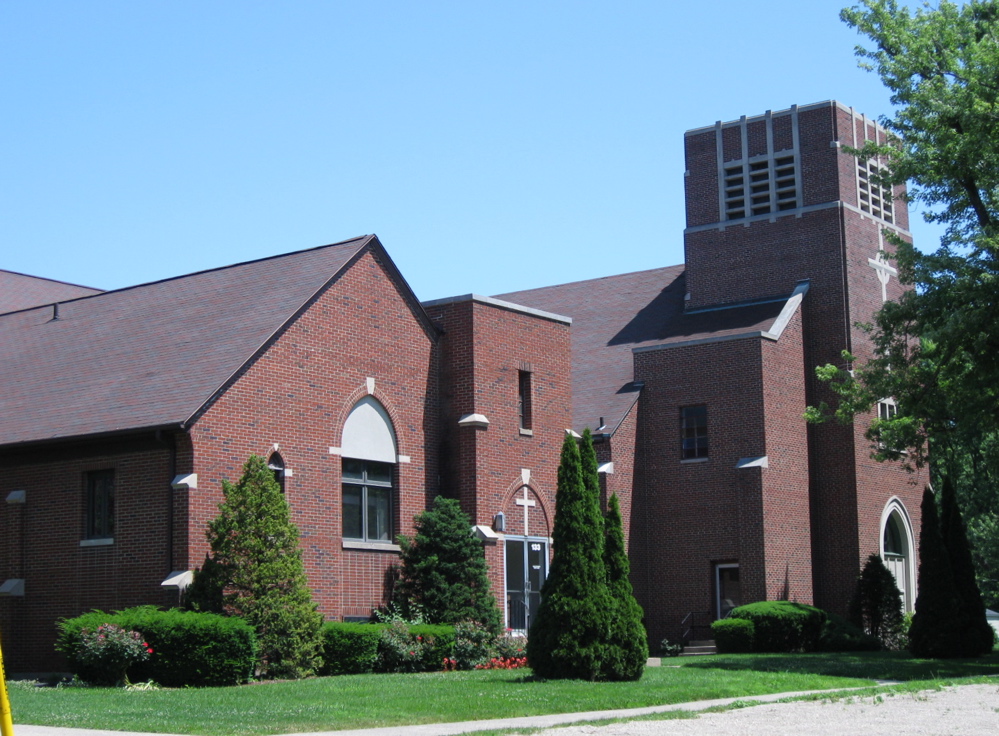

2011-07-06 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

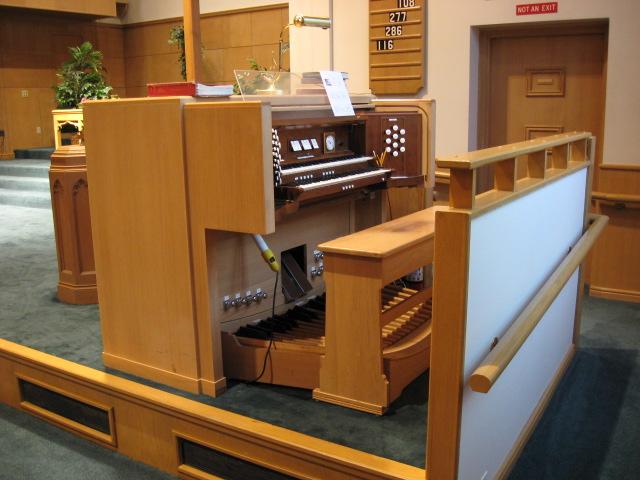

2009-06-17 - Console (Photograph by Chad Boorsma/Database Manager)

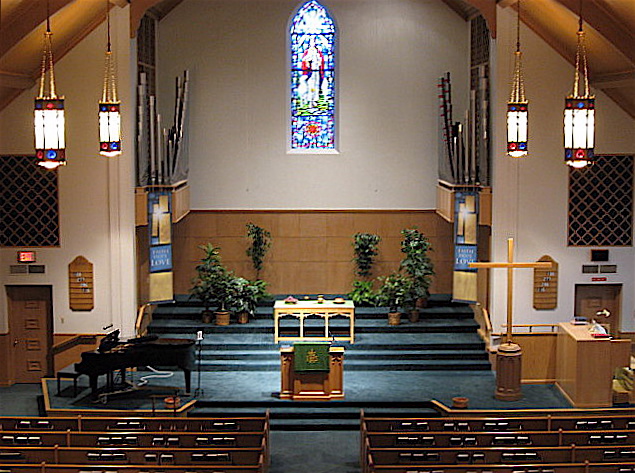

2009-06-17 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

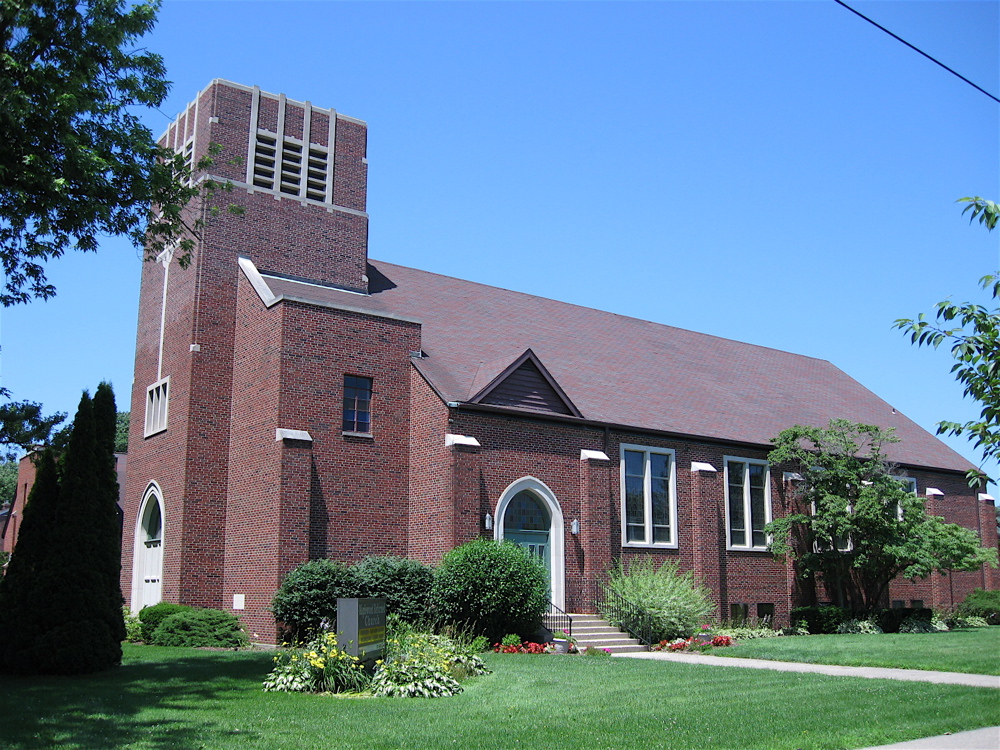

2009-06-23 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

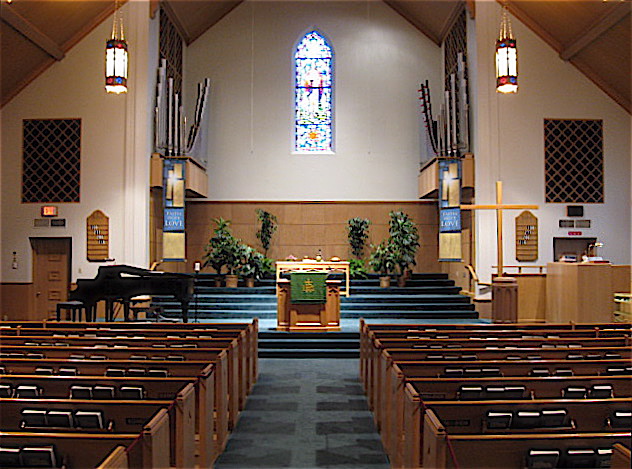

2009-06-17 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

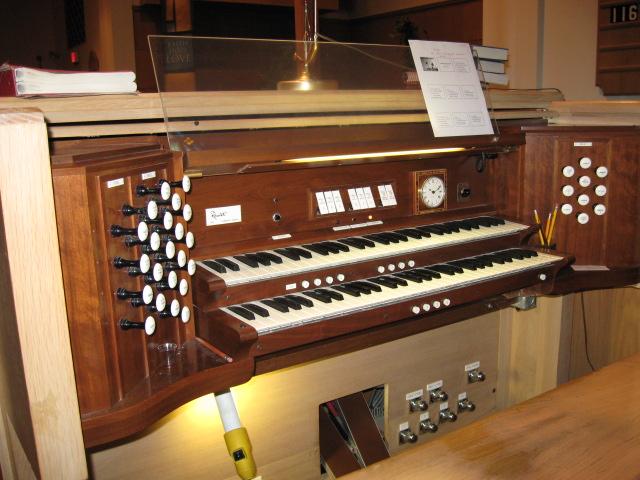

2009-06-17 - Console (Photograph by Chad Boorsma/Database Manager)

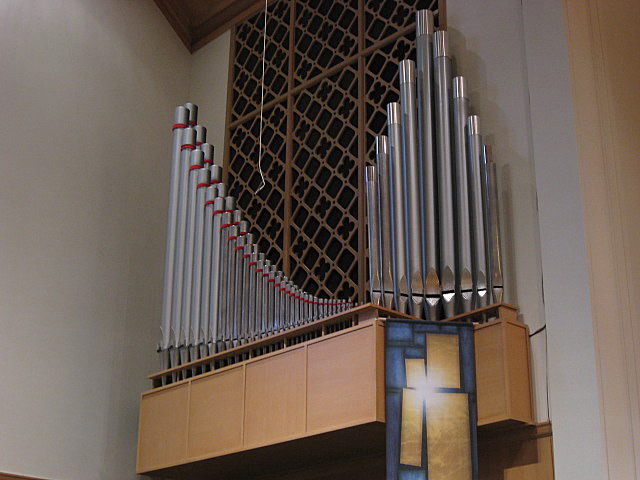

2009-06-17 - Pipe Display and Chamber Grillework (right side) (Photograph by Chad Boorsma/Database Manager)

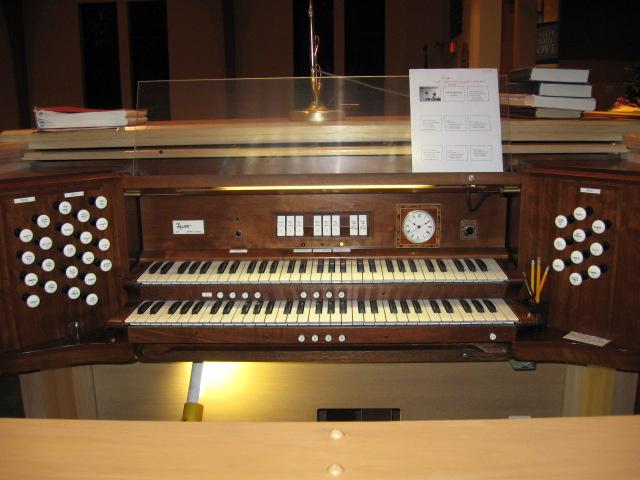

2009-06-17 - Console (Photograph by Chad Boorsma/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 26 stops
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2005-11-24 - Identified from the Reuter Opus List, provided by Chris Leaver, Reuter Organ Co., November, 2005. -Database Manager
2009-06-18 - Updated through online information from Chad Boorsma. -- The Swell division is under expression in the east chamber, the Pedal division is in the west chamber, and the Great division is exposed. FROM THE DEDICATION PROGRAM: The instrument was constructed to custom dimensions and specifications for Maplewood Church, which were developed through the combined efforts of Mr. S. George Price, Reuter representative, Mr. Roger J. Rietberg of the Hope College Music Department, and the church organ committee. It has a clean bright sound of "classic European instruments built during the 17th and 18th centuries. The Young Adult Sunday School Class purchased the Deagan chimes in memory of Mrs. Doris Worthy, who served on the Planning and Purchasing Committee, but passed away before having the opportunity to play or hear the instrument. -Database Manager
Stoplist
Stoplist take from the console (June 17, 2009) and dedication booklet Source: Source not recorded Date not recorded
Holland, Michigan
MAPLEWOOD REFORMED CHURCH
REUTER ORGAN COMPANY
Opus 1823
1973
GREAT: (exposed) SWELL: (under expression/east chamber)
16' Gedeckt Pommer 61 pipes 8' Rohrflote 61 pipes
8' Principal 61 pipes 8' Gemshorn 61 pipes
8' Bourdon 61 pipes 8' Gemshorn Celeste 61 pipes
4' Octave 61 pipes 4' Spitzprincipal 61 pipes
2' Weitprinzipal 61 pipes 2 2/3' Nasard 61 pipes
IV Fourniture 244 pipes 2' Blockflote 61 pipes
8' Krummhorn 61 pipes 1 3/5' Tierce 61 pipes
Chimes III Scharf 183 pipes
Tremolo 8' Trumpet 61 pipes
Tremolo
16' Swell
PEDAL: (west chamber) Swell Unison Off
16' Sub-bass 32 pipes 4' Swell
16' Gedeckt Pommer Great
8' Principal 32 pipes OTHER COUPLERS:
8' Gedeckt Pommer Great Great to Pedal 8'
4' Choral Bass 32 pipes Swell to Pedal 8'
III Mixture preparation Swell to Pedal 4'
16' Fagatto 32 pipes Swell to Great 16'
4' Krummhorn Great Swell to Great 8'
Swell to Great 4'
[Received on line from Chad Boorsma June 19, 2009.]
