Columbus Avenue Baptist Church: Sanctuary
1300 Columbus Avenue
Waco, TX
Images

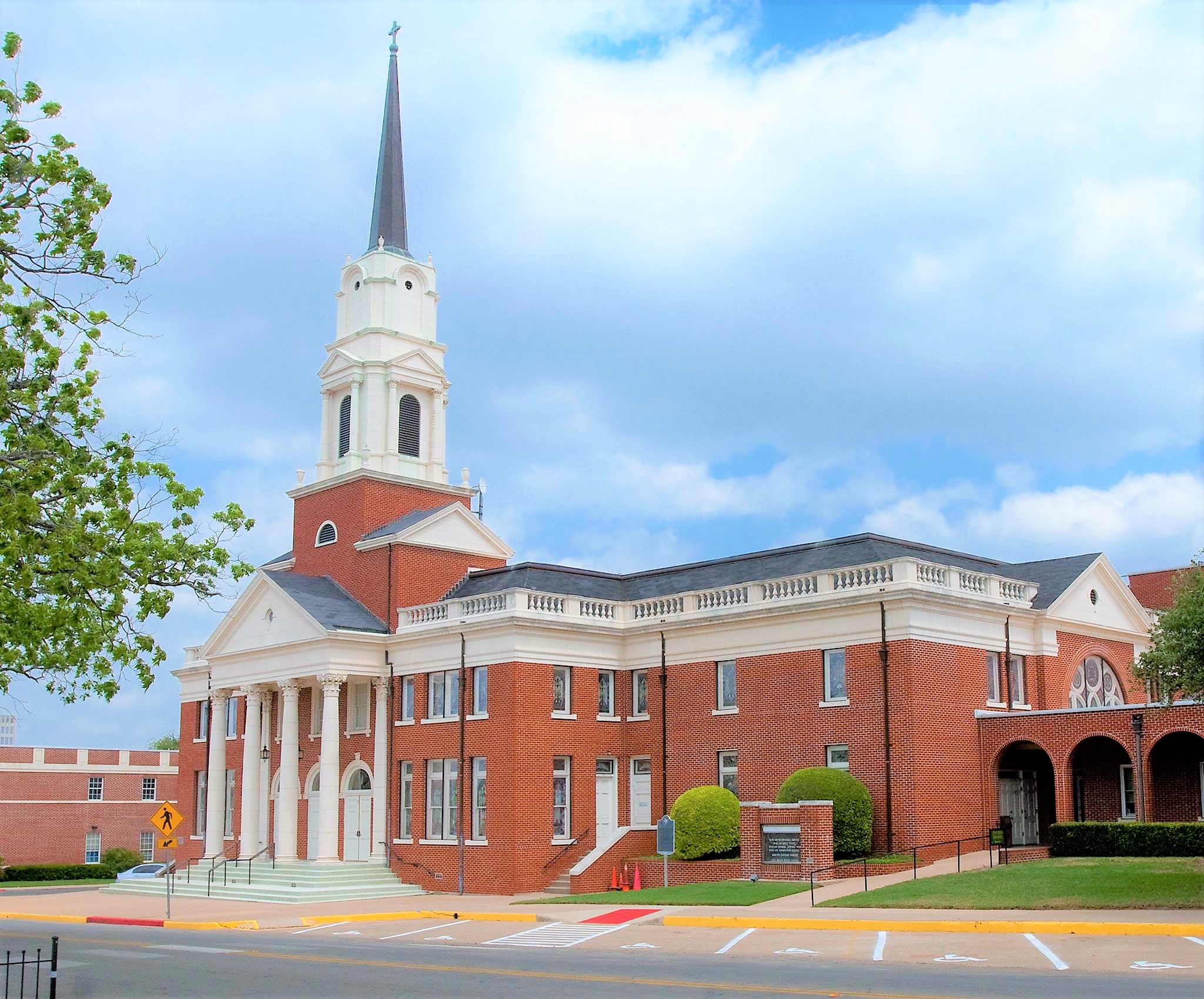

2013-10-23 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

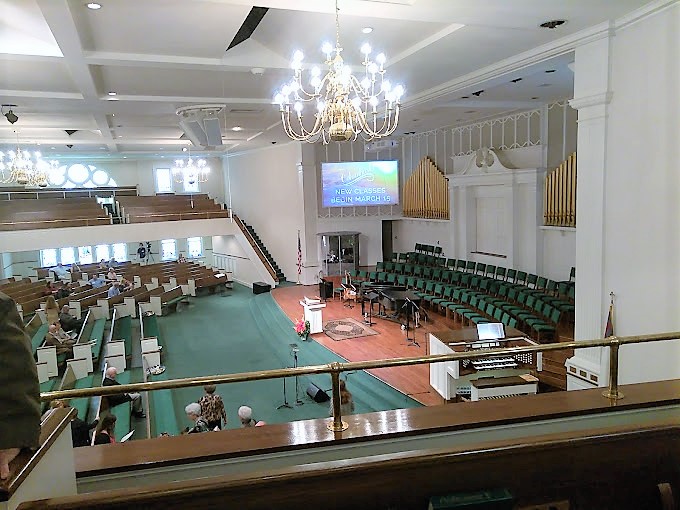

2018 - Church interior, chancel, console, façade pipes (Photograph by Johnny Rangel, submitted by Jeff Scofield/Jeff Scofield)

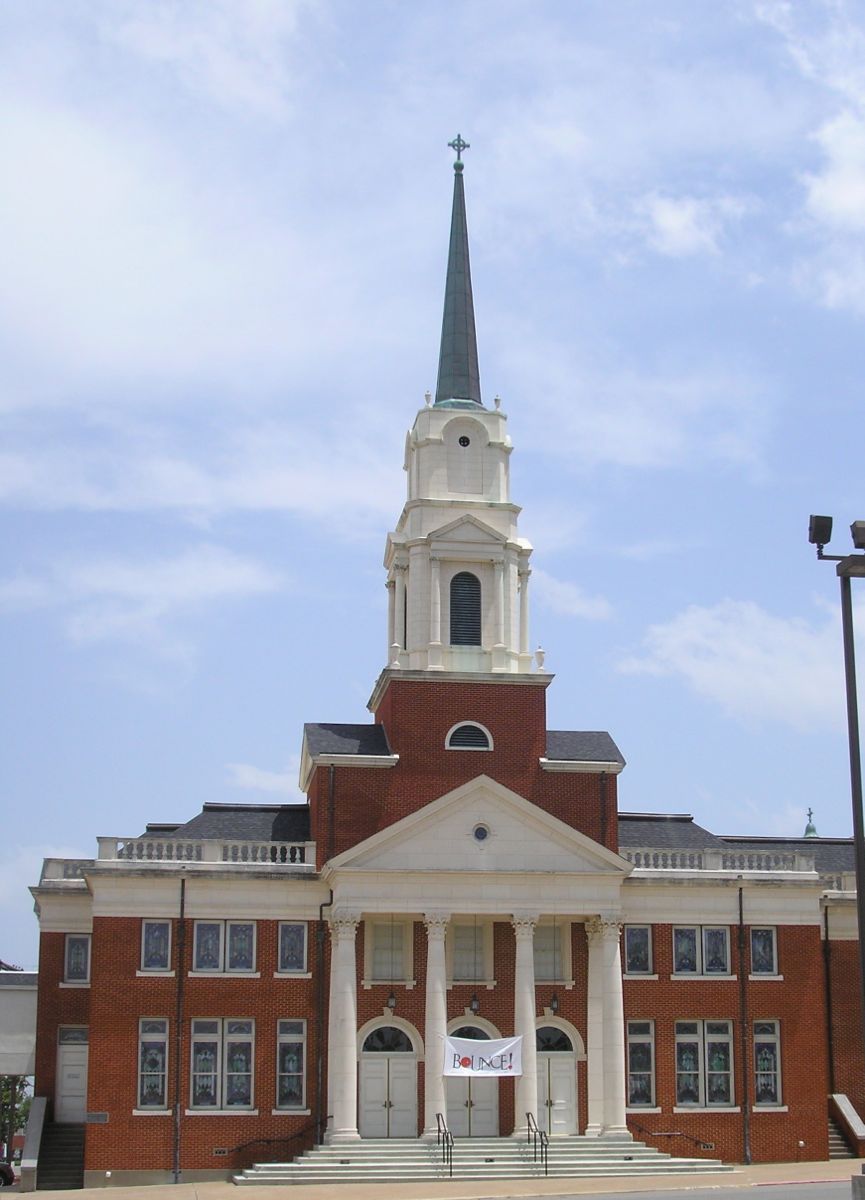

2015-07-09 - Church Exterior (Photograph by T. Bradford Willis/Database Manager)

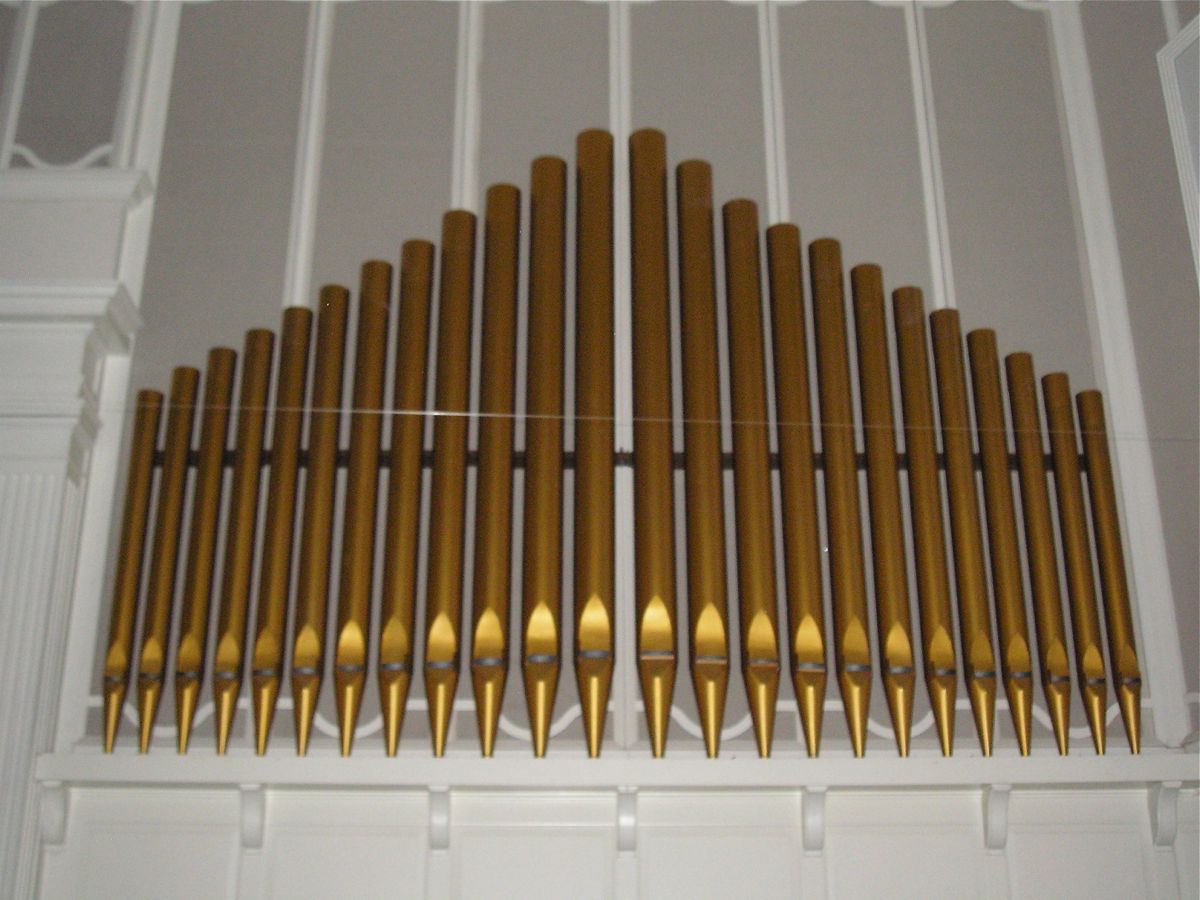

2015-07-09 - Left Pipe Facade (Photograph by T. Bradford Willis/Database Manager)

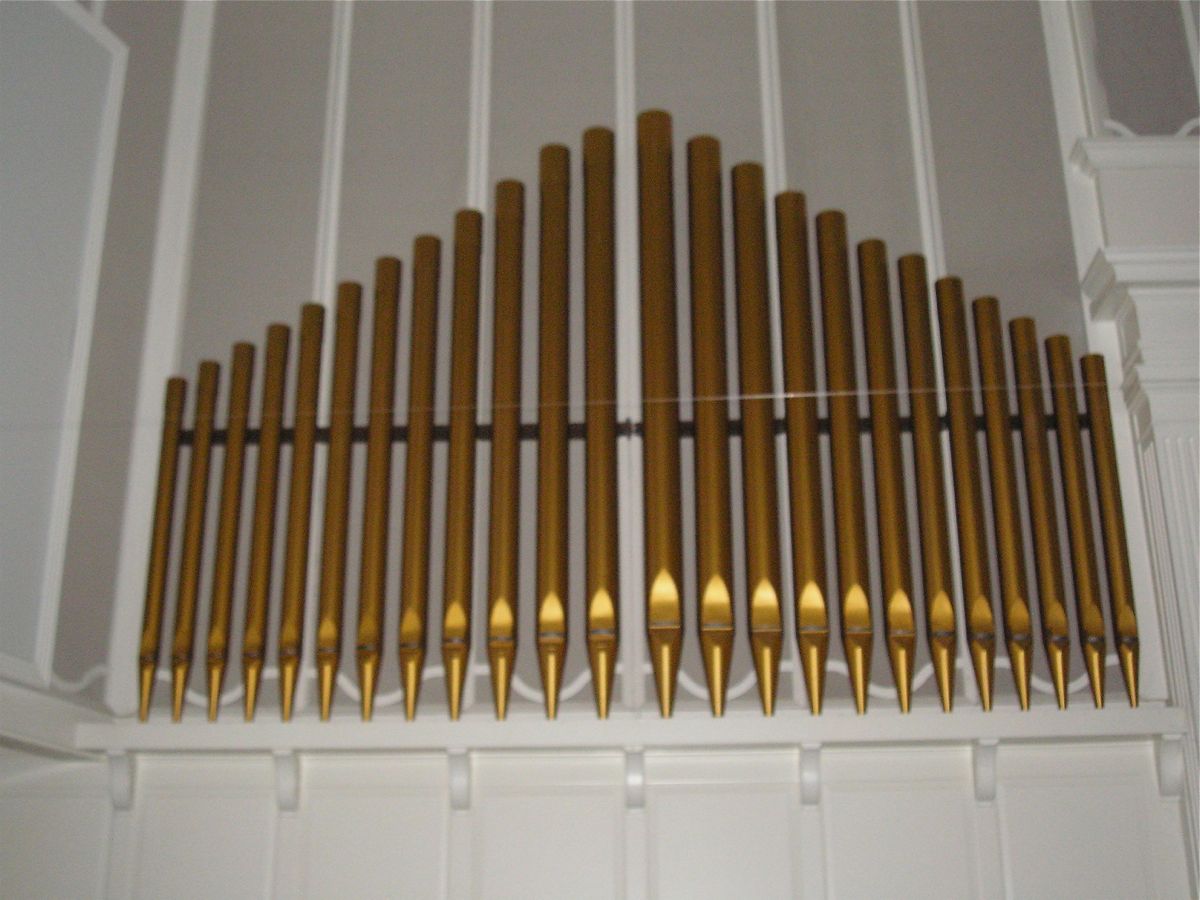

2015-07-09 - Right Pipe Facade (Photograph by T. Bradford Willis/Database Manager)
2015-07-09 - Stained Glass Window (Photograph by T. Bradford Willis/Database Manager)
2015-07-09 - Stained Glass Window (Photograph by T. Bradford Willis/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 41 stops
- 56 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Remote Pneumatic/Mechanical Capture
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2005-11-24 - Identified from the Reuter Opus List, provided by Chris Leaver, Reuter Organ Co., November, 2005. -Database Manager
2012-08-29 - Updated through online information from Jeff Scofield. -Database Manager
Stoplist
Stoplist courtesy of the Reuter Organ Co. Source: Source not recorded Date not recorded
Waco, Texas
Columbus Avenue Baptist Church
Reuter Op. 1920 1977 4/55
_______________________________________________________
GREAT SWELL
16' Quintaten 61 16' Contre Viole pf
8' Principal 61 8' Flûte à Cheminée 61
8' Bourdon 61 8' Viole de Gambe 61
8' Quintaten 12 8' Voix Celeste 49
4' Octave 61 8' Flûte Douce 73
4' Koppelflöte 61 8' Flûte Celeste 49
2 2/3' Twelfth pf 4' Prestant 61
2' Fifteenth 61 4' Flûte Creuse 61
IV Fourniture 244 2 2/3' Nasard 61
III Scharf 183 2' Quaret de Nasard 61
8' Trompete 61 1 3/5' Tierce 61
Sub IV Plein Jeu 244
Unison Off 16' Basson 61
Super 8' Trompette 61
Chimes 8' Basson 12
8' Festivale Trompette pf 4' Clairon 12
Tremolo
CHOIR (existing except *) Sub
8' Spitzprincipal 61 Unison Off
8' Gedeckt 61 Super
8' Dolce II 110
8' Viole Conique 61 * PEDAL
8' Viole Celeste 49 * 32' Untersatz 12 a
4' Gemshorn 61 16' Principal 32
4' Rohrflöte 61 16' Bourdon 32
2 2/3' Nasard 61 16' Quintaten GT
2' Octavin 61 16' Dulciana 32 b
III Mixture 183 16' Contre Viole RE
8' Trumpet 61 8' Octave 32
8' Clarinet 61 8' Bourdon 12
Tremolo 8' Quintaten GT
Sub 8' Viole RE
Unison Off 4' Choral Bass 32
Super 4' Bourdon 12
8' Festivale Trompette pf IV Mixture 128
4' Festivale Trompette pf 32' Contre Bombarde pf
16' Bombarde 32
POSITIV (prepared for) 16' Basson RE
8' Gedeckt 8' Bombarde 12
4' Prestant 8' Trompette RE
4' Spillflöte 4' Bombarde 12
2 2/3' Nasat 4' Basson RE
2' Principal 8' Festivale Trompette pf
1 3/5' Terz
1 1/3' Quinte a existing open wood,
1' Sifflöte stopped
IV Cymbale
8' Krummhorn b existing pipework
Tremolo
8' Festivale Trompette
[Received online from Jeff Scofield August 25, 2012]
