Our Lady of the Lake Roman Catholic Parish
1305 Damascus Road
Rockwall, TX
Images
2020-09-21 - Left and right organ facade (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Swell facade (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Choir area and console (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Left side toe studs (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Right side toe studs (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Builder's nameplate (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Pedal couplers (Photograph by Chris Widomski/Christopher Widomski)

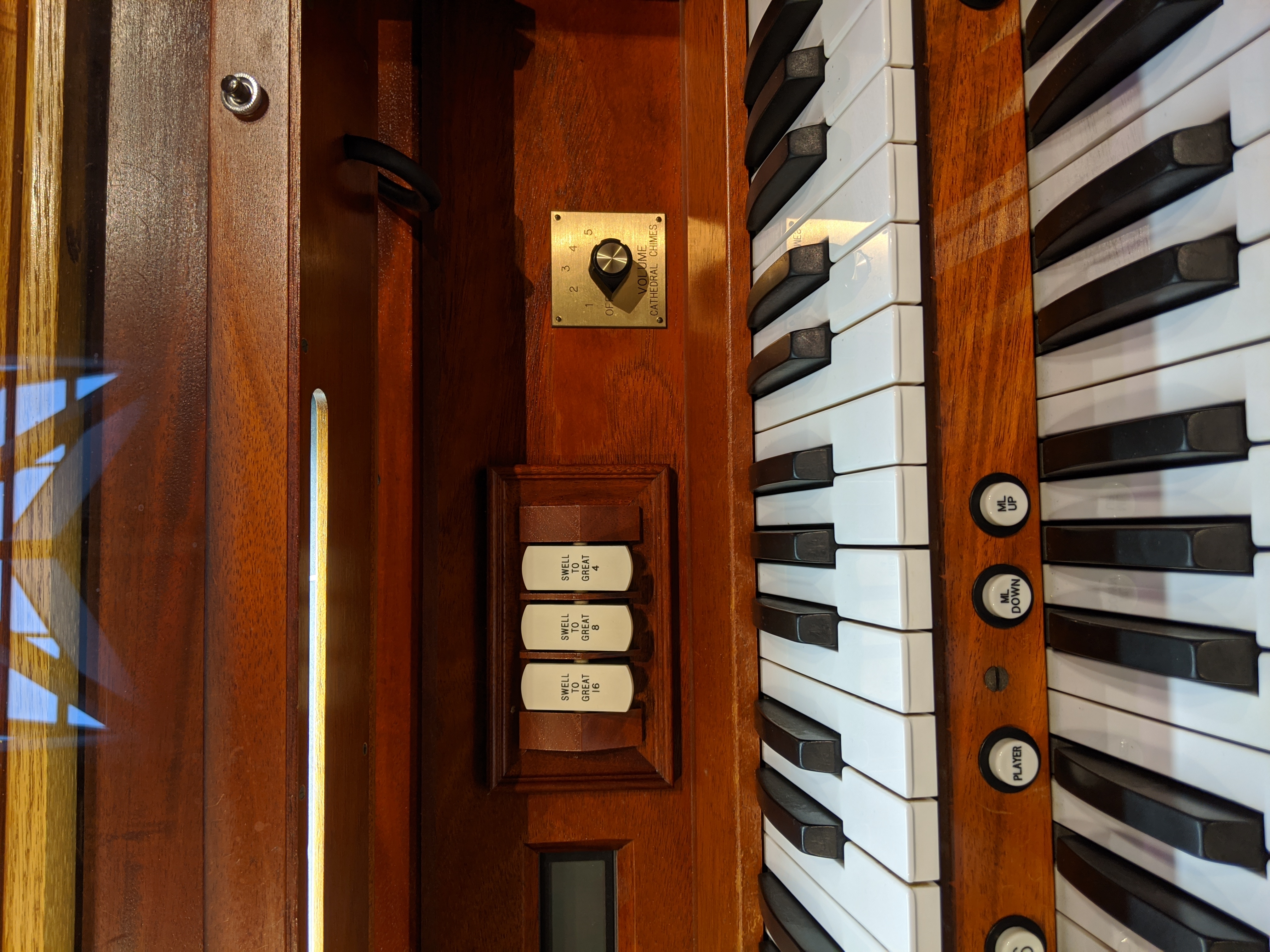

2020-09-21 - Manual couplers and Chime control (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Great stop jamb (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Pedal and Swell stop jamb (Photograph by Chris Widomski/Christopher Widomski)
2020-09-21 - Console (Photograph by Christopher Widomski/Christopher Widomski)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 2 manuals
- 20 stops
- 48 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2005-11-24 - Identified from the Reuter Opus List, provided by Chris Leaver, Reuter Organ Co., November, 2005. -Database Manager
2011-02-08 - The organ was installed in December of 2000. The organ is located in chambers on both sides of the chancel with each chamber having two sound openings -- one facing the choir and the other the nave. The Great and Swell divisions are on opposite sides with the Pedal ranks divided across both sides. Pedal principal pipes, made from flamed copper and framed with oak casework, create the facade. -Database Manager
Stoplist
Stoplist from Console Source: Source not recorded Date not recorded
Rockwall, Texas
OUR LADY OF THE LAKE PARISH
Reuter Organ Company Opus 2204 25 ranks 2000
_________________________________________________________________________________
GREAT: SWELL: PEDAL:
16' Rohrflöte [SW] 16' Rohrflöte [ext] * 32' Resultant
8' Diapason 8' Principal 16' Principal
8' Bourdon 8' Rohrflöte 16' Subbass
8' Rohrflöte [SW] 8' Viole 16' Rohrflöte [SW]
8' Hohlflöte [ext] 8' Viole Celeste [TC] 8' Principal [ext]
4' Octave 4' Principal 8' Subbass [ext]
4' Hohlflöte 4' Koppelflöte 8' Rohrflöte [SW]
2' Fifteenth 2 2/3' Nazard 4' Principal [ext]
IV Fourniture 2' Blockflöte [ext] 4' Subbass [ext]
8' Trumpet 1 3/5' Tierce 16' Trumpet [ext]
8' Tuba [pf] 1 1/3' Larigot [ext] 16' Fagotto [SW]
8' Fagotto [SW] III Scharf 8' Tuba [GT]
8' Cromorne 16' Fagotto 8' Trumpet [GT]
4' Trumpet [ext] 16' Tuba [GT] 8' Fagotto [SW]
Great Unison Off 8' Tuba [GT] 4' Fagotto [SW]
Great to Great 16 8' Fagotto Chimes
Great to Great 4 8' Trumpet [GT] MIDI 5 and 6
Tremolo 4' Fagotto [ext]
Chimes Swell Unison Off
MIDI 1 and 2 Swell to Swell 16
Swell to Swell 4
Tremolo
Chimes
MIDI 3 and 4
* Electronic [12 notes]
