St. Nicholas Catholic Church: Sanctuary; rear gallery
806 Ridge Avenue
Evanston, IL
Images

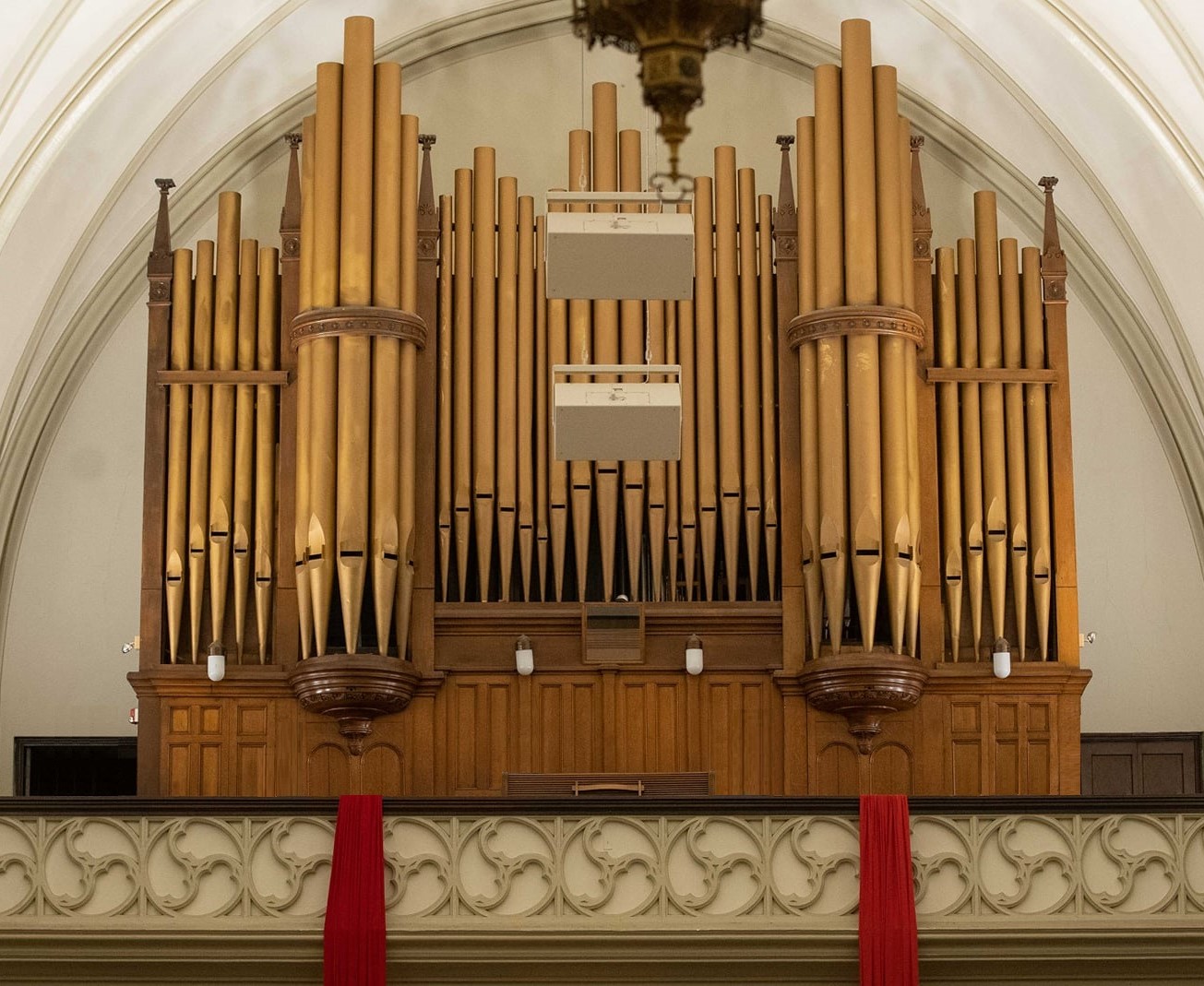

2021-04-03 - Organ case (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

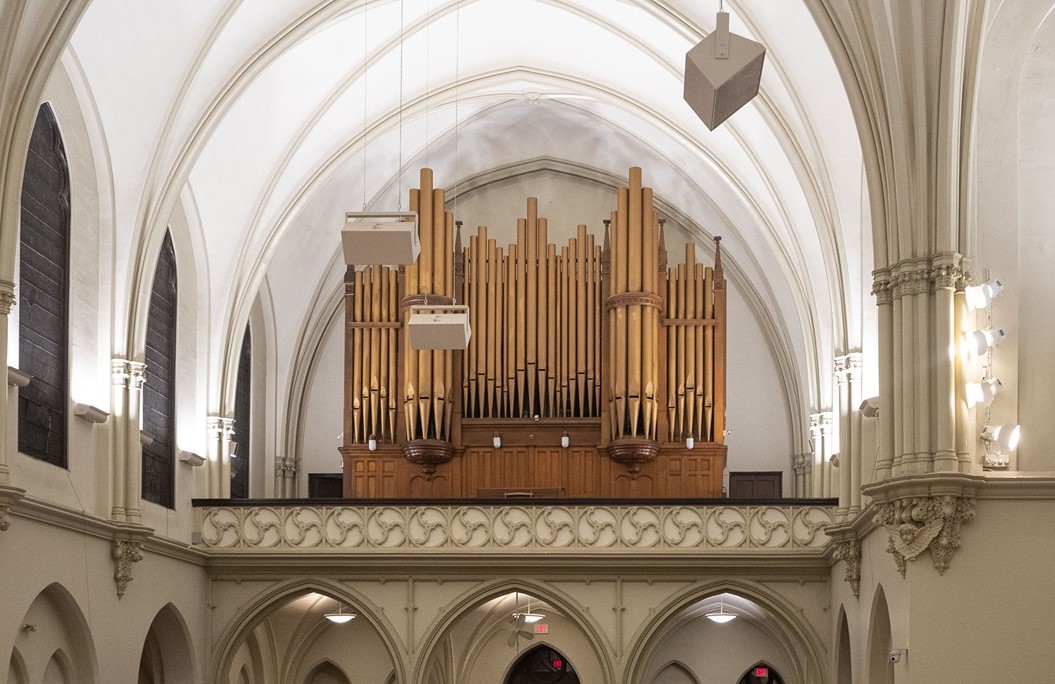

2021-10-15 - Rear gallery and organ (Photograph from an archival source: Church Facebopk page, submitted by Jim Stettner/Jim Stettner)

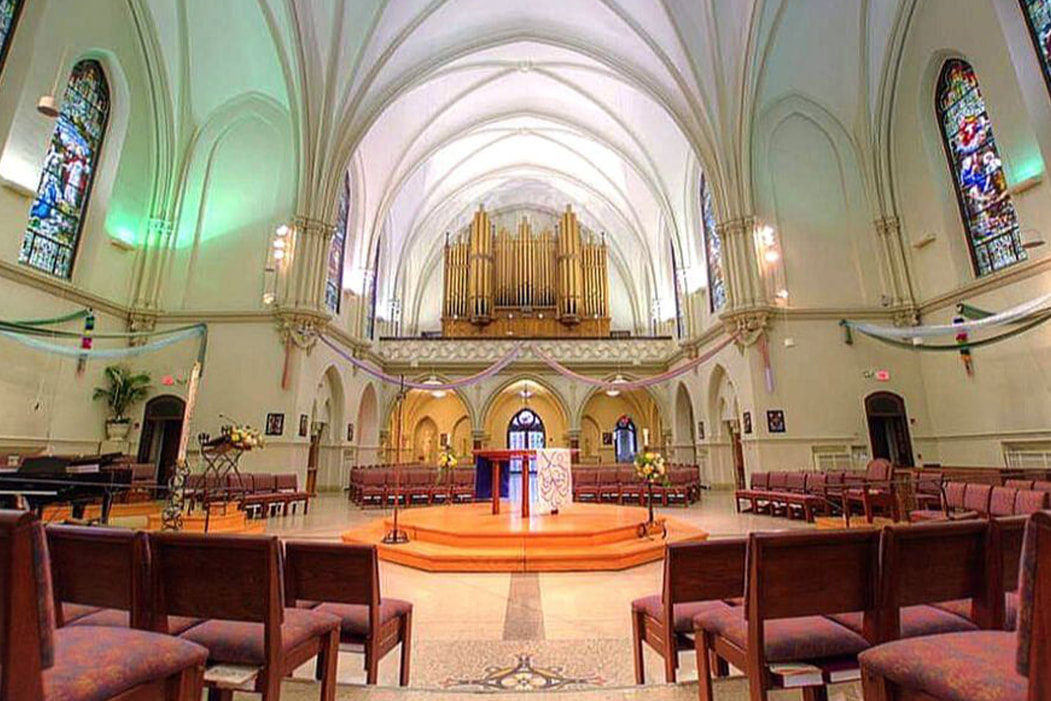

ca. 2019 - Church interior showing organ in rear gallery (Photograph from an archival source: Parish website, submitted by Jim Stettner/Jim Stettner)

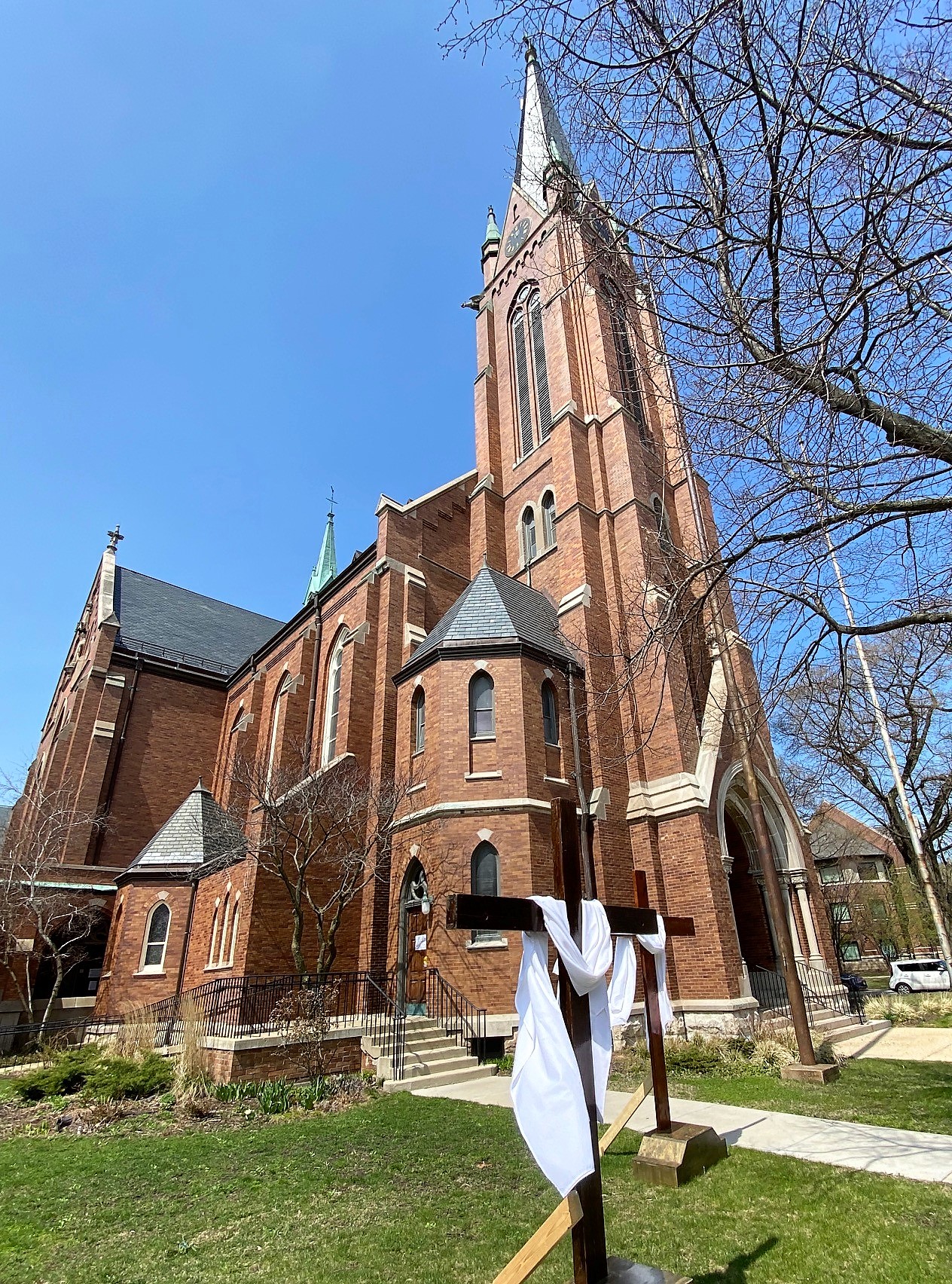

2021-04-12 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- 2 manuals
- 16 stops
- 25 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2005-12-05 - Identified through online information from James R. Stettner. -Database Manager
2005-12-06 - Updated through online information from James R. Stettner. -Database Manager
2021-09-05 - The factory spec states: The organ company is to use existing pipes - no new pipes to be furnished. Old organ much larger and enough extra pipes to supply all; the existing organ case was also retained. -Jeff Scofield
Stoplist
Source: Courtesy of the OHS Archives
Evanston, Illinois
St. Nicholas Catholic Church
Möller Op. 4526 1926 2/16
________________________________________________
GREAT SWELL
8' Open Diapason 61 16' Bourdon 61
8' Doppel Floete 61 8' Open Diapason 61
8' Melodia 61 8' Stopped Diapason 12
8' Viola da Gamba 61 8' Viole d'Orchestre 61
8' Dulciana 61 8' Salicional 61
4' Principal 12 8' Vox Celeste 49
4' Flute Traverso -- 8' Quintadena 61
Sub 4' Flute d'Amour 12
Unison Off 4' Violin 12
Super 2 2/3' Nazard 7
2' Flautina 5
PEDAL 8' Tuba 61
16' Dbl Open Diapason 32 8' Vox Humana 61
16' Sub Bass 32 Tremulant
16' Violin 32 Sub
8' Bass Flute 12 Unison Off
8' Cello 12 Super
[Received from Jeff Scofield September 4, 2021]
