St. Agatha's Roman Catholic Church: Upper Church
432 Adams St.
Milton, MA
Images
2020-02-17 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-01-07 - Chancel and organ (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022-12-19 - Church interior (Photograph by John Roper, submitted by Jeff Scofield/Jeff Scofield)
2019-08-26 - Moller supply list from installation continued. (Photograph by John Roper/John Roper)
2019-08-26 - Moller supply list from installation (Photograph by John Roper/John Roper)
2019-08-26 - Crescendo list from 1988. (Photograph by John Roper/John Roper)
2019-08-26 - Junction board inside console (Photograph by John Roper/John Roper)

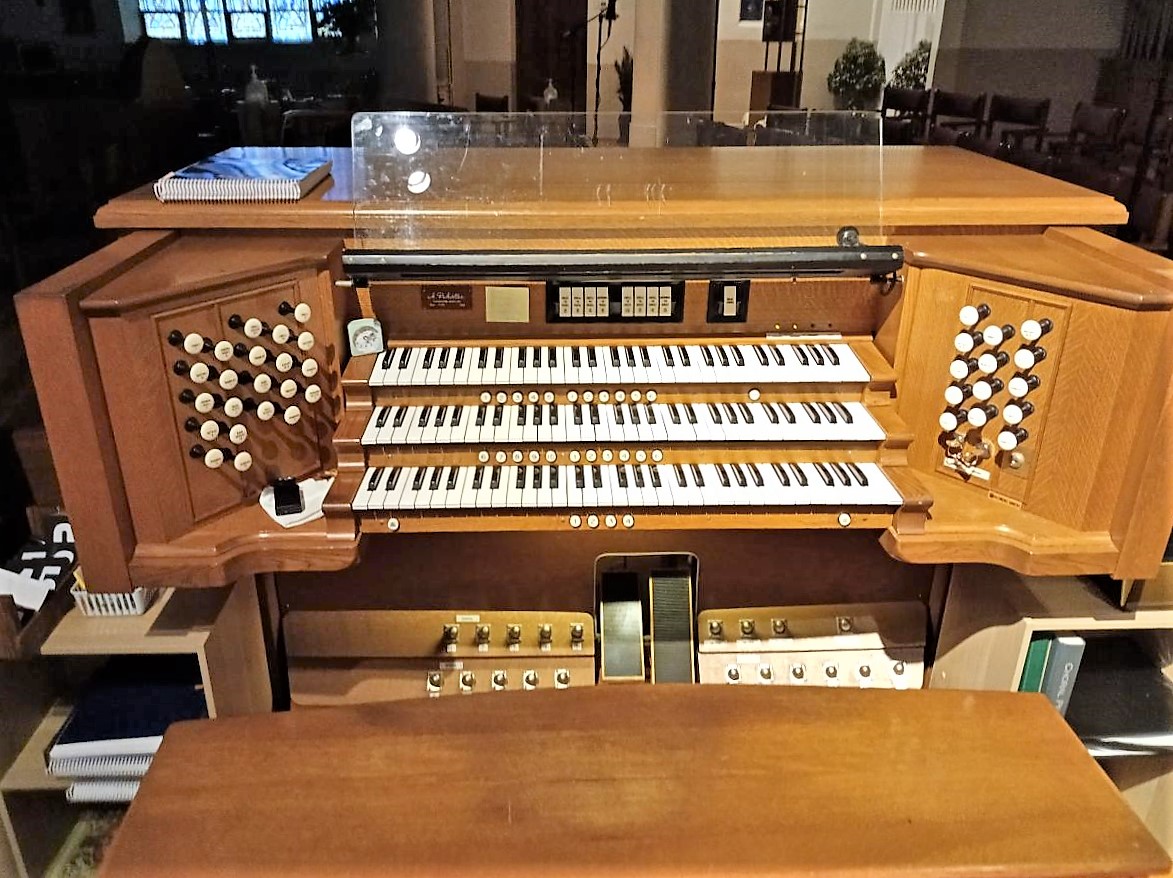

2019-07-01 - Console (Photograph by John Roper/Database Manager)
2019-07-01 - Right Stop Jamb (Photograph by John Roper/Database Manager)
2019-07-01 - Left Stop Jamb (Photograph by John Roper/Database Manager)
2019-07-01 - Couplers (Photograph by John Roper/Database Manager)
2019-07-01 - Pedals, Swell, Crescendo and Toe Pistons (Photograph by John Roper/Database Manager)
2019-07-01 - Builder's Nameplate (Photograph by John Roper/Database Manager)
2019-07-01 - Facade (Photograph by John Roper/Database Manager)
2019-07-01 - Antiphonal Division (Photograph by John Roper/Database Manager)
Unknown - Facade (Photograph by Richard Pelland (2000s)/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Right
- 3 manuals
- 31 stops
- 24 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Peterson Duo Set
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2005-12-13 - Identified through online information from Eric Anderson. -- This organ replaced Aeolian-Skinner Opus 30039 (1936). This should not to be confused with Aeolian-Skinner Opus 3041 (1938), which is extant in the lower chapel. -Database Manager
Stoplist
Source: Stoplist copied from the factory preliminary specifications
Great (II) Principal 8, Hohlflöte 8, Octave 4, Spitzflöte 4, Waldflöte 2, Sesquialtera II, Mixture III-IV, Trompete 8, Great 4'
Swell (III) Holzgedackt 8, Gemshorn 8, Gemshorn Celeste 8, Waldflöte 4, Principal 2, Quintflöte 1 1/3, Scharf III-IV, Hautbois 8, Tremulant, Swell 16', Swell Unison Off, Swell 4'
Antiphonal (I) Rohrflöte 8, Principal 4, Rohrflöte 4, Octave 2, Mixture III-IV
Pedal Principal 16, Subbass 16, Rohrgedackt 16 (12 AN), Octave 8, Bassflöte 8, Choralbass 4, Rohrflöte 4 (AN), Mixture III, Contra Fagott 16, Fagott 4
