Our Lady of Perpetual Help Catholic Church: Sanctuary; rear gallery
2619 Cedar St.
Everett, WA
Images
Unknown - Great pipework (l-r): 8' Open Diapason, 8' Dulciana, 8' Melodia, 4' Octave 8' Doppel Floete, 4' Flute d'Amour, December 1995 (Photograph by James R. Stettner/Database Manager)
Unknown - Swell pipework (l-r): 16' Bourdon, 8' Aeoline, 8' Stopped Diapason, 8' Viole d'Orchestre, 8' Vox Celese, 8' Open Diapason, December 1995 (Photograph by James R. Stettner/Database Manager)
Unknown - Swell pipework (from center); 8' Open Diapason; 4' Flute Harmonique, 8' Oboe & Bassoon (Photograph by James R. Stettner/Database Manager)
Unknown - Organ in rear gallery, July 1995. (Photograph by James R. Stettner/Database Manager)
July, 1995 - Organ in rear gallery (Photograph by James R. Stettner/Database Manager)
Unknown - Facade, July 1995. (Photograph by James R. Stettner/Database Manager)
Unknown - Keydesk, July 1995. (Photograph by James R. Stettner/Database Manager)

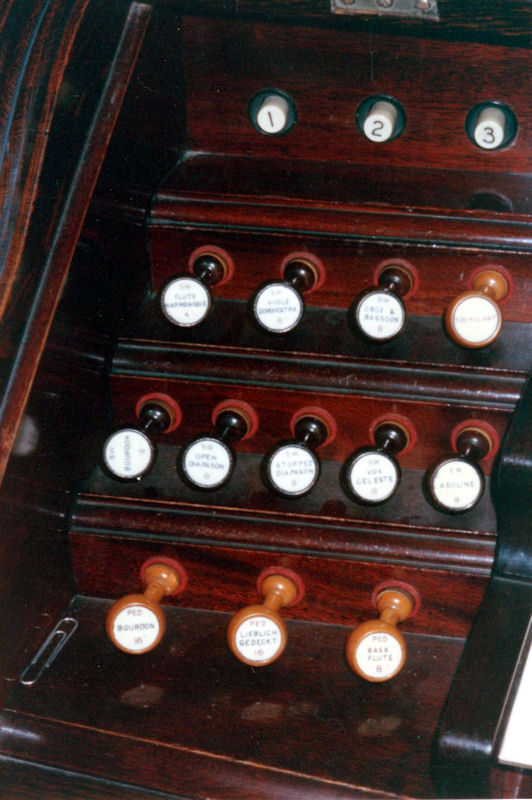

Unknown - Left stopjamb (Swell and Pedal), July 1995. (Photograph by James R. Stettner/Database Manager)
Unknown - Right stopjamb (Great), July 1995. (Photograph by James R. Stettner/Database Manager)
Consoles
Main-Gallery
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 2 manuals
- 17 stops
- 15 registers
- 3 divisions
- Key action Type: Tubular Pneumatic (Details Unknown)
- Stop action Type: Tubular Pneumatic (Details Unknown)
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Mechanical
- Has combination thumb pistons
Notes
2005-12-30 - Identified through online information from James R. Stettner. -- The organ is free-standing and encased in the rear gallery. The casework is of quarter-sawn oak. The façade is a pipe fence of 35 pipes including pipes 1-17 of the Great 8' Open Diapason. -Database Manager
2011-11-20 - Updated through online information from James R. Stettner. -- Stopped-by the church Nov. 15, 2011 to visit the organ. It is used regularly, but still in need of a thorough rebuilding/restoration. Two stops on the Swell have now failed, and another is stuck-on. Numerous dead notes are also appearing. The church did an extensive sanctuary remodel between 2006 - 2009. Sometime during that period, the organ was removed by John Moir/Balcom and Vaughan and placed into storage; then re-installed. But evidently no mechanical refurbishing was done. -Database Manager
Stoplist
Stoplist taken from the console July, 1995 Source: Source not recorded Date not recorded
Everett, Washington
Our Lady of Perpetual Help Catholic Church
M.P. Möller, Opus 2211, 1916 - Original Specifications
GREAT
8 Gr. Open Diapason 61
8 Gr. Doppel Floete 61
8 Gr. Melodia 61
8 Gr. Dulciana 61
4 Gr. Octave 61
4 Gr. Flute d'Amour 61
Great 4'
SWELL (Expressive)
16 Sw. Bourdon 73
8 Sw. Open Diapason 73 1-12 open wood
8 Sw. Stopped Diapason 73
8 Sw. Viole d'Orchestra 73
8 Sw. Vox Celeste (tc) 61
8 Sw. Aeoline 73
4 Sw. Flute Harmonique 73
8 Sw. Oboe & Bassoon 73
Tremulant
Swell Unison Separatn
Swell 4
PEDAL
16 Ped. Bourdon 30
16 Ped. Lieblich Gedeckt (Sw) --
8 Ped. Bass Flute 12
COUPLERS
Swell to Pedal [8]
Great to Pedal [8]
Swell to Great 16,[8],4
FINGER PISTONS
Swell & Pedal 1 - 3
Great & Pedal 1 - 3
Comp. Coup. Cancel (mechanical)
FOOT LEVERS (Labeled)
Gr. to Ped. Reversible (rev)
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
ACTION: T-P primary & stop (membrane chests)
VOICES: 15
STOPS: 17
RANKS: 15
PIPES: 980
NOTES
The organ is located in the rear gallery, and is housed in a free-standing
case with an attached, projecting keydesk. Pipes 1-17 of the Gr. 8' Open
Diapason are in the 35-pipe facade. The organ is entirely original except
for the Gr. 8' Dulciana which was replaced from tenor C by Möller Rep.
Charles M. Rich of Orting, Washington with pipes supplied by Möller when
the originals had allegedly collapsed on themselves. The originals are in
storage beneath the regulators, and only a few appear to be actually
damaged. The damage looks like someone grabbed the pipes to keep from
falling-over and bent them over at the rackboard level. Pipes 1-12 of the
Dulciana are of open wood with wood slide tuners. The Gr. 8' Melodia has
wooden slide tuners. The first 12 pipes of the Swell 16' Bourdon are un-
enclosed and diatonically divided at either end of the Great chest. The
Pedal 16' Bourdon has its first 26 pipes divided diatonically at either
side of the case. The top 16 pipes are on a chromatic chest under the
bass end of the Great. The manual windchests are membrane chests.
[Received on line from James R. Stettner April 22, 2009.]
