St. Augustine Catholic Cathedral: Cathedral
542 West Michigan Avenue
Kalamazoo, MI
Images
2018-01-09 - Cathedral interior to front (Photograph by Chris Stroh, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2018-01-09 - Right stopjamb (Photograph by Chris Stroh, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2018-01-09 - Left stopjamb (Photograph by Chris Stroh, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2018-01-09 - Console (Photograph by Chris Stroh, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
Unknown - Cathedral of St. Augustine, Kalamazoo, organ gallery, 2002. (Organbuilder archives, courtesy of Bryan K. Gray/Database Manager)

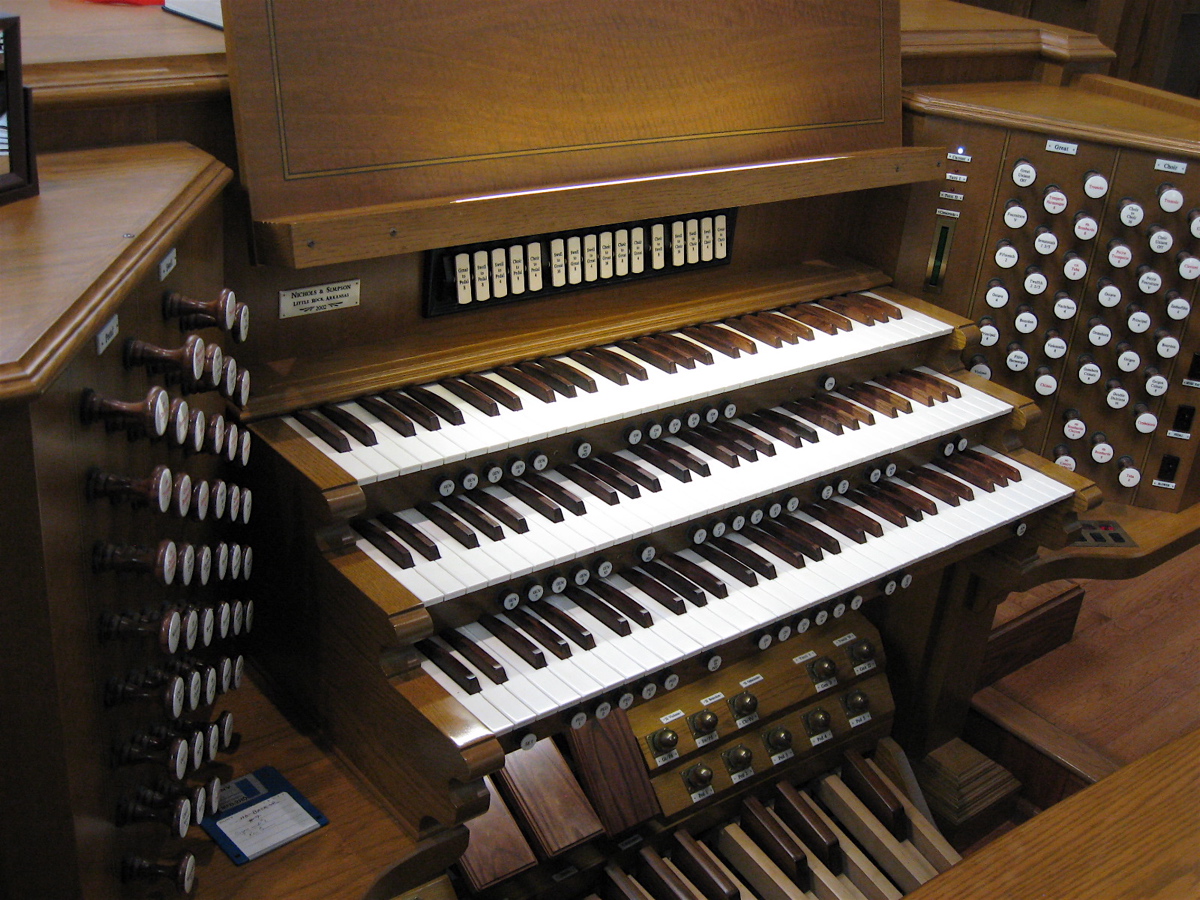

2012-04-24 - Console (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Console (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Cathedral Interior and Altar (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Nave, Balcony, and Organ Cases (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Nave, Balcony, and Organ Cases (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Left Organ Case (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Right Organ Case (Photograph by Chad Boorsma/Database Manager)
2012-04-24 - Cathedral Exterior (Photograph by Chad Boorsma/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Center
- 3 manuals
- 34 stops
- 79 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-01-09 - Identified through information from David Scribner of Nichols and Simpson, Inc. -- Prepared: 42 Stops, 58 Ranks -Database Manager
2010-04-27 - Updated through online information from Neil Carlson. -- Most accurate description would be in gallery-level cases at the rear of the room. -Database Manager
2012-04-24 - The organ also includes several digital stops. -Database Manager
2013-04-13 - Updated through online information from Bryan K. Gray. -Database Manager
2013-04-13 - Updated through online information from Bryan K. Gray. -Database Manager
Stoplist
Stoplist taken from factory specifications and from the console (April 24, 2012) Source: Source not recorded Date not recorded
Kalamazoo, Michigan
CATHEDRAL CHURCH OF ST. AUGUSTINE
Nichols and Simpson 42 ranks 2002
___________________________________________________________________
GREAT: SWELL:
16' Violone 12 16' Lieblich 12
8' Principal 61 8' Diapason 61
8' Flûte Harmonique 61 8' Chimney Flute 61
8' Violoncelle 61 8' Viole de Gambe 61
8' Bourdon 61 8' Voix Céleste 61
4' Octave 61 4' Principal 61
4' Nachthorn pf 4' Flûte Octaviante 61
2 2/3' Twelfth pf 2 2/3' Nasard 61
2' Fifteenth 61 2' Octavin 61
1 3/5' Seventeenth pf 1 3/5' Tierce 53
V Fourniture 305 V Plein Jeu 305
8' Trompette Harmonique pf 16' Double Trumpet 61
8' Tuba [CH] pf 8' Trompette 61
8' Bombarde [CH] 8' Hautbois 61
Tremolo 8' Vox Humana 61
Chimes * 4' Clarion 12
Tremolo
PEDAL:
32' Violonebasse * CHOIR:
32' Bourdon * 16' Double Dulciana *
16' Open Wood 32 8' Geigen 61
16' Violone [GT] 8' Geigen Celeste *
16' Subbass 32 8' Bourdon 61
16' Lieblich [SW] 8' Gemshorn 61
8' Gross Octave 12 8' Gemshorn Celeste [1-12*] 49
8' Octave 32 4' Principal 61
8' Bourdon 12 4' Zauberflöte 61
8' Violonecelle [GT] 2' Octave 61
8' Chimney Flute [SW] V Petite Fourniture pf
4' Gross Flute 12 16' Contra Bombarde 12
4' Choral Bass 32 8' Tuba pf
V Mixture pf 8' Petite Trompette pf
32' Ophicleide * 8' Bombarde 61
16' Contre Bombarde [CH] 8' Clarinet 61
16' Double Trumpet [SW] 4' Bombarde Clairon 12
8' Tuba [CH] pf Tremolo
8' Bombarde [CH] Cymbelstern
8' Trumpet [SW]
4' Bombarde Clairon [CH]
4' Clairon [SW] * Digital Stop
Chimes *
[Received online from Chad Boorsma • April 29, 2012]
