Louisville Presbyterian Theological Seminary: Caldwell Chapel
1044 Alta Vista Road
Louisville, KY
OHS convention: 1993
Images

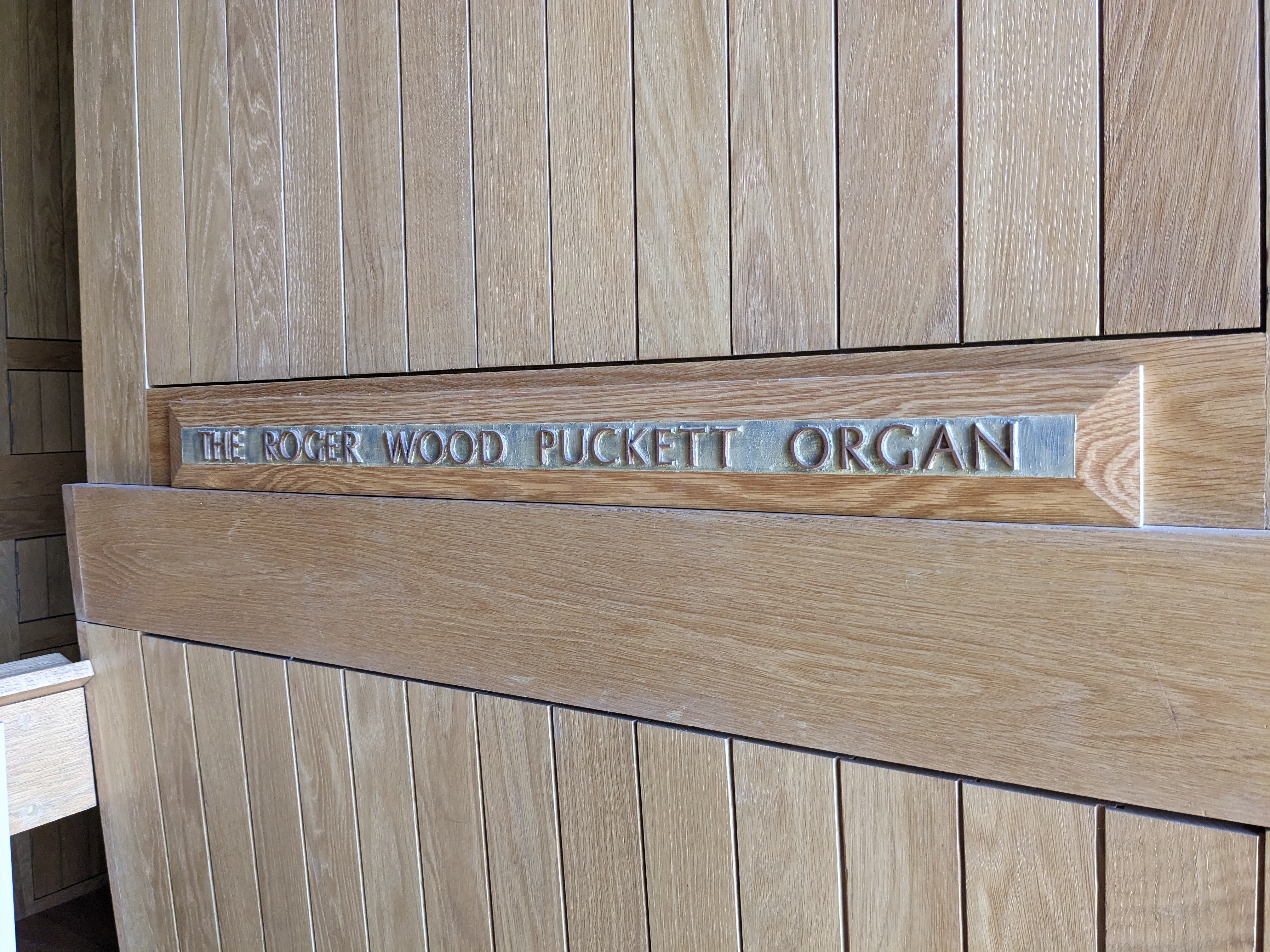

2023-06-02 - Donor plaque (Photograph by Owen Sammons/Owen Sammons)

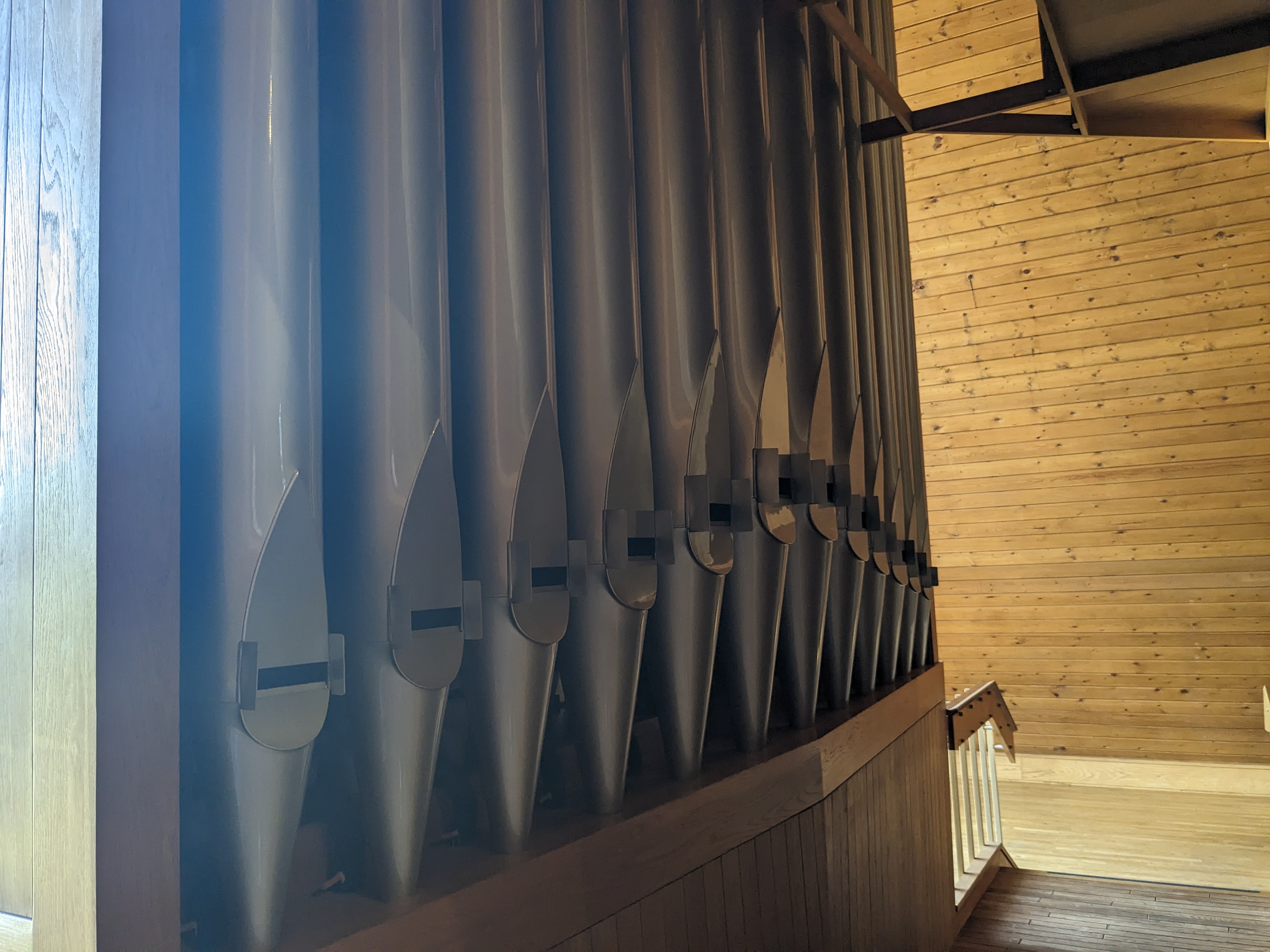

2023-06-02 - Mouths of Pedal 16' Principal (Photograph by Owen Sammons/Owen Sammons)

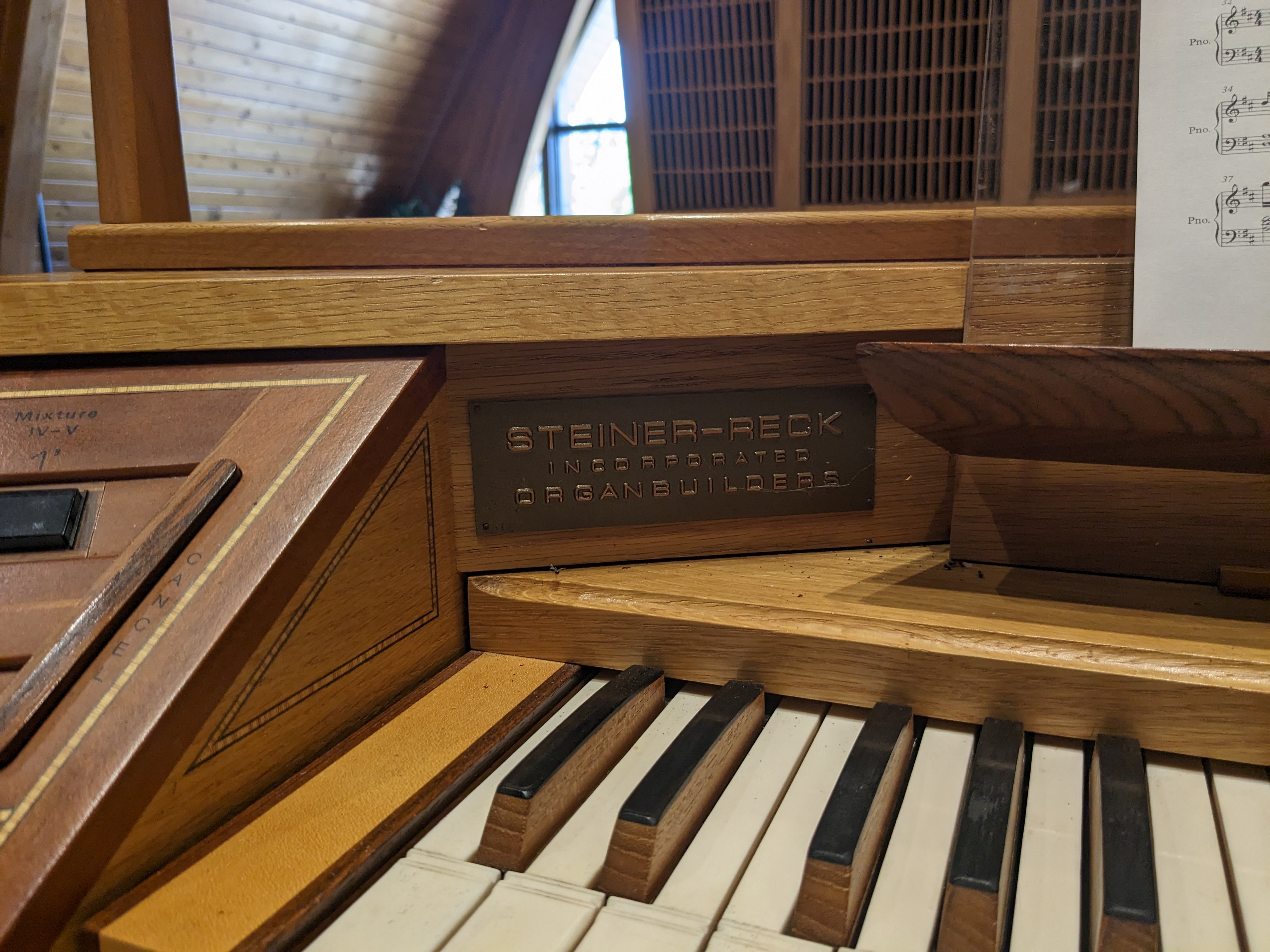

2023-06-02 - Builder's nameplate (Photograph by Owen Sammons/Owen Sammons)

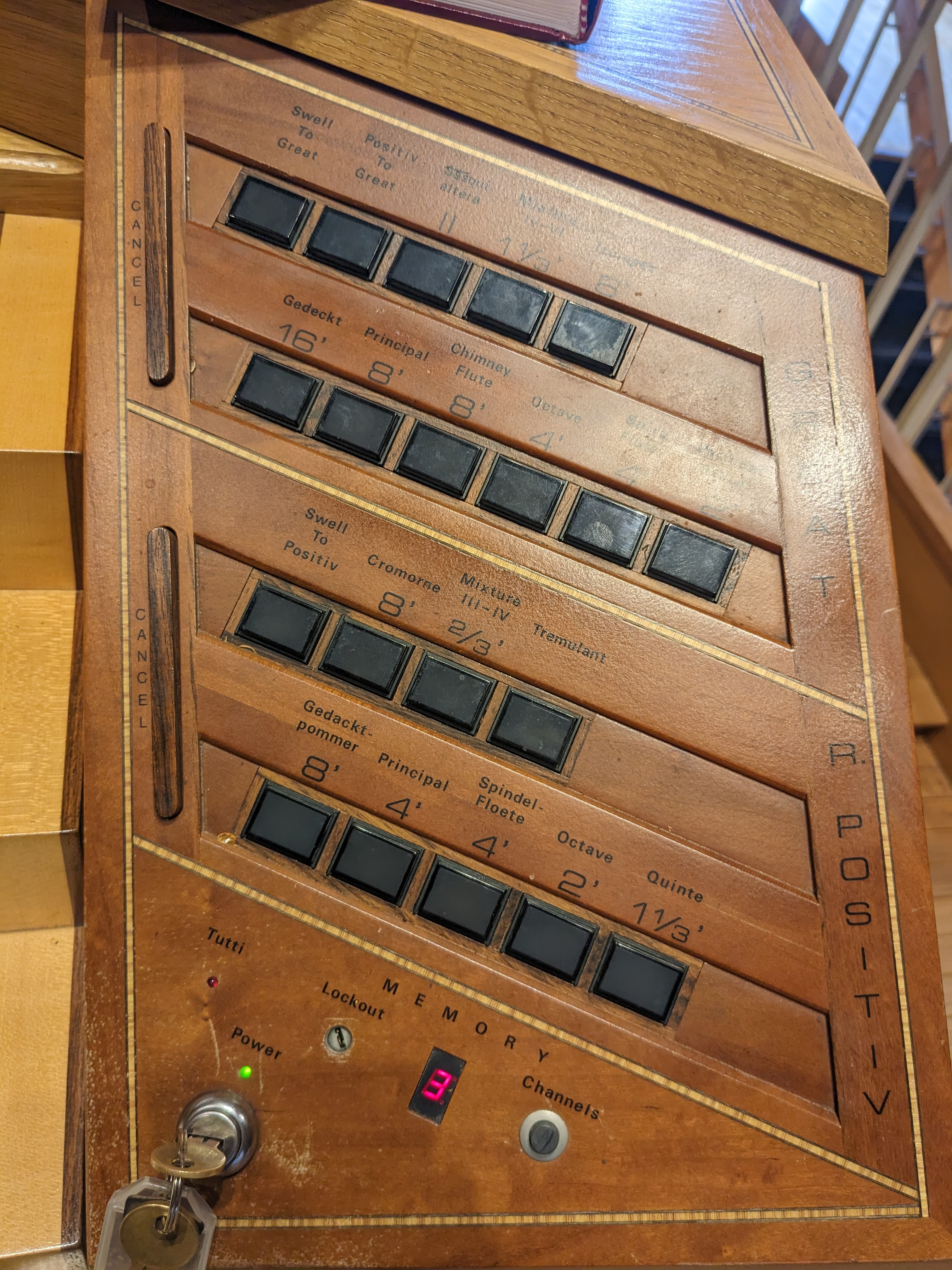

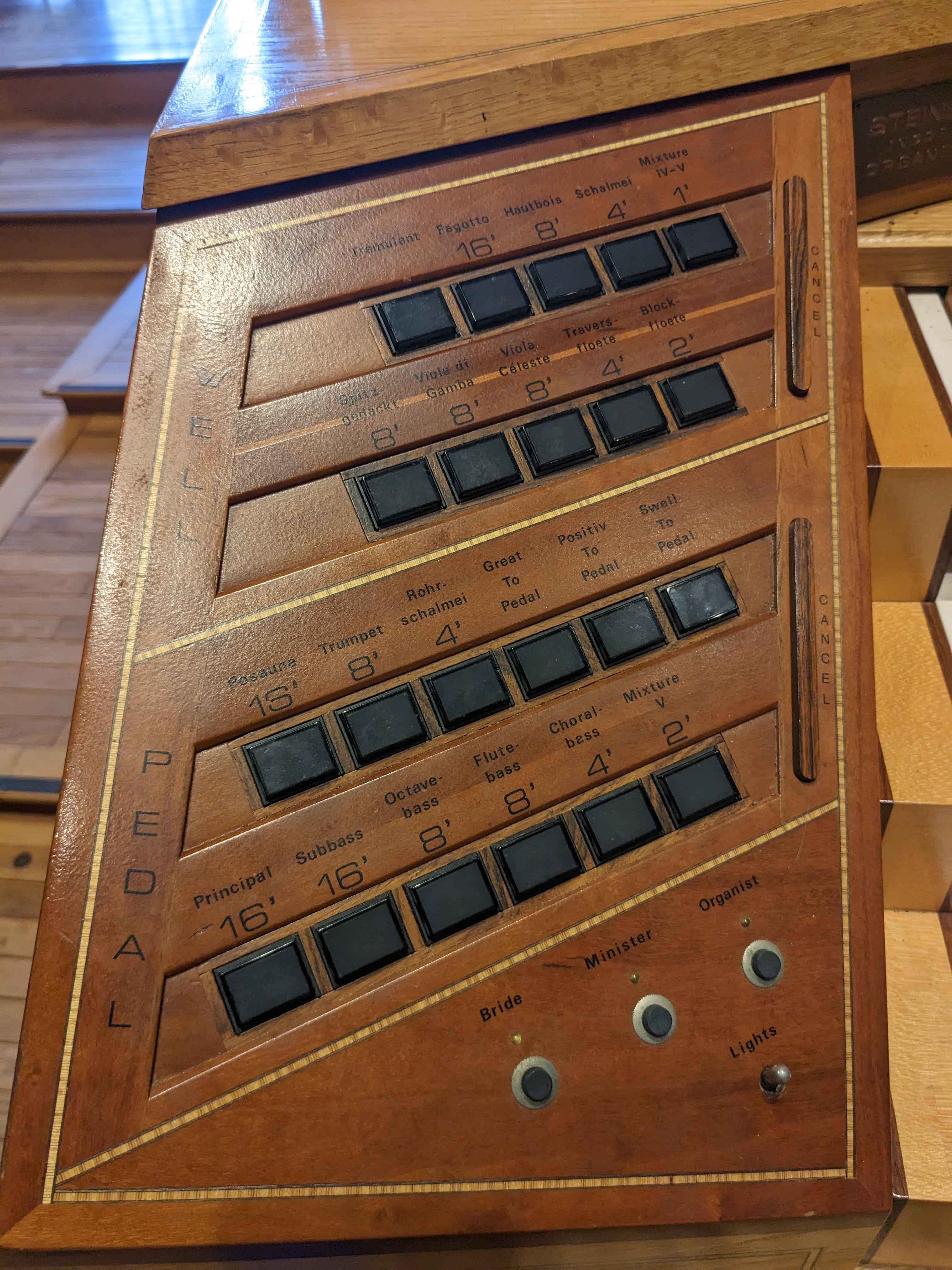

2023-06-02 - Right stop jamb (Photograph by Owen Sammons/Owen Sammons)
2023-06-02 - Left stop jamb (Photograph by Owen Sammons/Owen Sammons)

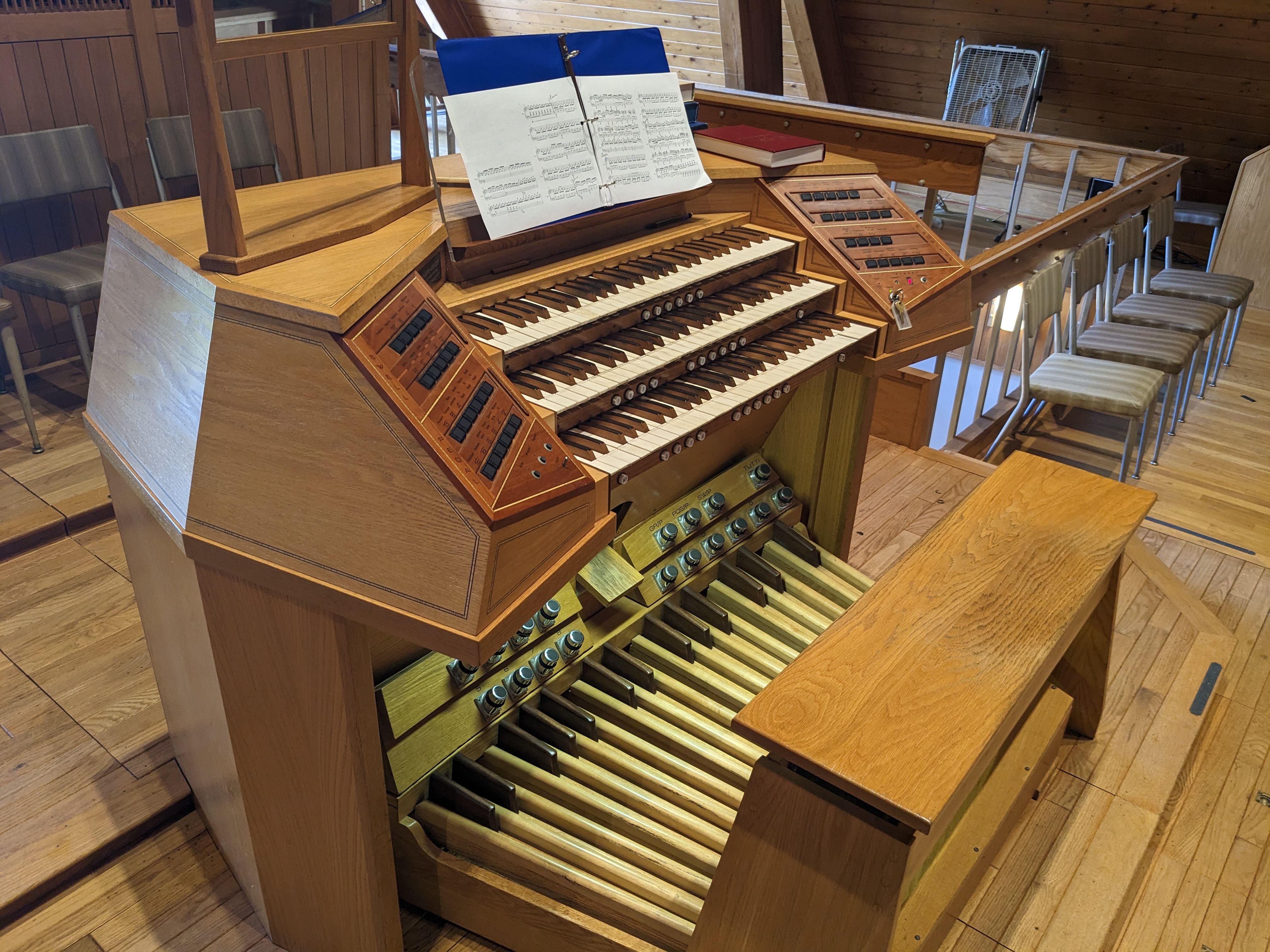

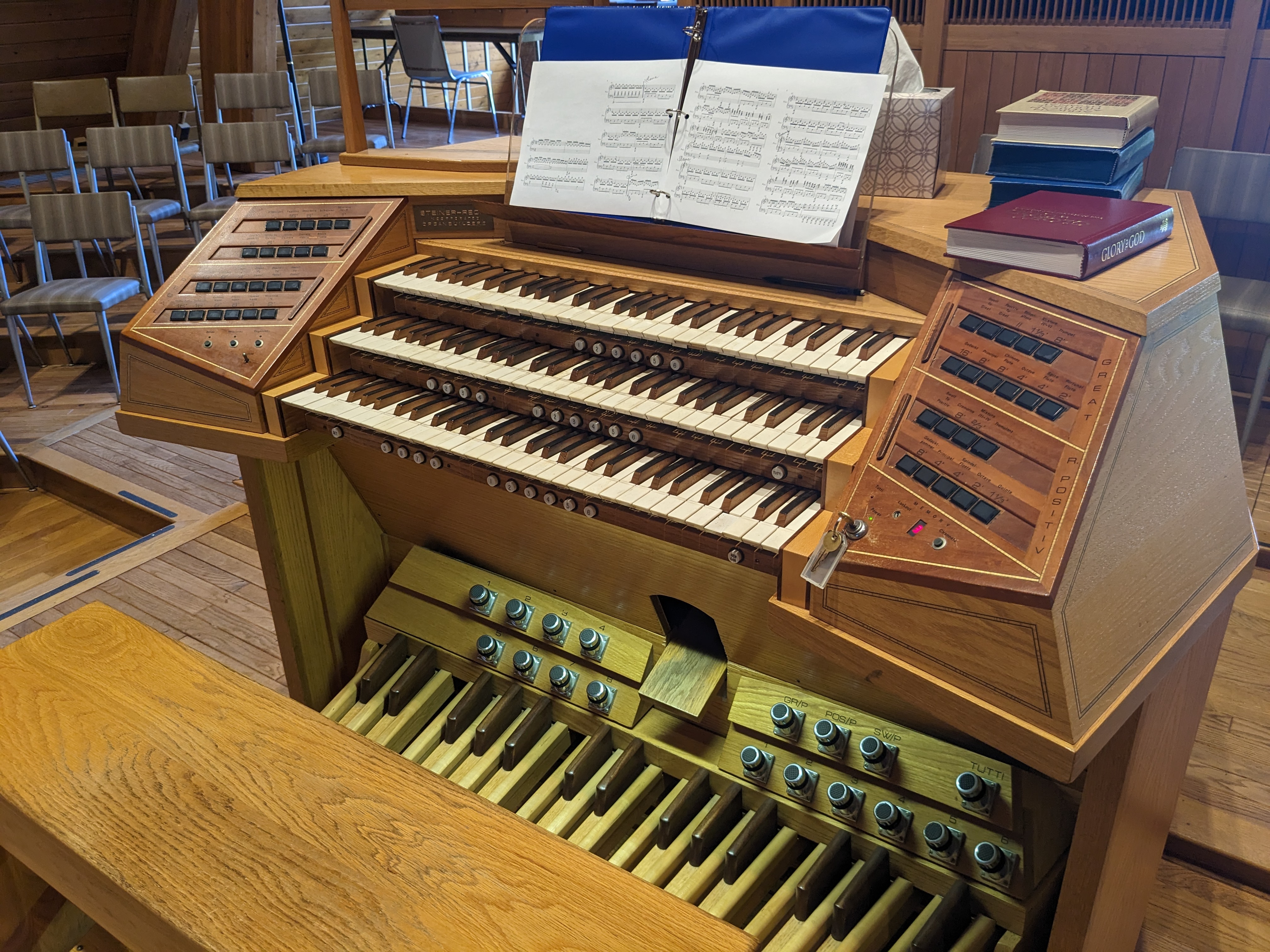

2023-06-02 - Console from the left (Photograph by Owen Sammons/Owen Sammons)
2023-06-02 - Console from the right (Photograph by Owen Sammons/Owen Sammons)

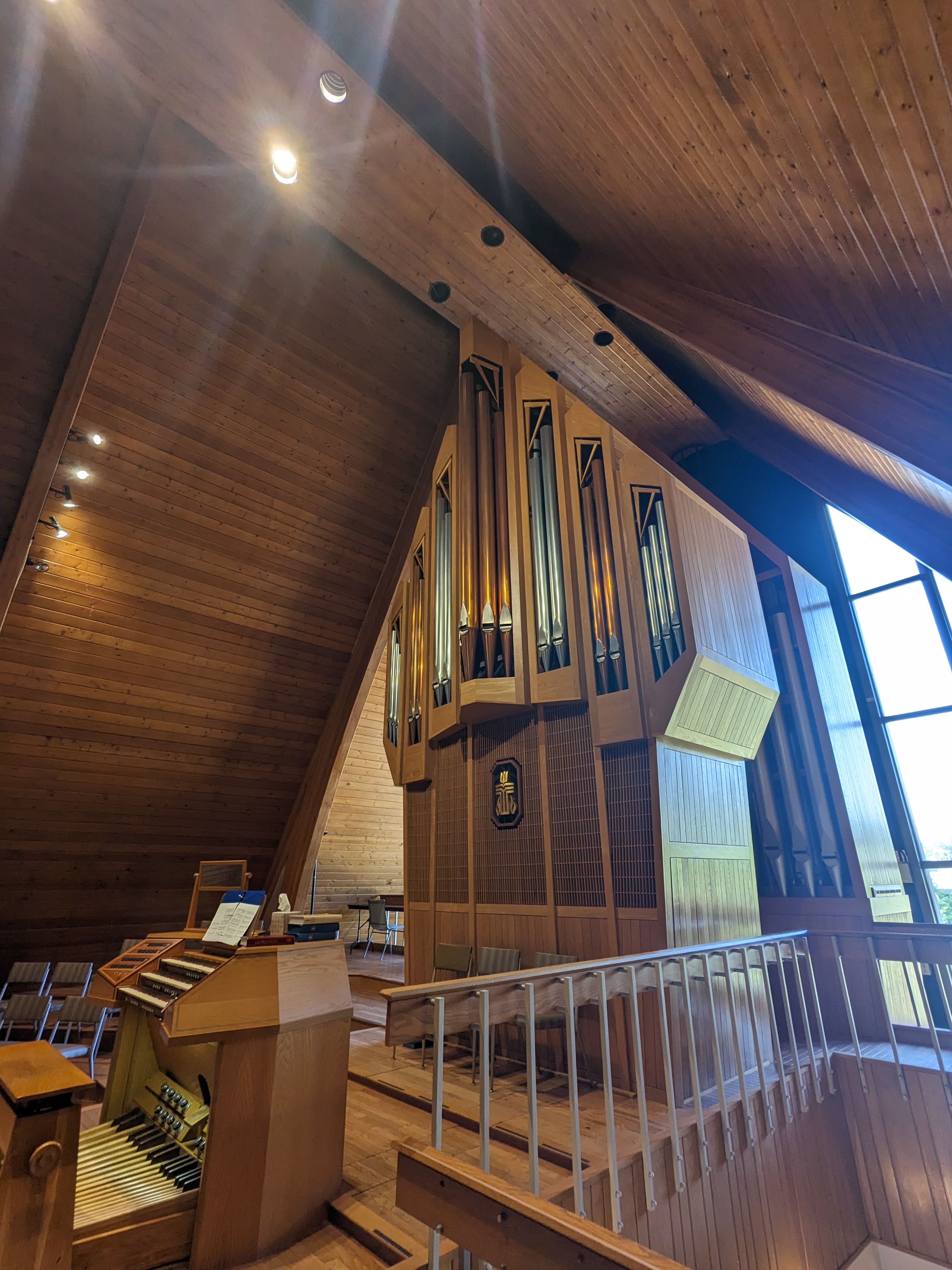

2023-06-02 - Case and console (Photograph by Owen Sammons/Owen Sammons)

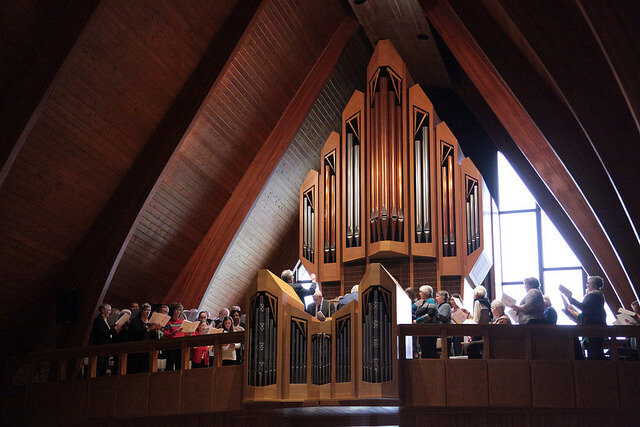

Unknown - Organ in rear balcony (Photograph from an archival source: Church website, submitted by Paul R. Marchesano/Paul R. Marchesano)
2024-06-25 - Building entrance (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

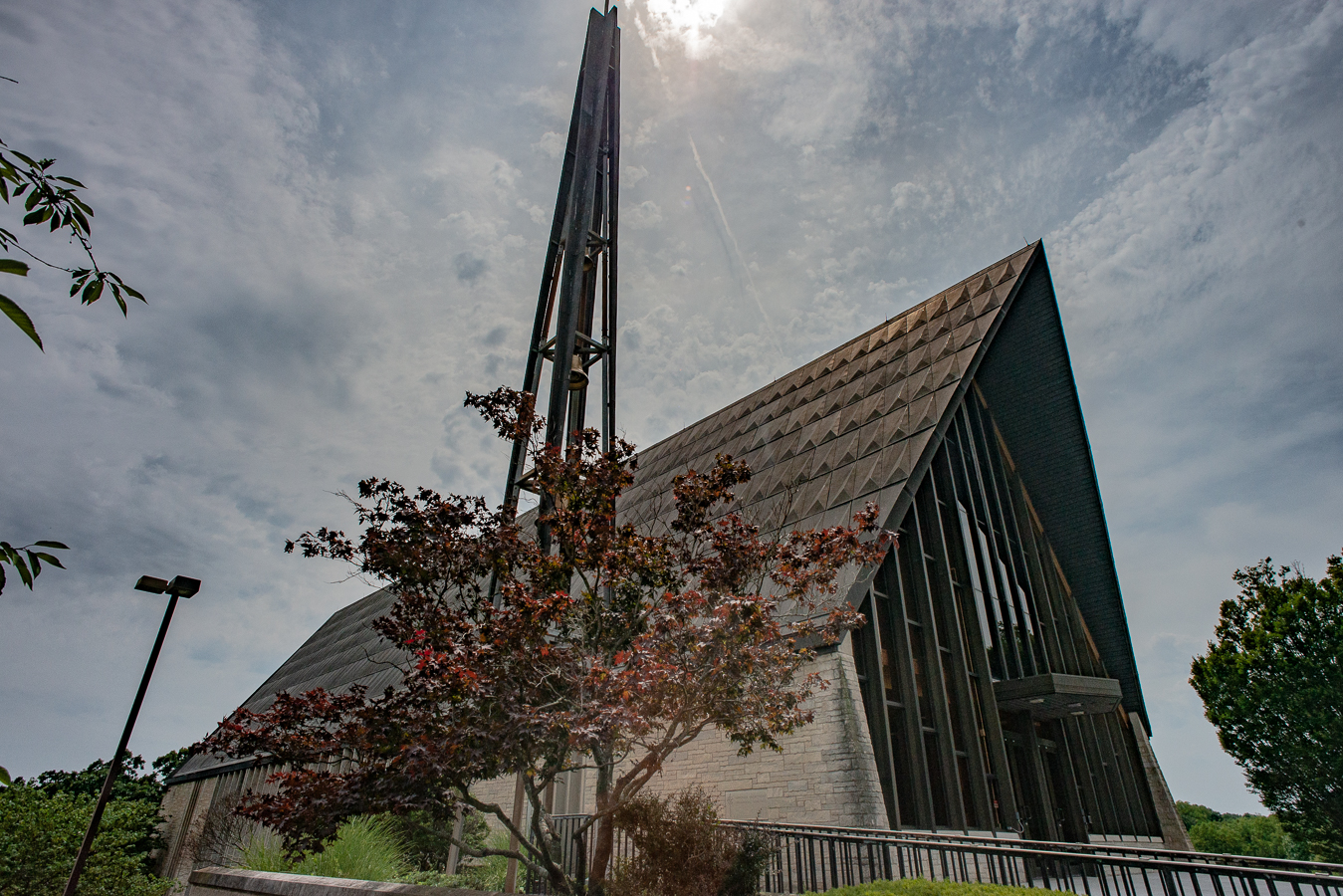

2024-06-25 - Chapel exterior (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

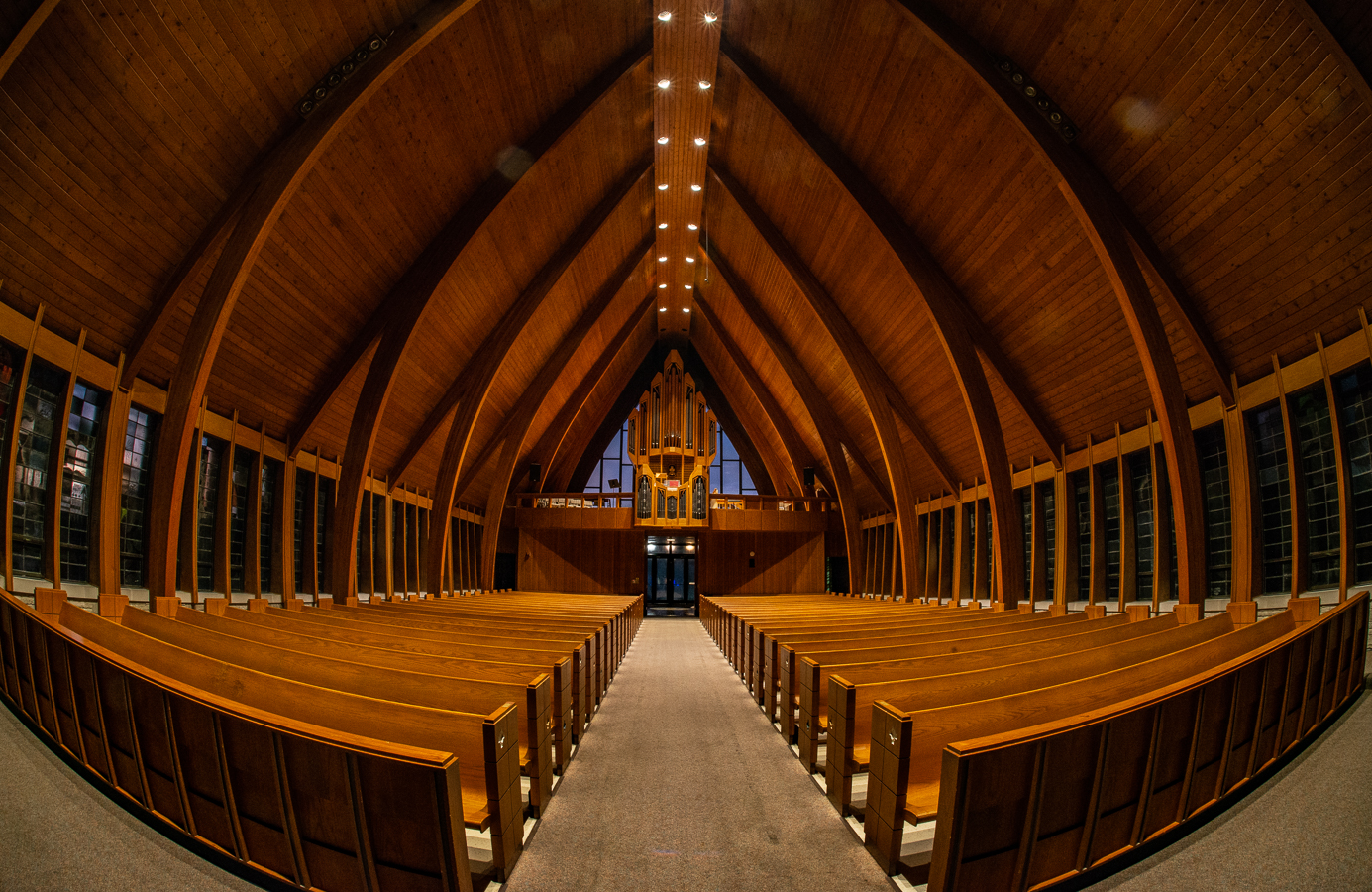

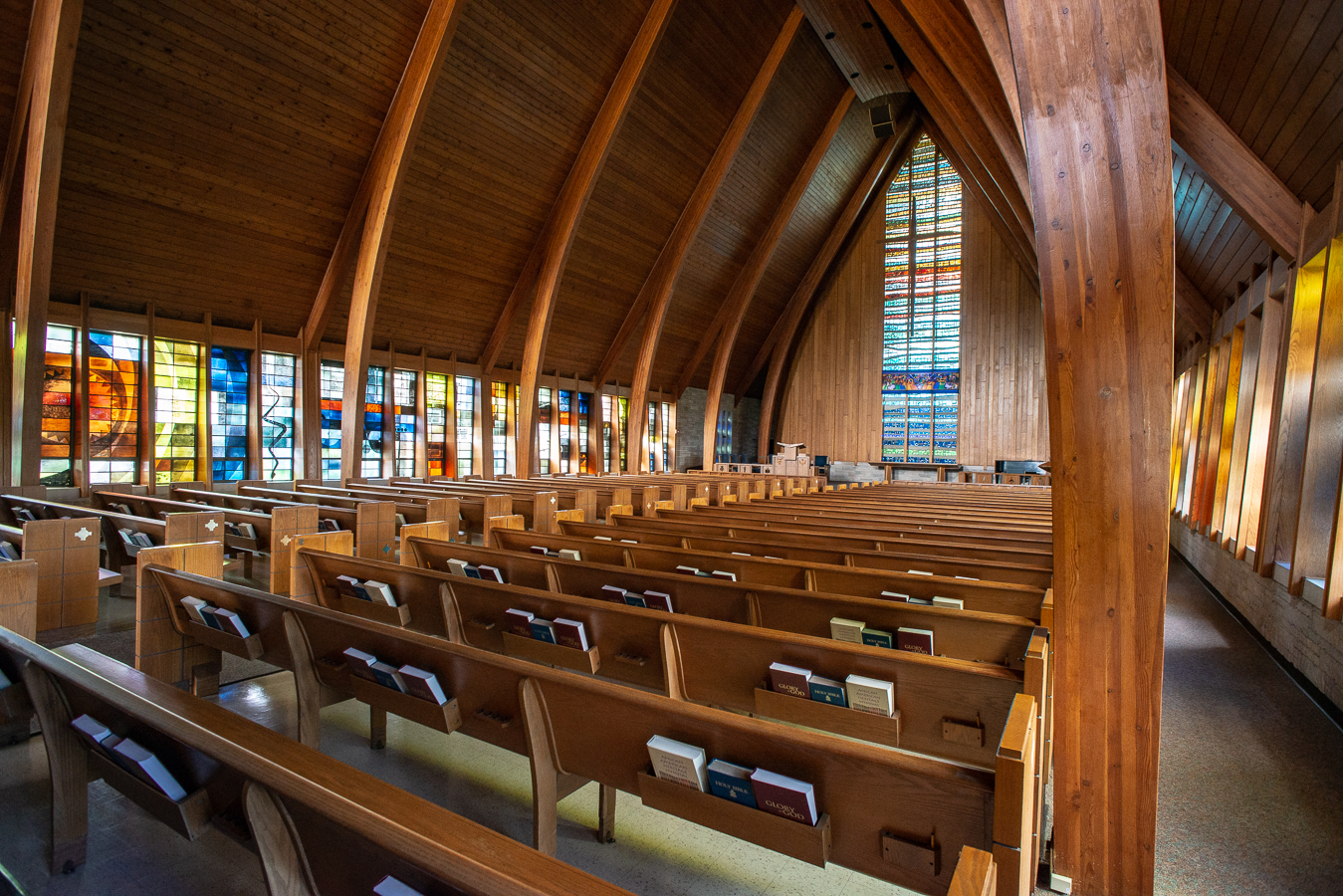

2024-06-25 - Chapel nave (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)
2024-06-25 - Fisheye view of nave and organ case (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

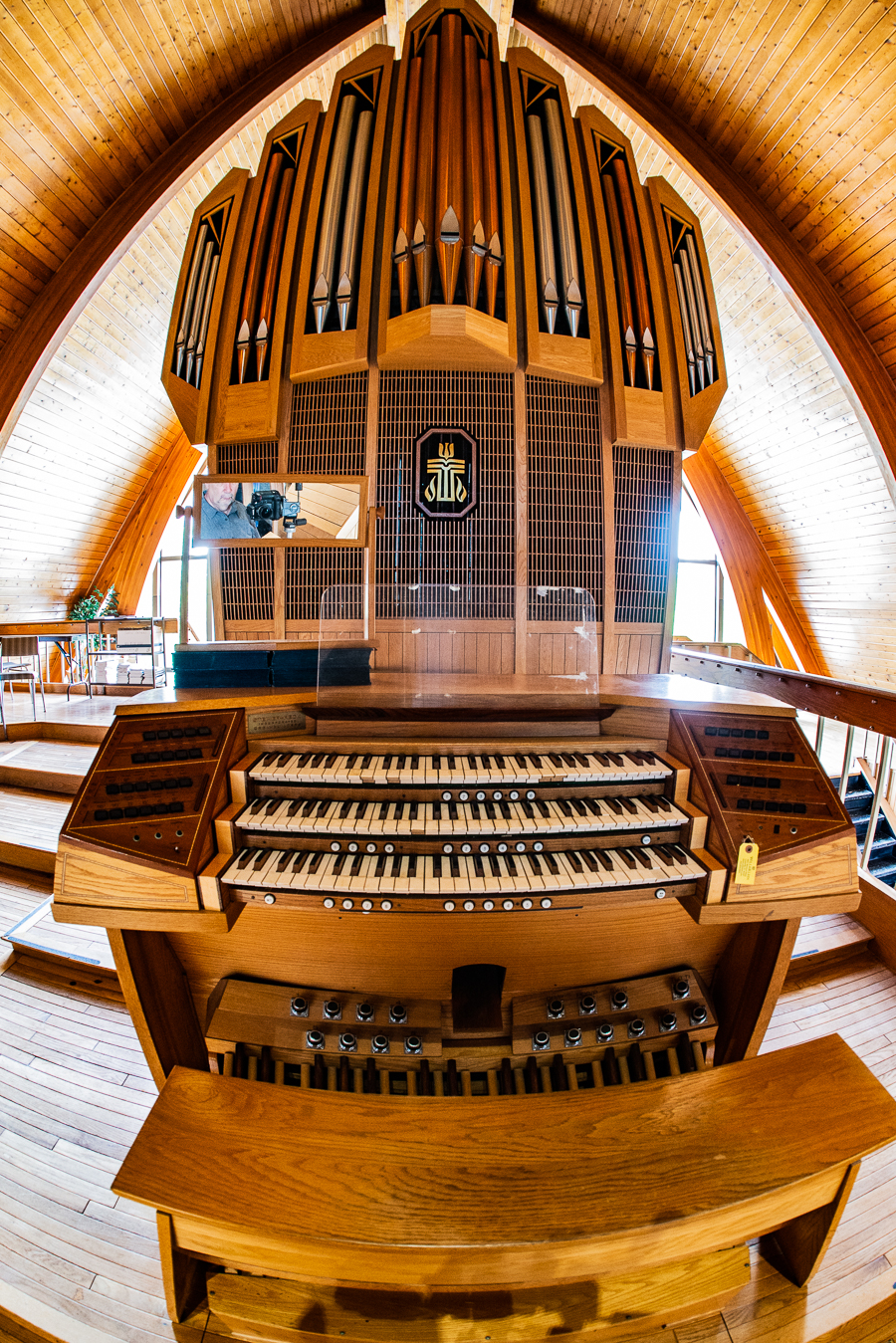

2024-06-25 - Fisheye view of case and console (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

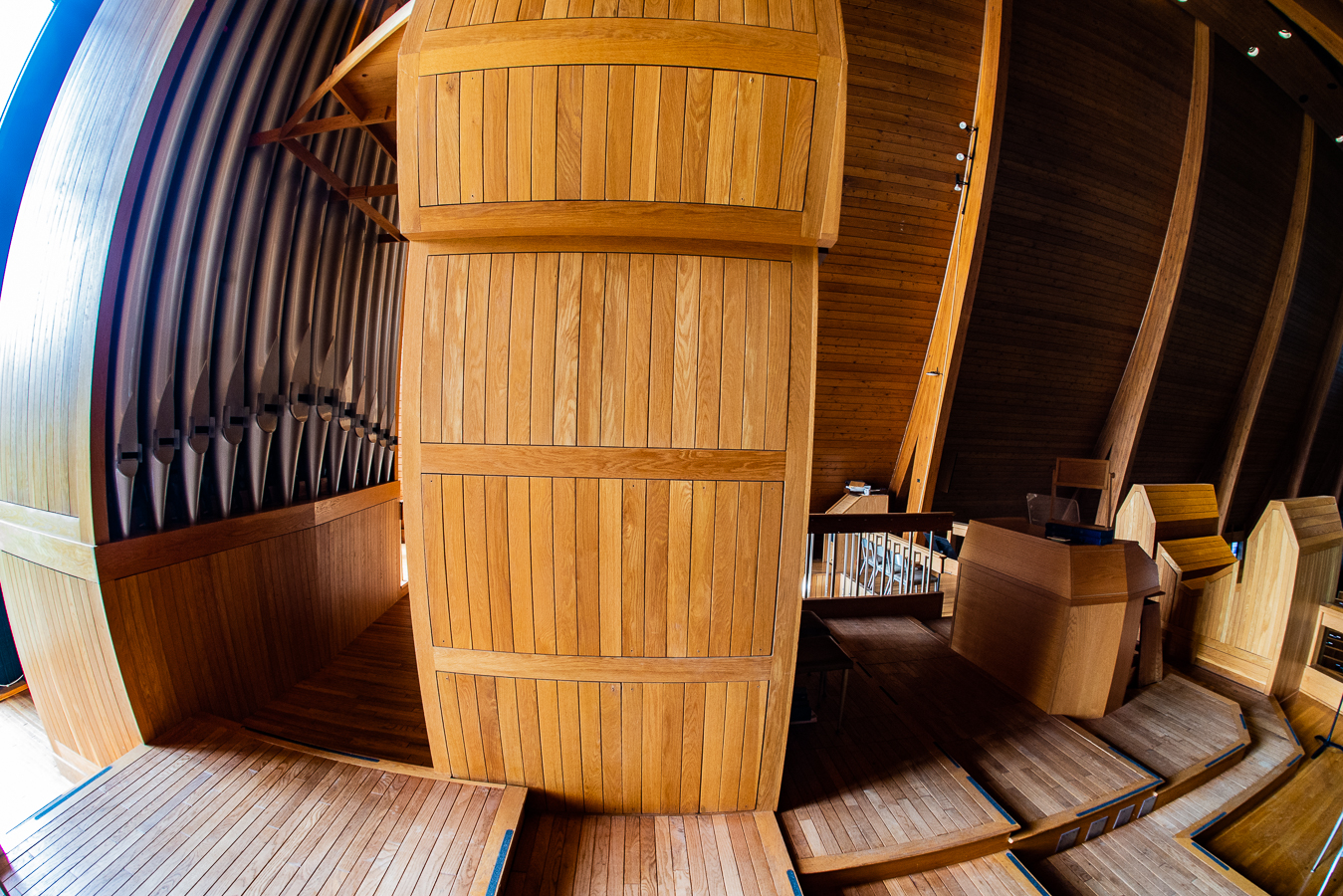

2024-06-25 - Fisheye view of pedal case, main case, console, ruckpositiv (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)

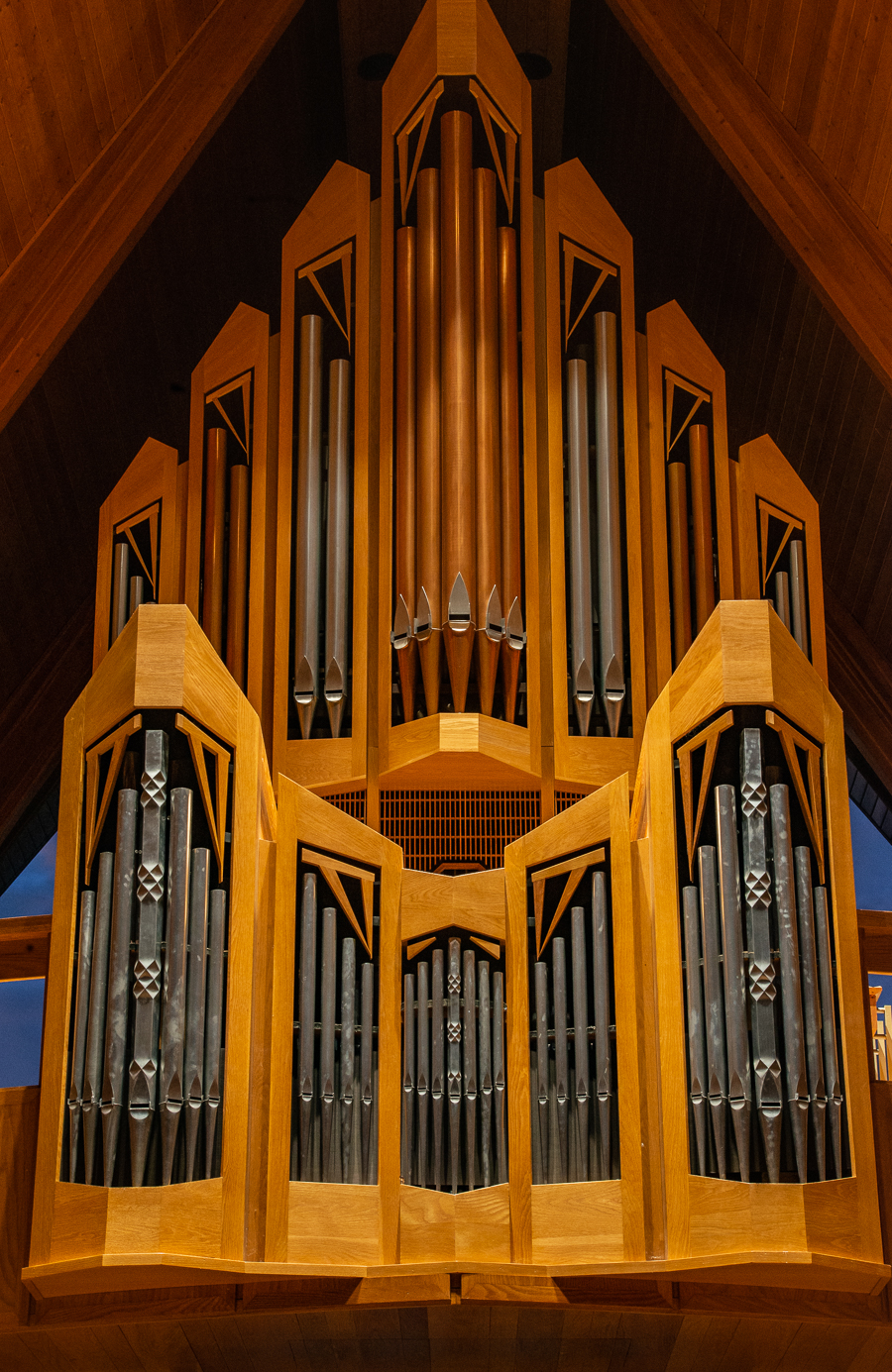

2024-06-25 - Case (C. Kenneth Stein, photographybystein.com/C. Kenneth Stein)
Consoles
Main
- 3 manuals
- 30 stops
- Key action Type: Mechanical (Details Unknown)
- Manual compass: 58 notes
- Pedal compass: 32 notes
Notes
2004-10-30 - Status Note: There 1993. -Database Manager
2022-01-13 - In 1961, during construction of Caldwell Chapel, designed by Fred Louis of the architectural firm of Louis & Henry, a fire· put plans for a pipe organ on hold. The generous gift of Roger Wood Puckett in 1984 made the organ possible, and it was named in honor of the donor. The instrument was dedicated with a recital by Larry Smith on 17 November 1985; Melvin Dickinson, consultant to the Seminary for the organ project, gave an all-Bach recital on 1 December 1985.
The keydesk is detached. The Viola di Gamba 8' is tapered; the Traversfloete 4' is harmonic. In the Pedal division, the Octavebass 8' is common in part with the Great Principal 8'; the Flutebass 8' is common in pari with the Subbass 16'; and the Trumpet 8' is common in part with the Posaune 16'. -- from *1993 OHS Handbook* -Paul R. Marchesano
Stoplist
Stoplist from OSIRIS Archive Source: Source not recorded Date not recorded
Louisville, Kentucky
Presbyterian Theological Seminary
Steiner-Reck Organ Co. Opus 75 1985 3 manuals, 30 stops, 47 ranks
_____________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Gedeckt 58 8' Spitzgedackt 58
8' Principal 58 8' Viola di Gamba 58
8' Chimney Flute 58 8' Viola Celeste (TC) 46
4' Oktave 58 4' Traversfloete 58
4' Spire Flute 58 2' Blockfloete 58
4' Portunal Flute 58 1' Mixture IV-V ?
1 1/3' Mixture IV-VI ? 16' Fagotto 58
2 2/3' Sesquialtera II 116 8' Hautbois 58
8' Trumpet 58 Tremulant
RÜCKPOSITIV PEDAL ORGAN
8' Gedacktpommer 58 16' Principal 32
4' Principal 58 16' Subbass 32
4' Spindelfloete 58 8' Octavebass ? a
2' Octave 58 8' Flutebass ? b
1 1/3' Quinte 58 4' Choralbass 32
2/3' Mixture III-IV ? 2' Mixture V 160
8' Crommorne 58 16' Posaune 32
Tremulant 8' Trumpet ? c
4' Rohrschalmei 32
COUPLERS
Great to Pedal (mechanical) a common, in part, with
Swell to Pedal (mechanical) GT Principal
Positiv to Pedal (mechanical) b common, in part, with
Swell to Great (electric) Subbass
Positiv to Great (electric) c common, in part, with
Swell to Positiv (electric) Posaune
[Received from Steven E. Lawson 2015-08-30]
