Schantz Organ Co. Opus 2251 (2007)

American Evangelical Lutheran Church
1085 Scott Drive
Prescott, AZ

Images

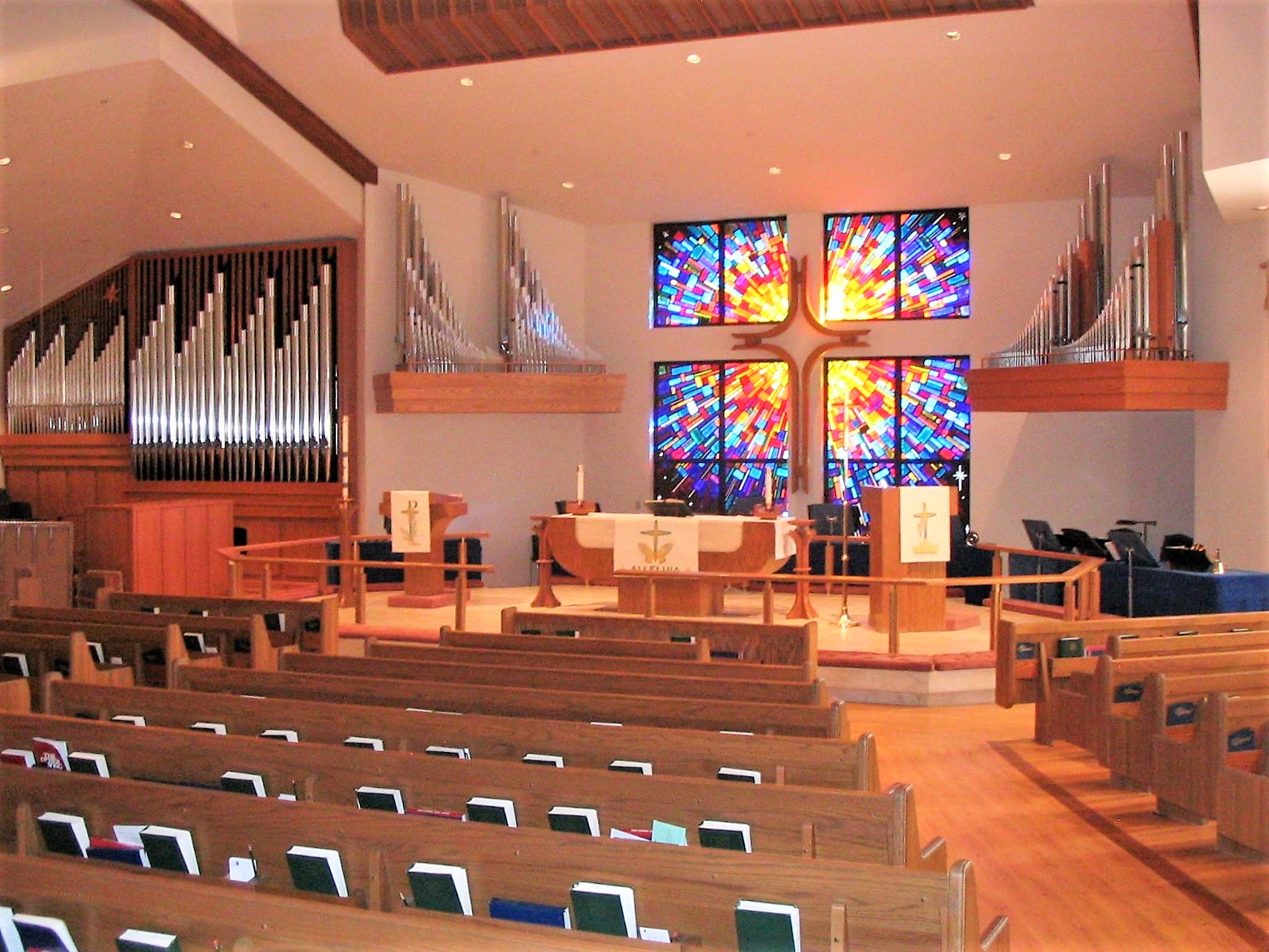

Unknown - Church interior, organ case and exposed pipe work (Photograph by Jim Klein/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
25 stops
38 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 6 [June, 2004] -Database Manager

2010-03-30 - Updated through online information from Chad Boorsma. -Database Manager

2014-01-02 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist taken from Schantz factory specifications Source: Source not recorded Date not recorded

Prescott, Arizona
American Evangelical Lutheran Church

Schantz Organ Company   Opus 2251   2007   3 manuals, 31 ranks
______________________________________________________________

GREAT:                             POSITIV:
   8' Open Diapason 61                 8' Spitzprincipal 61
   8' Spitzflöte 61                    8' Gedeckt 61
   8' Rohrflöte [SW]                   4' Octave 61
   4' Principal 61                     4' Kopppelflöte 61
   4' Spillflöte 61                2 2/3' Nazard 61
   2' Fifteenth 61                     2' Gemshorn 61
  IV  Mixture 244                  1 3/5' Tierce 61
   8' Trumpet [SW]                        Tremulant
      Zimbelstern
                                   PEDAL:
SWELL:                                32' Resultant
  16' Rohrbass 73                     16' Subbass 32
   8' Viola 61                        16' Rohrbass
   8' Viola Celeste 61                 8' Octavebass 44
   8' Rohrflöte                        8' Bass Flute
   4' Principal 61                     8' Rohrbass
   4' Hohlflöte 61                     4' Choralbass
   2' Octavin 61                       4' Open Flute 32
  IV  Plein Jeu 244                   16' Contra Trumpet 12
  16' Bassoon 73                      16' Bassoon
   8' Trumpet 61                       8' Trumpet
   8' Oboe                             4' Oboe
      Tremulant

[Received on line from Chad Boorsma April 02, 2010.]
