St. Francis of Assisi Episcopal Church
7555 Ooltewah-Georgetown Road
Ooltewah, TN
Images
2004-08-04 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Chancel (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Stop tablets (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Console (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Console and nave to front (Photograph by Jeff Scofield/Jeff Scofield)

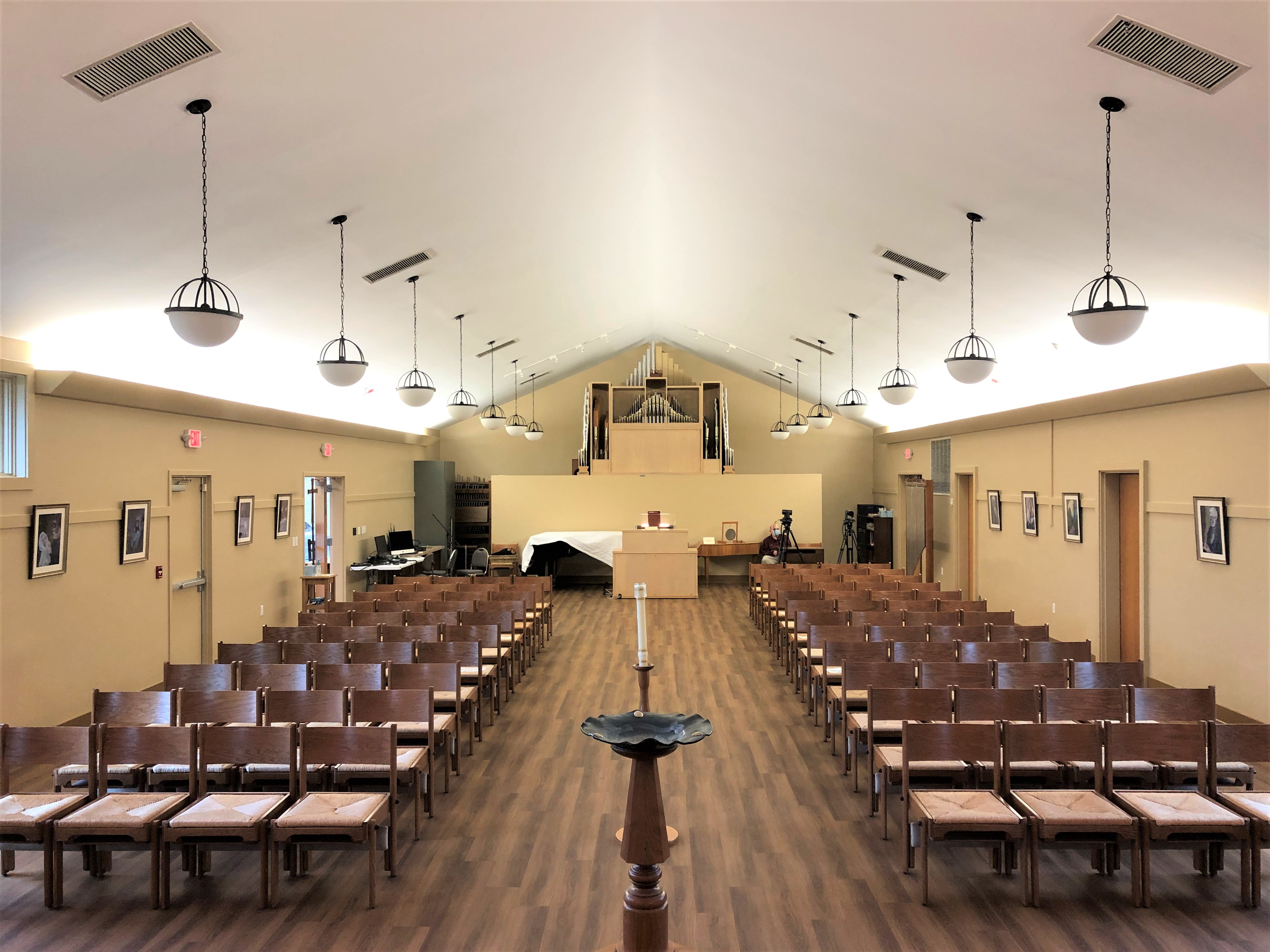

2020-11-25 - Church interior to rear and organ (Photograph by Jeff Scofield/Jeff Scofield)
2020-11-25 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
- Console position: Movable Console
- 2 manuals
- 64 stops
- 2 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: No Enclosed Divisions
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has tutti thumb pistons
Notes
2006-04-26 - Identified through on-line information from William Barger. -- The Isa McIlwraith Plettner Memorial organ. Rebuild and enlargement of Möller Opus 10217 (1966), originally installed in the residence of Arthur Plettner. -Database Manager
2020-11-28 - Original organ (1966): Regal 16', 61 pipes; Gedeckt 8', 85 pipes,
Principal 4', 73 pipes, Larigot 1 1/3', 61 pipes.
Additions in 2000: Independent Pedal Bourdon 16', 56 pipes, Dulciana 8',
73 pipes, Unda Maris 8' GG, 54 pipes, Regal 8', #50-61, 12 pipes,
Principal 8' furnished with 12 new pipes for notes 1-12, Gedeckt 8'
re-scaled one pipe larger, Larigot furnished with 7 lowest pipes to
become Spitzflute 2'. Organ furnished with SSL solid-state switching;
console furnished with capture combination action with 10 memory levels.
Additions in 2008: Trumpet 8', 61 pipes.
Additions in 2016: Spitzflute 4' notes 1-12, 12 pipes, Wicks/Estey reed
bass unit for Dulciana 16' #1-12, unification changes to furnish 32'
Regal Cornet and softer Swell upper mutation stops (from Dulciana rather
than Spitzflute). -Jeff Scofield
Stoplist
Source: Stoplist courtesy of Barger & Nix Date not recorded
Ooltewah, Tennessee
St. Francis of Assisi Episcopal Church
Möller Op. 10217 1966 2/4
Barger & Nix 2/8
___________________________________________
GREAT SWELL
8' Principal 8' Principal
8' Gedeckt 8' Gedeckt
8' Spitzflöte a 8' Spitzflöte a
8' Dulciana 8' Dulciana
8' Unda Maris 8' Unda Maris
4' Octave 4' Octave
4' Gedeckt 4' Gedeckt
4' Spitzflöte 4' Spitzflöte
4' Dulciana 4' Dulciana
2 2/3' Nasard b 2 2/3' Dulciana 12th
2' Super Octave 2' Spitzflöte
2' Spitzflöte 1 1/3' Dulciana Quint
1 1/3' Larigot b 1' Zimbel
1' Spitzflöte 8' Trumpet
8' Trumpet 8' Regal
8' Regal Tremolo
SW to GT 16 SW to SW 16
SW to GT 8 SW to SW 4
SW to GT 4 Zimbelstern
RESOURCES PEDAL
16' Pedal Bourdon 56 16' Bourdon
16' Dulciana 73 c 16' Dulciana
8' Principal 85 10 2/3' Sub Quint d
8' Gedeckt 73 8' Principal
8' Unda Maris 54 8' Bourdon
4' Spitzflöte 73 8' Gedeckt
16' Regal 73 8' Dulciana
8' Trumpet 61 5 1/3' Quint Gedeckt
4' Octave
a 1-12 from Gedeckt 4' Blockflöte d
b Spitzflöte 32' Regal Cornet e
c 1-12 harmonium reeds 16' Regal
d Bourdon 8' Regal
e Plays Gedeckt 4' Regal
Cornet 1-12 SW to PD 8
SW to PD 4
[Received from Jeff Scofield January 18, 2018]
