Better Pipe Organ Database

Casavant Frères Ltée. Opus 2481 (1958)

St. Columba's Roman Catholic Cathedral
144 W. Wood Street
Youngstown, OH

Images

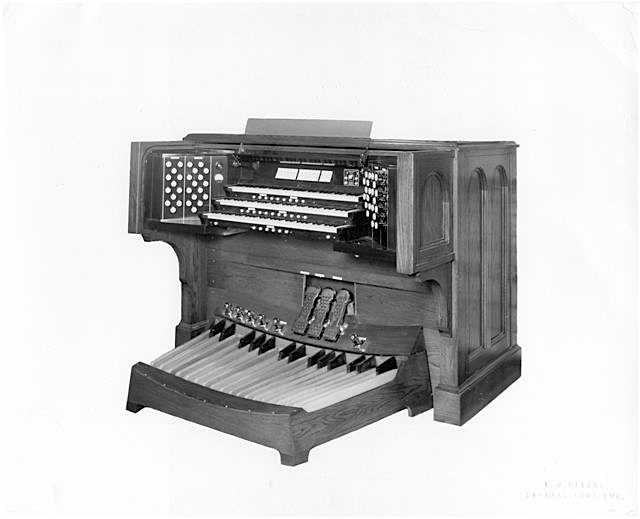

1958-03-21 - Console (Photograph courtesy of the Casavant Fréres Archives/Database Manager)

2006-04-25 - Console (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Church Interior and Altar (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Nave, Gallery, and Pipe Displays (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
41 stops
33 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2011-01-16 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Youngstown, Ohio
       St. Columba's Cathedral, R.C.

       Casavant   Op. 2481   1958   3/39

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       _________________________________________________

       GREAT                         SWELL
   16' Quintaton       61         8' Geigen Principal 68
    8' Principal       61         8' Rohrflöte        68
    8' Bourdon (wood)  61         8' Salicional       68 broad
    8' Erzähler        61         8' Voix Celeste     61 GG
    4' Octave          61         4' Geigen Octave    68
    4' Chimney Flute   61         4' Flute Traverse   68
2 2/3' Octave Quint    61         2' Octavin          61
    2' Super Octave    61        IV  Plein Jeu       244
   IV  Fourniture     244        16' Contra Hautbois  68 capped
       Super                      8' Trompette        68
       Chimes                     8' Hautbois         12
                                  4' Clairon          68
       PEDAL                         Tremulant
   16' Prinzipalbass   32            Sub
   16' Quintaton       GT            Super
   16' Cor de Nuit     12 CH
    8' Spitzprinzipal  32            CHOIR
    8' Quintaton       GT         8' Cor de Nuit      68
    8' Cor de Nuit     CH         8' Spitzflöte       68
5 1/3' Octave Quinte   32         8' Unda Maris       61 GG
    4' Choralbass      32         4' Koppelflöte      68
    4' Cor de Nuit     CH     2 2/3' Nazard           61
   16' Posaune         32         2' Blockflöte       61
   16' Hautbois        SW     1 3/5' Tierce           61
    8' Hautbois        SW         8' Krummhorn        68
                                     Tremulant
                                     Sub

   [Received online from Jeff Scofield  January 16, 2011]
