Better Pipe Organ Database

Casavant Frères Ltée. Opus 3280 (1975)

First Presbyterian Church: Sanctuary
600 E. State St.
Sharon, PA

Images

2006-04-25 - Console, Pipe Facade, and Chamber Grillework (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Sanctuary Interior, Chancel, and Pipe Display (Photograph by Jeff Scofield/Database Manager)

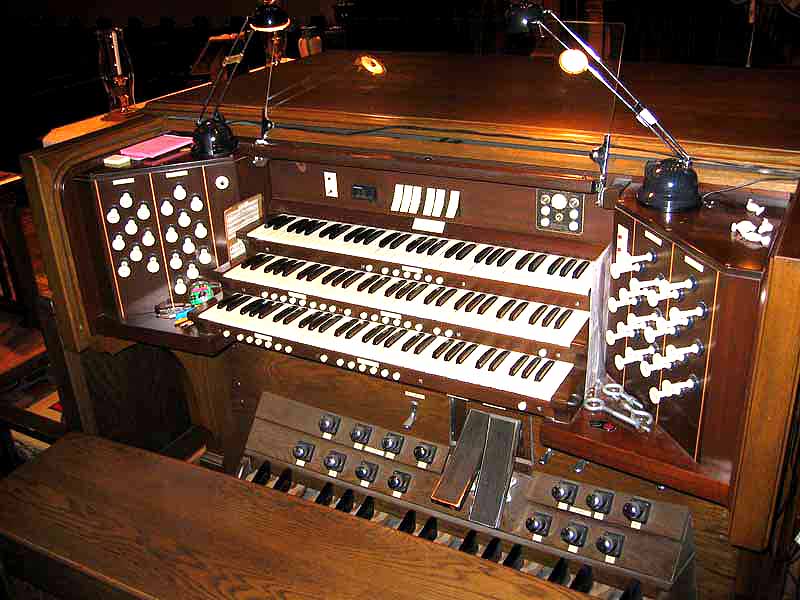

2006-04-26 - Console (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Sanctuary Interior, Chancel and Pipe Display (Photograph by Jeff Scofield/Database Manager)

2006-04-25 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
37 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-11-02 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Sharon, Pennsylvania
       First Presbyterian Church

       Casavant   Op. 3280   1975   3/54

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       ______________________________________________

       GRAND ORGUE                RÉCIT
   16' Bourdon          61     8' Flûte ouverte    61
    8' Montre           61     8' Viole de gambe   61
    8' Flûte à cheminée 61     8' Voix céleste  tc 49
    4' Prestant         61     4' Octave           61
    4' Flûte conique    61     4' Flûte octaviante 61
    2' Doublette        61     2' Octavin          61
    V  Cornet       MC 185    IV  Plein jeu       244
    V  Fourniture      305    16' Basson           61
    8' Trompette        61     8' Hautbois         61
       English Bells   [pf]    4' Clairon          61
                                  Tremblant
       POSITIF
    8' Bourdon          61        PÉDALE
    4' Prestant         61    16' Montre           32
    4' Flûte à fuseau   61    16' Soubasse         32
2 2/3' Nasard           61     8' Octavebasse      32
    2' Quarte de nasard 61     8' Bourdon          32
1 3/5' Tierce           61     4' Octave           32
1 1/3' Larigot          61    IV  Fourniture      128
   IV  Cymbale         244    16' Bombarde         32
    8' Cromorne         61     8' Trompette        32
       Tremblant               4' Chalumeau        32

[Received online from Jeff Scofield November 1, 2010]
