Better Pipe Organ Database

Casavant Frères Ltée. Opus 3652 (1988)

Christ Episcopal Church
2627 Atlantic St. NE
Warren, OH

Images

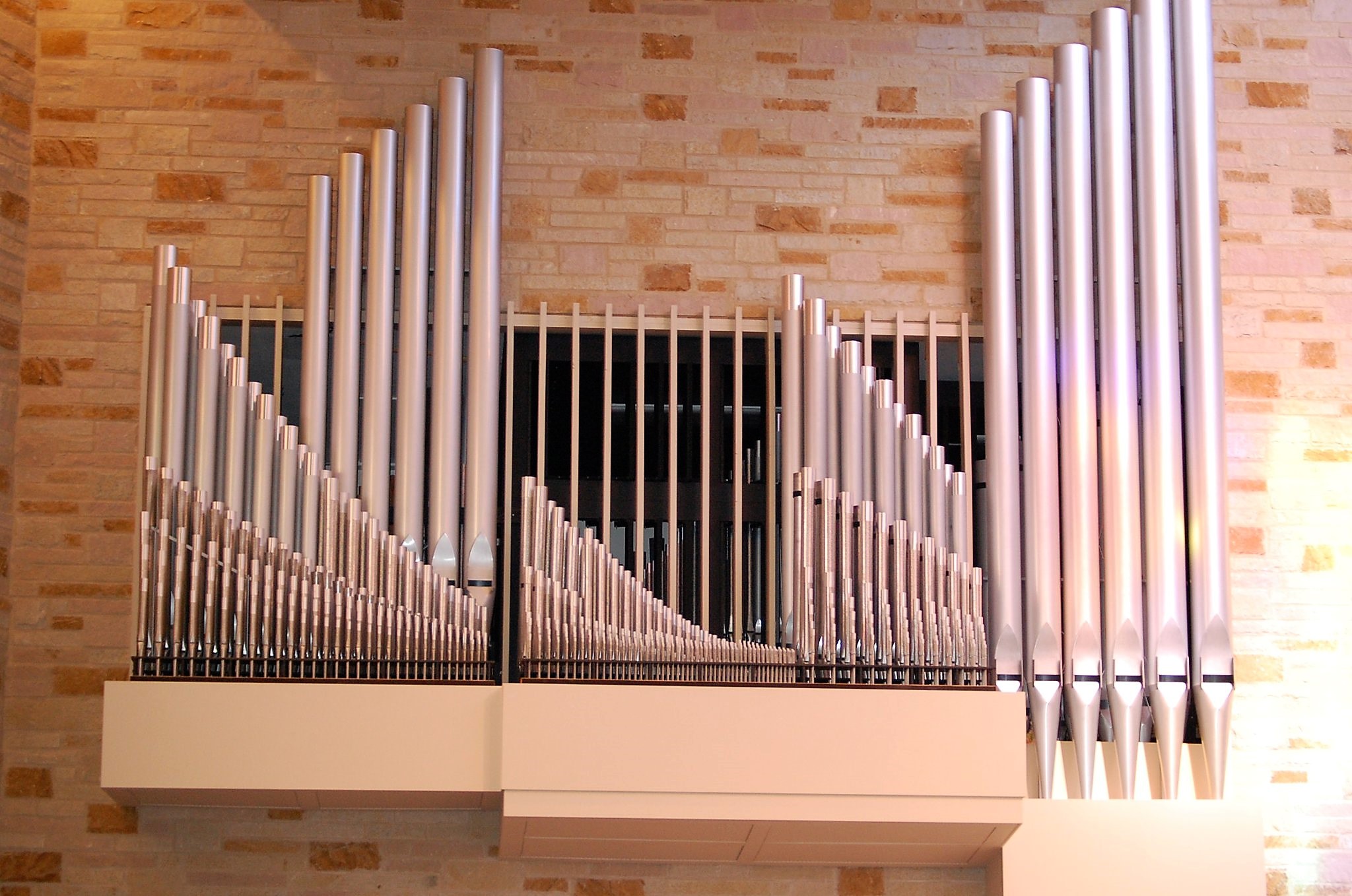

2011-03-24 - Exposed pipes (Photograph by Dean C. Hunt, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

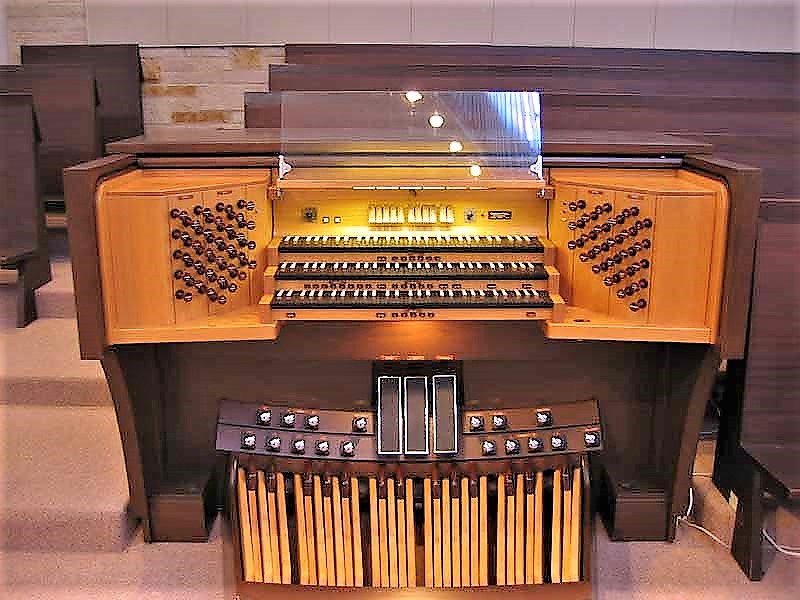

2006-04-25 - Console (Photograph by Jeff Scofield/Database Manager)

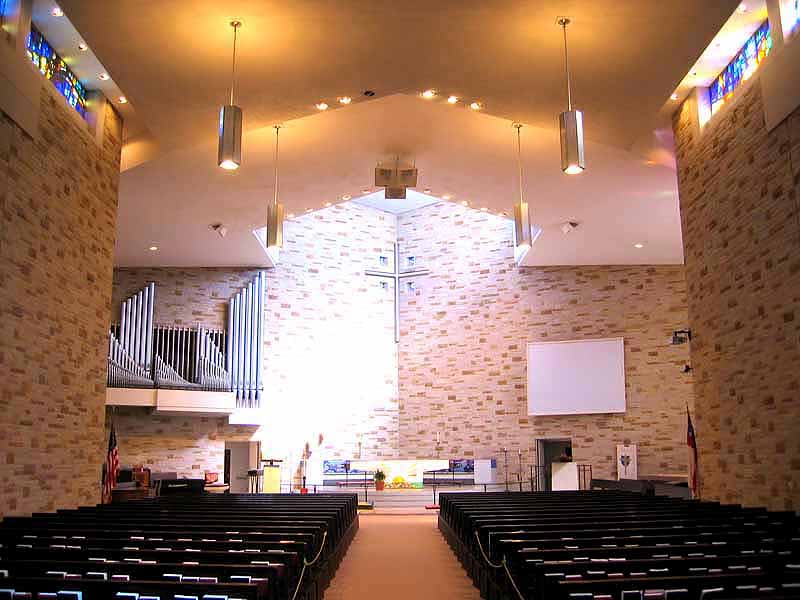

2006-04-26 - Chancel and Pipe Display (Photograph by Jeff Scofield/Database Manager)

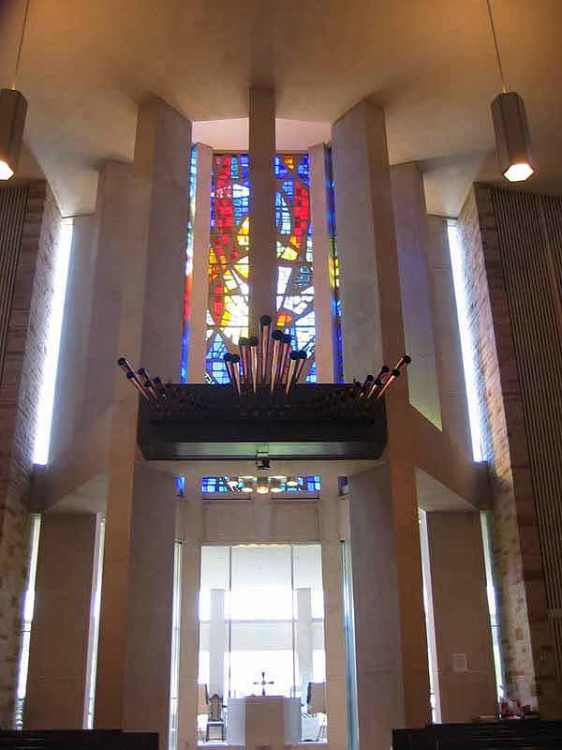

2006-04-26 - Trompette en Chamade and Stained Glass Window (Photograph by Jeff Scofield/Database Manager)

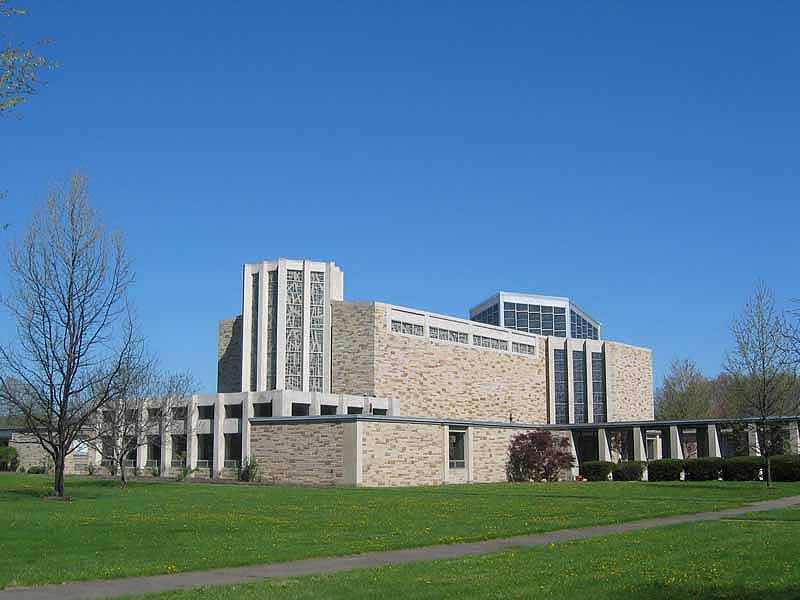

2006-04-26 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

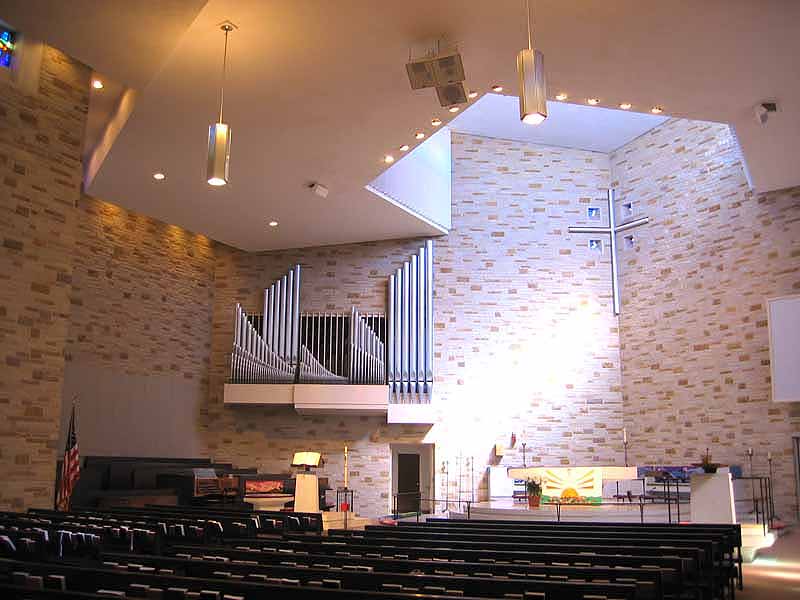

2006-04-25 - Sanctuary Interior, Chancel, and Pipe Display (Photograph by Jeff Scofield/Database Manager)

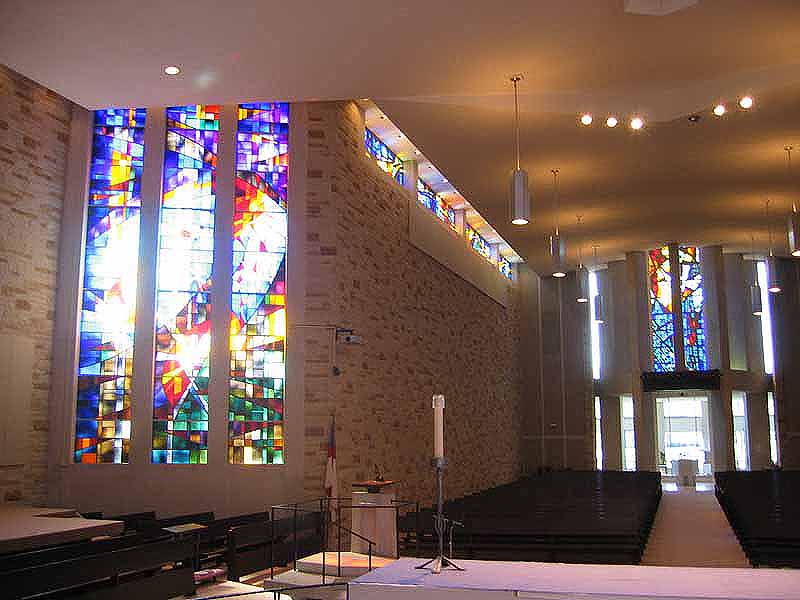

2006-04-25 - Stained Glass Windows (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
34 stops
45 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-06-24 - Updated through online information from Jeff Scofield. -Database Manager

2010-01-10 - Updated through online information from John Panning. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Warren, Ohio
       Christ Episcopal Church

       Casavant   Op. 3652   1988   3/46

       Stoplist courtesy of Casavant Frères

       GRAND ORGUE                      CHOEUR
   16' Bourdon 12 (metal)            8' Flûte à cheminée 61
    8' Montre 61                     8' Flûte céleste II 110
    8' Bourdon 61                    4' Flûte à fuseau 61
    4' Octave 61                 2 2/3' Nazard 61
    4' Flûte harmonique 61           2' Principal 61
    2' Doublette 61              1 3/5' Tierce 61
   IV  Fourniture 244                1' Octave 61
    8' Trompette 61                III  Cymbale 183
       Sub                           8' Cromorne 61
       Chimes 25                        Tremblant
                                        Sub
       RECIT                            Super
    8' Flûte majeure 61              8' Trompette-en-chamade GO
    8' Viole de gambe 61                Zimbelstern 10
    8' Voix céleste 54 GG
    4' Principal 61                     PEDALE
    4' Flûte 61                     32' Soubasse dg
2 2/3' Nazard 61                    16' Montre 32
    2' Flûte 61                     16' Soubasse 32
1 3/5' Tierce 61                    16' Bourdon GO
    V  Plein Jeu 305                 8' Octave 12
   16' Contre trompette 12 (L/2)     8' Soubasse 12
    8' Trompette harmonique 61       4' Octave 32
    8' Hautbois 61                   4' Flûte 12
    4' Clairon harmonique 61       III  Fourniture 96
       Tremblant                    16' Bombarde 12 GO (F/L)
       Sub                          16' Contre trompette SW
       Unison Off                    8' Trompette GO
       Super                         4' Chalumeau 32
    8' Trompette-en-chamade 61          Chimes GO

 [Received on line from Jeff Scofield June 24, 2009.]

Documents

(1988-09-18) Dedication program via Jeff Scofield -Jeff Scofield
