Casavant Frères Ltée. Opus 2767 (1963)

Woodland Park Presbyterian Church
225 N. 70th St.
Seattle, WA

Images

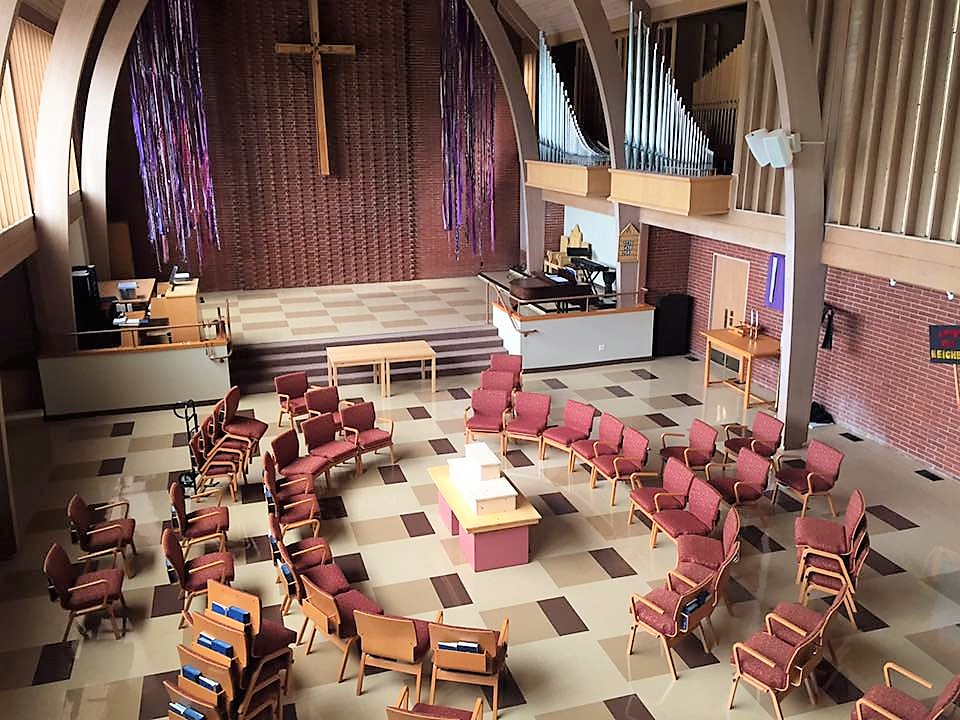

2017-04-13 - Church interior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
2 manuals
15 stops
17 registers
2 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons

Notes

2006-06-20 - Identified through online information from James R. Stettner. -- The organ is installed on a ledge on the front, right side of the church. The swellbox is nestled into the corner. The Great is directly in front of the swell shutters. The Pedal 8' Spitz Prinzipal and 4' Choral Bass are on a second chest beside/ahead of the Great forming a part of the facade. The Pedal Subbass unit is behind the exposed Pedal façade and beside the swellbox. The Swell 8' Salicional and 8' Voix Celeste are prepared-for. -Database Manager

2010-02-13 - Updated through online information from Christopher Glenn. -- 8' Salicional and 8' Voix Celeste added in 2006; 12-note extension (16') of 8' Trompette added in 2008. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Courtesy of the Casavant Frères Archives Date not recorded

    Seattle, Washington
    Woodland Park Presbyterian Church

    Casavant   Op. 2767   1963   2/18

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada

    GREAT                  SWELL                   PEDAL
 8' Principal  61       8' Salicional   61 *   16' Subbass        32
 8' Rohrflöte  61       8' Voix Celeste 56 *    8' Spitzprinzipal 32
 4' Octave     61       8' Gedackt      61      8' Flute          12 a
 2' Blockflöte 61       4' Koppelflöte  61      4' Choralbass     32
IV  Mixture   244       2' Principal    61     16' Trompette      12 SW **
    Chimes     pf   1 1/3' Quint        61
                      III  Zimbel       pf
                        8' Trompette    61
                           Tremulant
                           Sub                  a  Added in 1986
                           Unison Off           *  Added in 2006
                           Super               **  Added in 2008

[Received on line from Jeff Scofield April 01, 2010.]
