St. Mary's Catholic Cathedral
1111 Gough Street
San Francisco, CA
Images

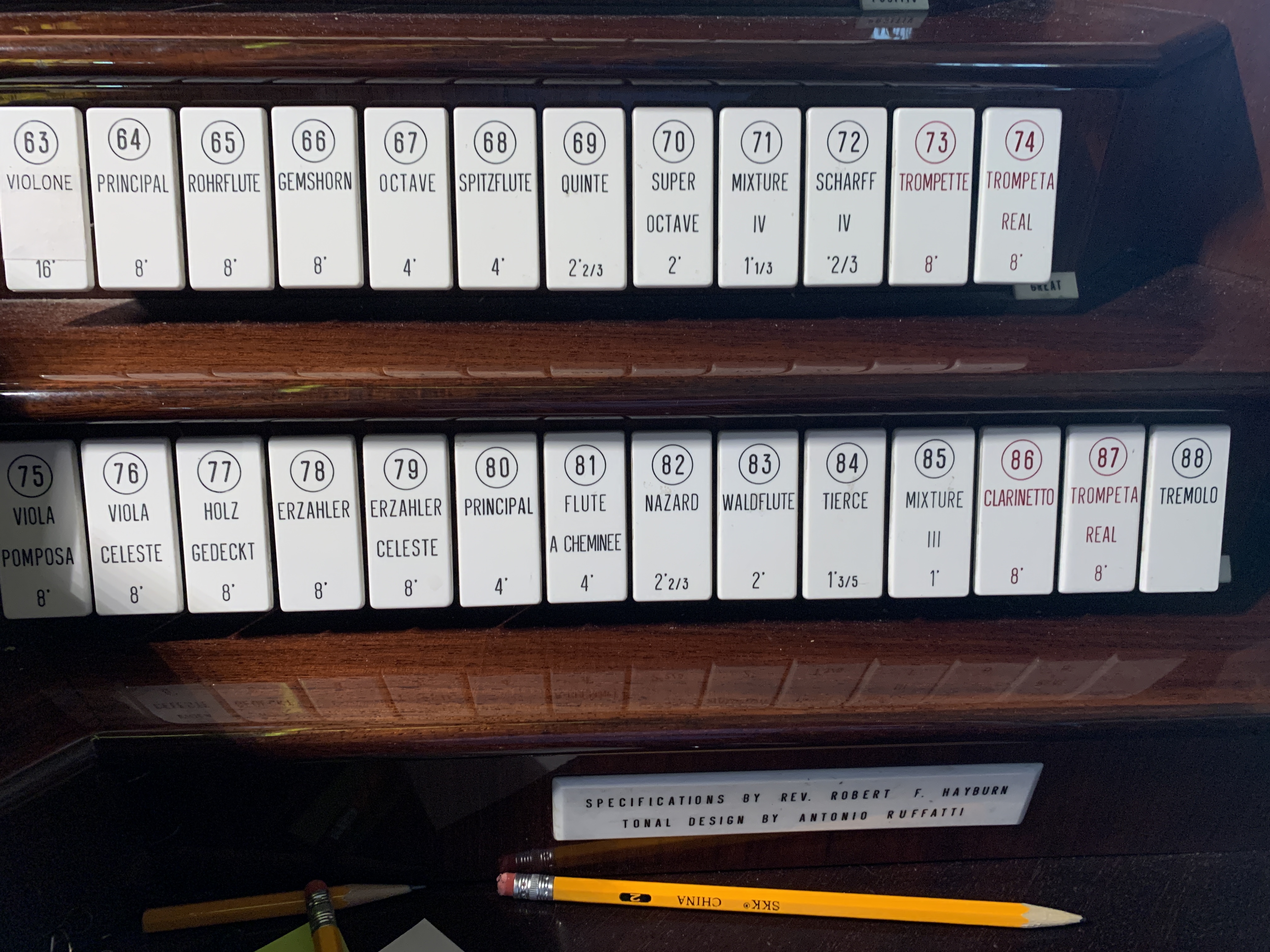

2022-05-25 - Great and Choir stop tabs (Photograph by Monty Bennett /Monty Bennett)

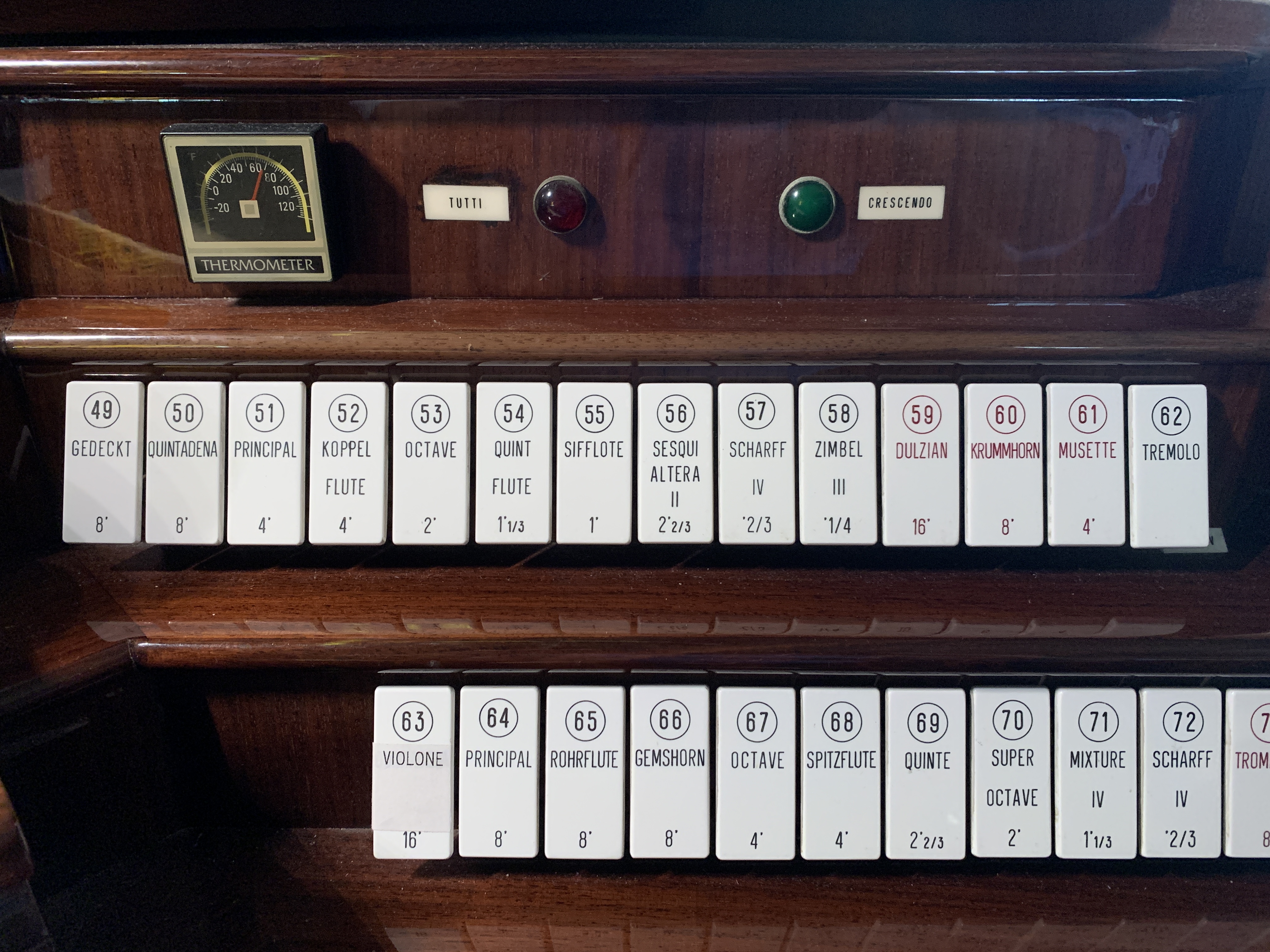

2022-05-25 - Positiv and Great stop tabs (Photograph by Monty Bennett/Monty Bennett)

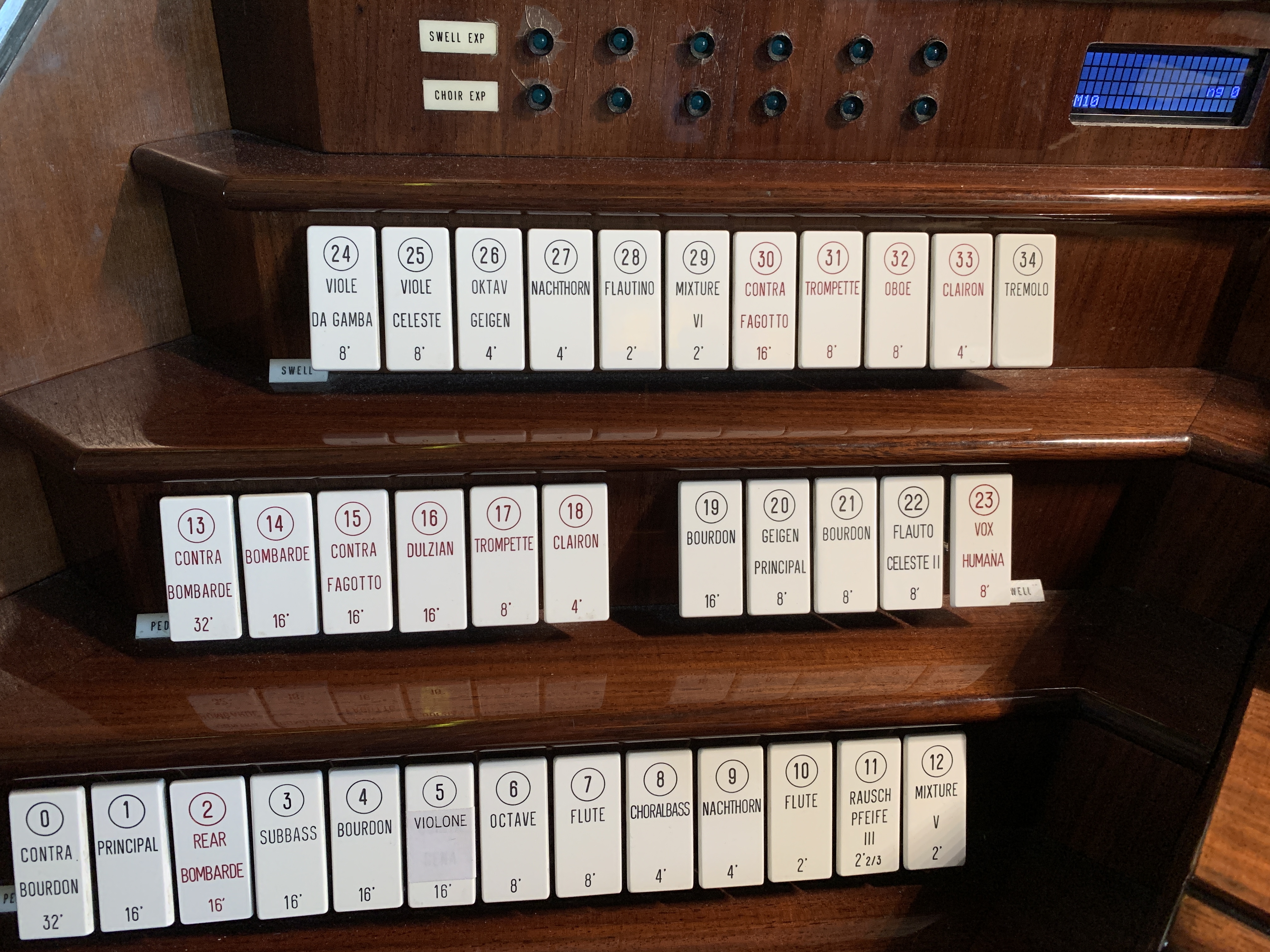

2022-05-25 - Swell and Pedal stop tabs (Photograph by Monty Bennett/Monty Bennett)

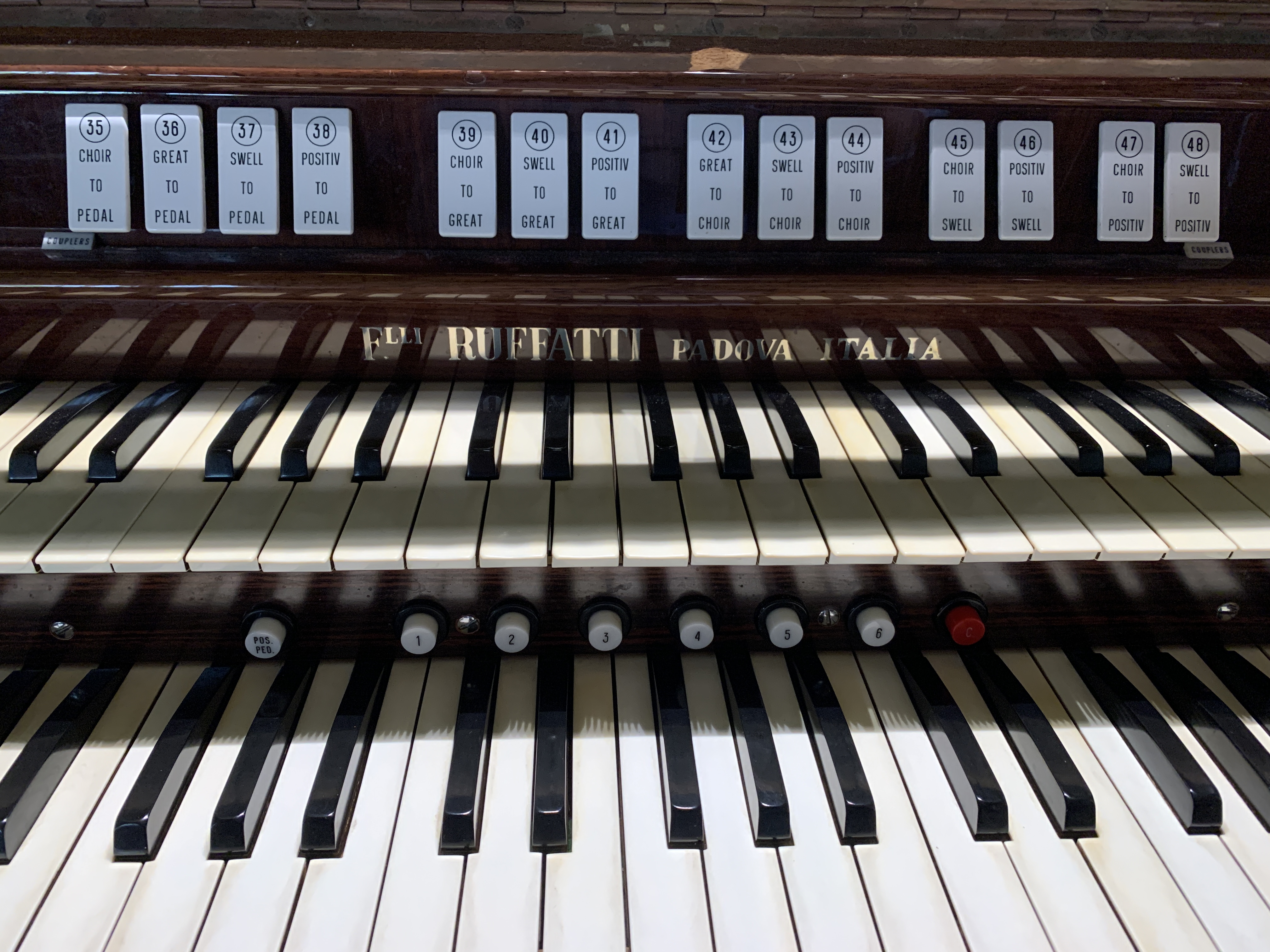

2022-05-25 - Builder's nameplate (Photograph by Monty Bennett/Monty Bennett)

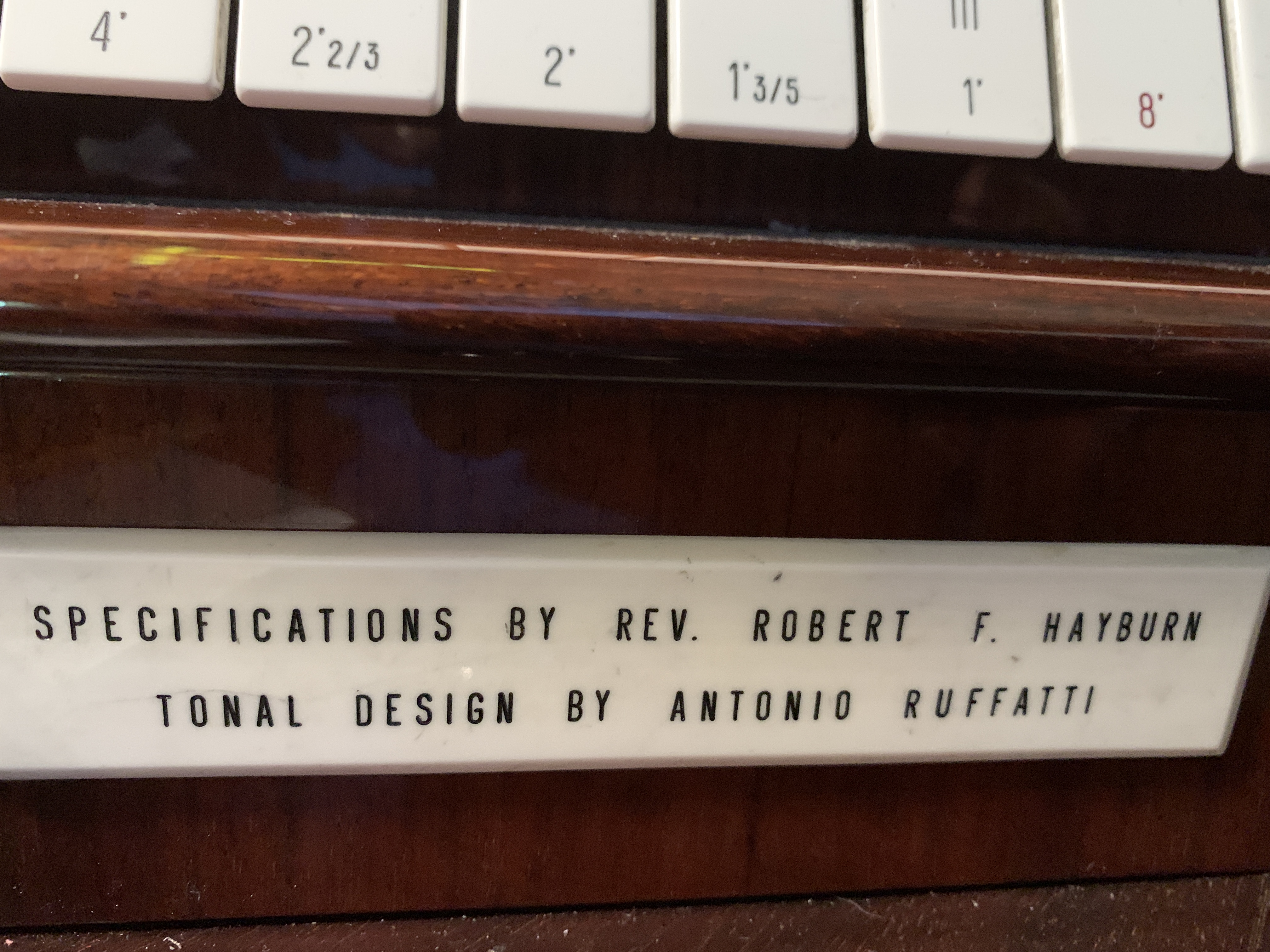

2022-05-25 - Specification credit (Photograph by Monty Bennett/Monty Bennett)

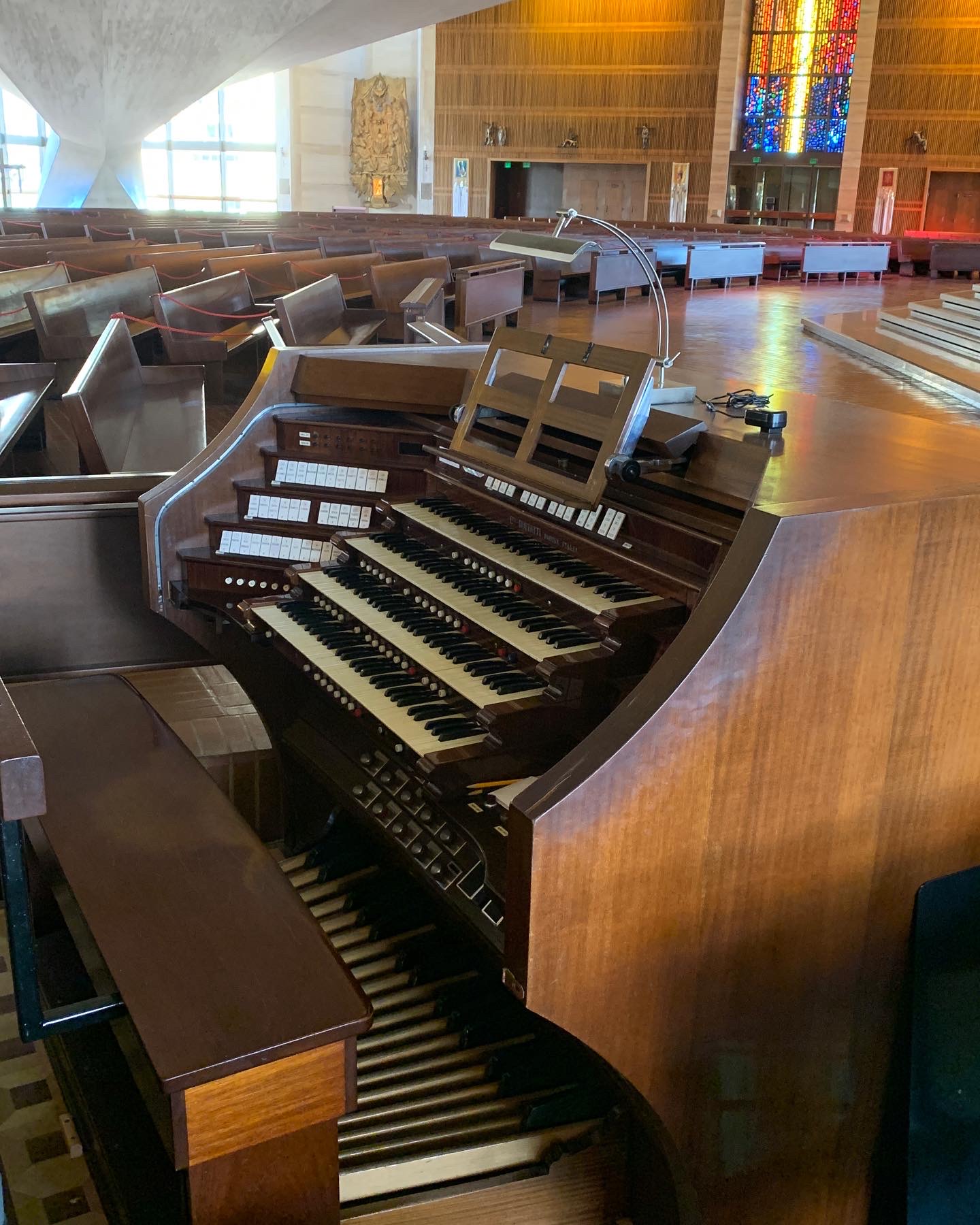

2022-05-25 - Console (Photograph by Monty Bennett/Monty Bennett)

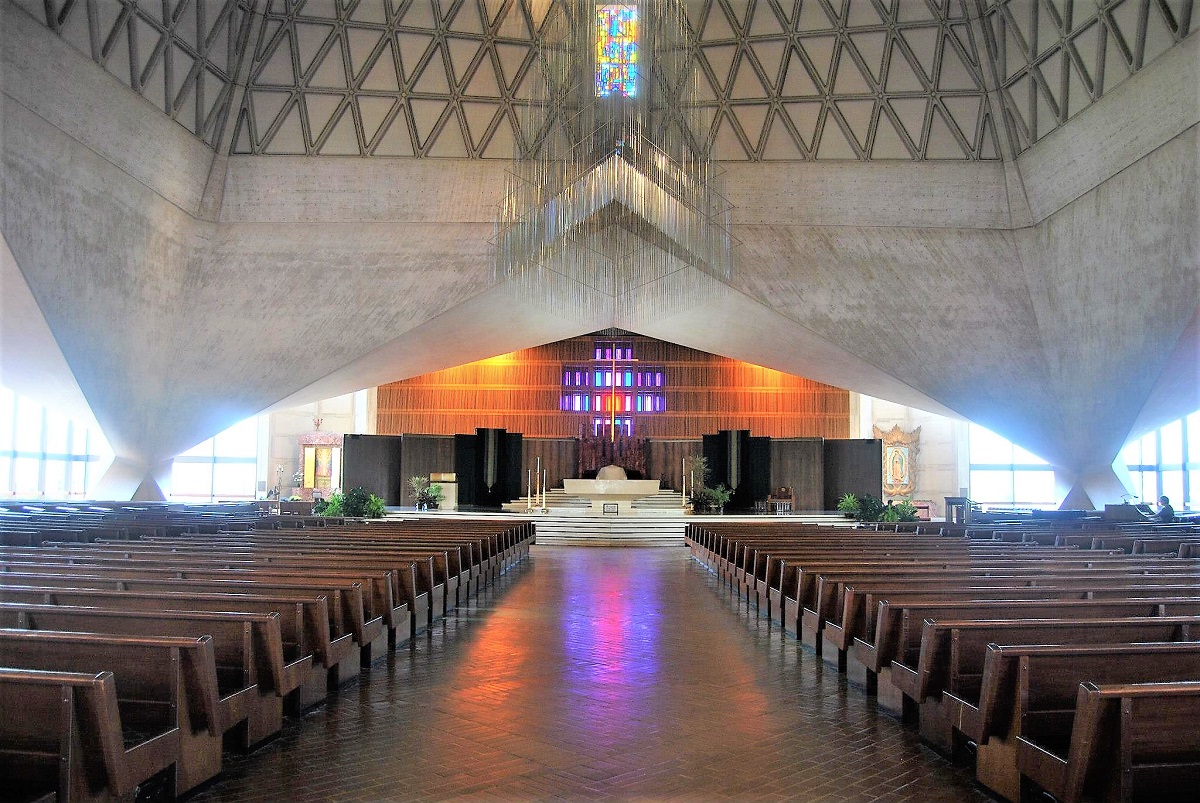

2012-08-14 - Cathedral interior (Photograph by Stephen Schnurr/Database Manager)

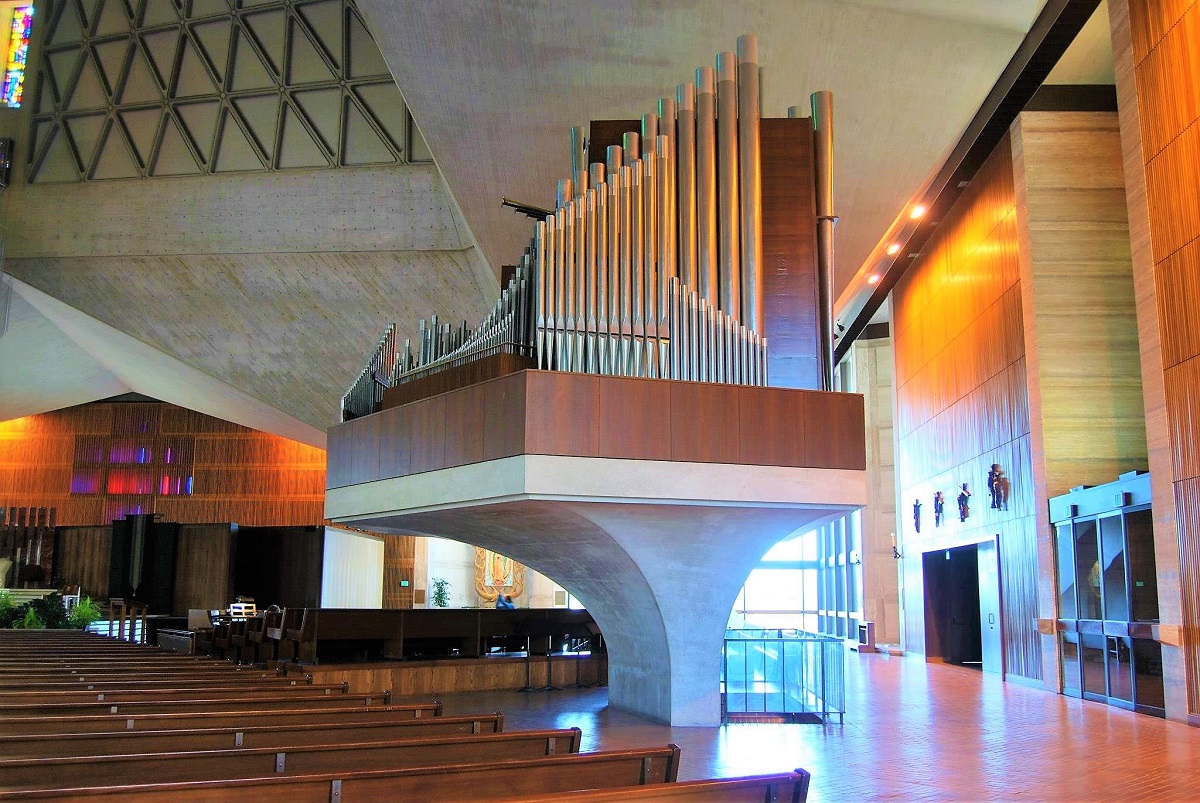

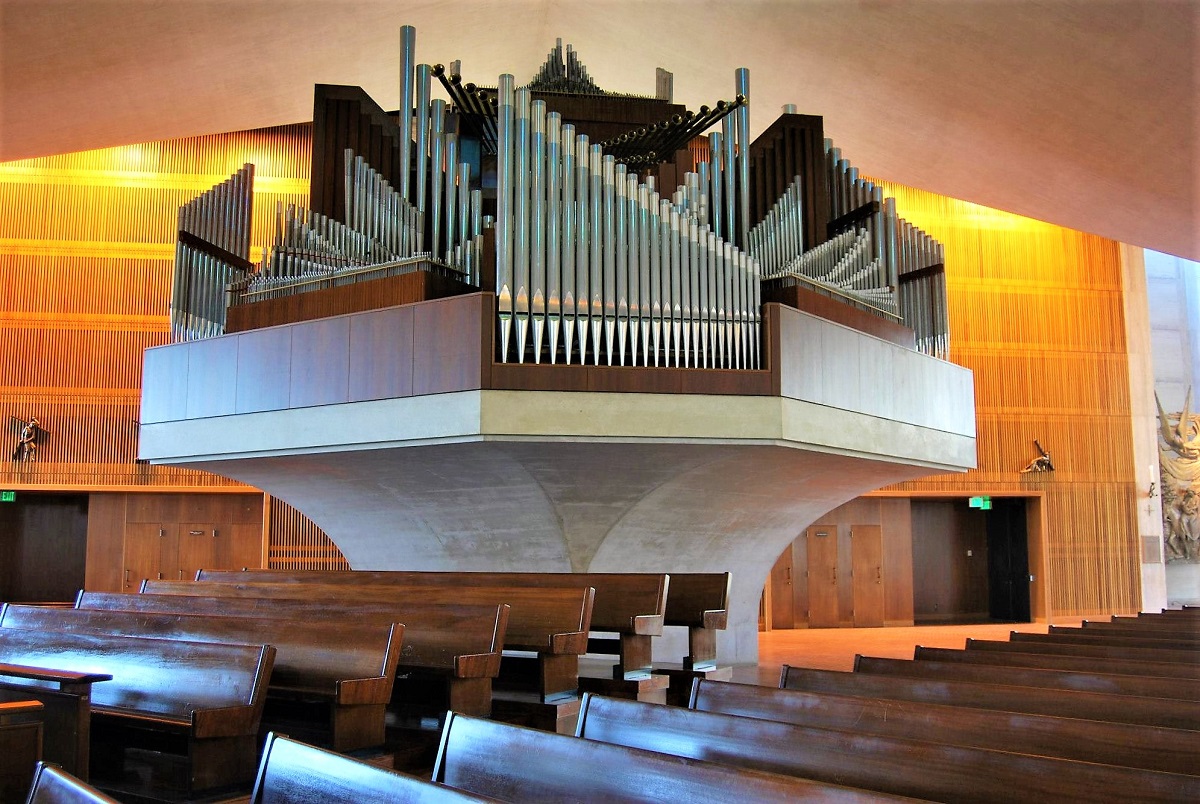

2012-08-14 - Organ and exposed pipes (Photograph by Stephen Schnurr/Database Manager)
2012-08-14 - Organ and exposed pipes (Photograph by Stephen Schnurr/Database Manager)

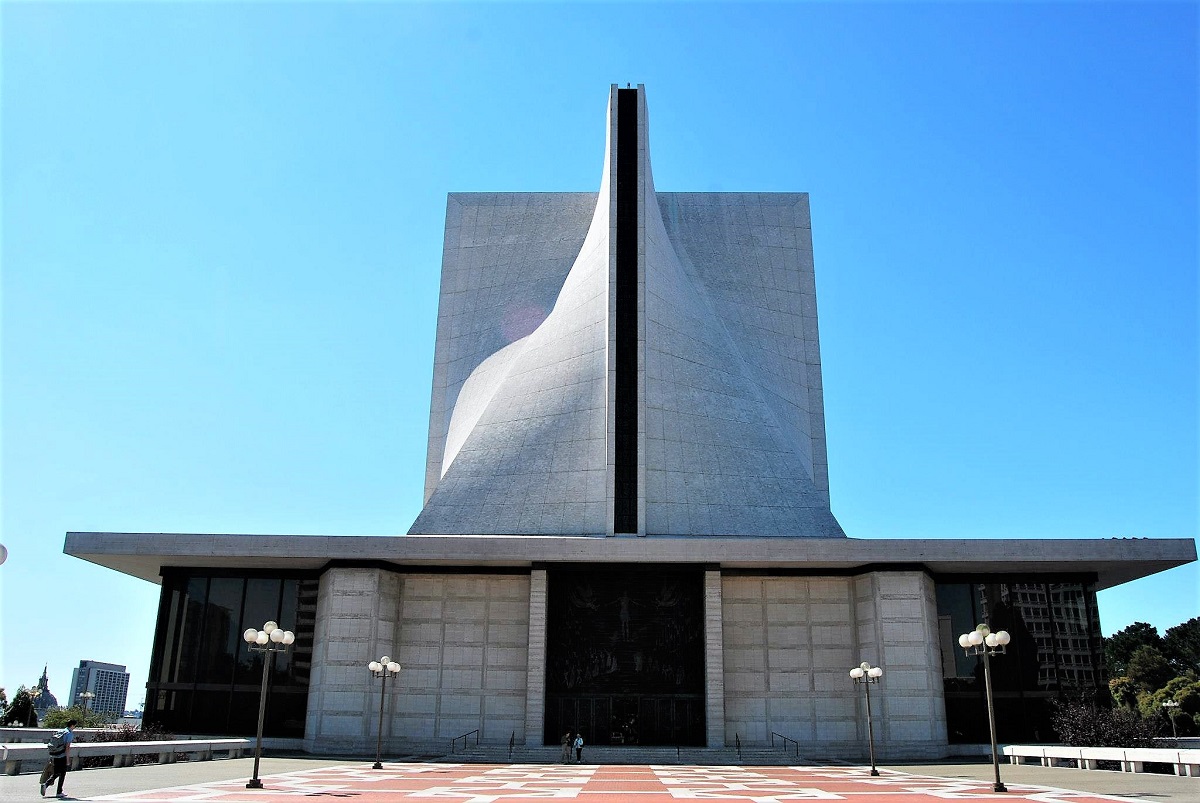

2012-08-14 - Cathedral exterior (Photograph by Stephen Schnurr/Database Manager)
Unknown - Console and Pipe Display (Photograph by Dave Christensen (1970s)/Database Manager)

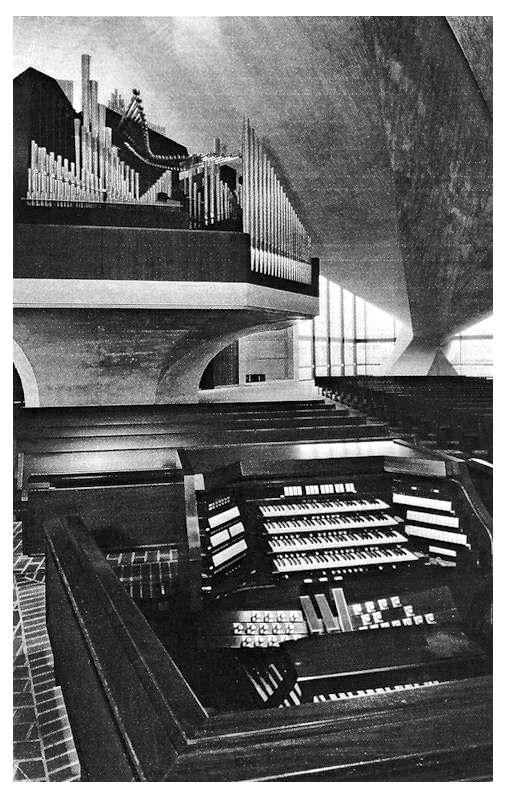

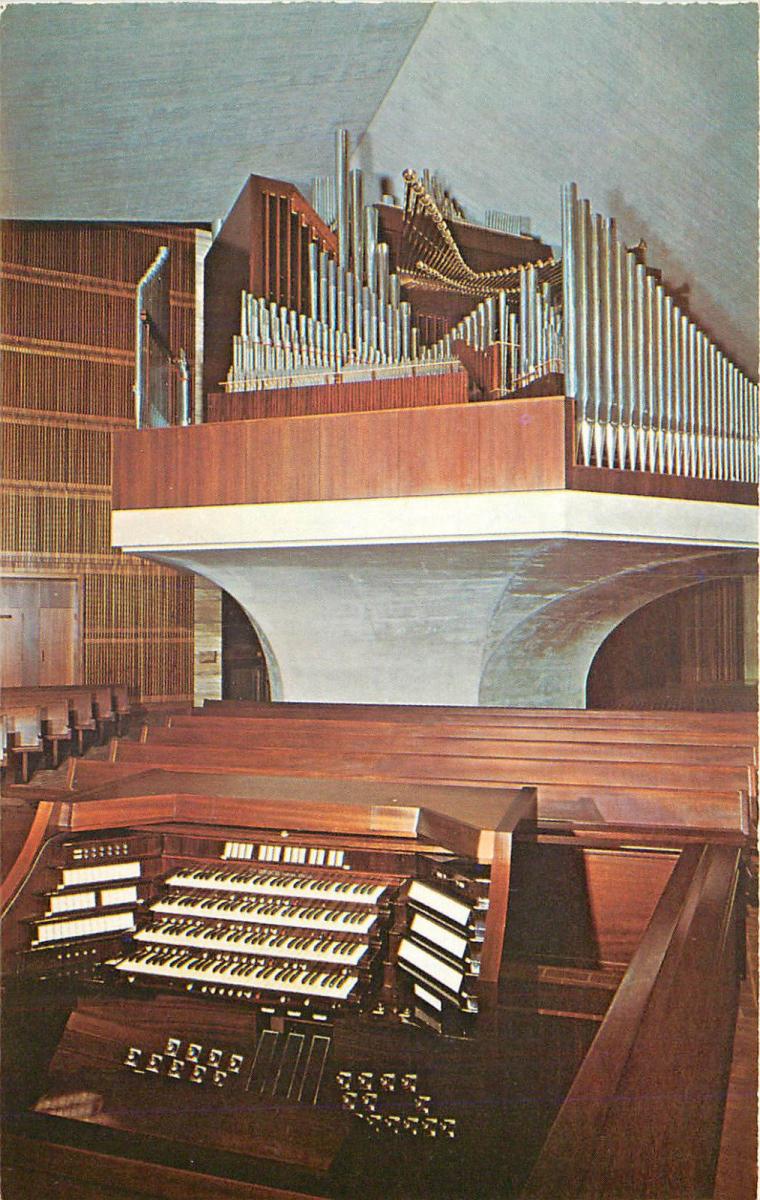

Unknown - Organ atop pedestal and console, ca. 1971. (Photograph by Mike Roberts/Database Manager)

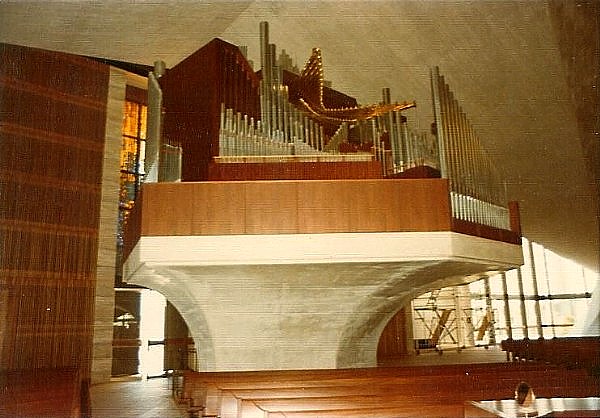

1975-02-22 - Organ (Photograph courtesy James R. Stettner/Database Manager)

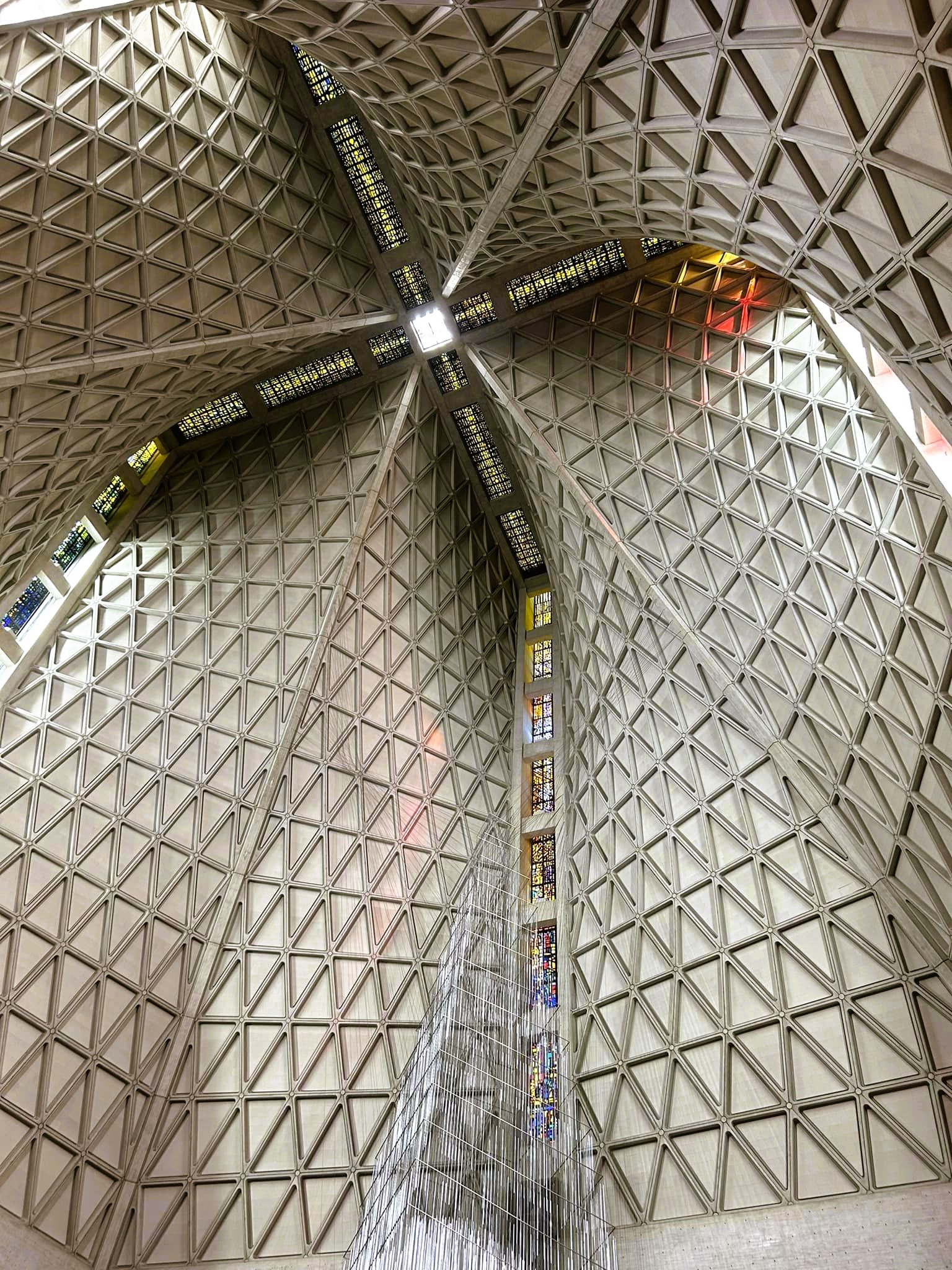

2024-07-03 - Church interior (Jason Farris/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 64 stops
- 72 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-09-22 - The organ is on the right side on a concrete pedestal. The console is on the floor. -Database Manager
2012-04-29 - Updated through online information from Timothy Tikker. -- The brass horizontal reed is named "Trompeta real" (not "Trumpeta" as per the cathedral website). Metal pipes are 55% tin, except mixtures and single-rank stops above 2' pitch which are 70% tin, and the Swell 16 Contrafagotto, Pedal 16' Dulciana, 32' Contrabombarde and 16' Bombarde, which are tin-plated zinc. The Swell 16' Bourdon is unified with the 8'; this rank has mahogany pipes, as does the Pedal 16' Subbass. The Swell Flauto dolce, Choir Erzaehler and Positiv Sesquialtera II all begin at tenor C. The Swell 16' Contrafagotto is half-length, as are the lowest eight notes of the Pedal 32' Contrabombarde. The Positiv 16' Dulzian and 4' Musette are quarter-length. Changes were made in the Pedal a few years after installation: the 32' Resultant was replaced with an electronic Contra Bourdon; a 16' electronic Principal was added, and the original 16' Principal was relabeled "Dulciana." -Database Manager
Stoplist
Source: Taken from the console 2017
Fratelli Ruffatti (1971)
St. Mary's Roman Catholic Cathedral
San Francisco, CA
Fratelli Ruffatti 1971 4 manuals, 72 registers, 64 stops, 89 ranks
___________________________________________________________________________
GREAT ORGAN (II) SWELL ORGAN (III)
16' Quintadena 61 16' Bourdon 73
8' Principal 61 8' Geigen Principal 61
8' Rohrflute 61 8' Bourdon (fr. 16') --
8' Gemshorn 61 8' Flauto Dolce 61
4' Octave 61 8' Flauto Celeste (TC) 49
4' Spitzflute 61 8' Viola da Gamba 61
2 2/3' Quinte 61 8' Viole Céleste 61
2' Super Octave 61 4' Oktav Geigen 61
1 1/3' Mixture IV 244 4' Nachthorn 61
2/3' Scharff IV 244 2' Flautino 61
8' Trompette 61 2' Mixture VI 366
8' Trompeta Real 61 16' Contra Fagotto (L/2) 61
(horizontal) 8' Trompette 61
8' Oboe 61
CHOIR ORGAN (I) 4' Clairon 61
8' Viola Pomposa 61 Tremulant
8' Viola Celeste 61
8' Holzgedeckt 61 PEDAL ORGAN
8' Erzähler 61 32' Contra Bourdon -- *
8' Erzähler Celeste (TC) 49 16' Principal 32
4' Principal 61 16' Subbass 32
4' Flûte à Cheminée 61 16' Bourdon (Sw.) --
2 2/3' Nazard 61 16' Quintadena (Gt.) --
2' Waldflute 61 8' Octave 32
1 3/5' Tierce 61 8' Flute 32
2/3' Kleinmixture III 183 4' Choralbass 32
8' Clarinetto 61 4' Nachthorn 32
8' Trompeta Real (Gt.) -- 2' Flute 32
Tremulant 2 2/3' Rauschpfeife III 96
2' Mixture V 160
POSITIV ORGAN (IV) 32' Contra Bombarde 32
8' Gedeckt 61 16' Bombarde 32
8' Quintedena 61 16' Rear Bombarde -- **
4' Principal 61 16' Contra Fagotto (Sw.) --
4' Koppelflute 61 16' Dulzian (Pos.) --
2' Octave 61 8' Trompette 32
1 1/3' Quintflute 61 4' Clairon 32
1' Sifflöte 61
2 2/3' Sesquialtera II (TC) 98 * resultant with SW Bourdon 16'
1/2' Scharff IV 244 ** from Contra Bombarde 32'
1/4' Zimbel III 183
16' Dulzian (L/4) 61
8' Krummhorn 61
4' Musette (L/4) 61
Tremulant
COUPLERS
Choir to Pedal 8 4
Great to Pedal 8 4
Swell to Pedal 8 4
Positiv to Pedal 8 4
Choir to Great 16 8 4
Swell to Great 16 8 4
Positiv to Great 16 8 4
Swell to Choir 16 8 4
Positiv to Choir 16 8 4
Positiv to Swell 16 8 4
[Received from Steven E. Lawson 2017-02-12]
