St James Roman Catholic Cathedral: Sanctuary, chancel
804 9th Avenue
Seattle, WA
OHS convention: 2008
Images
2019-03-17 - Building exterior (Photograph by Joe Mabel, submitted by Jeff Scofield/Jeff Scofield)

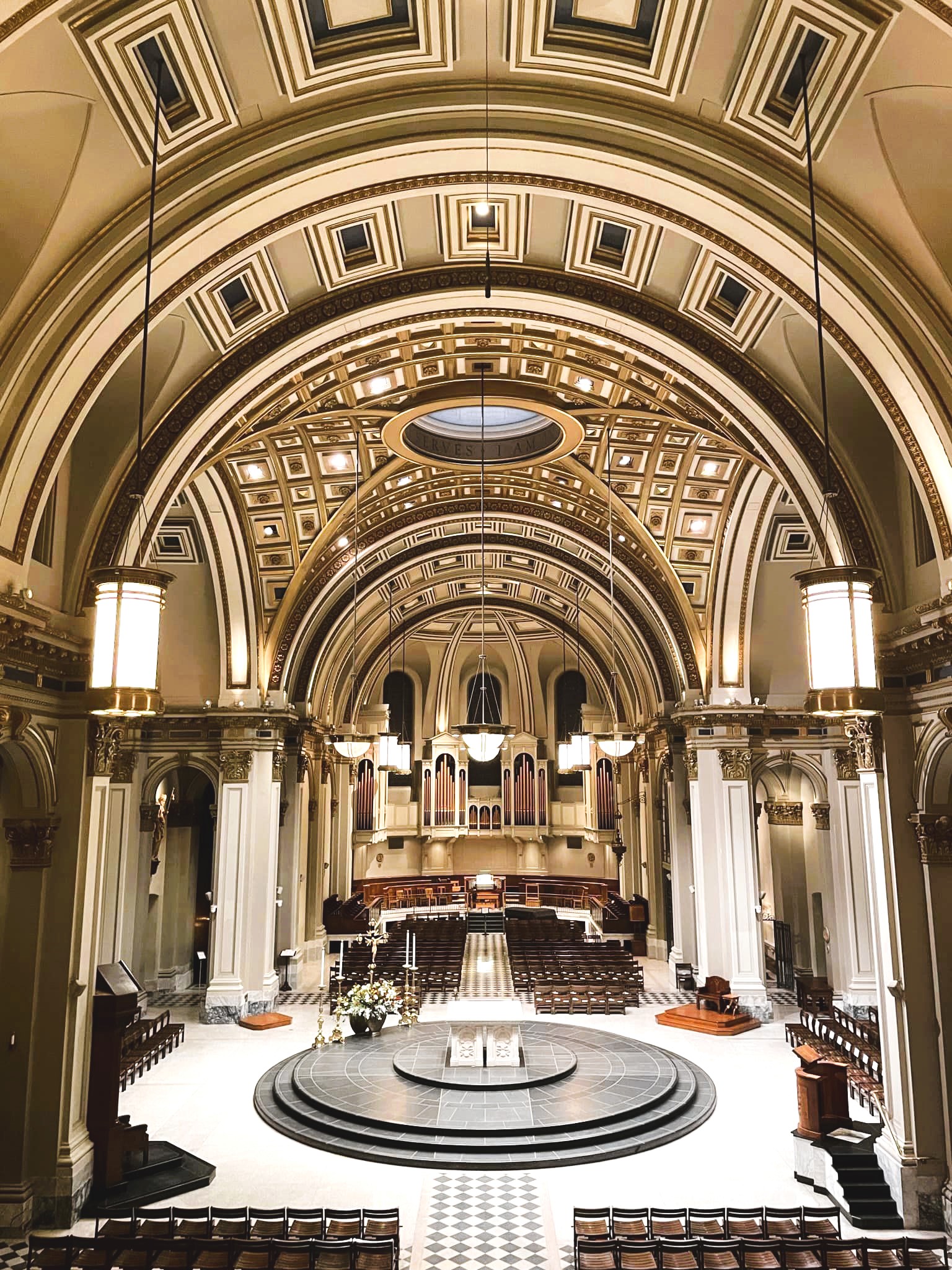

2023-10-30 - View from gallery to front (Photograph by Damin Spritzer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

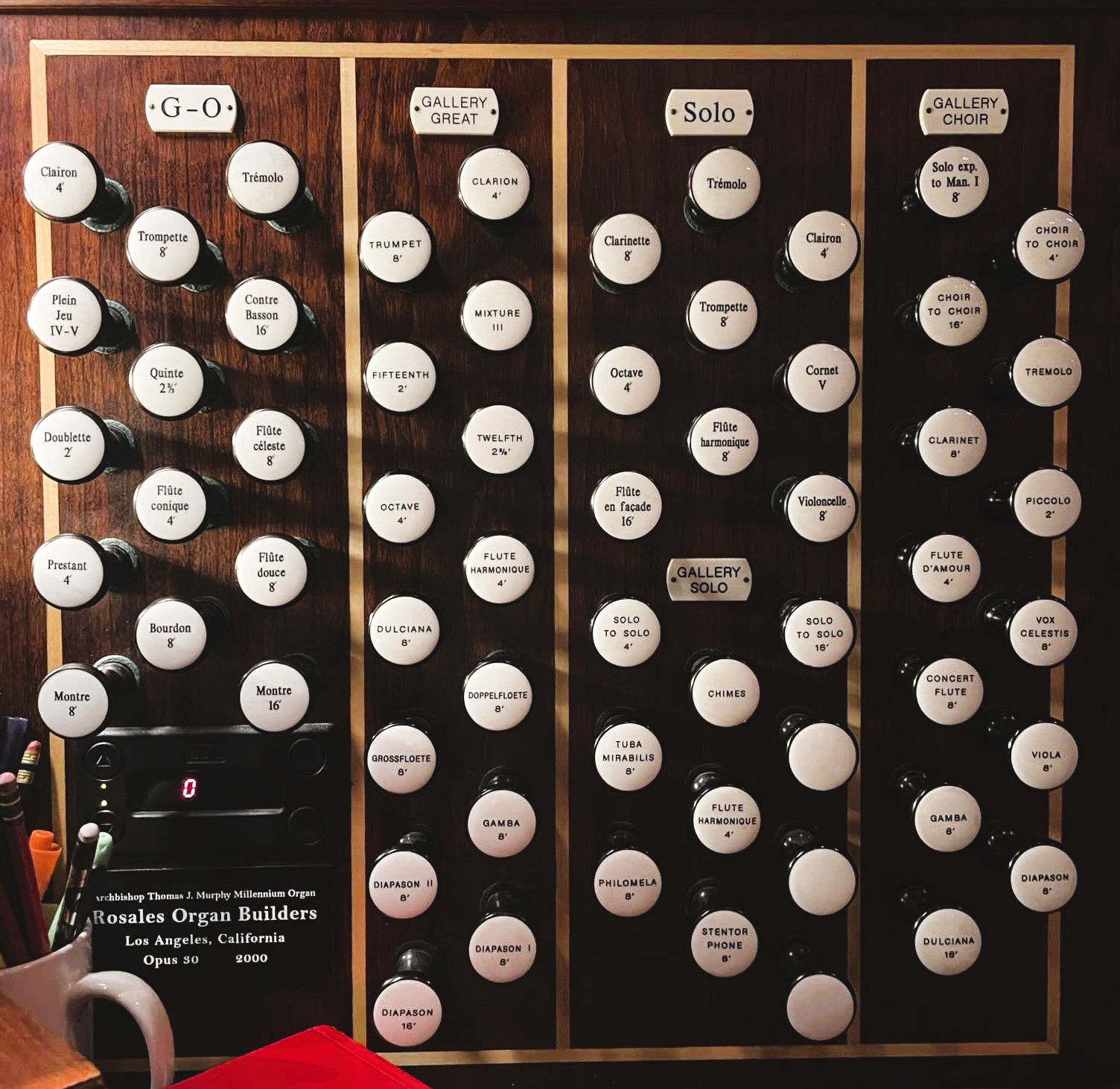

2023-10-30 - Right stopjamb (Photograph by Damin Spritzer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2023-10-30 - Left stopjamb (Photograph by Damin Spritzer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

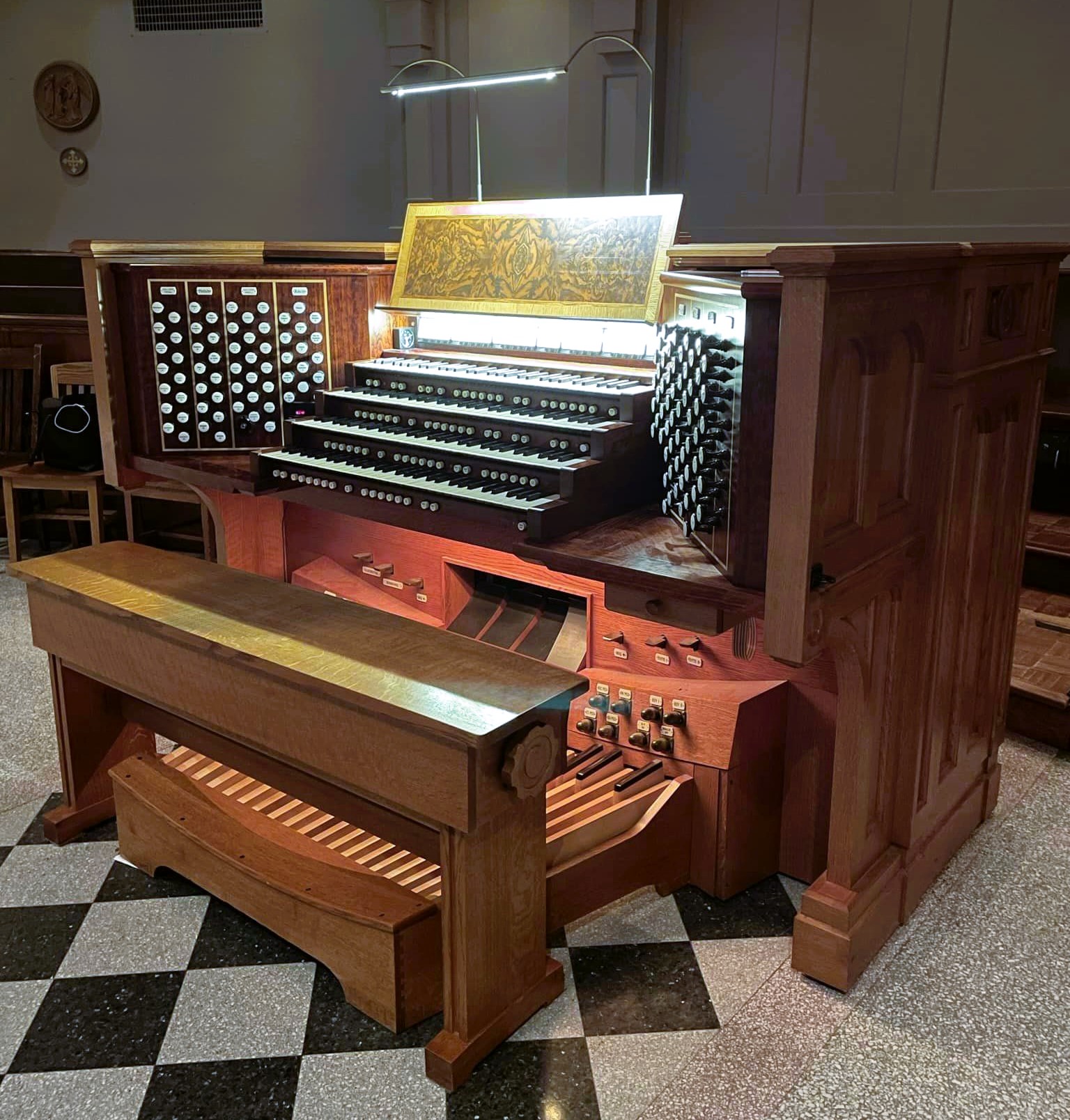

2023-10-30 - Chancel console (Photograph by Damin Spritzer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

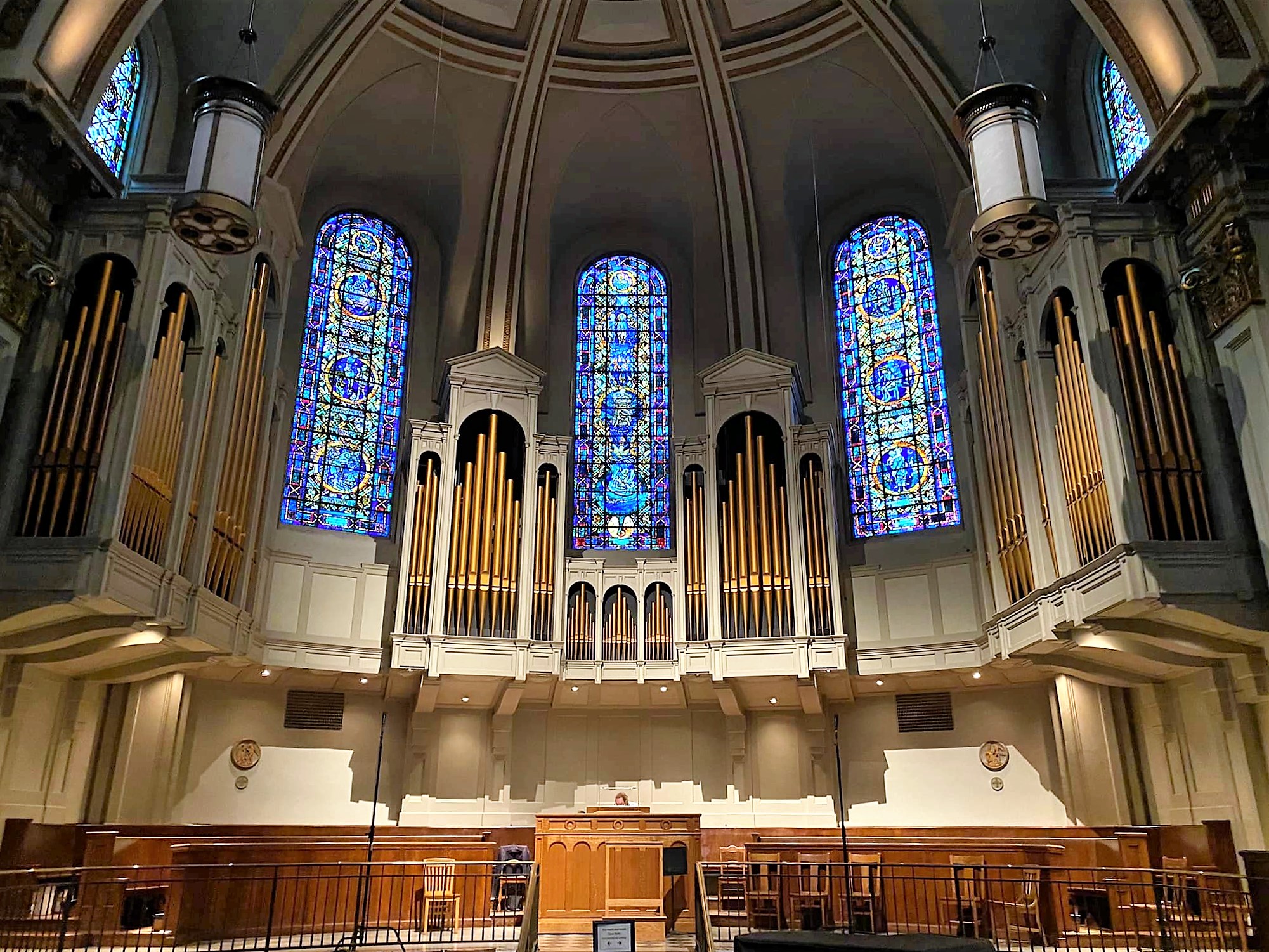

Unknown - Organ Case (Photograph by River Valley Chapter AGO, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2013-06-05 - Console: right stop jamb (Photograph by James R. Stettner/Database Manager)
2013-06-05 - Console: left stop jamb (Photograph by James R. Stettner/Database Manager)
2013-06-05 - Central casework (Grand Orgue) (Photograph by James R. Stettner/Database Manager)
2013-06-05 - Left casework (Recit) (Photograph by James R. Stettner/Database Manager)
2013-06-05 - Right casework (Solo) (Photograph by James R. Stettner/Database Manager)

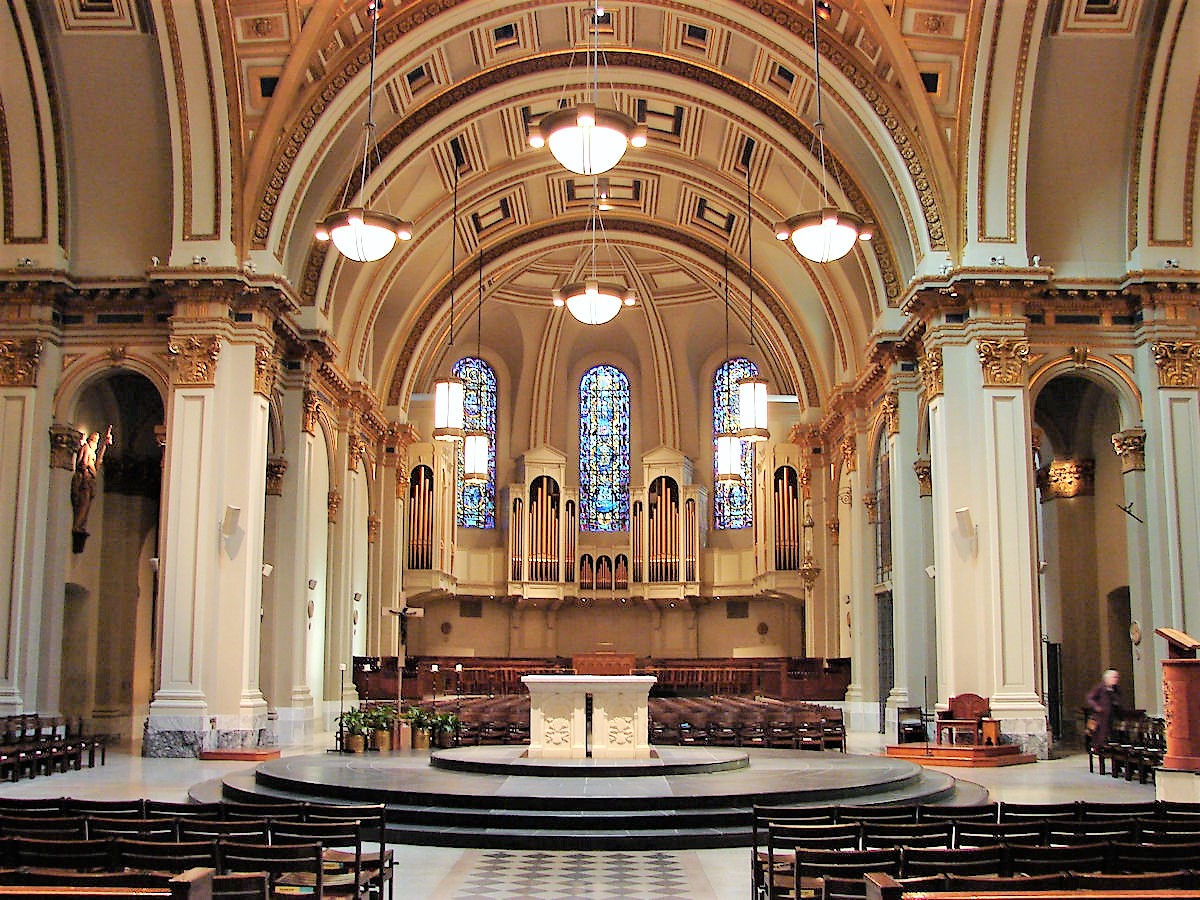

2006-03-23 - Front of the Cathedral with the organ cases (Photograph by Shane Morris Wise/Database Manager)
2006-03-23 - Organ cases (Photograph by Shane Morris Wise/Database Manager)

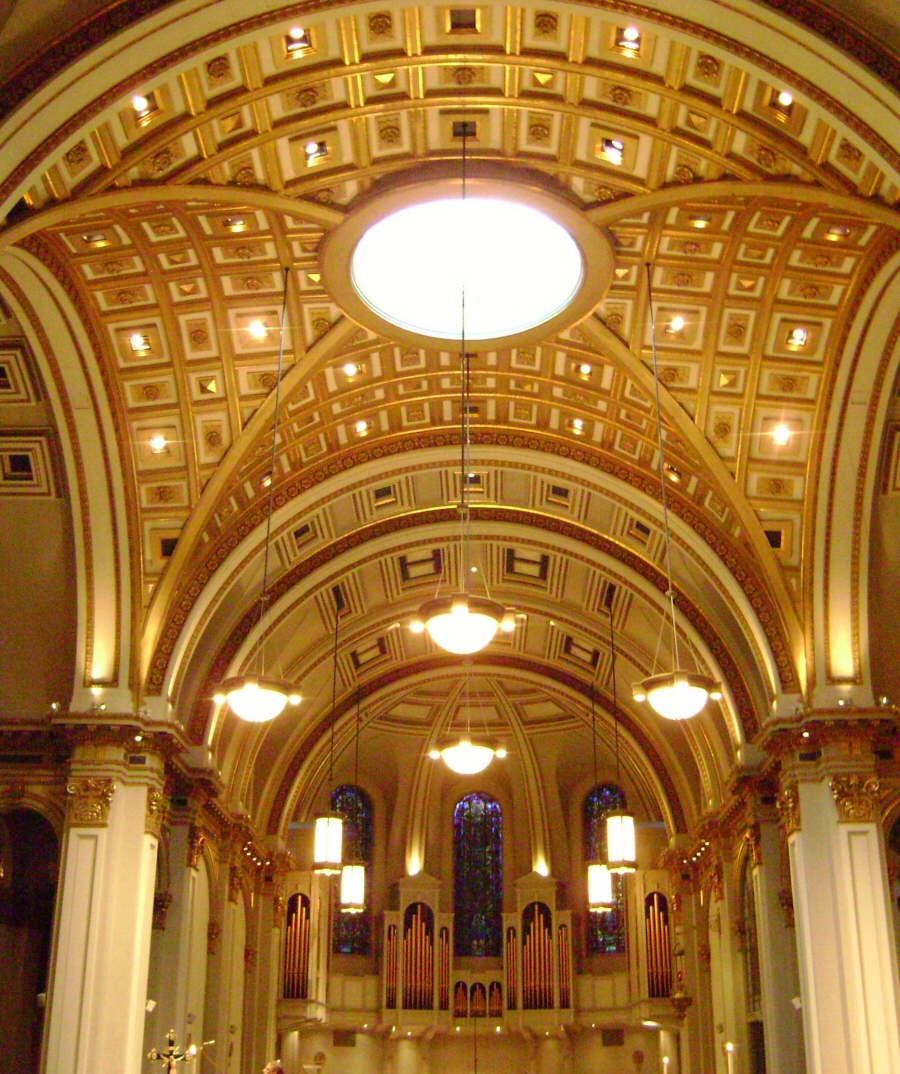

2008-07-18 - Dome and organ (Photograph by Jim Cook/Database Manager)

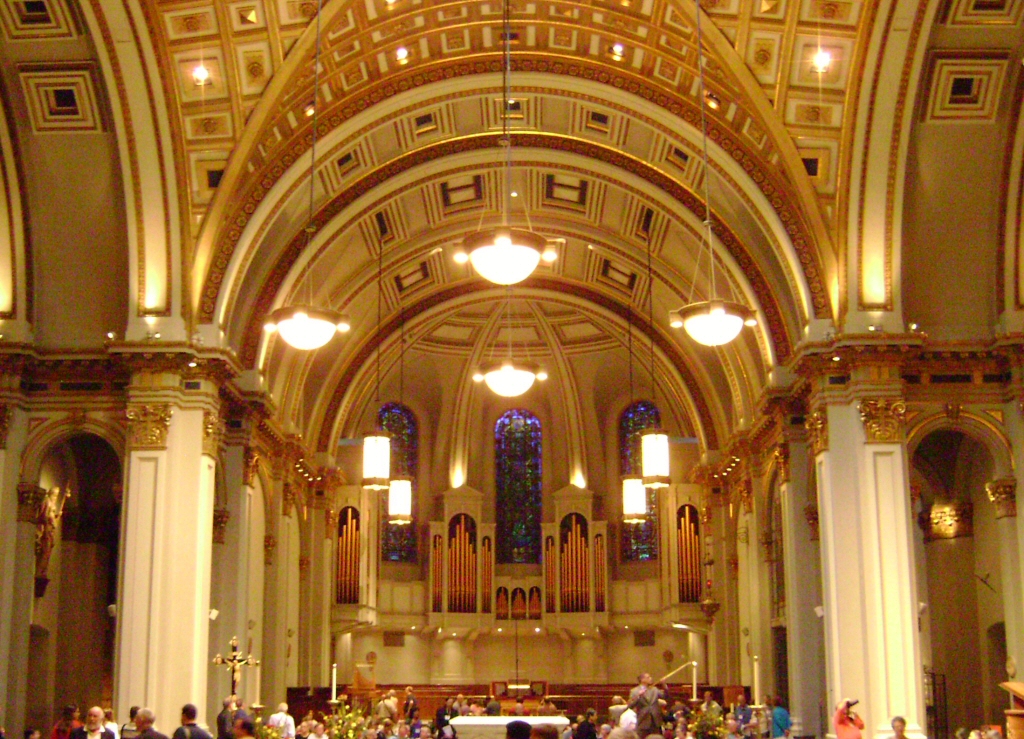

2008-07-18 - Dome and organ (Photograph by Jim Cook/Database Manager)

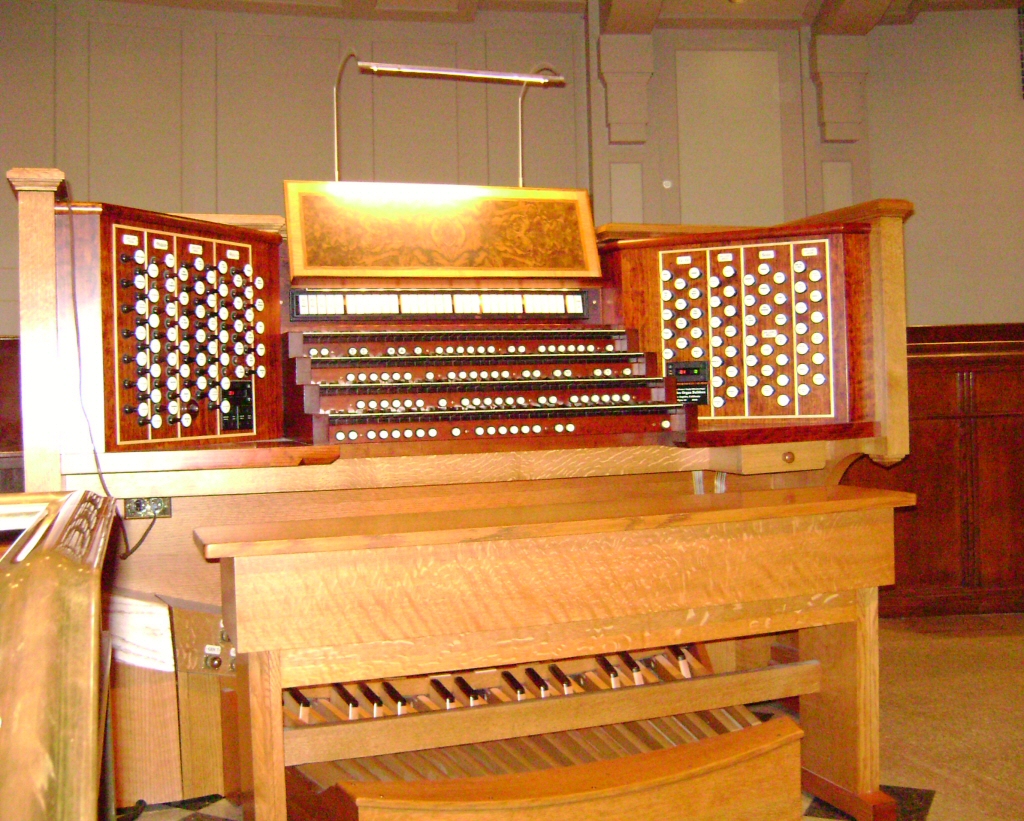

2008-07-18 - Console (Photograph by Jim Cook/Database Manager)

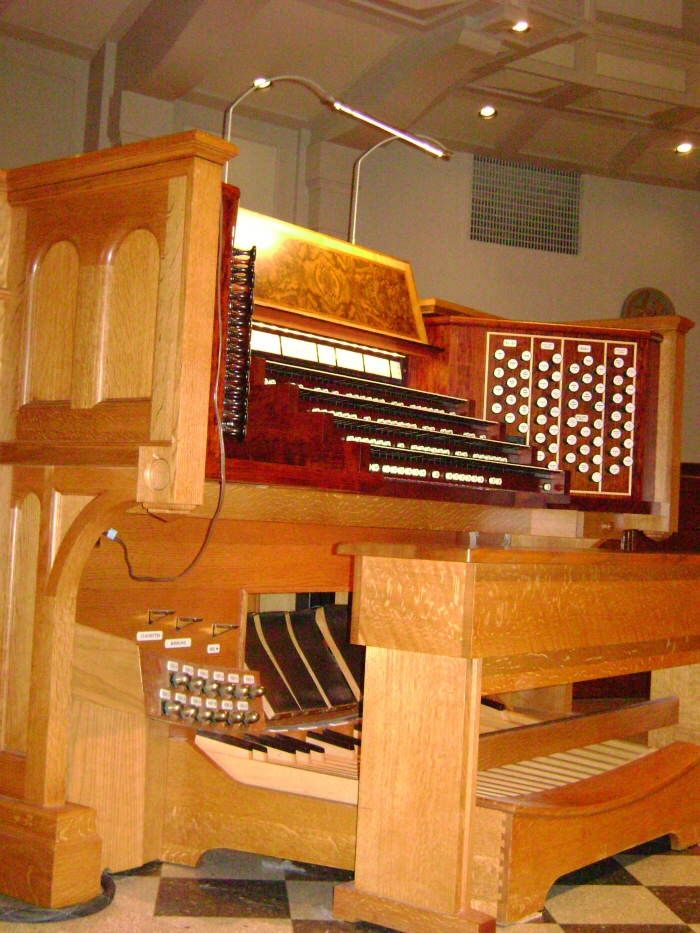

2008-07-18 - Console (Photograph by Jim Cook/Database Manager)
2008-07-18 - Church exterior (Photograph by Jim Cook/Database Manager)
2008-07-18 - Church exterior (Photograph by Jim Cook/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 4 manuals
- 111 stops
- 101 registers
- 8 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-10-25 - Identified through online information from James R. Stettner. -- As with the former Casavant...the Rosales organ has a "Master Console" which controls both its own resources, and those of the 1907 Hutchings-Votey in the rear gallery. The Rosales organ contains five ranks from the former Casavant instrument. -Database Manager
2012-09-26 - Updated through online information from Joseph Adam. -Database Manager
2017-08-20 - Updated by Sean Haley, naming this as the source of information: Dedication program. Sean Haley also listed this individual as a source of information: Manuel Rosales.<br>
As with many notable collaboratively built instruments by the Rosales firm, this organ was a joint venture with P&S of Brandon, England. The retained ranks from the 1926 Casavant are the Grande-Orgue 8' Flute Douce, and 8' Flute Celeste; and the Recit 16' Bourdon, 8' Viole de Gambe, and 8' Voix Celeste. The substantial 32'-16' Gallery Bombarde (with one note to 64': B), added as the last piece of the Rosales project, is installed in the South side of the Hutchings-Votey instrument and is voiced on a generous 12" of wind. It is quite a commanding pedal voice when compared to the original Hutchings 16' Trombone. -Database Manager
Stoplist
From 2008 convention program Source: Source not recorded Date not recorded
St. James Cathedral, Seattle, WA
East Apse Organ
2000 Rosales Organ Builders Opus 30
Grand-Orgue:
16' Montre
8' Montre
8' Bourdon
8' Flute douce
8' Flute celeste
4' Prestant
4' Flute conique
2 2/3' Quinte
2' Doublette
IV-V Plein jeu
16' Contre Basson
8' Trompette
4' Clarion
Tremolo
Recit:
16' Bourdon
8' Diapason
8' Flute traversiere
8' Viole de Gambe
8' Voix celeste
4' Octave
4' Flute octaviante
2 2/3' Nasard
2' Octavin
1 3/5' Tierce
II-IV Plein Jeu harmonique
8' Trompette
8' Basson-Hautbois
8' Voix humaine
Tremolo
Solo:
16' Flute en facade
8' Violoncelle
8' Flute harmonique
4' Octave
V Cornet
8' Trompette
8' Clarinette
4' Clarion
Pedale:
32' Bourdon
16' Montre
16' Soubasse
8' Octave
8' Flute
8' Basse
4' Flute en facade
16' Bombarde
16' Basson
8' 1ere Trompette
8' 2eme Trompette
4' Clarion
[Received from Connor Annable 2011-08-24.]
Revised from 2008 convention program (master console) Source: Source not recorded Date not recorded
St. James Cathedral, Seattle, WA
West Gallery Organ
1907 Hutchings-Votey Organ Co., Opus 1623
Gallery Great:
16' Diapason
8' Diapason I
8' Diapason II
8' Doppel Floete
8' Gross Floete
8' Gamba
8' Dulciana
4' Octave
4' Harmonic Flute
2 2/3' Twelfth
2' Fifteenth
III Mixture
8' Trumpet
4' Clarion
Gallery Swell:
16' Bourdon
8' Diapason
8' Salicional
8' Unda Maris
8' Stopped Diapason
8' Quintadena
4' Octave
4' Flauto Traverso
2 2/3' Nazard
2' Flautino
V Dolce Cornet
16' Contra Fagotto
8' Cornopean
8' Oboe
8' Vox Humana
4' Clarion
Tremolo
16' Swell to Swell
4' Swell to Swell
Gallery Choir:
16' Dulciana
8' Diapason
8' Gamba
8' Viola
8' Vox Celestis
8' Concert Flute
4' Flute d'Amour
2' Piccolo
8' Clarinet
Tremolo
16' Choir to Choir
4' Choir to Choir
Gallery Solo:
8' Stentorphone
8' Philomela
4' Flute Harmonique
8' Tuba Mirabilis
16' Solo to Solo
4' Solo to Solo
Gallery Pedal:
32' Bourdon
16' Diapason
16' Violone
16' Bourdon
16' Lieblich Gedackt
16' Dulciana
10 2/3' Quint
8' Flute
8' Violoncello
16' Trombone
Bombarde Ravalement
32' Contra Bombarde
16' Bombarde
[Received from Connor Annable 2011-09-20.]
