St. Joseph's Catholic Church
1225 Gallatin Road, South
Madison, TN
Images

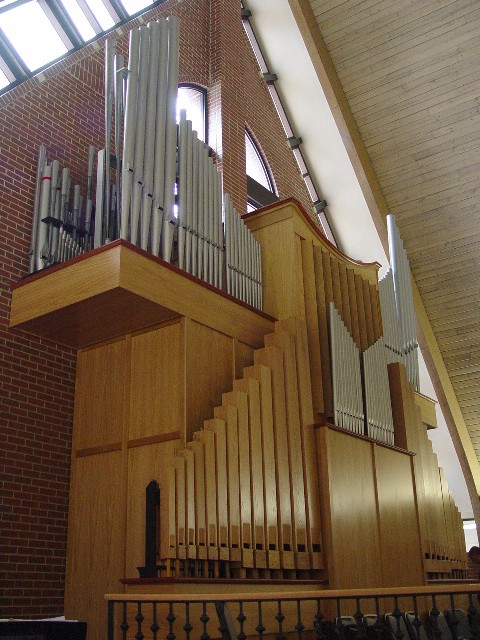

2006 - Organ vcase and pipework (Photograph by http://nashvillecatholicchurches.blogspot.com/2006/05/st-joseph.html?m=1, submitted by Kevin Coleman/Kevin)

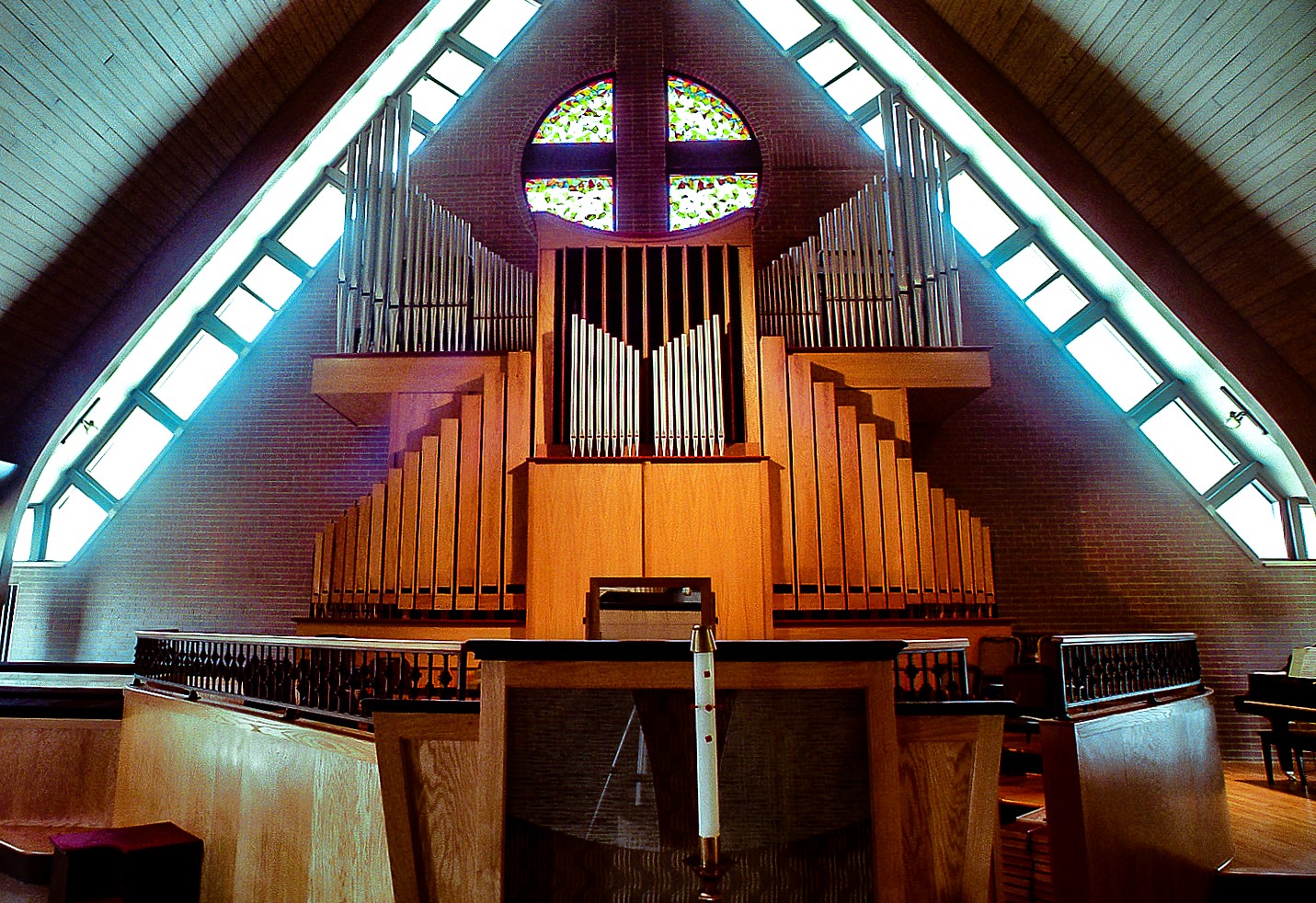

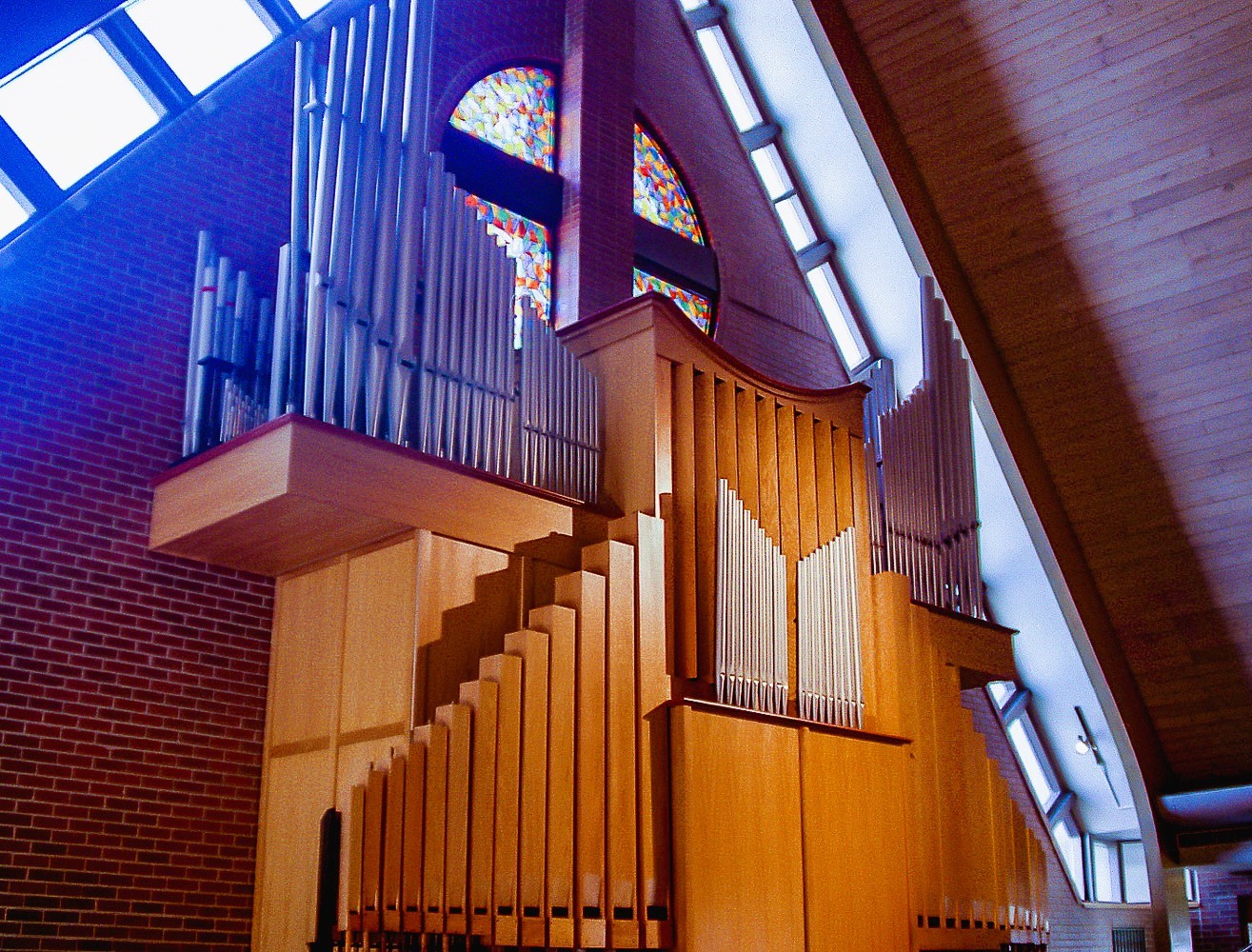

2007-03-24 - Exposed pipework (photographybystein.com, via Jeff Scofield/Jeff Scofield)

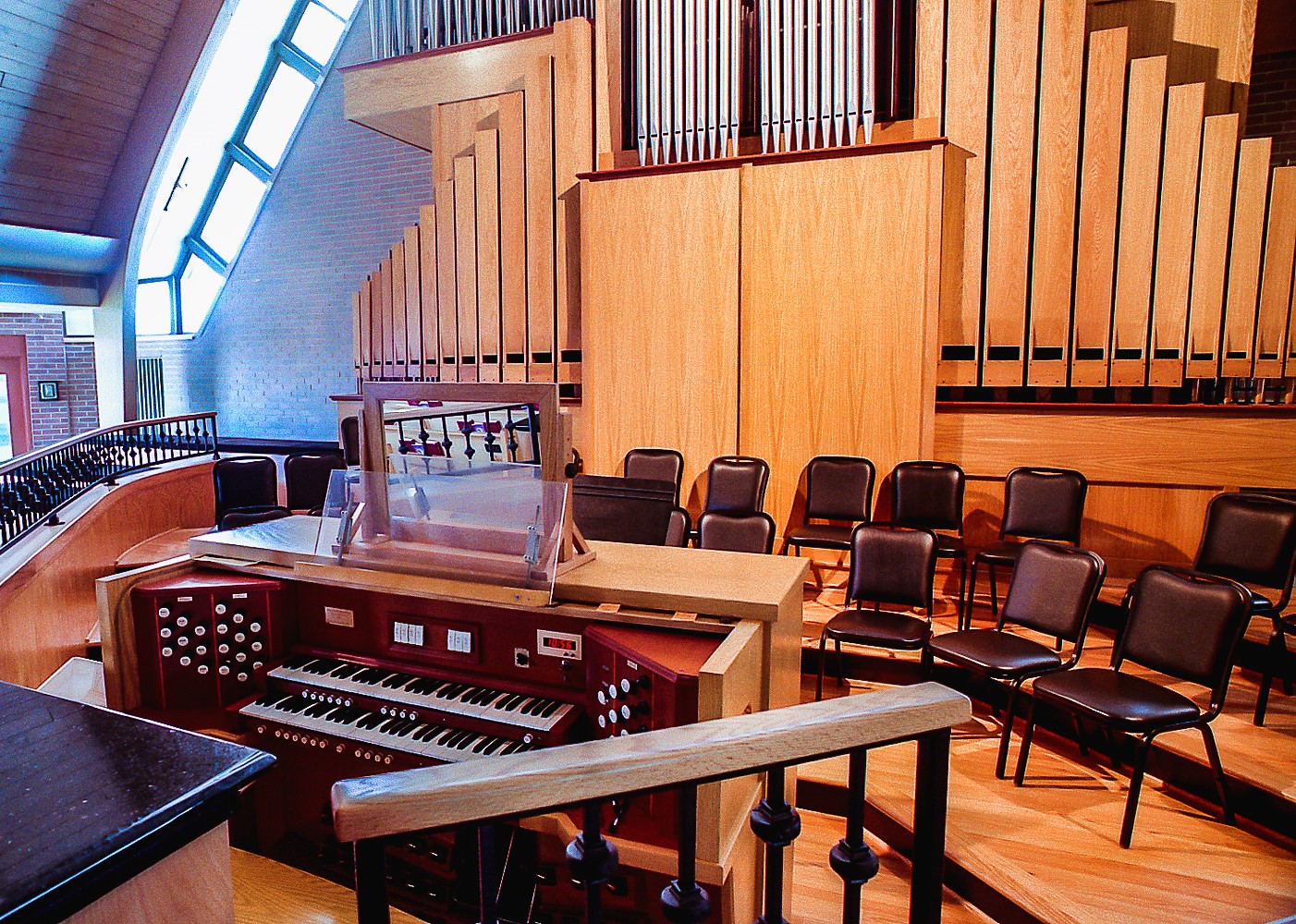

2007-03-24 - Organ and exposed pipes (photographybystein.com, via Jeff Scofield/Jeff Scofield)
2007-03-24 - Organ and exposed pipes (photographybystein.com, via Jeff Scofield/Jeff Scofield)

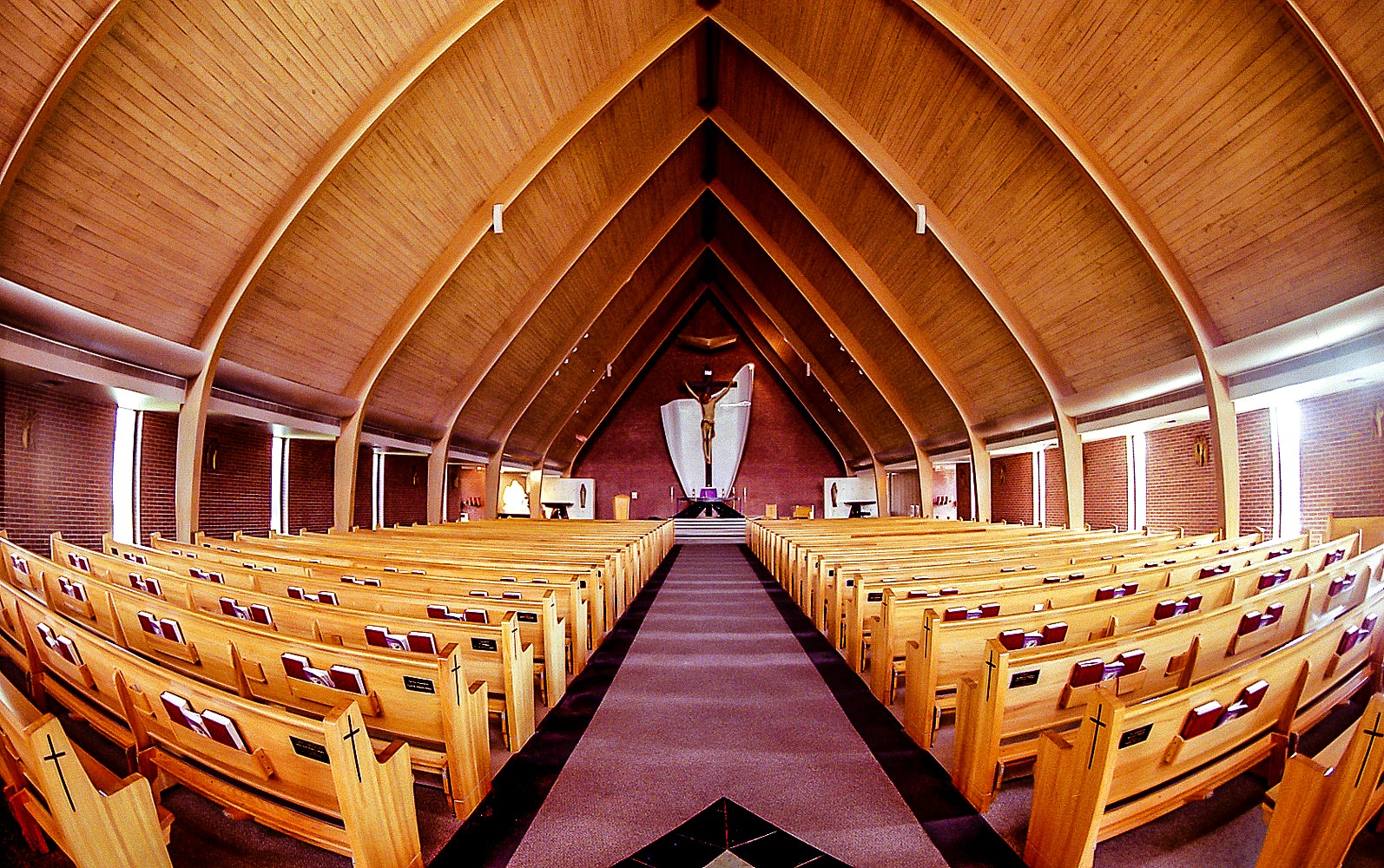

2007-03-24 - Church interior (photographybystein.com, via Jeff Scofield/Jeff Scofield)

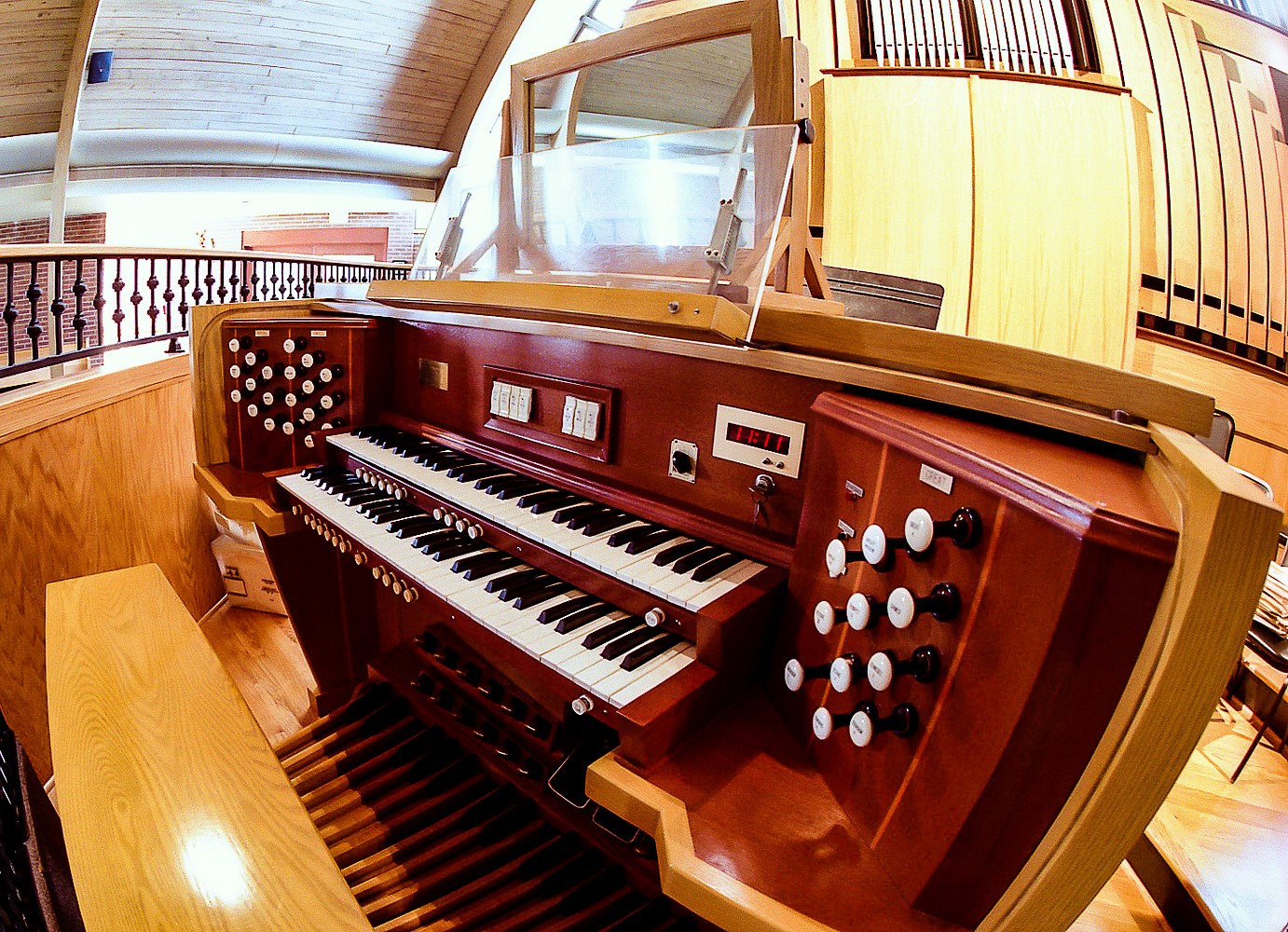

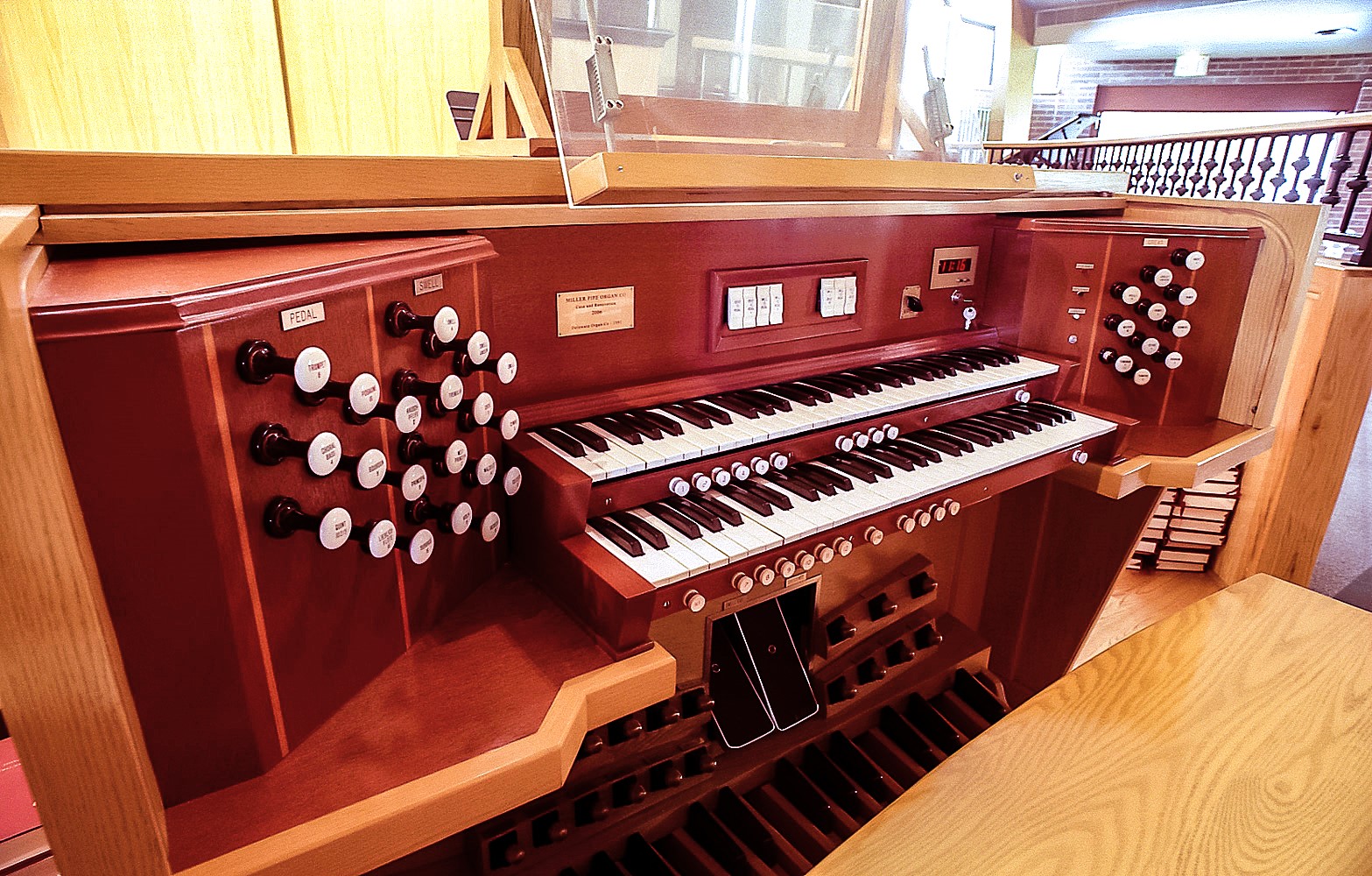

2007-03-24 - Console (photographybystein.com, via Jeff Scofield/Jeff Scofield)
2007-03-24 - Console (photographybystein.com, via Jeff Scofield/Jeff Scofield)

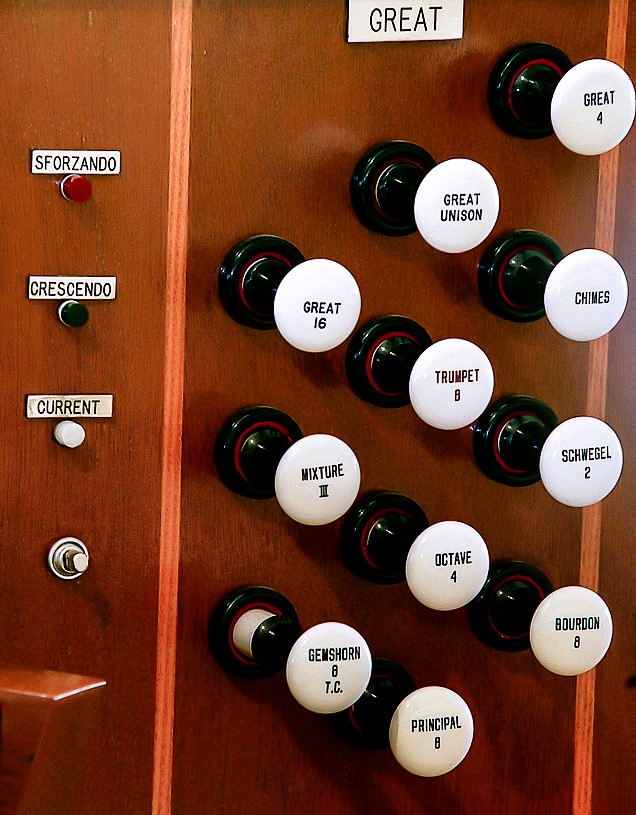

2007-03-24 - Left stopjamb (photographybystein.com, via Jeff Scofield/Jeff Scofield)

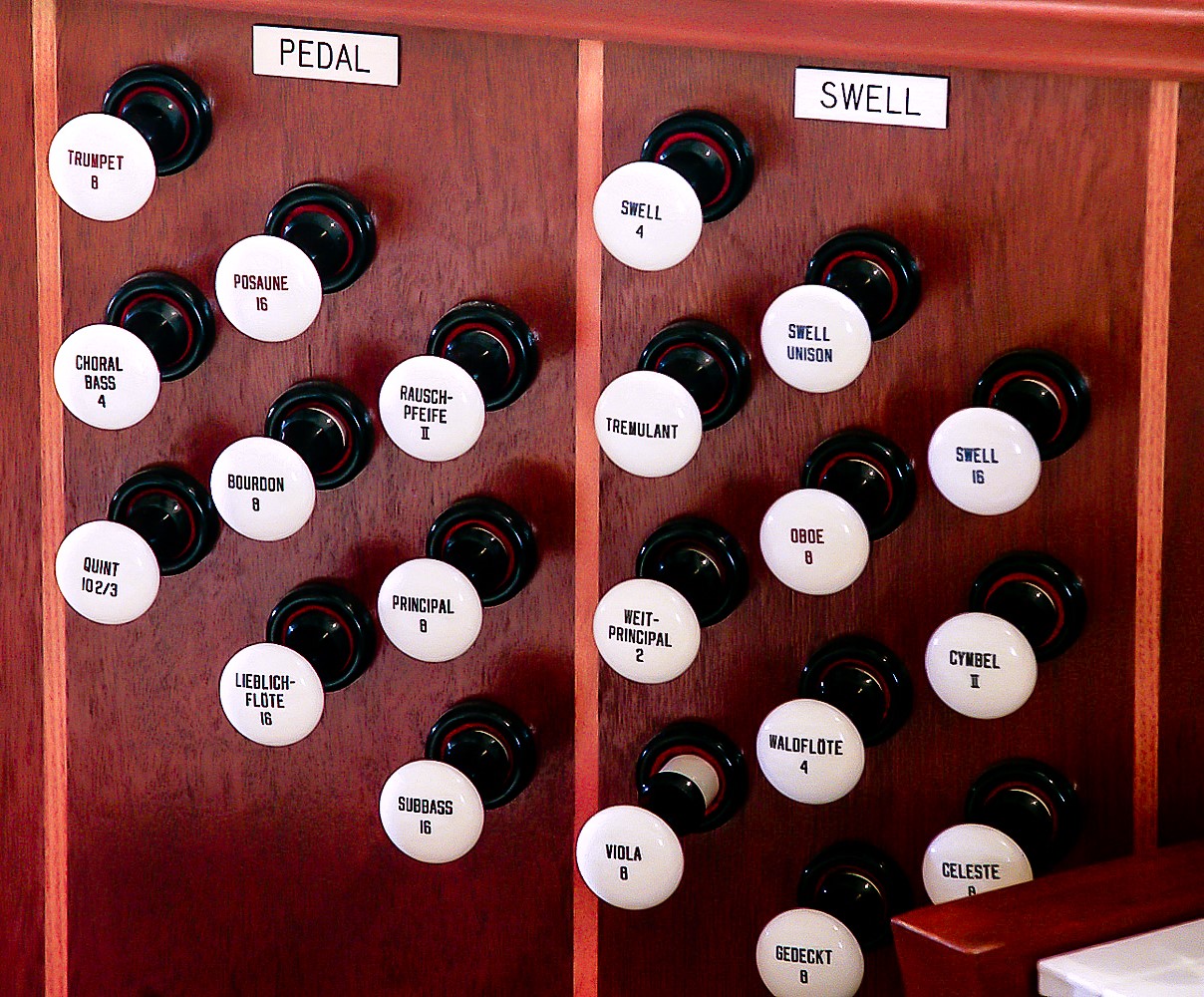

2007-03-24 - Right stopjamb (photographybystein.com, via Jeff Scofield/Jeff Scofield)

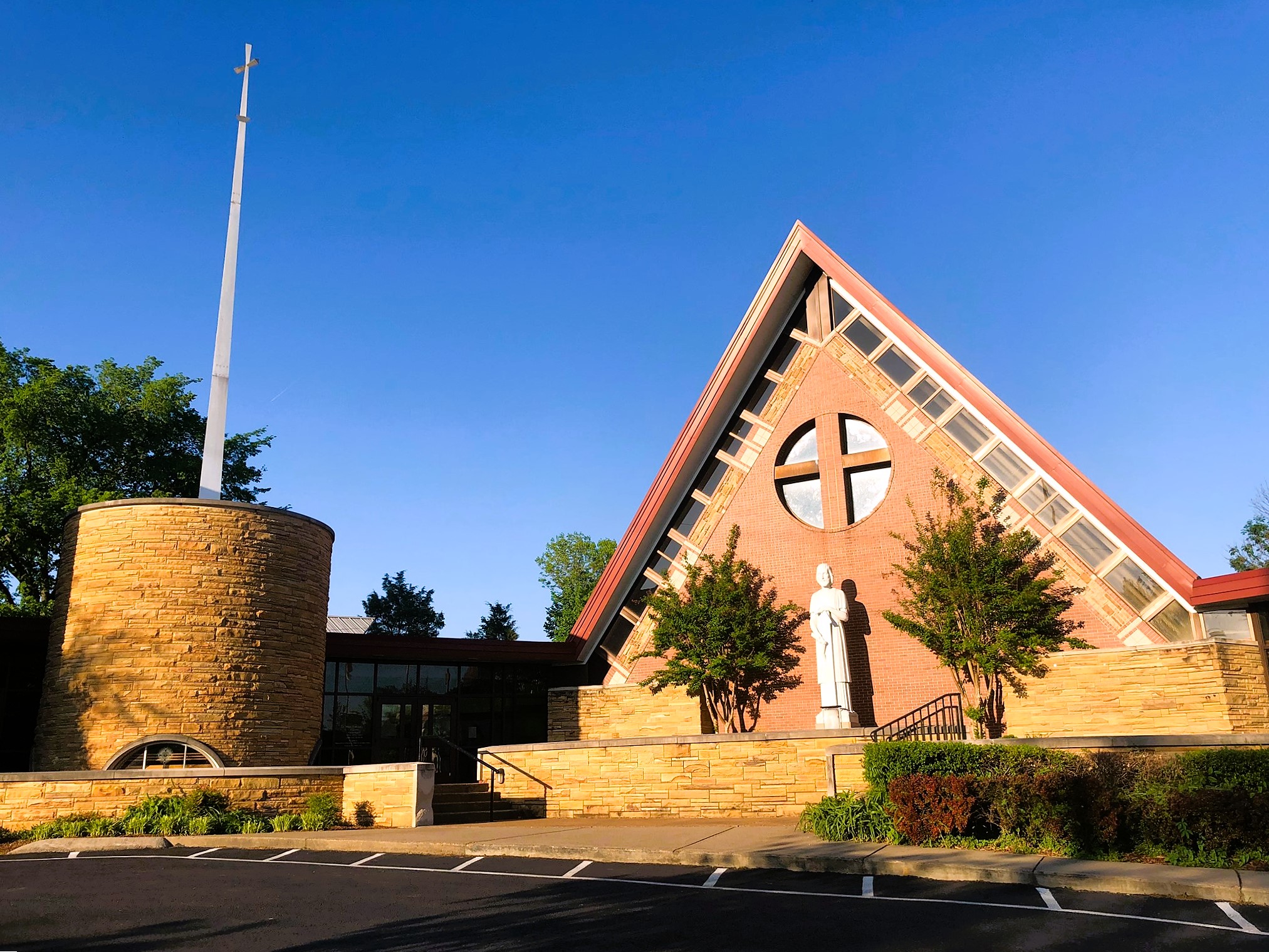

2023-05-19 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 14 stops
- 23 registers
- 3 divisions
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-11-04 - Identified through online information from Robert Todd. -- This 19-rank instrument was reconfigured in 2006 to accomodate major architectural changes in the building. The newly designed case and new electro-mechanical action were completed by the Miller Organ Co. in Louisville, Kentucky. -Database Manager
Stoplist
Source: Taken from the console by Ken Stein
GREAT Principal 8, Mixture III, Gemshorn 8, Schwegel 2, Octave 4, Bourdon 8, Trumpet 8, Chimes
SWELL Gedeckt 8, Viola 8, Celeste 8, Wald Flute 4, Weit Principal 2, Cymbal II, Tremulant, Oboe 8
PEDAL Subbass 16, Lieblichflöte 16, Quint 10 2/3, Principal 8, Choral Bass 4, Bourdon 8, Rauschpfeife II, Trumpet 8, Posaune 16
