Better Pipe Organ Database

Schantz Organ Co. Opus 1459 (1977)

St. Anne's Catholic Church: Church
450 E Washington Avenue
Bethlehem, PA

Images

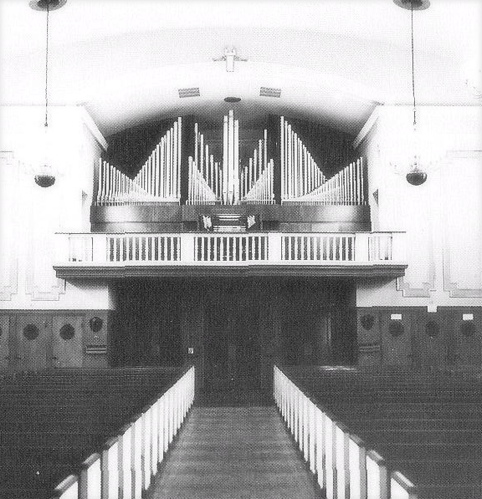

1977-10-01 - Nave, Gallery, and Pipe Display (Image from Schantz Promotional Material; used with permission/Database Manager)

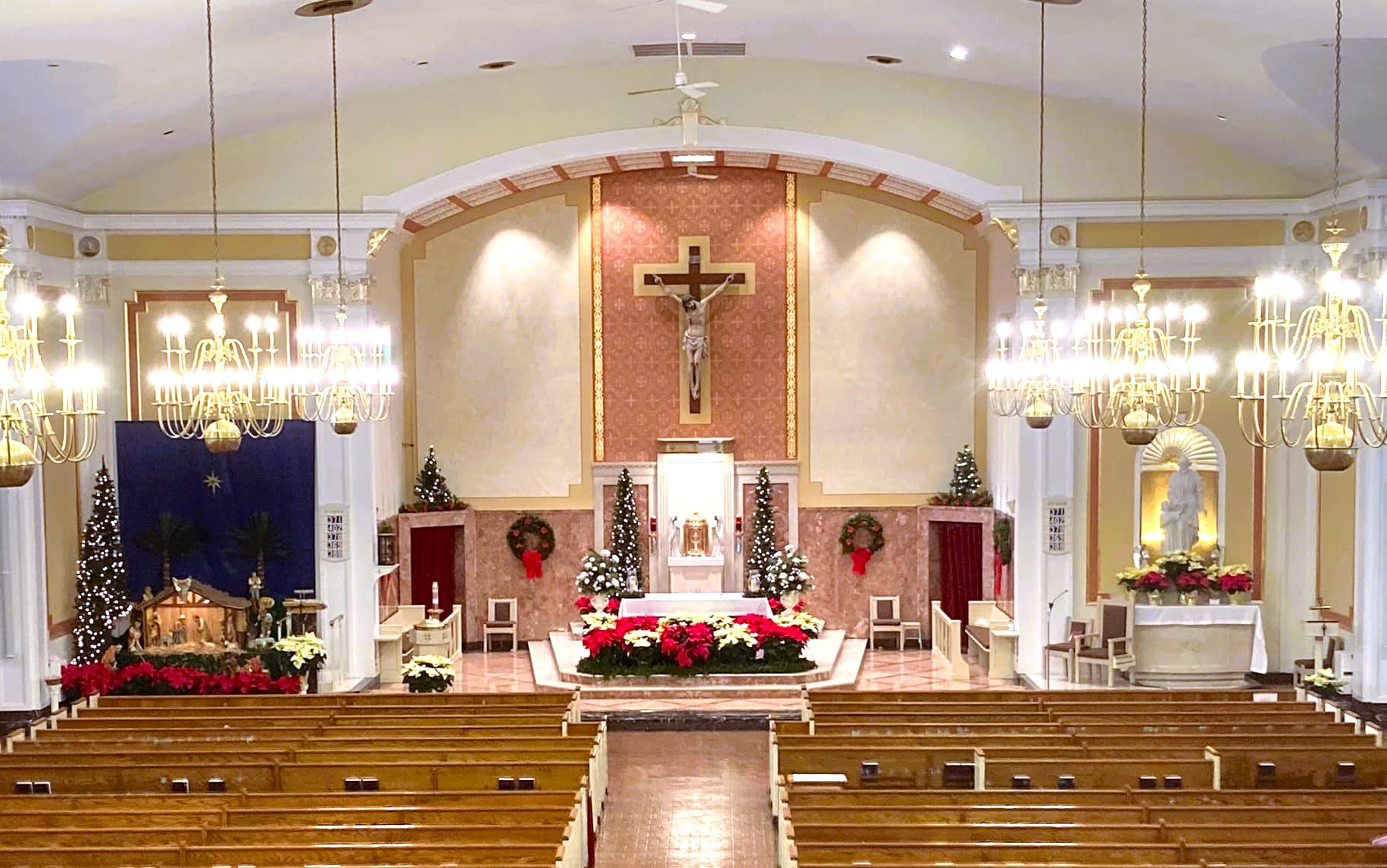

2024-12-24 - Church interior to front (Church Facebook via Jeff Scofield/Jeff Scofield)

2022 - Organ in rear gallery (John Brent, via Jeff Scofield/Jeff Scofield)

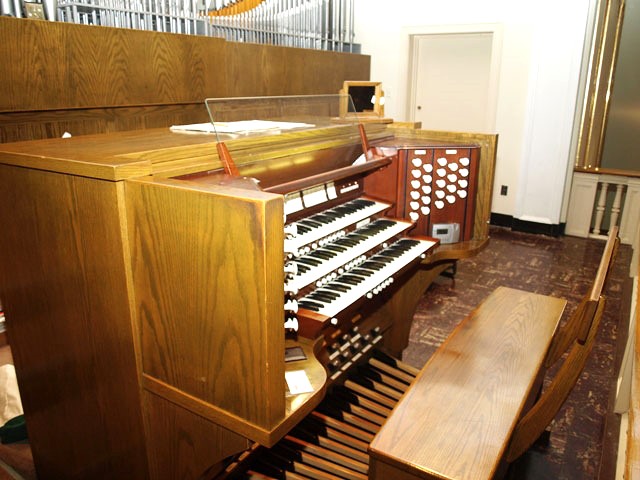

Unknown - Console (Lehigh Valley Chapter AGO, via Jeff Scofield/Jeff Scofield)

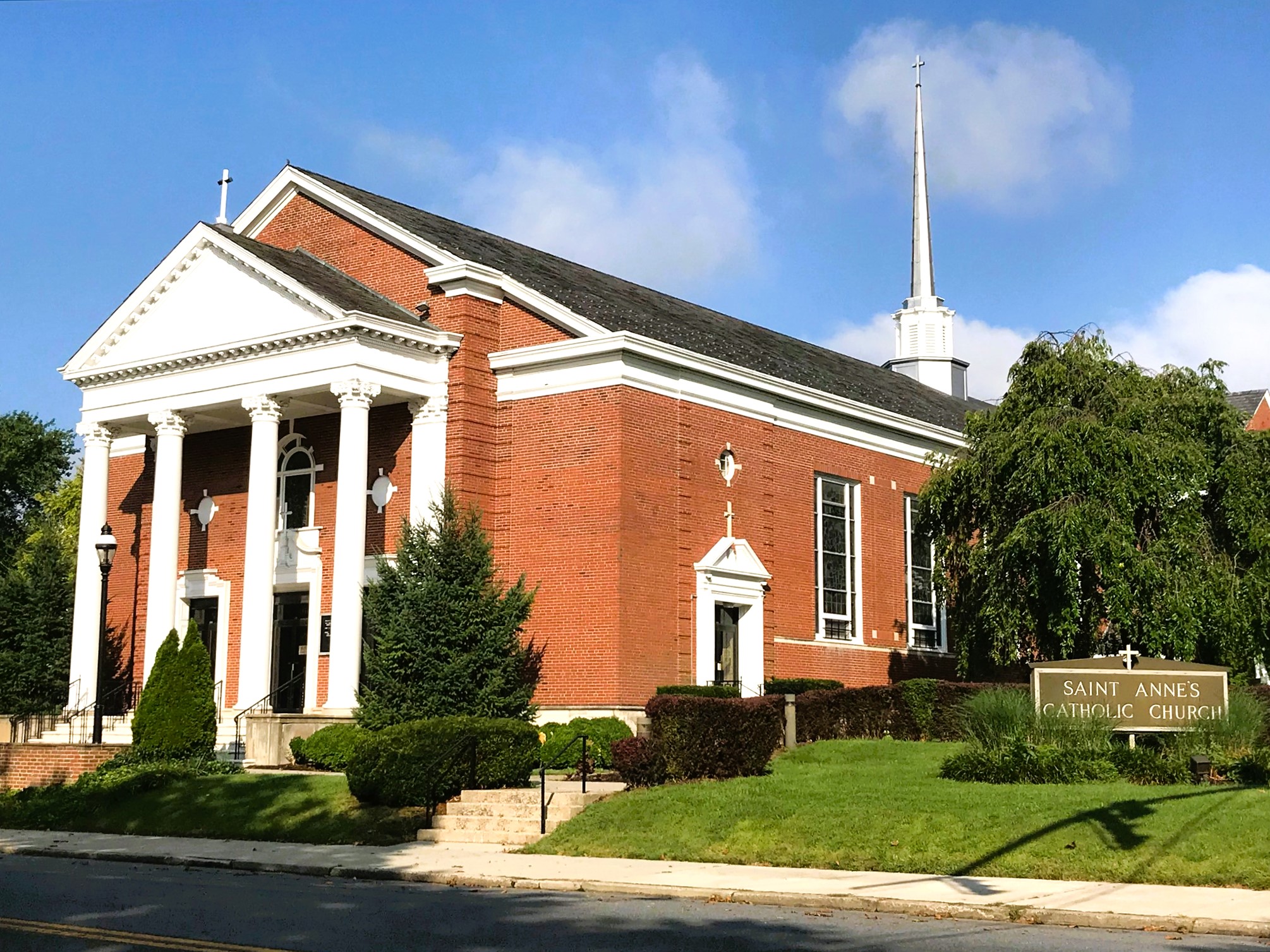

2022 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
41 stops
36 registers
4 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Has combination thumb pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-11-09 - Identified through on-line information from James R. Stettner. -Database Manager

2008-12-24 - Updated through on-line information from Jane Errera. -Database Manager

Stoplist

Stoplist from Schantz factory specifications Source: Source not recorded Date not recorded

Bethlehem, Pennsylvania
ST ANNE'S CATHOLIC CHURCH

Schantz Organ Company    Opus 1459    45 ranks    1977
____________________________________________________________

GREAT: (exposed)              CHOIR-POSITIV:
   16' Quintaton 73               8' Gedackt 61
    8' Principal 61               8' Gemshorn 61
    8' Bourdon 61                 4' Principal 61
    8' Quintaton                  4' Koppelflöte 61
    4' Octave 61                  2' Principal 61
    4' Waldflöte 61               2' Blockflöte 61
    2' Fifteenth 61           1 1/3' Larigot 61
   IV  Mixture 244              III  Cymbal 183
    8' Trompete 61                8' Krummhorn 61
                                     Tremulant
PEDAL: (exposed)
   32' Resultant              SWELL:
   16' Contrebass 32              8' Flute a Cheminee 61
   16' Bourdon 32                 8' Viole 61
   16' Quintaton [GT]             8' Voix Celeste [TC] 49
    8' Principal 32               4' Prestant 61
    8' Rohrflöte 32               4' Flute a Bec 61
    4' Choralbass 44          2 2/3' Nasard 61
    2' Octavin                    2' Doublette 61
  III  Mixture 96             1 3/5' Tierce 61
   16' Posaune 44               III  Plein Jeu 183
    8' Trompete                   8' Trompette 61
    4' Rohrschalmei 32            4' Clairon 61
                                     Tremblant

[Received online from Chad Boorsma • February 6, 2011]

Websites

Lehigh Valley A.G.O. - St. Anne's Specs - History, photographs, stoplist (Check Internet Archive, archive.is)
