Better Pipe Organ Database

Balcom & Vaughan Pipe Organs Opus 734 (1965)

Queen of All Saints Catholic Church: Sanctuary; front
1100 S. Pine St.
Warden, WA

Images

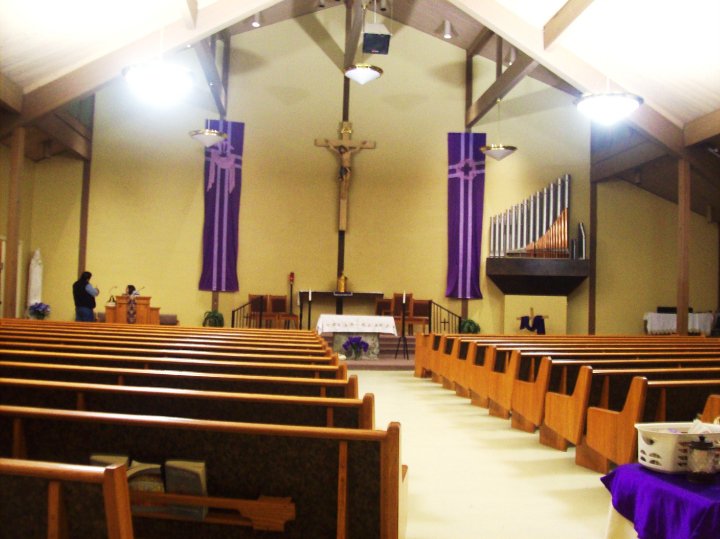

ca. 2020 - Altar and organ (Photograph from an archival source: Parish website, submitted by Jim Stettner/Jim Stettner)

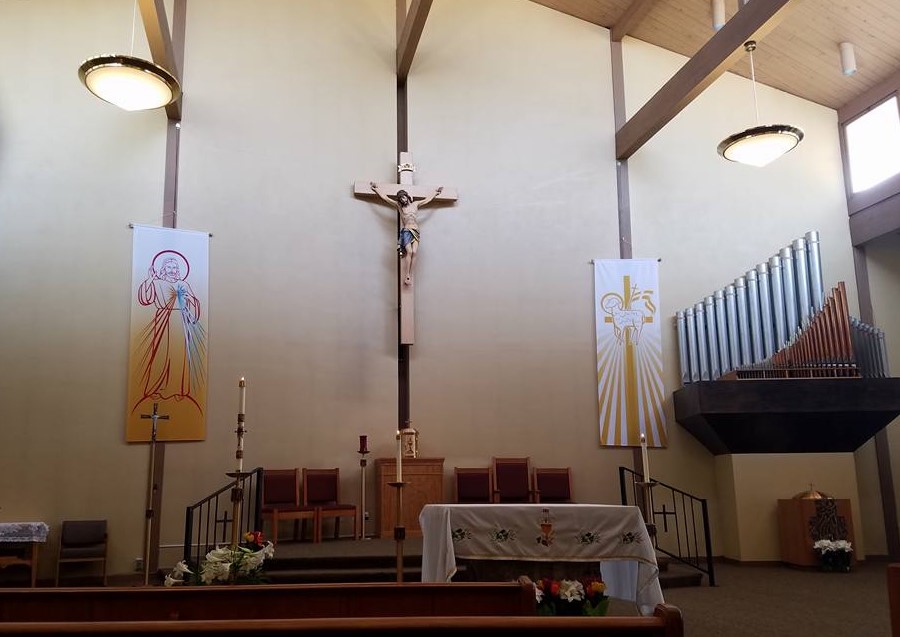

ca. 2019 - Sanctuary interior with organ in front (Photograph from an archival source: Parish website, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
4 registers
1 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2006-12-28 - Identified through online information from James R. Stettner. -Database Manager

2011-11-11 - Updated through online information from James R. Stettner. -- The pipes are located atop a pedestal on the front wall, right side. The console has reverse color manuals. The Principal rank is of polished copper. -Database Manager

Stoplist

Source: Stoplist from Balcom and Vaughan files 1965

Warden, Washington
Queen of All Saints Catholic Church

BALCOM & VAUGHAN PIPE ORGANS, Opus 734, 1965 - Original Specifications


MANUAL I                      MANUAL II                     PEDAL
8     Prestant                8     Quintadena              16   Subbass
8     Gedackt Floete          8     Spitz Gedackt           16   Zart Floete
4     Kupfer Prinzipal        8     Schwebung               8    Principal Bass
4     Quintade                4     Rohr Floete             8    Gedackt
4     Spitz Gedackt           2     Principal               4    Koral Bass
2-2/3 Nasat                   2     Quintadena              4    Quintade
2     Rohr Floete             1-1/3 Nasat                   2    Rohr Floete
II    Klein Mixtur [19-22]    1     Siffloete               II   Terz Zymbel [24-16]
                                                                 blank


STOP / RANK / PIPE ANALYSIS
16    Subbass                (Ped)  12  Extension of the 8' Gedackt Floete.
16    Zart Floete            (Ped)  –-  Same as the 16' Subbass; 1-12 on soft wind.
8     Prestant                 (I)  12  Extension of the 4' Kupfer Prinzipal.
8     Principal Bass         (Ped)  –-  Same as the 8' Prestant.
8     Gedackt Floete           (I)  61
8     Gedackt                (Ped)  –-  Same as the 8' Gedackt Floete.
8     Quintadena              (II)  –-  1-12 from the 8' Gedackt Floete; 13-61
                                           from the 4' Quintade.
8     Spitz Gedackt           (II)  49  1-12 from the 8' Gedackt Floete.
8     Schwebung               (II)  49  Tenor C.
4     Kupfer Prinzipal         (I)  61
4     Koral Bass             (Ped)  –-  Same as the 4' Kupfer Prinzipal.
4     Quintade                 (I)  61
4     Rohr Floete             (II)  –-  1-12 from the Gedackt Floete; 13-61 from
                                           the 2' Rohr Floete.
4     Spitz Gedackt            (I)  12  Extension of the 8' Spitz Gedackt.
2-2/3 Nasat                    (I)  61
2     Principal               (II)  –-  1-49 from the 4' Kupfer Prinzipal; 50-61
                                           from the 2' Rohr Floete.
2     Rohr Floete              (I)  61
2     Quintadena              (II)  –-  1-49 from the 4' Quintade; 50-61 from the
                                           2' Rohr Floete.
1-1/3 Nasat                    (I)  12  Extension of the 2-2/3' Nasat.
1     Siffloete               (II)  –-  From the 2' Rohr Floete. Top octave repeats.
II    Klein Mixtur [19-22]     (I) 122
II    Terz Zymbel [24-16]    (Ped)  –-  Derived from the


PIPE SUMMARY

16 Subbass           8 Spitz Gedackt      8 Schwebung          4 Kupfer Prinzipal
73 pipes             61 pipes             49 pipes             61 pipes


4 Quintade           2-2/3 Nasat          2 Rohr Floete        II Klein Mixtur
61 pipes             73 pipes             61 pipes             122 pipes


COUPLERS                                     FINGER PISTONS
None                                         None


PEDAL MOVEMENTS                              TOE STUDS
Crescendo                    (bal.)          None


ACTION: E-P unit      VOICES: 8      STOPS: 24      RANKS: 9      PIPES: 488


NOTES



Sources: Balcom and Vaughan opus list & files;


Queen of All Saints Catholic Church
1100 S. Pine St.
Warden,  WA.  98857
(509) 349-0403
