Brainerd United Methodist Church: Sanctuary
4315 Brainerd Road
Chattanooga, TN
Images
2020-05-07 - Drone shot of chancel, exposed pipes, en-chamade and stained glass window (Photograph by Photograph by Joshua Bracken, submitted by Jeff Scofield/Jeff Scofield)
2019-04-28 - Chancel, console, exposed pipes, window and en-chamade (Photograph by Jeff Scofield/Database Manager)
Unknown - Church exterior (Photograph courtesy of March Adams & Associates/Database Manager)
2019-04-28 - Console (Photograph by Jeff Scofield/Database Manager)
2019-03-01 - Console and sanctuary interior (Photograph by Jeff Scofield/Database Manager)
2019-03-01 - Console (Photograph by Jeff Scofield/Database Manager)
2019-02-16 - Exposed pipes, Untersatz, Pedal reed chorus, Minor Great, Choir and Bombarde swell boxes (Photograph by Jeff Scofield/Database Manager)
2019-02-16 - Exposed pipes, Major Great, Pedal principal chorus, Swell box (Photograph by Jeff Scofield/Database Manager)
2019-02-16 - Couplers (Photograph by Jeff Scofield/Database Manager)
2019-02-08 - Chancel, exposed pipes and en-chamade (Photograph by Jeff Scofield/Database Manager)

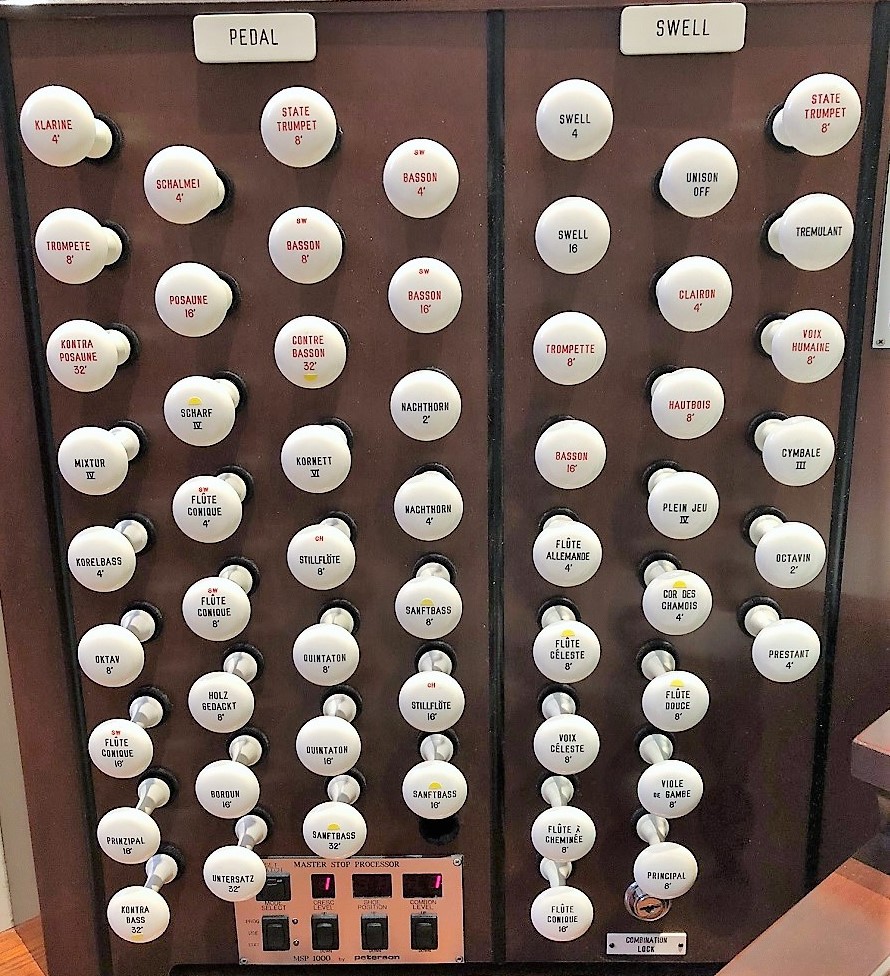

2019-02-08 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-02-08 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)
2024-12-24 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)
2024-12-24 - Church interior (Jeff Scofield/Jeff Scofield)
2024-12-24 - Church interior (Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 53 stops
- 76 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-01-18 - Identified through online information from Jeff Scofield. -- Originally installed in 1965 as 4/68 Moller Op. 9982; Zimbelstern added 1983; 8' Holzgedackt added to Pedal 1986; en-Chamade added 1987; Pedal Kornett added 1990; III Cymbale added to Swell 1991; new console and conversion of switching to solid-state both by Schantz 1994 -Database Manager
2009-04-18 - Updated through online information from Jeff Scofield. -Database Manager
2011-07-22 - Updated through online information from Jeff Scofield. -- 8' Grossflöte from 1907 Pilcher Op. 584 added to Major Great in 2011 by Barger & Nix. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Chattanooga, Tennessee
Brainerd United Methodist Church
Möller Op. 9982 1965 4/73
________________________________________________________
MAJOR GREAT (3¼") CHOIR (3¼")
16' Quintaton 61 16' Stillflöte 61
8' Prinzipal 61 8' Prinzipal 61
8' Grossflöte 49 k 8' Schwebung 61
4' Oktav 61 8' Pommergedackt 61
2' Oktavlein 61 8' Stillflöte 12
IV Mixtur 244 8' Stillflöte Celeste 54
III Scharf 183 4' Spitzprinzipal 61
16' Fagott pf 4' Koppelflöte 61
8' Trompete pf 2 2/3' Nazard 61
Unison Off 2' Blockflöte 61 f
8' State Trumpet (10") 61 b 1 3/5' Terz 61
Chimes (Deagan A) 25 a 1 1/3' Quintflöte 61 g
1' Sifflöte 61
MINOR GREAT (3¼") IV Scharf pf
8' Metallgedackt 61 III Zimbel 183
8' Gemshorn 61 16' Holzregal 61
4' Spitzflöte 61 8' Krummhorn 61
2' Flachflöte 61 4' Trichterregal 61
II Sesquialtera 122 Tremulant
Unison Off Sub
Unison Off
SWELL (3½") Super
16' Flute Conique 61 8' State Trumpet GT
8' Principal 61
8' Flûte à cheminée 61 PEDAL (3½" & 5")
8' Viole de gambe 61 32' Kontrabass pf
8' Voix céleste 61 32' Untersatz 7
8' Flûte douce pf 32' Sanftbass pf
8' Flûte céleste pf 16' Prinzipal 32
4' Prestant 61 16' Bordun 32
4' Flûte Allemande 61 16' Quintaton MG
4' Cor de chamois pf 16' Flûte conique SW
2' Doublette 61 c 16' Stillflöte CH
IV Plein jeu 244 16' Sanftbass pf
III Cymbale 183 d 8' Oktav 32
16' Basson 61 8' Holzgedackt 12 h
8' Trompette 61 8' Quintaton MG
8' Hautbois 61 8' Flûte conique SW
8' Voix humaine pf 8' Stillflöte CH
4' Clairon 61 8' Sanftbass pf
Tremblant 4' Korelbass 32
Sub 4' Nachthorn 32
Unison Off 4' Flûte conique SW
Super 2' Nachthorn 12
8' State Trumpet GT VI Kornett -- i
IV Mixtur 128
BOMBARDE (4" & 7")(encl) 32' Kontraposaune 12 5"
V Grande Fourniture 305 4" 32' Contre Basson pf
16' Bombarde militaire tc 16' Posaune 32 5"
8' Trompette militaire 61 16' Basson SW
8' Trompette harmonique tc 8' Trompete 12 5"
8' Cor anglais pf 8' Basson SW
4' Clairon harmonique 61 4' Klarine 12 5"
Cor tremblant 4' Schalmei pf j
Zimbelstern 13 e 4' Basson SW
16' State Trumpet tc Chimes GT
8' State Trumpet GT 8' State Trumpet GT
4' State Trumpet 12 GT
a installed in the Bombarde swell box
All of the following were done by Barger & Nix, McDonald, TN
b Built by Schopp and installed 1987; wind from Major Great
c Former Choir 2' Kleinprinzipal, moved to Swell in 1991
d Built by Schopp and installed 1991 on former Larigot chest and action
e Installed in the Bombarde swell box
f Former Swell 2' Flûte à bec, moved to Choir in 1991
g Former Swell Larigot, moved to Choir 1991, new Schopp chest and action
h Built by Möller in 1986 with new chest and action
i Reed cornet wired up in 1990
j Prepared-for, but currently plays Choir Krummhorn
k From 1907 Pilcher Op. 584, added 2011; notes 1-12 from Pedal Bordun 16'
[Received online from Jeff Scofield July 21, 2011]
