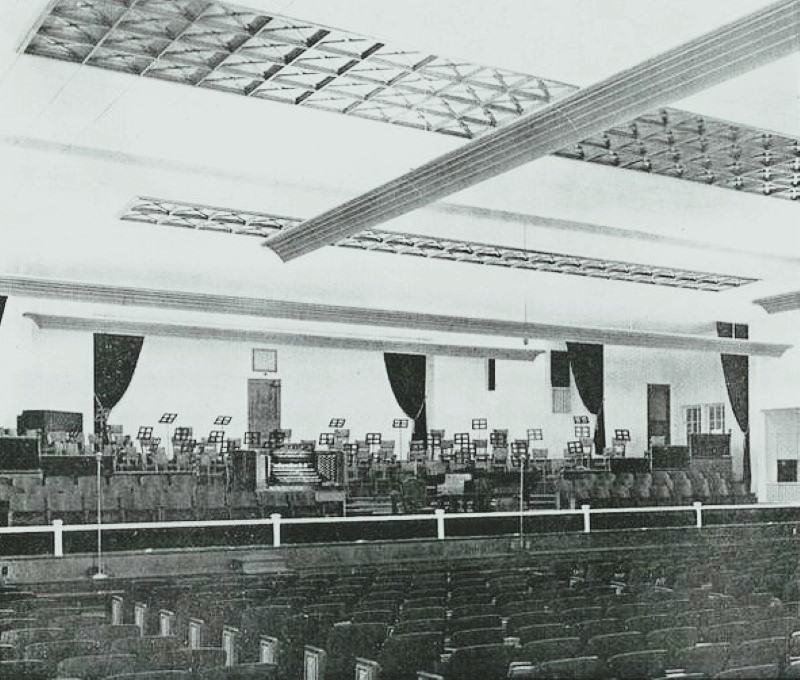

2007-03-13 - Choir loft, seating, console (Photograph by James R. Stettner/Database Manager)
2007-02-24 - Identified through on-line information from James R. Stettner. -- This organ was originally built for what is now the Tabernacle across the street. It is not known when it was moved to the present edifice or by whom. It is installed in ceiling chambers at the front. -Database Manager
2007-03-15 - Updated through on-line information from James R. Stettner. -Database Manager
Stoplist from PortlandORgans.com Source: Source not recorded Date not recorded
Unsupported filetype html, view here.
Stoplist copied from the console November 9, 1990 Source: Source not recorded Date not recorded
Portland, Oregon
Apostolic Faith Church
Wicks Organ Co., Opus 3013, 1949
GREAT (Expressive)
8 First Open Diapason 61
8 Second Open Diapason 61
8 Viol d'Gamba (Ch) --
8 Harmonic Flute (Ch) --
8 Gemshorn (Ch) --
4 Principal 61
2-2/3 Twelfth 61
2 Fifteenth 61
III Fourniture [15-19-22] 122
blank
blank
Chimes (Deagan; tg - g2) (25)
Great 16'
Great Unison Silent
Great 4'
SWELL (Expressive)
16 Gedeckt (tc) -- From the Stopped Flute.
8 English Diapason 73
8 Stopped Flute 73
8 Salicional 73
8 Viola 73
8 Vox Celeste (tc) 61
4 Octave 12 Extension of the English Diapason.
4 Spitz Flute 61
4 Flute d'Amour 12 Extension of the Stopped Diapason.
2-2/3 Nasat -- From the Spizt Flute.
2 Flautina 12 Extension of the Spitz Flute.
16 Contra Fagotto (tc) -- From the Oboe.
8 French Trumpet 61
8 Oboe 73
8 Vox Humana 61
4 Clarion 12 Extension of the French Trumpet.
blank
blank
Swell Tremolo
[4] Celesta (Ch) --
Swell 16'
Swell Unison Silent
Swell 4'
CHOIR (Expressive)
16 Contra Dulciana 12 Extension of the Dulciana.
8 Geigen Principal 73
8 Concert Flute 73
8 Harmonic Flute 73
8 Gemshorn 73
8 Viol d'Gamba 73
8 Dulciana 61
8 Unda Maris (tc) 61
4 Flute 12 Extension of the Harmonic Flute.
4 Dulcet 12 Extension of the 8' Dulciana.
2-2/3 Dolce Twelfth -- From the Dulciana unit.
2 Piccolo 12 Extension of the Harmonic Flute.
2 Dolcetina 12 Extension of the 8' Dulciana.
1-3/5 Dolce Tierce -- From the Dulciana unit.
8 Clarinet 73
blank
blank
Choir Tremolo
Chimes (Gt) --
[4] Celesta (tc - c3) (37)
Choir 16'
Choir Unison Silent
Choir 4'
SOLO (Expressive)
8 Jubal Flute 73
8 Viol d'Orchest. 73
8 Viole Celeste (tc) 61
16 Trombone 12 Extension of the Harmonic Tuba.
8 Harmonic Tuba 61
8 French Horn 73
4 Tuba Clarion 12 Extension of the Harmonic Tuba.
blank
blank
Solo Tremolo
Solo 16'
Solo Unison Silent
Solo 4'
PEDAL (Enclosed)
16 Principal [wood] 32
16 Diapason (Gt) 12 Extension of the Great First Open Diapason.
16 Violone (Ch) 12 Extension of the Choir 8' Viol d'Gamba.
16 Bourdon 32
16 Gedeckt (Sw) 12 Extension of the Swell 8' Stopped Flute.
16 Dolce (Ch) --
10-2/3 Quinte -- From the Bourdon unit.
8 Octave 12 Ext. of the 16' Principal.
8 Major Flute 12 Ext. of the 16' Bourdon.
8 Cello (Sw) -- Swell 8' Viola.
8 Gemshorn (Ch) --
8 Flute Dolce (Ch) -- Choir 8' Concert Flute.
5-1/3 Octave Quinte (Sw) -- From the 8' English Diapason.
4 Choral Bass 32
2 Super Octave 12 Ext. of the 4' Choral Bass.
16 Tuba Profunda (So) --
8 Trumpet (Sw) --
Chimes (Gt) --
blank
blank
COUPLERS
Swell to Pedal 8,4
Great to Pedal 8,4
Choir to Pedal 8,4
Solo to Pedal 8,4
Swell to Great 16,8,4
Choir to Great 16,8,4
Solo to Great 16,8,4
Swell to Choir 16,8,4
FINGER PISTONS
Generals 1 - 6
Swell 0, 1 - 6
Sw to Ped (rev)
Great 0, 1 - 6
Gt to Ped (rev)
Choir 0, 1 - 6
Chr to Ped (rev)
Solo 0, 1 - 4
Solo to Ped (rev)
Pedal 0, 1 - 6
SFZ (rev)
BMBD (rev)
[Cancel] (unlabeled)
TOE STUDS
Generals 1 - 6
Pedal 1 - 6
Sw. to Ped. (rev)
Gt. to Ped. (rev)
Cho. to Ped. (rev)
Solo to Ped. (rev)
SFZ. I (rev)
Bombarde (rev)
Comb.
COMBINATION SWITCHES
Solo - Pedal On / Off
Swell - Pedal On / Off
Great - Pedal On / Off
Choir - Pedal On / Off
EXPRESSION CONTROLS
All Swells to Solo
Auditor'm Expression Off
Orchestra Expression Off
PEDAL MOVEMENTS
Gt/Ch Expression (bal.)
Swell Expression (bal.)
Solo Expression (bal.)
Crescendo (bal.)
ACTION: Direct-Electric
VOICES: 31
STOPS: 69; inc. chimes & celesta.
RANKS: 32
PIPES: 2,067
NOTES
This organ was originally built for what is presently the Tabernacle,
which is across the street from the present worship facility. It was
moved from the Tabernacle into the church. The organ is
installed in ceiling chambers and speaks into the auditorium through
ceiling grilles.
The Great 2' Fifteenth is drawn as part of the III Fourniture. The Solo
8' Jubal Flute is a double-mouthed open wood flute.
