Casavant Frères Ltée. Opus 2908 (1966)

All Saints Catholic Church
3847 NE Glisan Street
Portland, OR

Images

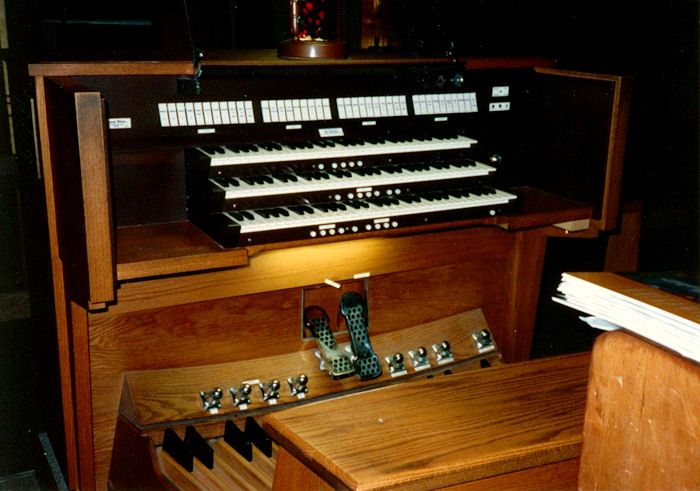

2007-03-13 - Console (Photograph by James R. Stettner/Database Manager)

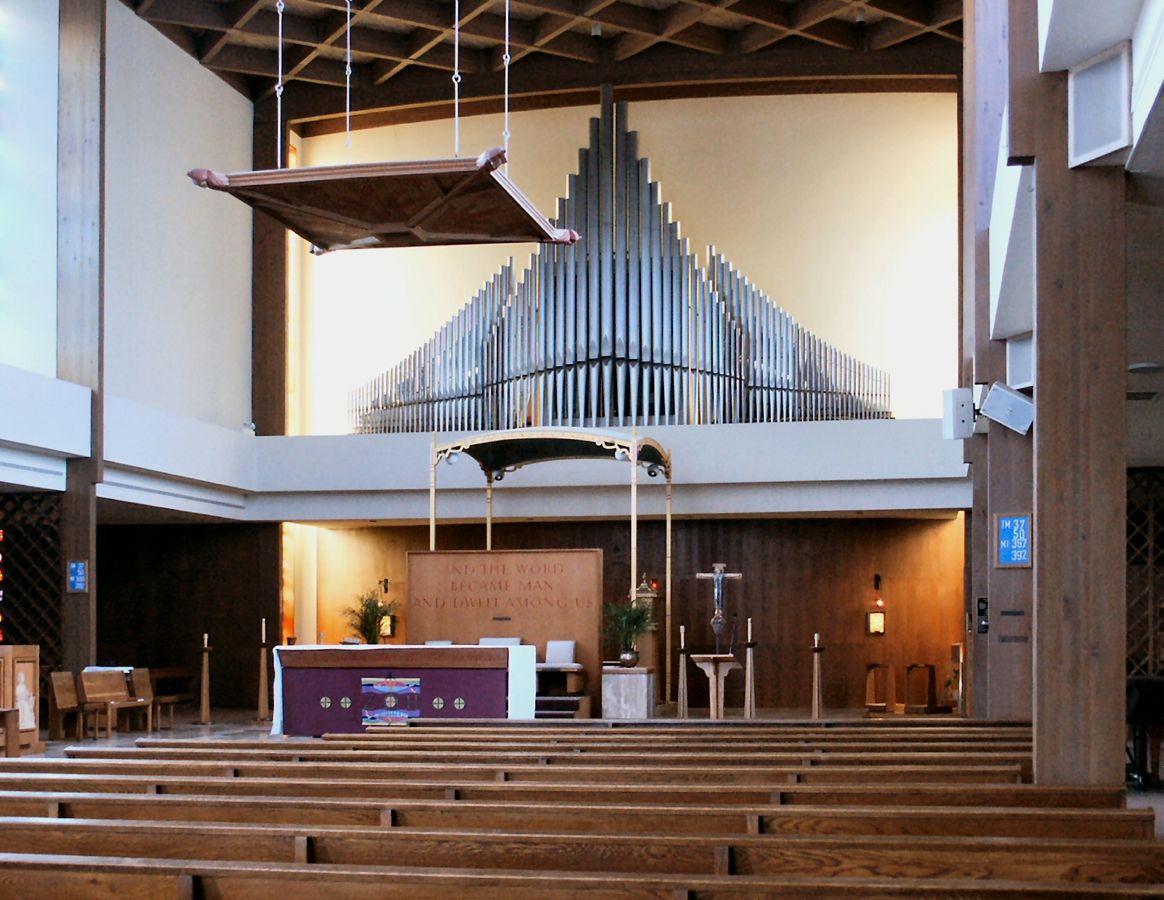

2004-03-28 - Chancel and Pipe Display (Photograph by Lanny Hochhalter/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
24 stops
24 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-03-14 - Identified through online information from James R. Stettner. -- Positiv division prepared-for. Choir gallery sits about halfway down the side of the sanctuary on the right side. -Database Manager

2015-07-23 - Updated through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The tonal director was Lawrence Phelps. -Database Manager

Stoplist

Stoplist taken from the console March 17, 1991 Source: Source not recorded Date not recorded

Portland, Oregon
All Saints Catholic Church

Casavant-Freres, No. 2908, 1966 - Original Specifications

GREAT
   8     Prinzipal                   61
   8     Bordun                      61
   8     Gemshorn                    61
   4     Oktave                      61
   4     Spitz Flöte                 61
   2     Block Flöte                 61
   IV    Mixture  1 1/3'            244   Beginning composition: 19-22-26-29.
   8     Trompete                    61

SWELL (EXPRESSIVE)
   8     Rohr Flöte                  61
   8     Salizional                  61
   8     Vox Coelestis         (GG)  54
   4     Spitz Prinzipal             61
   4     Nachthorn                   61
   2     Oktave                      61
   IV    Scharf 2/3'                244   Beginning composition: 26-29-33-36.
   8     Oboe                        61
         Tremulant

POSITIV (Prepared-for)
   8     Gedackt                     --
   4     Prinzipal                   --
   4     Koppel Flöte                --
   2     Gemshorn                    --
   1-1/3 Quint Flöte                 --
   III   Zimbel  1/4'                --
   II    Sesquialtera  2-2/3'       ---
   8     Krummhorn                   --
         Tremulant

PEDAL
   16    Prinzipal                   32
   16    Subbass                     32
   8     Oktave                      32
   8     Pommer                      32
   4     Choralbass                  32
   III   Mixture  2'                 96   Composition: 15-19-22.
   16    Posaune                     32
   4     Schalmei                    32

COUPLERS
   Swell to Pedal
   Great to Pedal
   Positiv to Pedal
   Swell to Great
   Positiv to Great
   Swell to Positiv

FINGER PISTONS
   Swell                          1 - 4
     Swell to Pedal               (rev)
     Swell to Great               (rev)
   Great                          1 - 4
     Great to Pedal               (rev)
   Positiv                        1 - 4
     Positiv to Pedal             (rev)
     Positiv to Great             (rev)
   Pedal                          1 - 4
   Cancel

TOE STUDS
   General                        1 - 4
   Swell to Pedal                 (rev)
   Great to Pedal                 (rev)
   Positiv to Pedal               (rev)
   Full Organ                     (rev)

PEDAL MOVEMENTS
   Swell Expression              (bal.)
   Crescendo                     (bal.)

ACTION: Electro-Pneumatic
VOICES: 24  (32 w/preps)
STOPS: 24  (32 w/preps)
RANKS: 32  (43 w/preps)
PIPES: 1,655  (2,326 w/preps)

NOTES
The church's first instrument was a small, unified, II-manual, 5-rank
Casavant which was moved to and installed in the St. Mary's Student
Center at the University of Portland.

 [Received on line from James R. Stettner April 22, 2009.]
