Better Pipe Organ Database

Schantz Organ Co. Opus 1826 (1986)

St. John United Methodist Church: Sanctuary
3921 Murray Hills Drive
Chattanooga, TN

Images

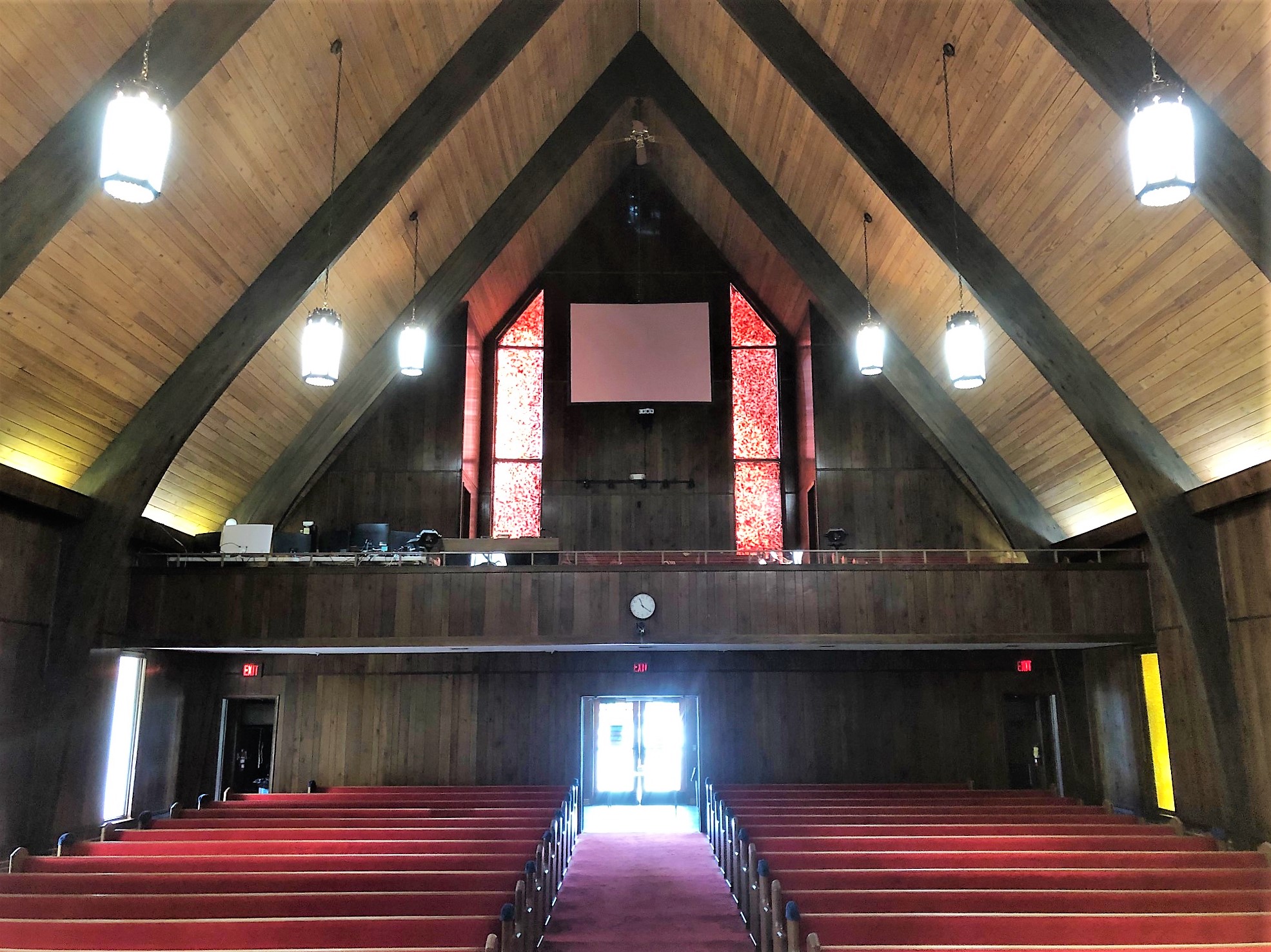

2021-06-22 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

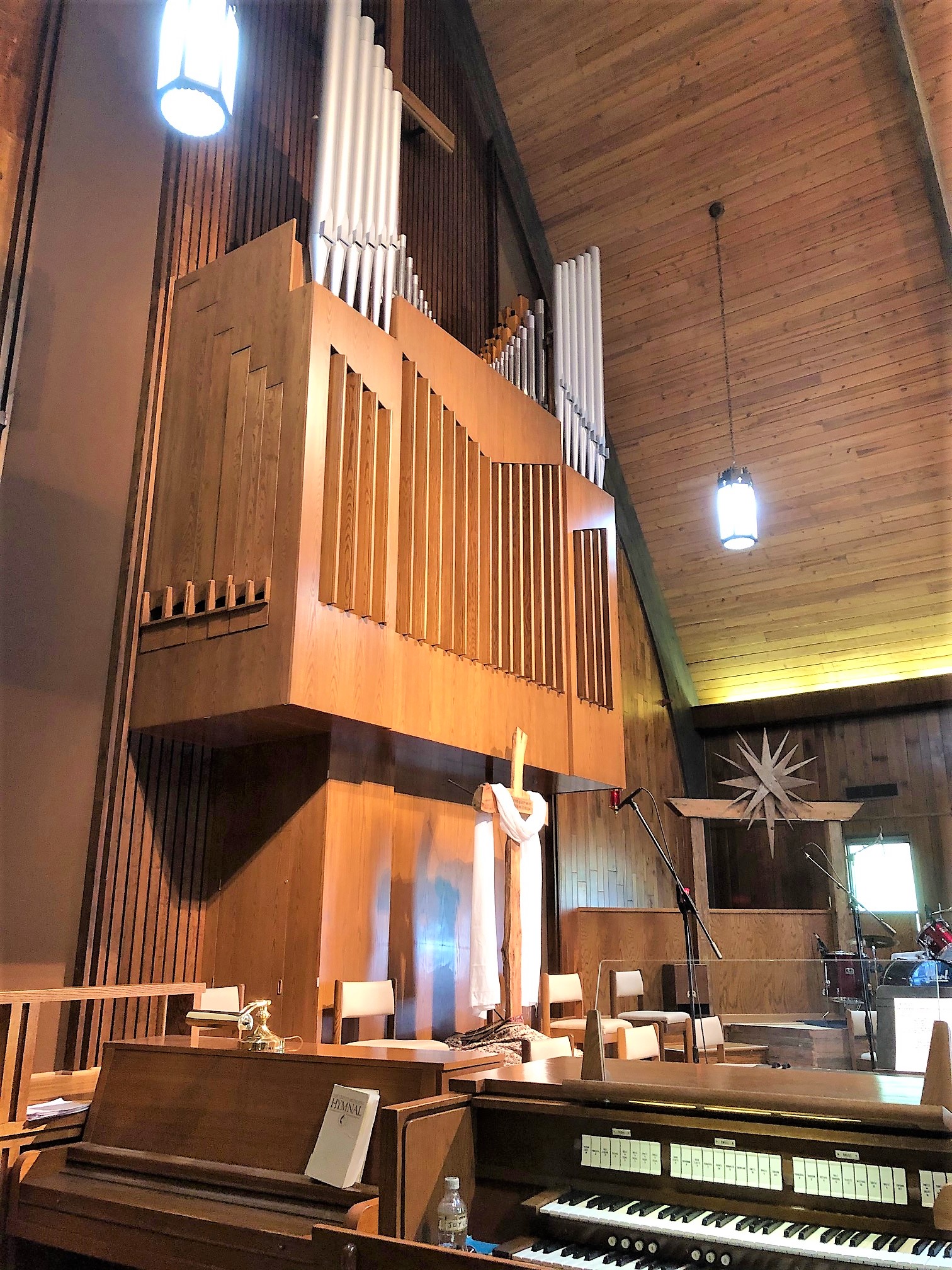

2021-06-22 - Console and organ case (Photograph by Jeff Scofield/Jeff Scofield)

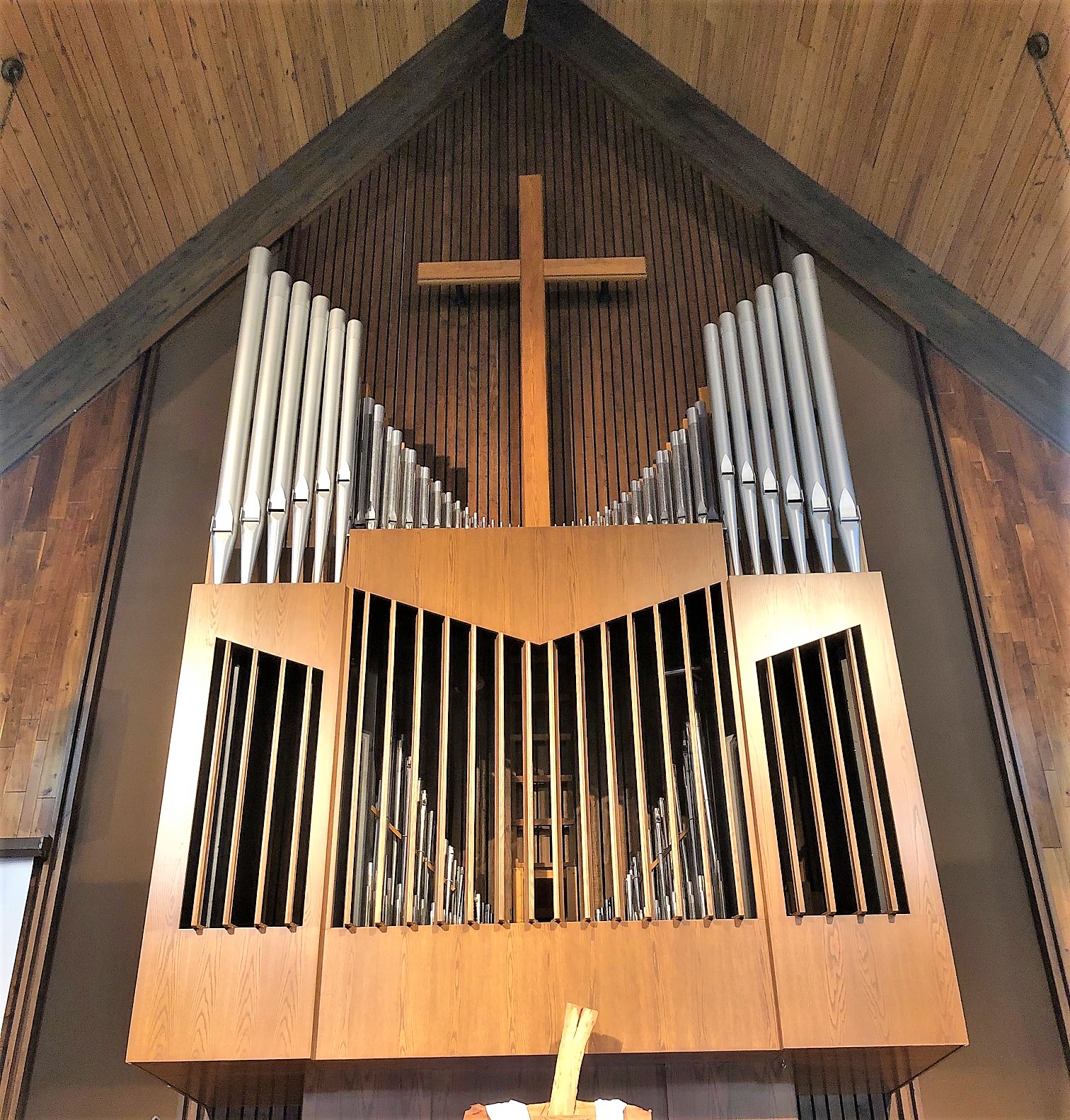

2021-06-22 - Organ case (Photograph by Jeff Scofield/Jeff Scofield)

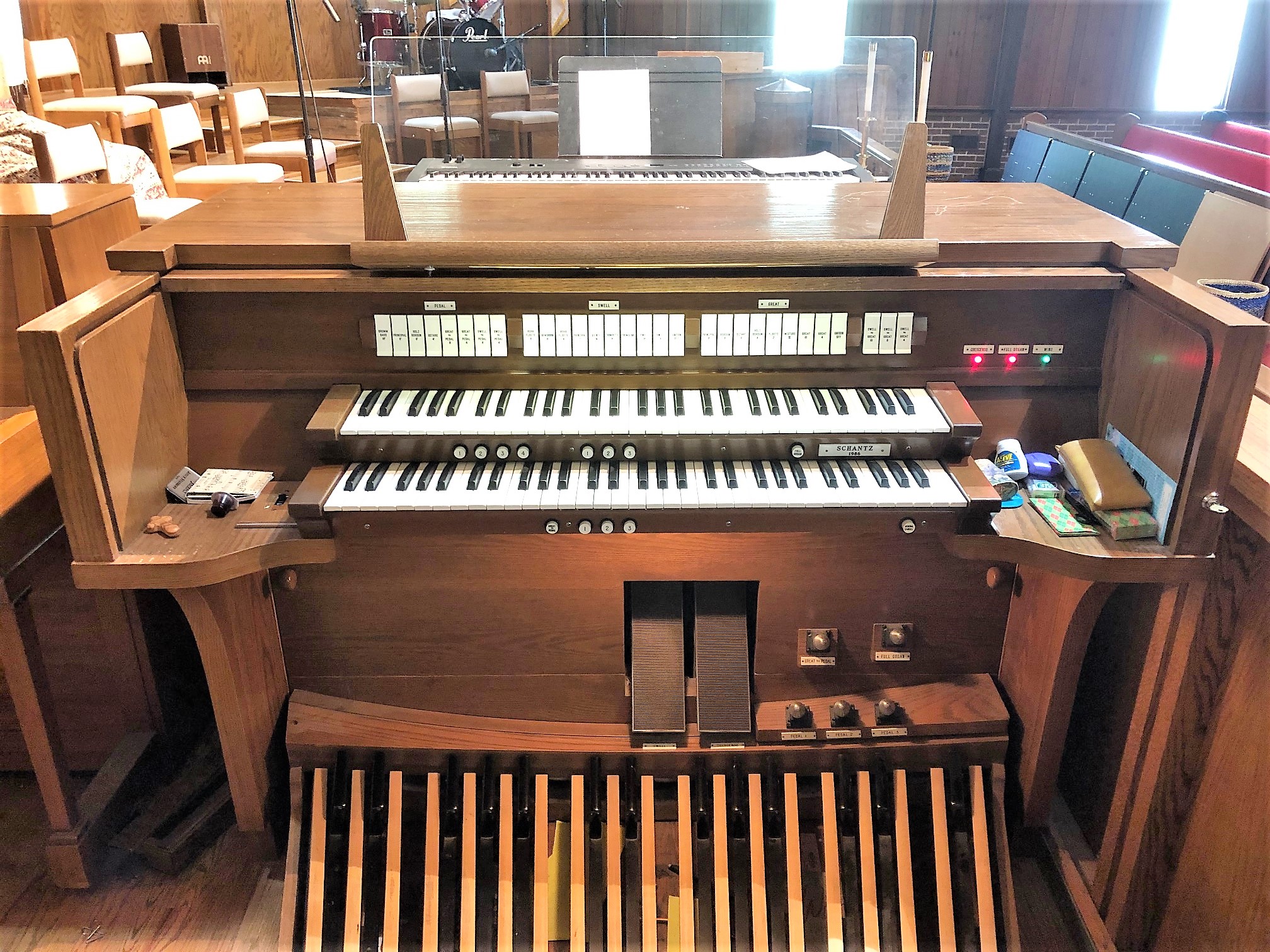

2021-06-22 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2021-06-22 - Church interior from floor (Photograph by Jeff Scofield/Jeff Scofield)

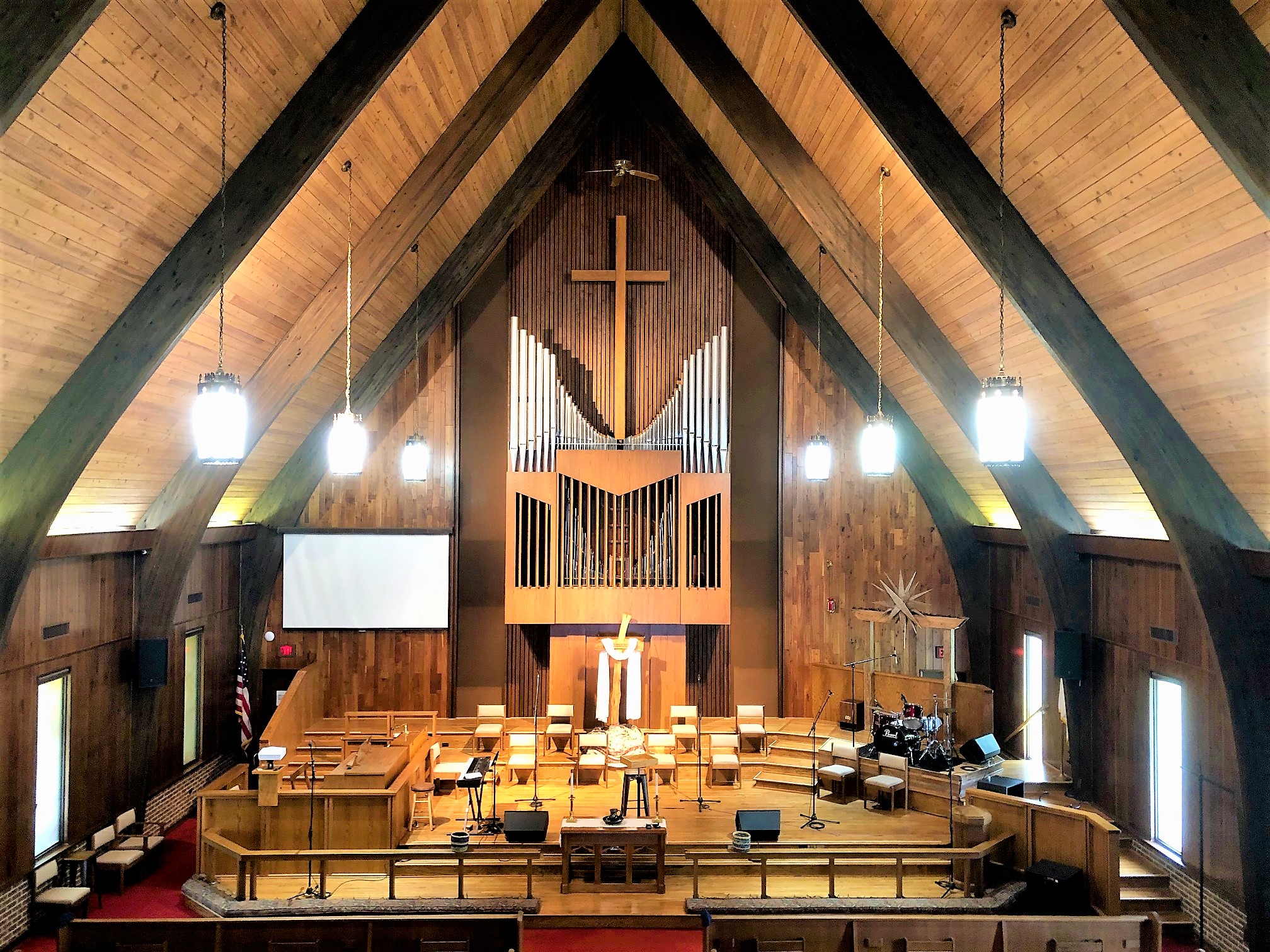

2021-06-22 - Church interior from balcony (Photograph by Jeff Scofield/Jeff Scofield)

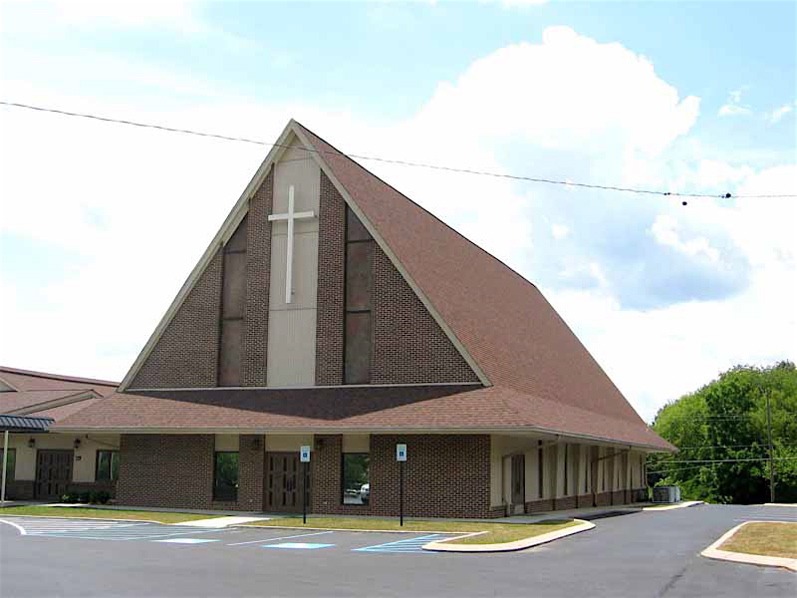

2007-06-11 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
16 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-04-29 - Identified through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist from the console April 14, 1998 Source: Source not recorded Date not recorded

    Chattanooga, Tennessee
    St. John United Methodist Church

    Schantz   Op. 1826   1986   2/12
    ________________________________________________________

    GREAT                  SWELL               PEDAL
 8' Principal           8' Rohrfloete      16' Brummbass  12 GT
 8' Bordun              8' Gemshorn         8' Principal  GT
 4' Octave     12       4' Rohrfloete 12    8' Holzbordun GT
 4' Holzbordun 12       2' Principal        4' Octave     GT
 2' Floete     12   1 1/3' Quinte
IV  Mixture             8' Trompette
    Sub                    Tremulant
    Unison Off             Sub
    Super                  Unison Off
                           Super

   [Received online from Jeff Scofield  May 16, 2011]
