St. Raphael Catholic Church: Sanctuary
1118 Chislett Street
Pittsburgh, PA
Images

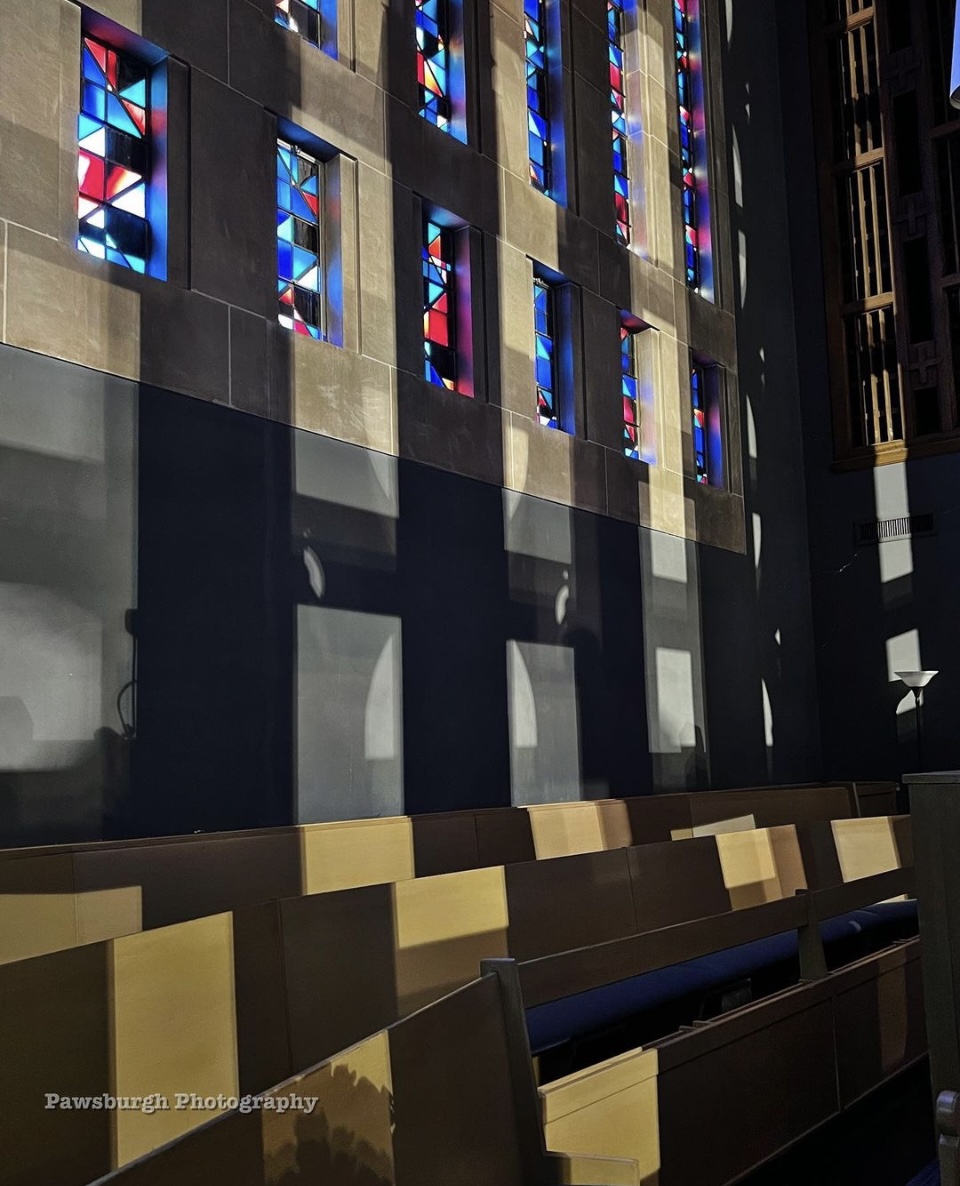

2024-01-13 - Choir loft area with pipe chamber in background (Photograph by Pawsburgh , submitted by Andrew Scanlon/Andrew Scanlon)

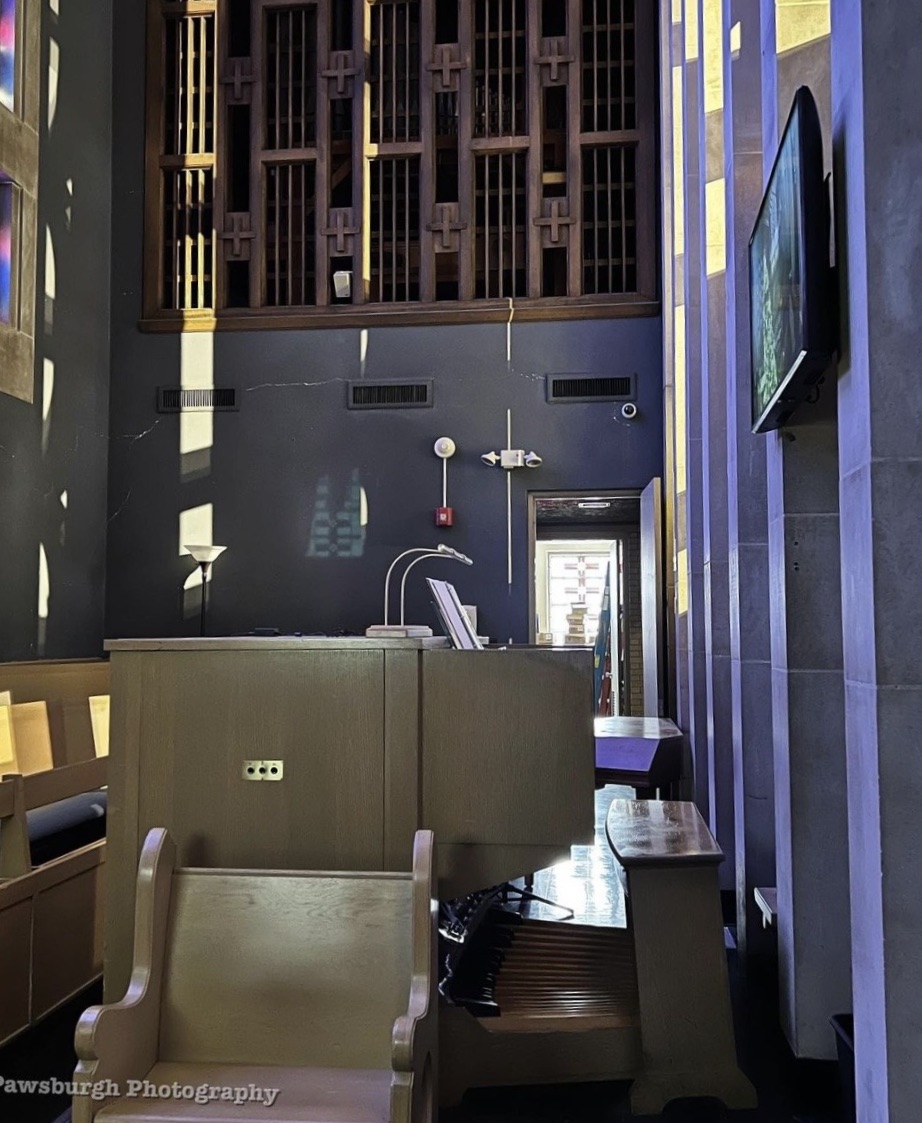

2024-01-13 - Console and pipe chamber (Photograph by Pawsburgh , submitted by Andrew Scanlon/Andrew Scanlon)

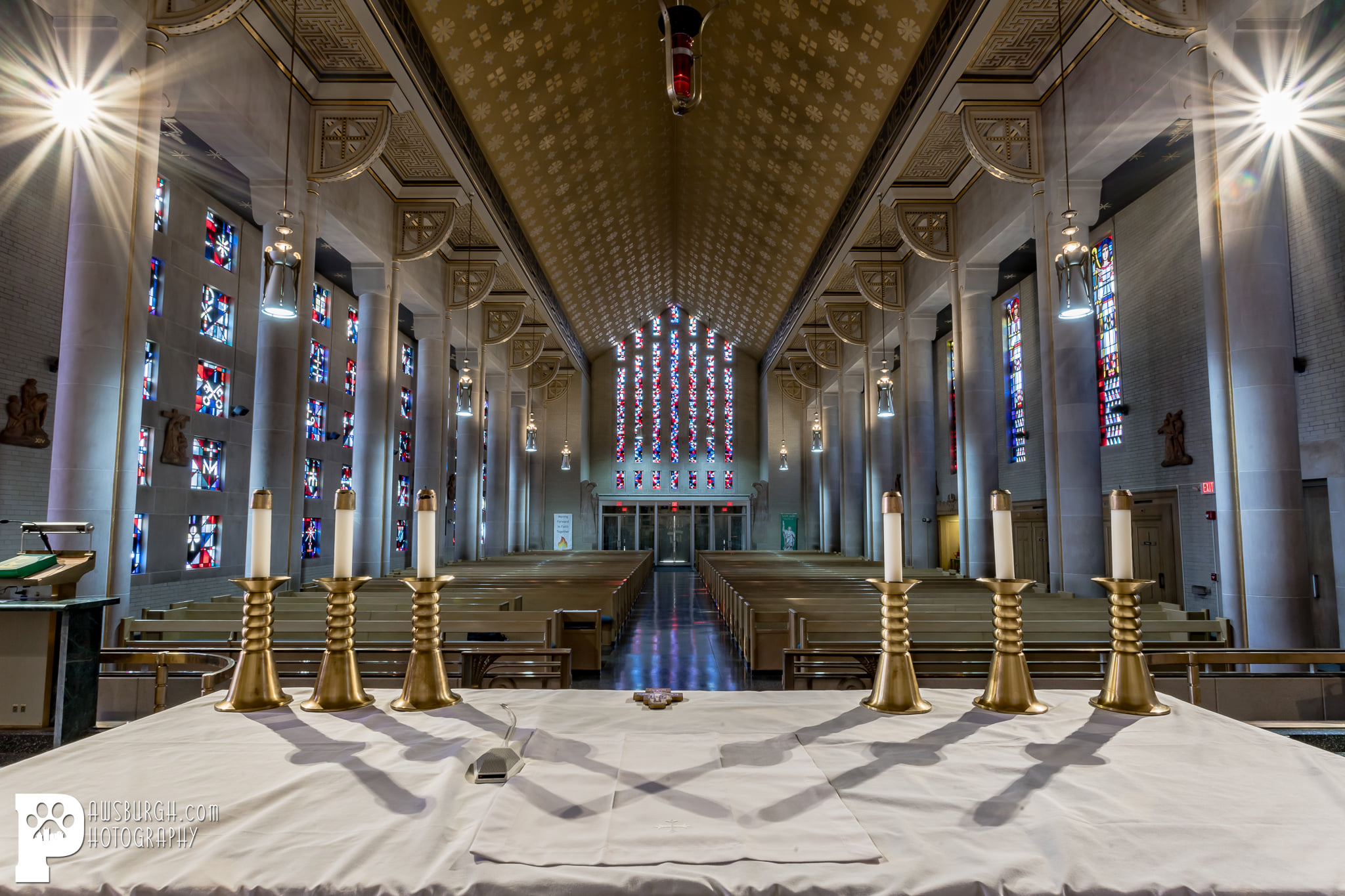

2021 - Church interior looking to the rear (Photograph by Pawsburgh Photography, submitted by Andrew Scanlon/Andrew Scanlon)

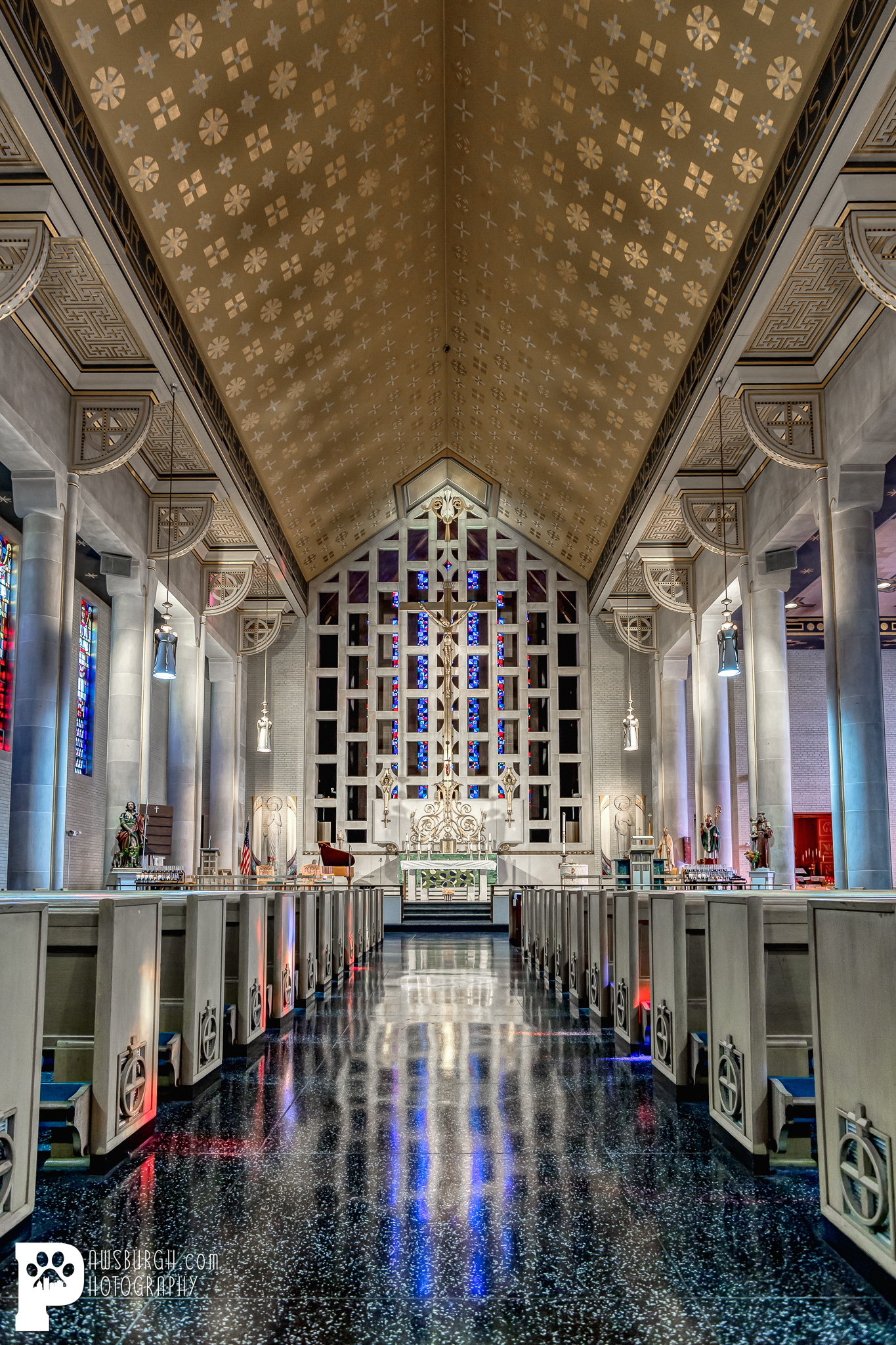

May 2022 - Church interior (Photograph by Pawsburgh Photographer, submitted by Andrew Scanlon/Andrew Scanlon)

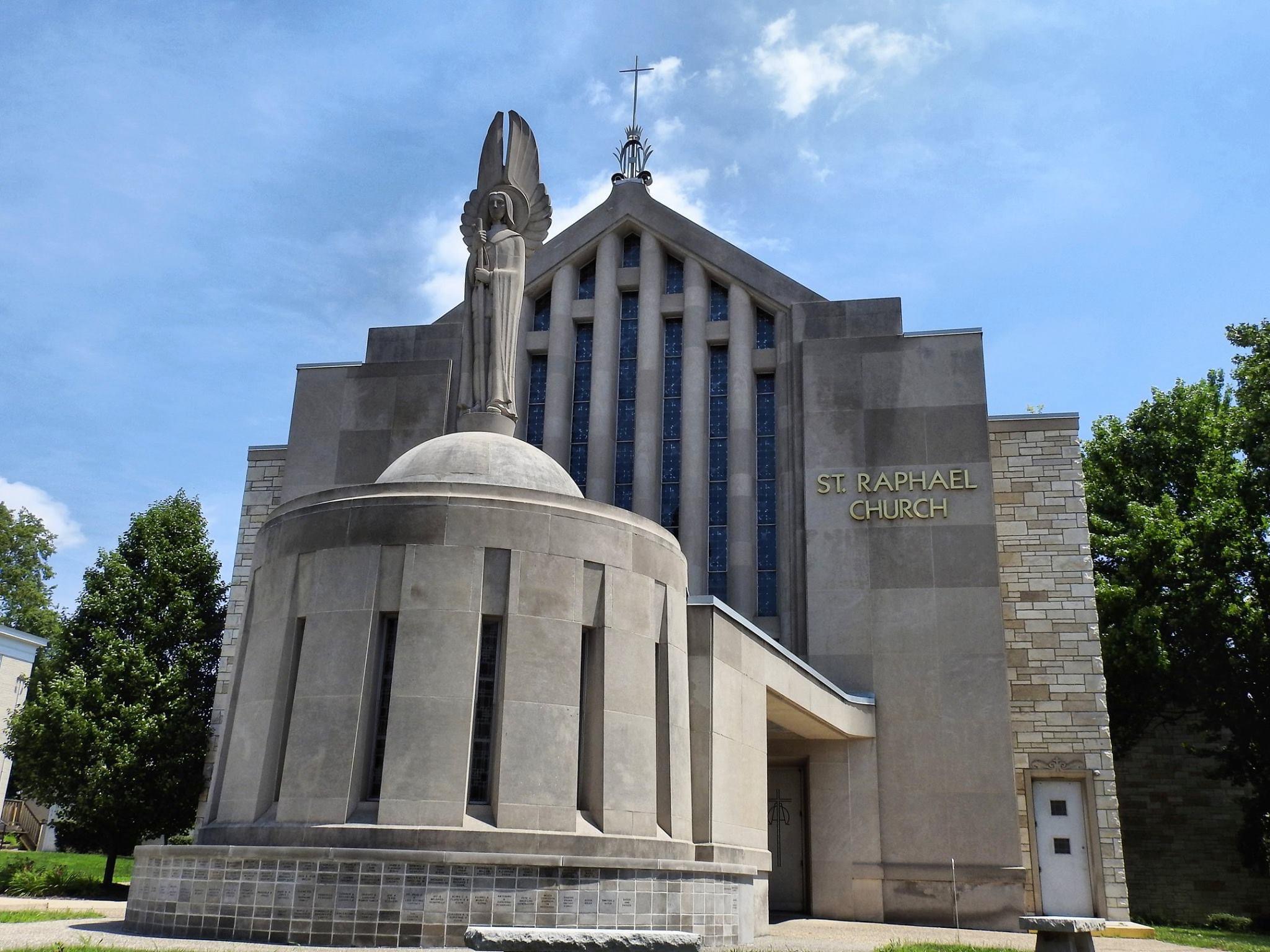

2015 - Church exterior side (Photograph by Church Facebook page, submitted by Andrew Scanlon/Andrew Scanlon)

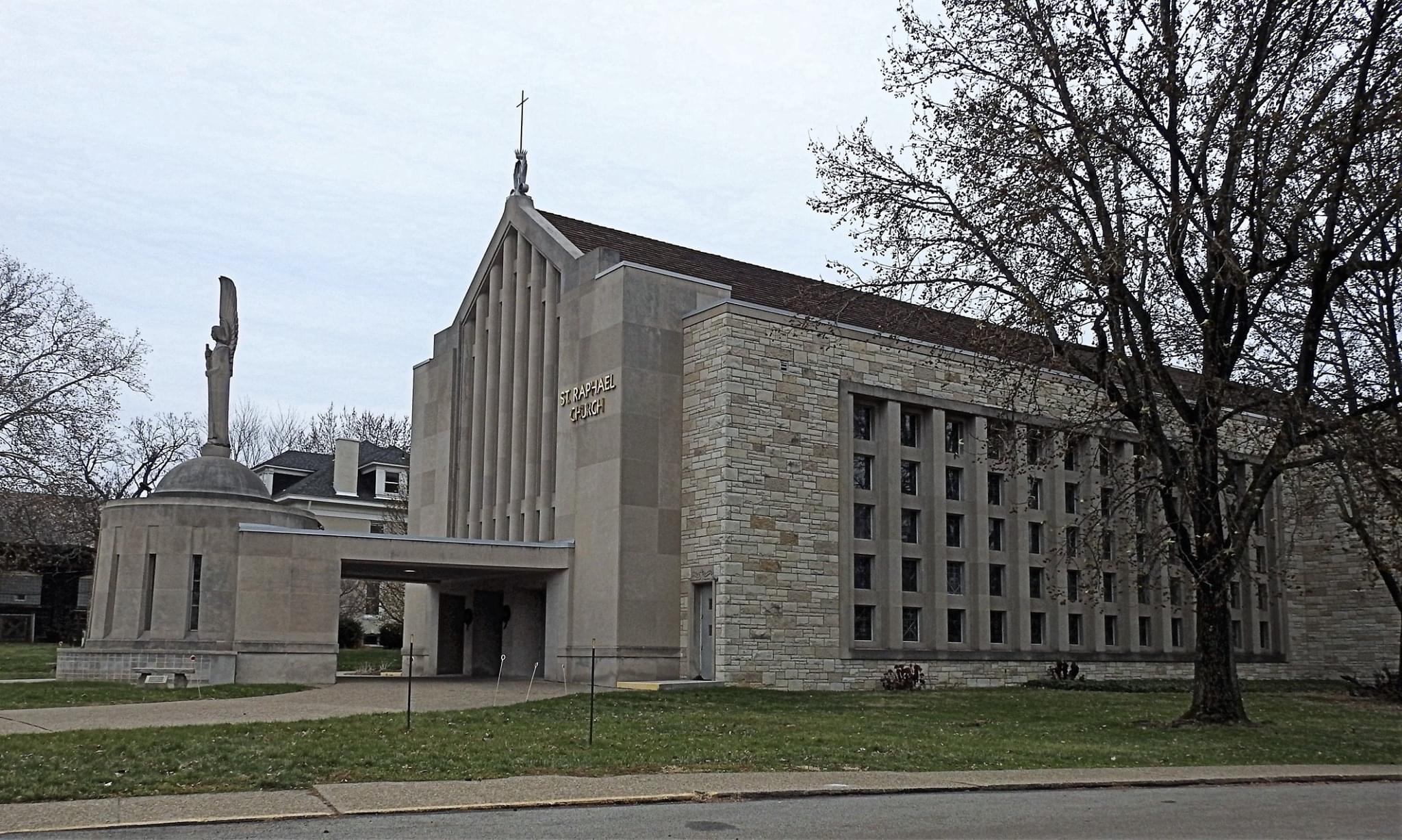

2012 - Church exterior (Photograph by Church Facebook, submitted by Andrew Scanlon/Andrew Scanlon)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 27 stops
- 20 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-05-02 - Identified through on-line information from Stanley R. Scheer. -- The entire 11-stop, 11-rank Choir division was prepared for, along with the Pedal III Mixture and 16' Trombone unit. -Database Manager
2024-01-14 - There are no visible pipes. The instrument, console, and choir "loft" are hidden at the far, liturgical east end of the building, behind the altar and the behind the grill work. -Andrew Scanlon
Stoplist
Stoplist and notes from Stanley R. Scheer Source: Source not recorded Date not recorded
