Better Pipe Organ Database

Casavant Frères Ltée. Opus 2580 (1960)

Trinity Memorial Episcopal Church
44 Main Street
Binghamton, NY

Images

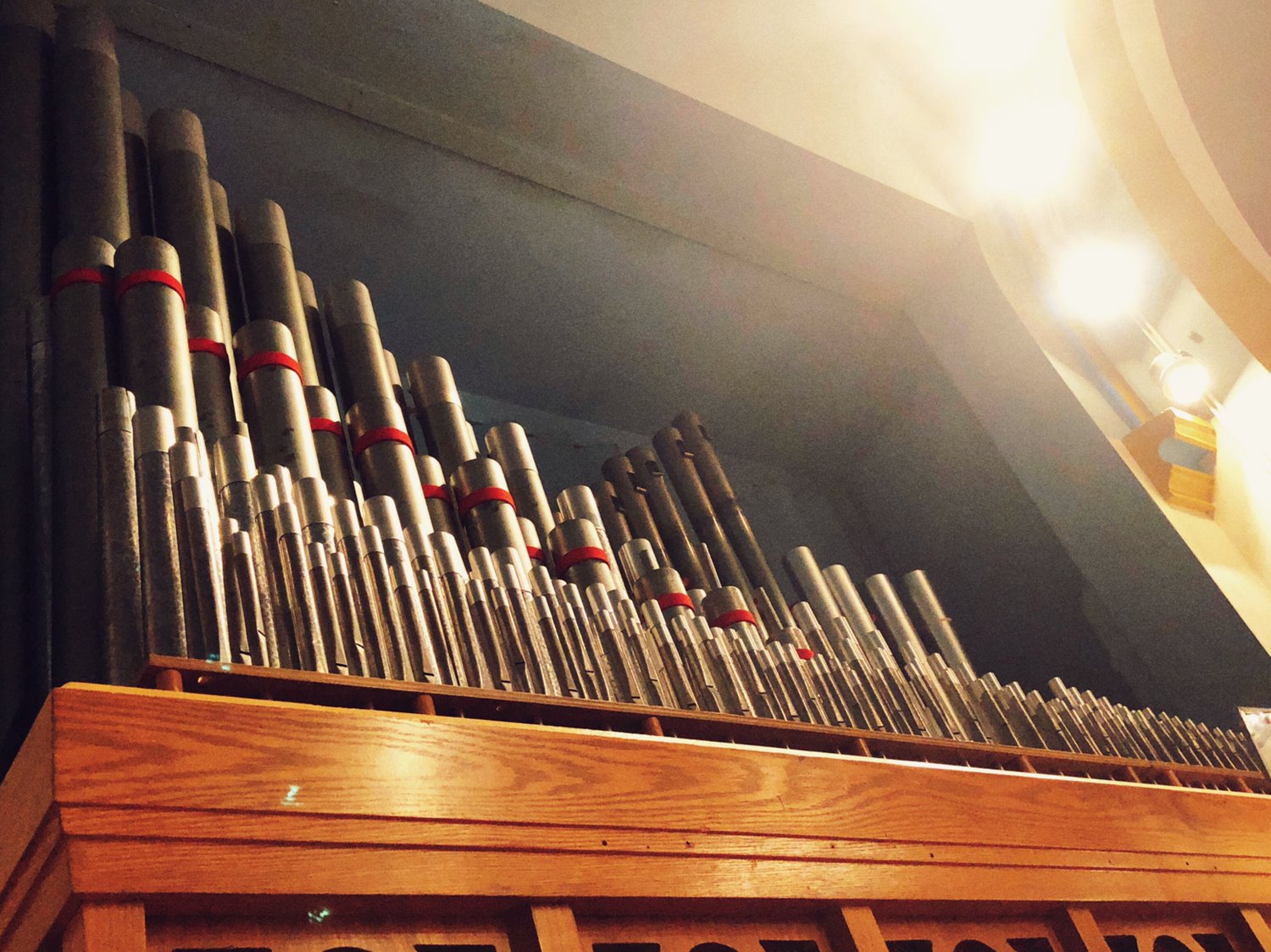

2018-09-27 - Exposed Great pipework (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

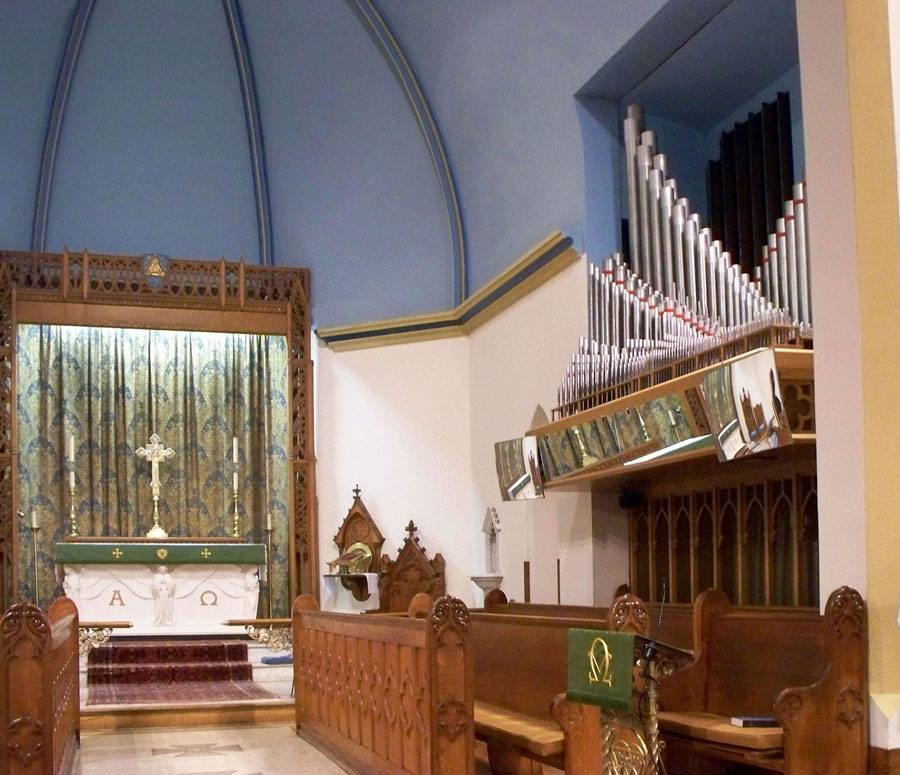

2016-02-23 - Exposed Great pipework in the chancel (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

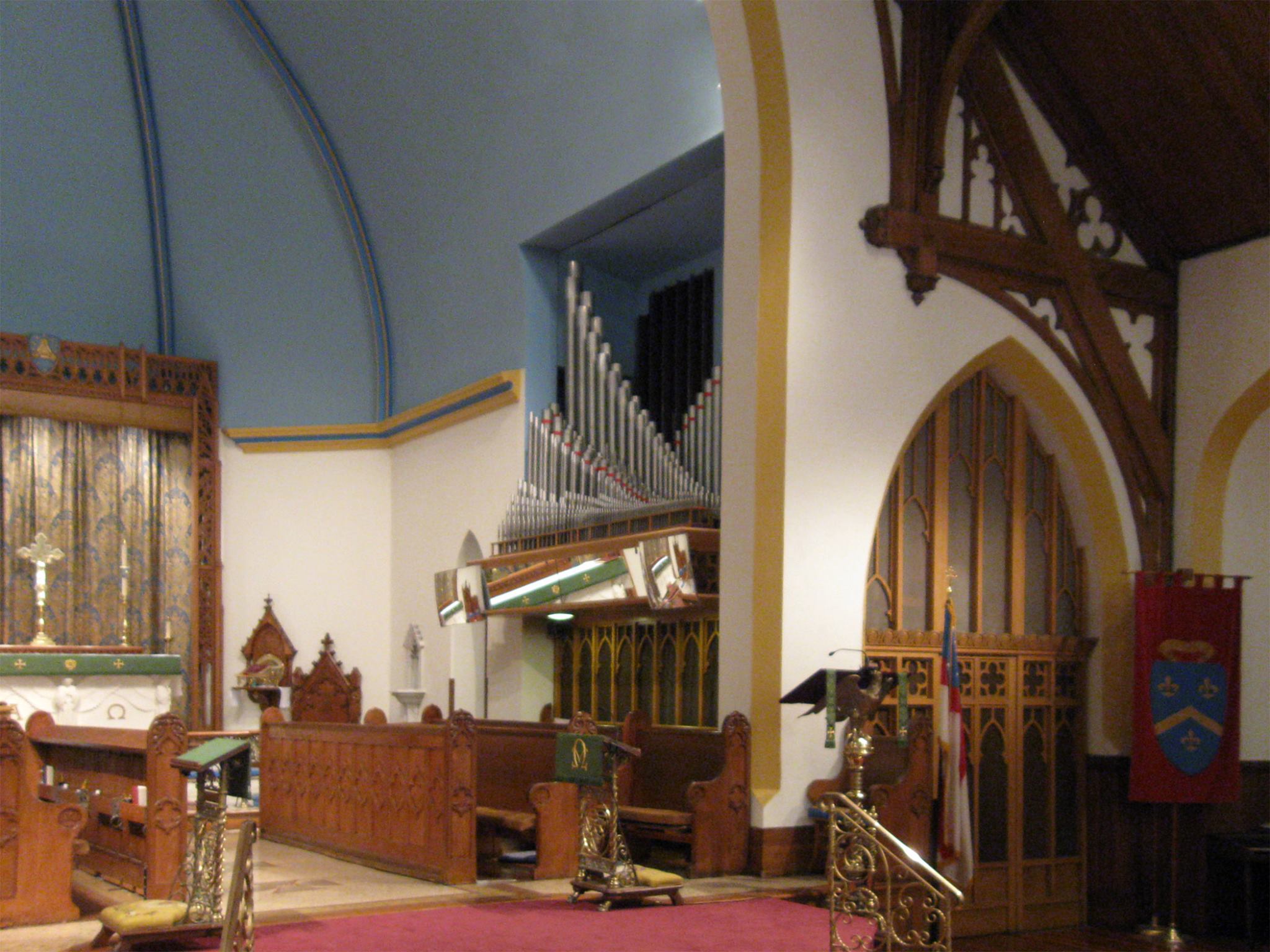

2013-07-09 - Organ chamber on right side of chancel with exposed Great pipework (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

ca. 2020 - Church exterior; facade (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
31 stops
39 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-05-03 - Identified through online information from Stanley R. Scheer. -- The organ is located on the Epistle side of the chancel, with the Great Organ cantilevered into the chancel. The console is located on the Gospel side. -Database Manager

2012-04-04 - Updated through online information from Richard Hugunine. -- During the year 2010, the organ has undergone a substantial refurbishing and expansion under the direction of Ronald C. Bishop, Organ Consultant/Technician. The work included repairing water damage that had occurred over the years, releathering, rebuilding the expression shutters on both the Choir and the Swell, rebuilding the chimes, and rebuilding the pedal board. In addition, a great many improvements were made in the control systems: the entire instrument was converted to state-of-the-art electronics, including a new combination action with 100 levels of memory, MIDI inputs, built-in record/playback system, transposer, and eight additional couplers. -Database Manager

2012-06-22 - Updated through online information from Richard Hugunine. -Database Manager

2020-11-03 - More work was done in 2018 according to the church website: "In 2018 the chancel was revised to make the originally fixed chancel pews removable; new chancel steps improved musical performance opportunities in the Nave, and the organ received significant attention. Under the direction of Timothy E. Smith, fifteen stops were moved or added, including a seven-stop Nave division to bolster congregational singing. A new [very compact Schlicker-style] three-manual console sits a top a rolled platform, allowing the organist to be seen during performance." The Nave division was installed on the right wall, facing the nave and around the corner from the main organ. -Jeff Scofield

Stoplist

Source: Stoplist courtesy of the Casavant Freres Archives Date not recorded

     Binghamton, New York
     Trinity Memorial Episcopal Church

     Casavant   Op. 2580   1960   3/37

     Courtesy of the Casavant Frères Archives
     St. Hyacinthe, Québec
     ___________________________________________________

    GREAT                                      CHOIR (Expressive)
16' Quintaton               61          8'     Gedeckt              61
8'  Principal               61          8'     Erzähler             61
8'  Chimney Flute           61          8'     Unda Maris    (GG)   54
8'  Quintaton               12          4'     Blockflöte           61
4'  Octave                  61          2 2/3' Nazard               61
4'  Spitzflöte              61          2'     Italian Principal    61
2'  Waldflöte               61          1 3/5' Tierce               61
IV  Fourniture             244          8'     Krummhorn            61
    Chimes                                     Tremulant
                                               Chimes         (Gt)  --

    SWELL (Expressive)                  Sub
8'  Nachthorn                61         Unison Off
8'  Viole de Gambe           61         Super
8'  Voix Celeste       (GG)  54
4'  Geigen Principal         61
4'  Koppelflöte              61                PEDAL
2'  Octavin                  61         16'    Contrabass           32
III Plein Jeu               183         16'    Bourdon              32
16' Fagot                    61         16'    Quintaton      (Gt)  --
8'  Trompette                61         8'     Principal            32
4'  Rohrschalmei             61         8'     Stopped Flute        12
    Tremulant                           8'     Quintaton      (Gt)  --
                                        4'     Choralbass           32
Sub                                     II     Quartan              64
Unison Off                              16'    Bombarde             32
Super                                   16'    Fagot          (Sw)  --
                                        8'     Trompette            12
                                        8'     Krummhorn      (Ch)  --
                                        4'     Krummhorn      (Ch)  --


[Received from Jeff Scofield May 9, 2015]

Websites

[Specifications - PDF document on church web site] - Stoplist (Check Internet Archive, archive.is)

Related Pipe Organ Database Entries

#69098 - Timothy Smith (2018)
