Trinity Episcopal Church
609 8th Ave.
Seattle, WA
Images

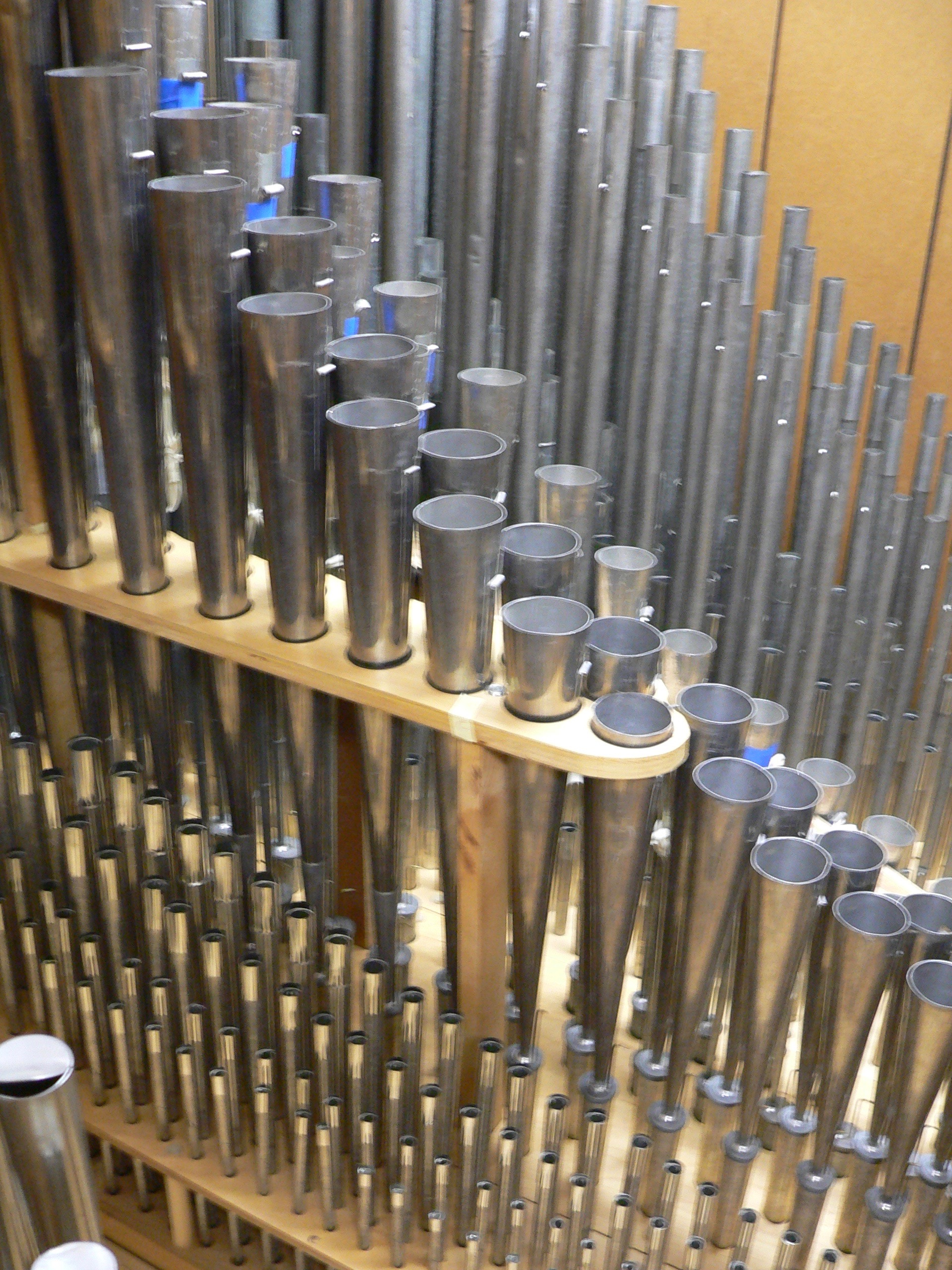

2022-02-24 - Swell pipework (Photograph by René A. Marceau/René A. Marceau)

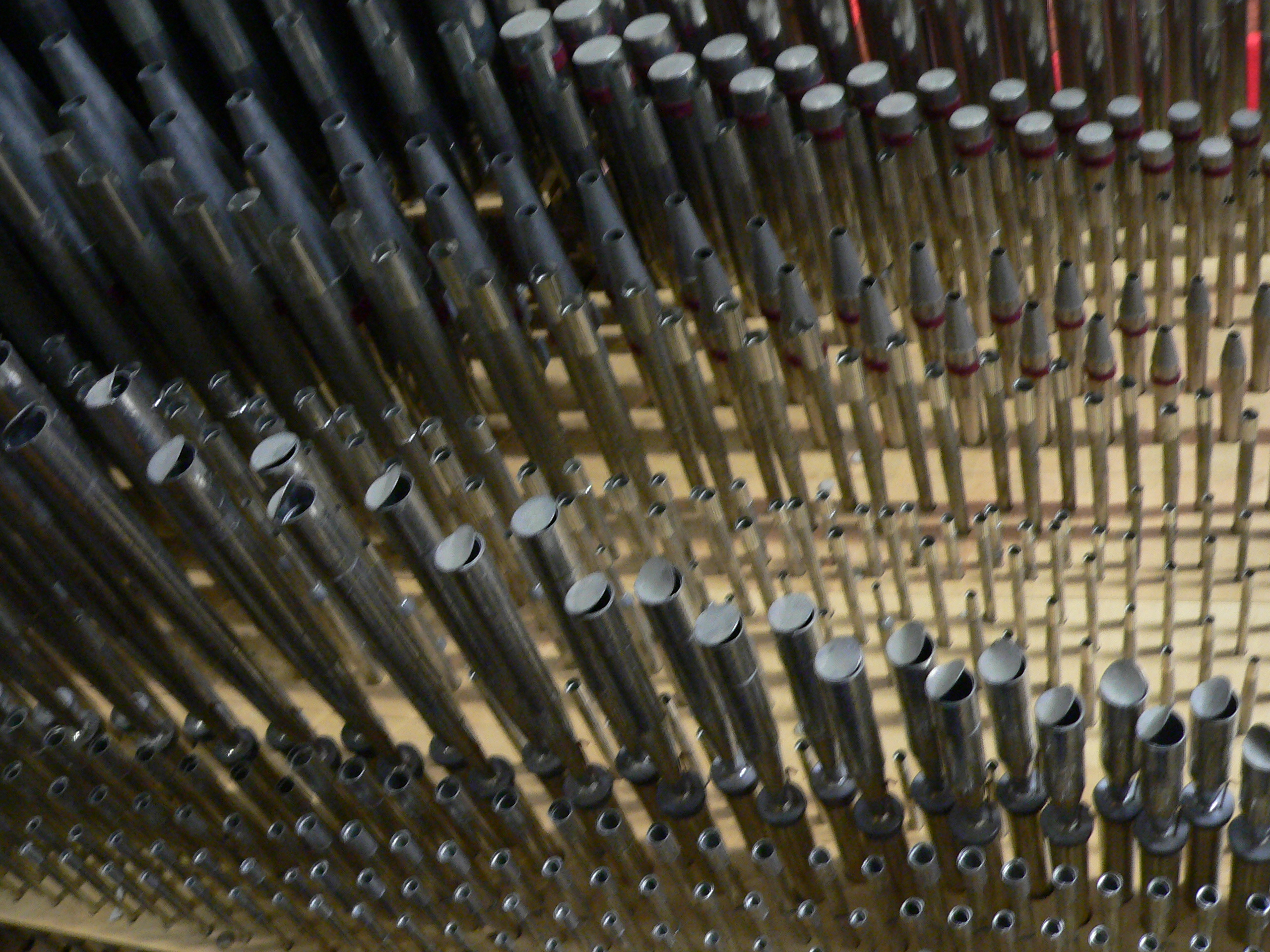

2022-02-24 - Positiv pipework (Photograph by René A. Marceau/René A. Marceau)

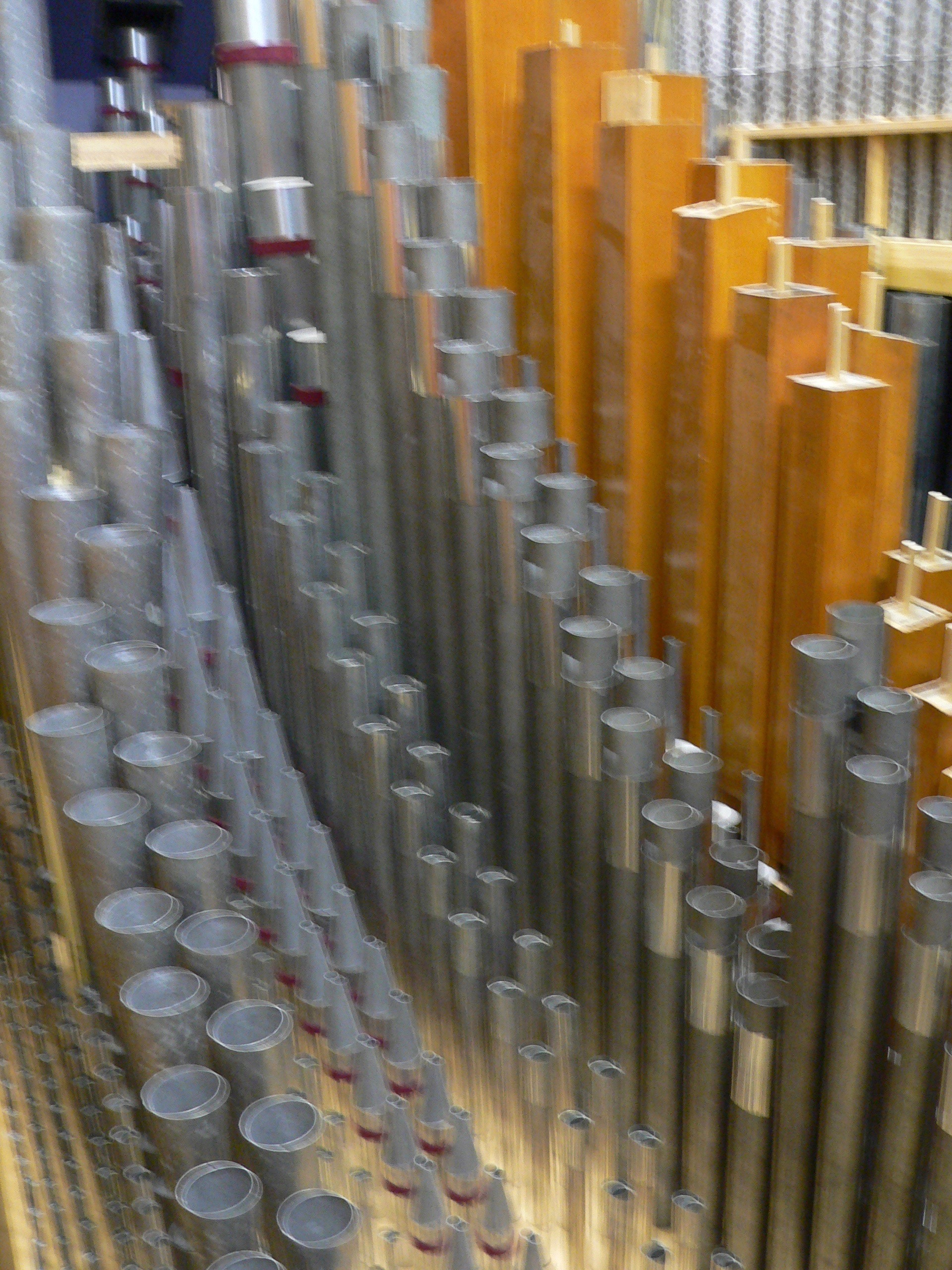

2022-02-24 - Great pipework (Photograph by René A. Marceau/René A. Marceau)

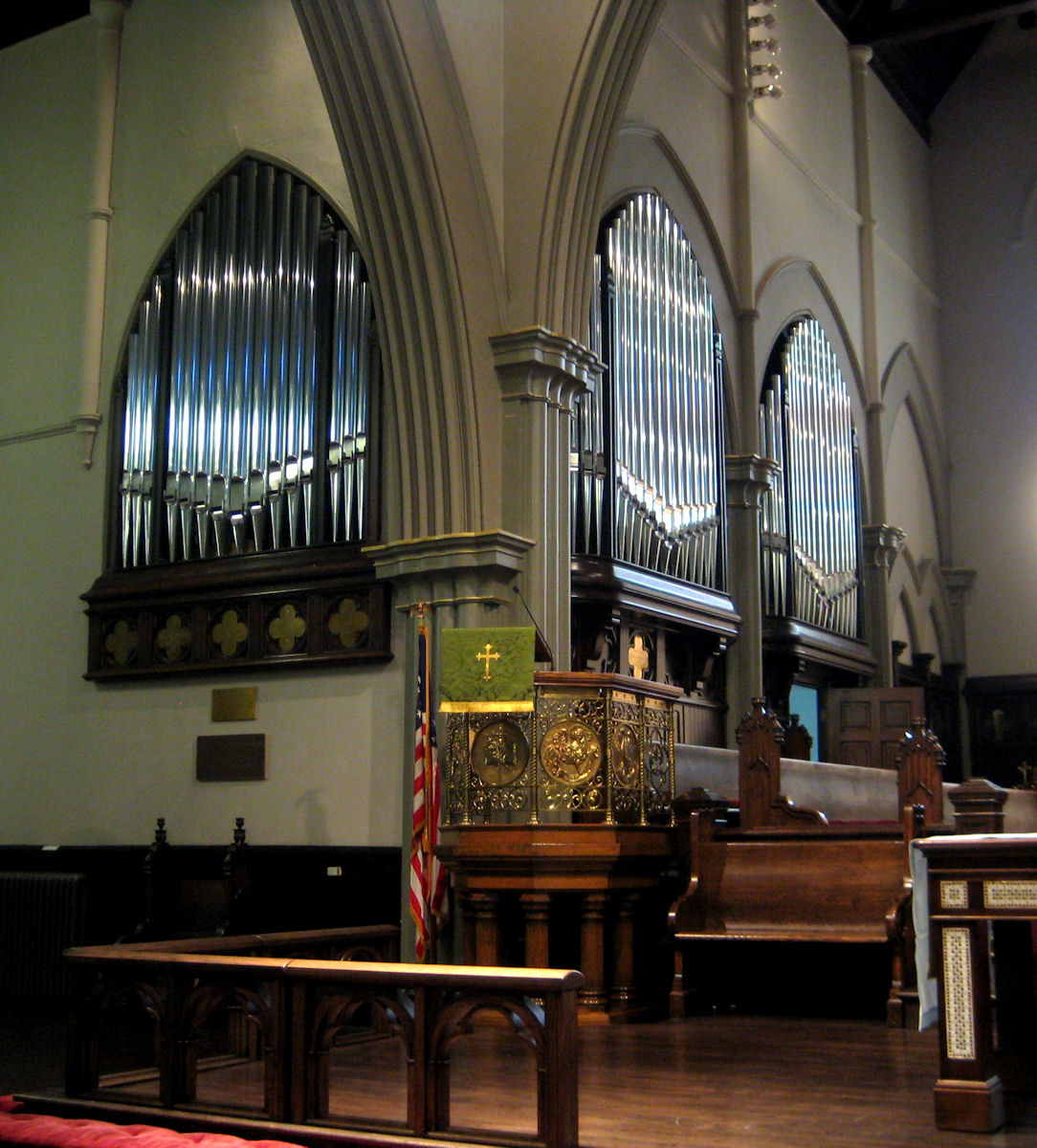

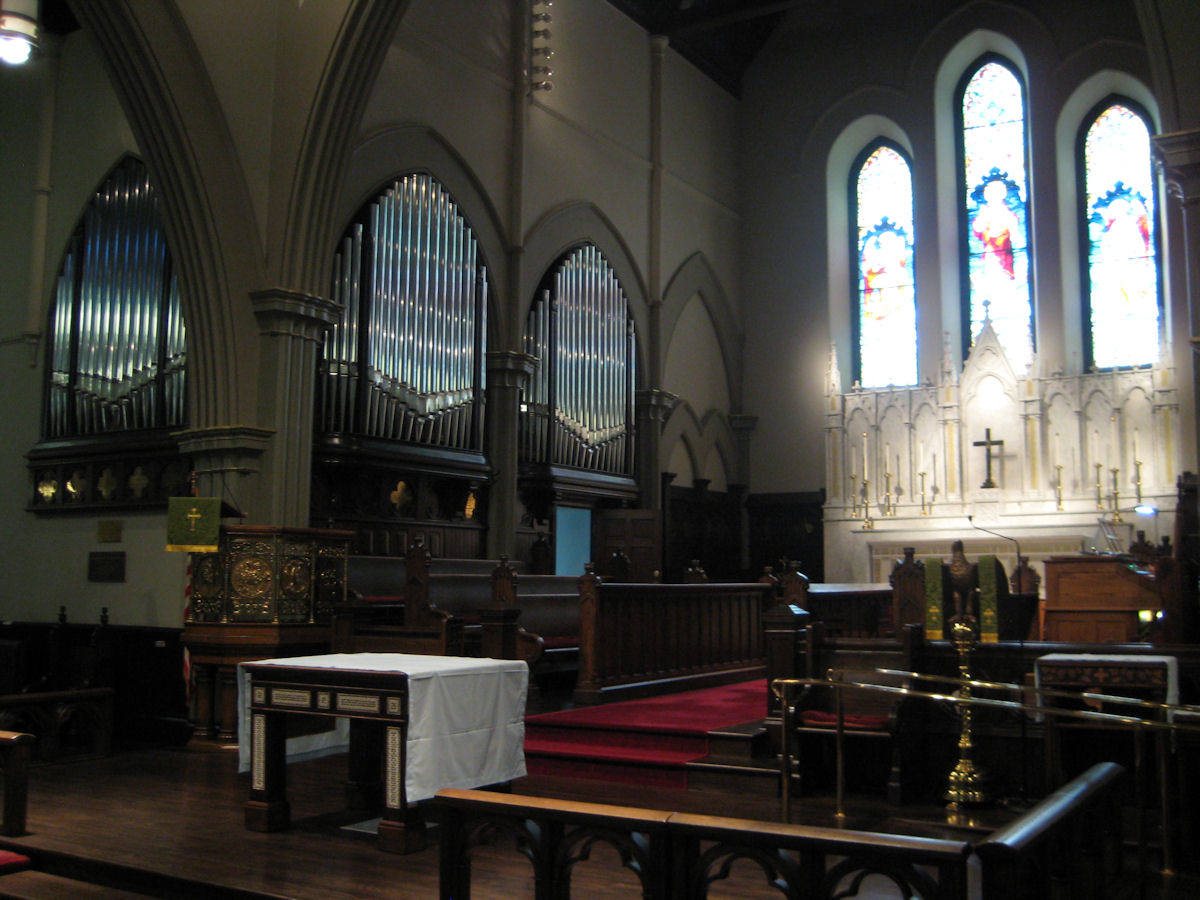

2010-08-11 - Crossing, sanctuary, and organ facades (Photograph by Michael Way/Database Manager)

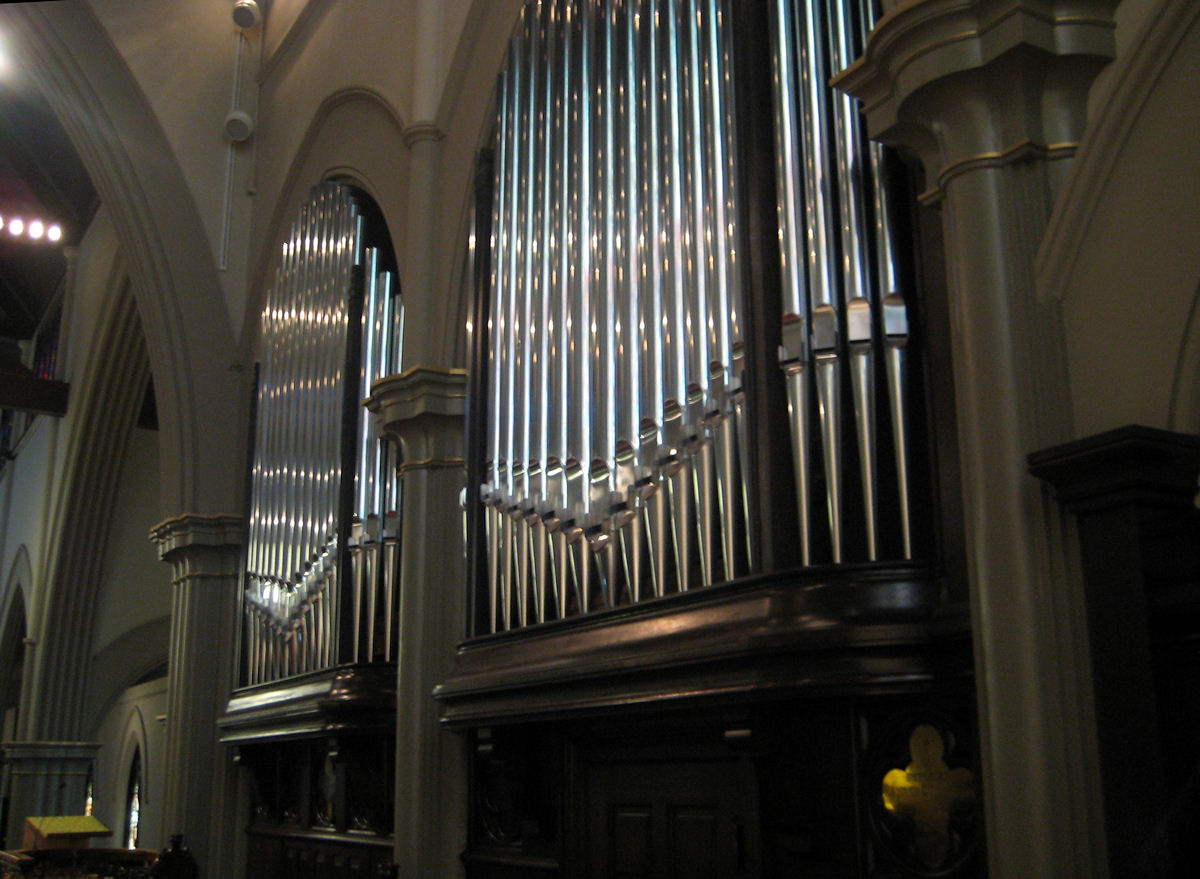

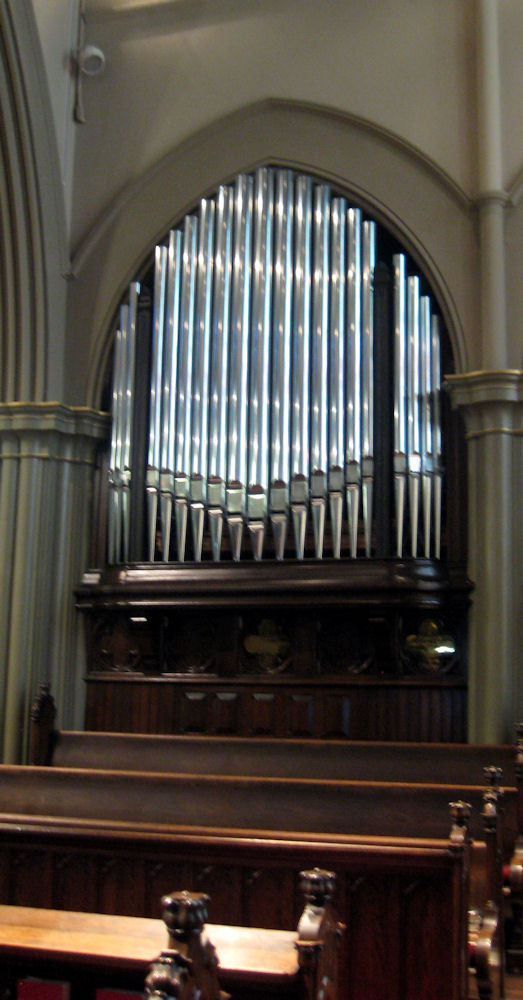

2010-08-11 - Organ facades (Photograph by Michael Way/Database Manager)

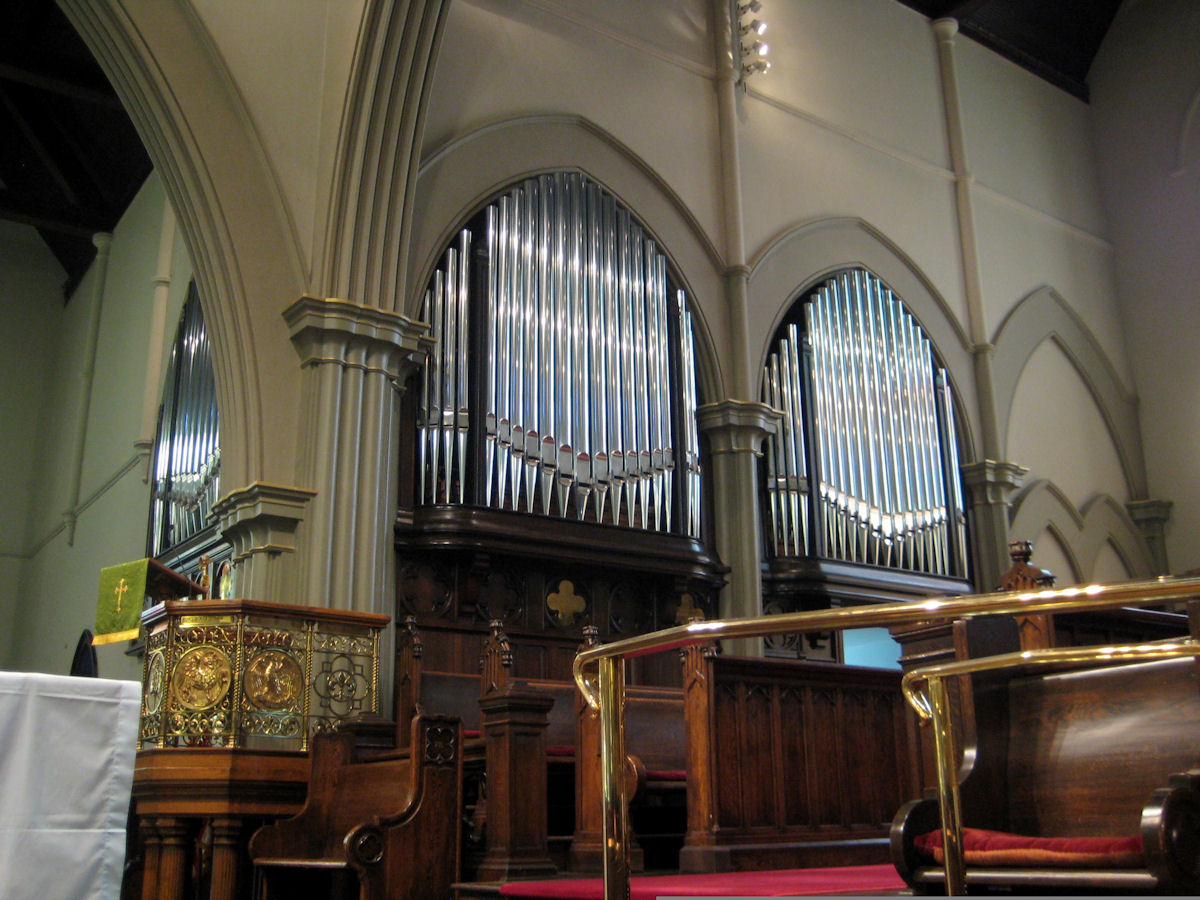

2010-08-11 - Sanctuary facades (Photograph by Michael Way/Database Manager)

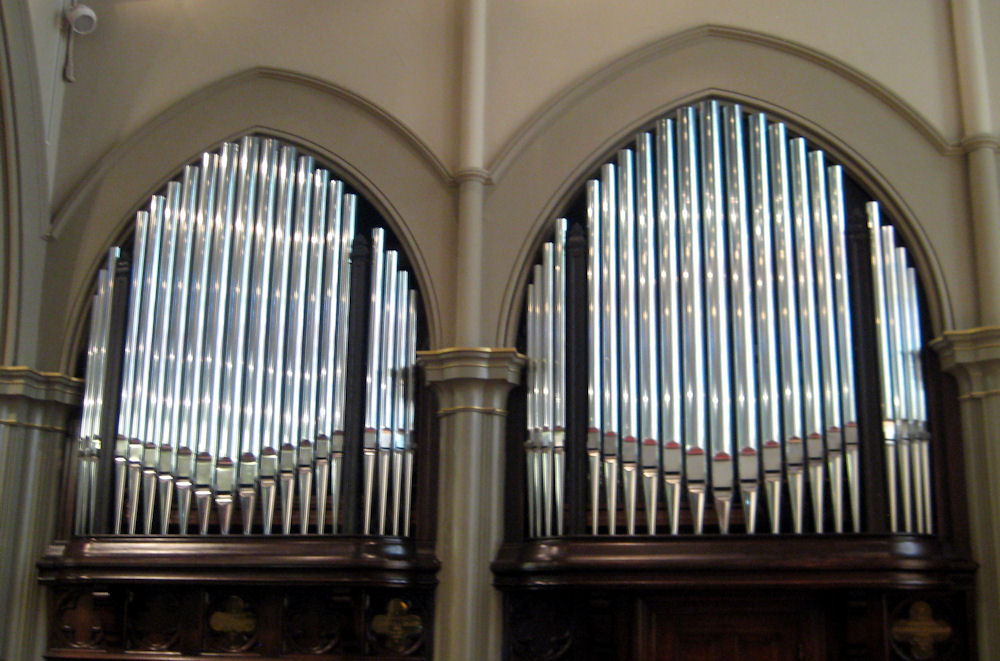

2010-08-11 - Sanctuary facades (Photograph by Michael Way/Database Manager)

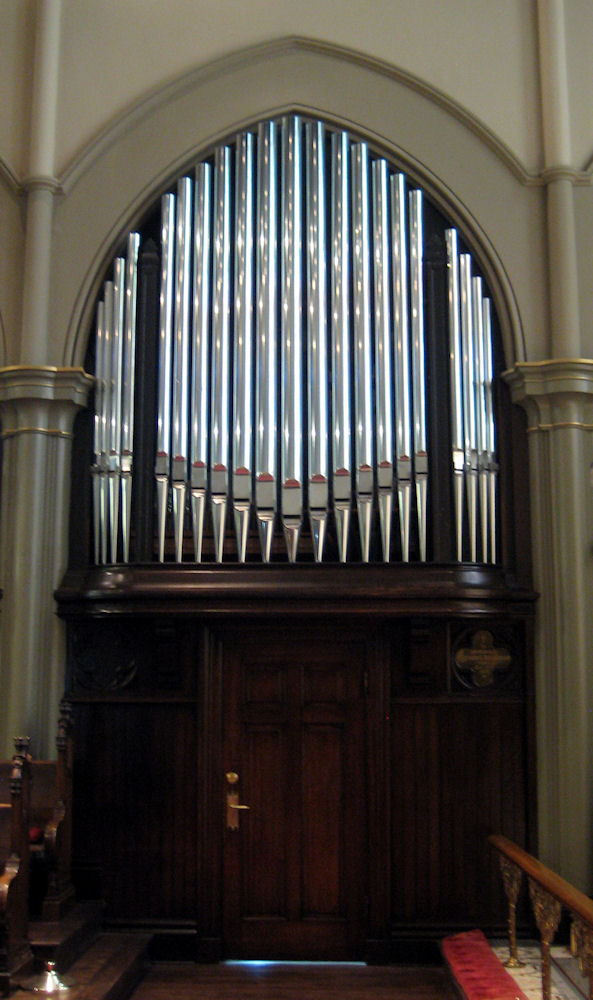

2010-08-11 - Rear (right) sanctuary facade (Photograph by Michael Way/Database Manager)
2010-08-11 - Forward (left) sanctuary facade (Photograph by Michael Way/Database Manager)
2010-08-11 - Sanctuary facades from altar (Photograph by Michael Way/Database Manager)

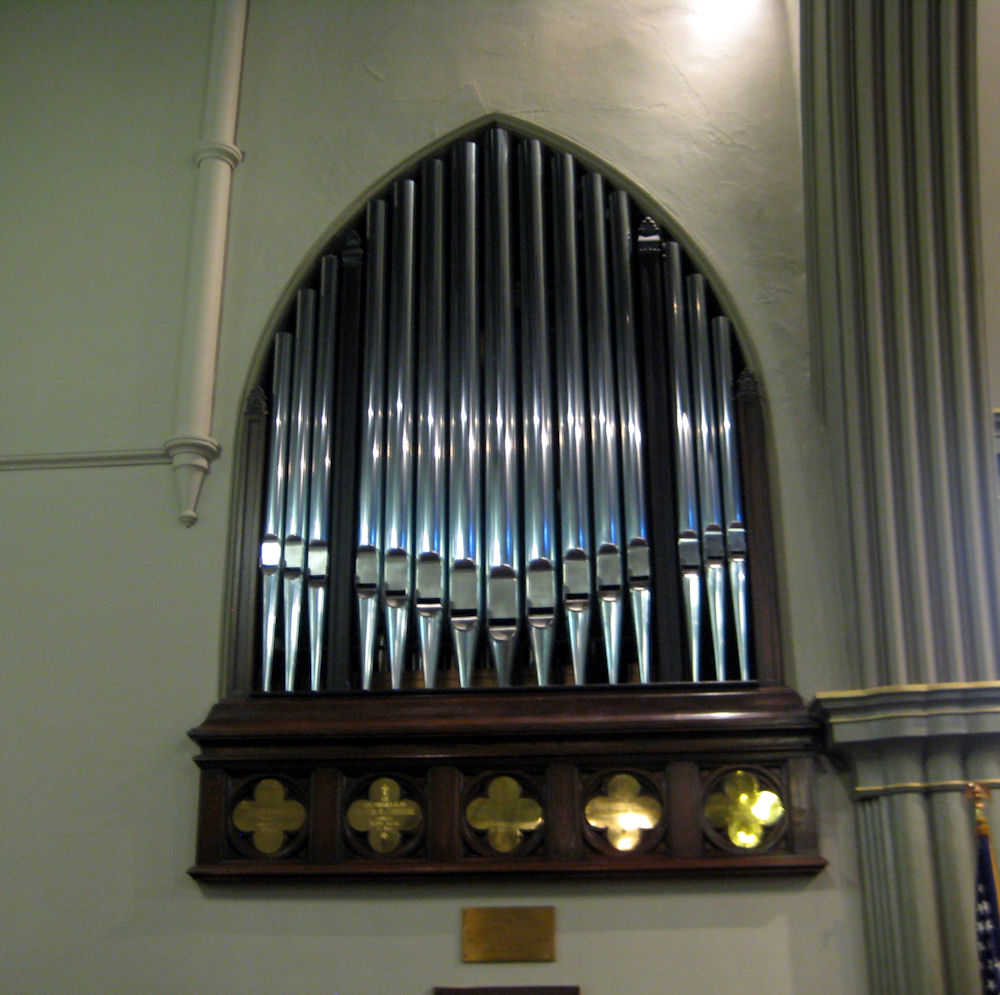

2010-08-11 - Nave/left transept facade (Photograph by Michael Way/Database Manager)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Console in Fixed Position, Right
- 3 manuals
- 41 stops
- 52 registers
- 4 divisions
- Key action Type: Mechanical (Balanced Tracker)
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
Notes
2007-05-06 - Identified through online information from James R. Stettner. -- This was the second phase of Opus IV. It was waylaid for a number of years due to the February 28, 2001 Nisqually earthquake, which damaged Trinity Episcopal. The damage was severe enough that the building had to be closed for a number of years and given an earthquake retro-fit. The congregation met in the Parish Hall during these years. When the church re-opened, the organ was completed and substantially enlarged from the previous 33 ranks to the present 56 ranks. The new slider chests were installed. And a new facade that strongly resemble the original Kimball facade was installed. -Database Manager
2009-12-16 - Updated through online information from Sean M. Haley. -Database Manager
2012-09-15 - Updated through online information from Jim Van Horn. -Database Manager
Stoplist
From 2006 AIO convention brochure Source: Source not recorded Date not recorded
Trinity Parish Church, Seattle, WA
Kimball Organ Company (1906)
Balcom & Vaughan (1978)
Marceau & Associates (1989, 1996, 2006)
Great:
16' Pommer (low 12 Sw.)
8' Prinzipal
8' Rohrflute
8' Flute Harmonique (ten. c)
4' Oktave
4' Koppelflute
2' Super Oktave
2 2/3' Cornet III (mounted)
1 1/3' Mixture III-V
8' Trompete
Positiv:
8' Prinzipal
8' Gedackt
8' Gemshorn
8' Gemshorn Celeste (tenor c)
4' Spitzoktave
4' Spillflute
2 2/3' Sesquialtera II (full compass)
2' Oktave
2' Lochgedackt
1 1/3' Larigot
1' Cymbel IV
8' Krummhorn
Swell:
16' Lieblich Gedackt
8' Holzgedackt (extension)
8' Salizional
8' Voix Celeste (ten. c)
4' Prinzipal
4' Nachthorn
2 2/3' Nasat
2' Waldflute
1 3/5' Terz
2' Fourniture III-IV
16' Fagott (extension)
8' Trompette
8' Oboe
8' Fagott
4' Hautbois (extension)
Pedal:
32' Untersatz (digital extension)
16' Prinzipalbass
16' Subbass
16' Lieblich Gedackt (Sw.)
8' Octavebass
8' Openbass (extension)
8' Gedecktbass (extension)
8' Holzgedackt (Sw.)
4' Choralbass
2 2/3' Mixture III
32' Contra Posaune (digital extension)
16' Posaune
16' Fagott (Sw.)
8' Trompete (extension)
4' Clarion
[Received from Connor Annable 2012-01-09.]
